Telescopic Boom Gate

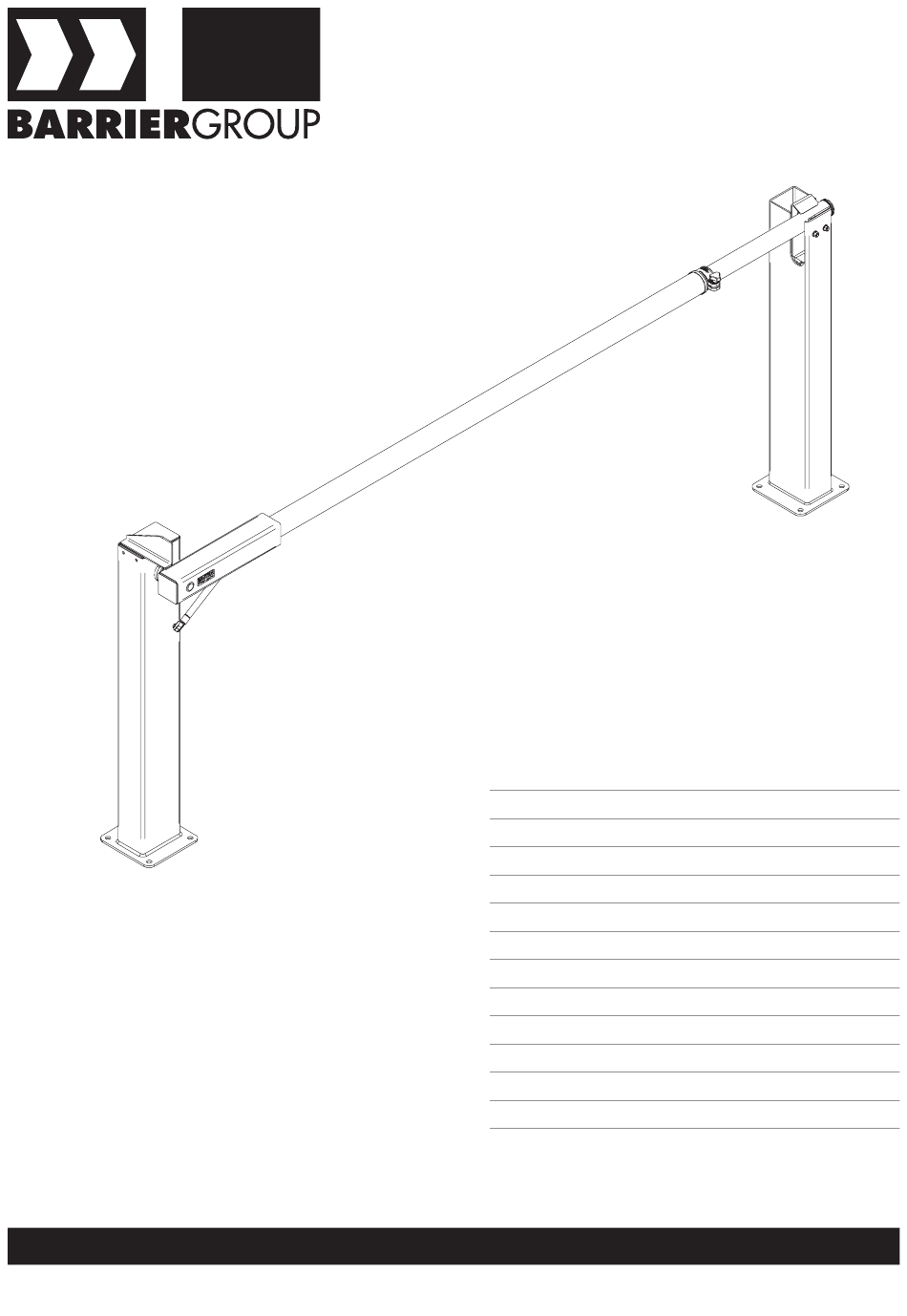

The TBG3800 is a strut assisted light boom gate designed
for applications where there is restricted overhead space
to accommodate a fixed length boom, or insufficient room
for a swing gate. The telescopic boom can be locked off at
a fixed length if the available height allows or retracted as
the boom is raised. The gate can be used to span openings
from 2.3 to 3.8 metres.
Installation Procedure
Models: TBG3800
IP56_Installation Procedure - Telescopic Boom Gate
TELESCOPIC
BOOM GATE
Description:
Telescopic light boom gate
Operation:
Manual lift with gas strut assistance
Construction:
Steel posts with aluminium rails
Gate Swing:
90 degrees vertical
Gate Stop:
Built-in
Receiver Post:
Included (optional wall mount receiver)
Max Opening:
3825mm
Min Opening:
2335mm
Mounting Type: Surface mounted posts
Rail Type:
Aluminium telescopic 50dia. inner 63 dia. outer
Rail Height:
940mm to the centre of the rail
O/H Clearance
3450mm
Finish:
Powder coated safety yellow
© Copyright 2019
www.barriergroup.com.au
Advertisement
Table of Contents
Related Manuals for barrier TBG3800
Summary of Contents for barrier TBG3800
- Page 1 Max Opening: 3825mm Telescopic Boom Gate Min Opening: 2335mm The TBG3800 is a strut assisted light boom gate designed Mounting Type: Surface mounted posts for applications where there is restricted overhead space Rail Type: Aluminium telescopic 50dia. inner 63 dia. outer...
- Page 2 2500mm 2000mm CLEAR OPENING 2325mm 2650mm Min opening CLEAR OPENING 3875mm 4200mm Max opening IP56_Installation Procedure - Telescopic Boom Gate © Copyright 2019 www.barriergroup.com.au...
- Page 3 STEP 1: Mounting the post in position to suit desired opening Maximum and Minimum opening spacing as shown on previous page. Drill the mounting holes using the posts as a guide and bolt them into in place with appropriate fixings to ensure they are securely mounted.
- Page 4 NOTE: No guarantee will be given or responsibility accepted by the manufacturers if the gate assistance unit to lose tension over time. Adjustment may be required. is not installed as instructed. Barrier Group do not warrant the work of 3rd party contractors. BEFORE YOU START 1.
