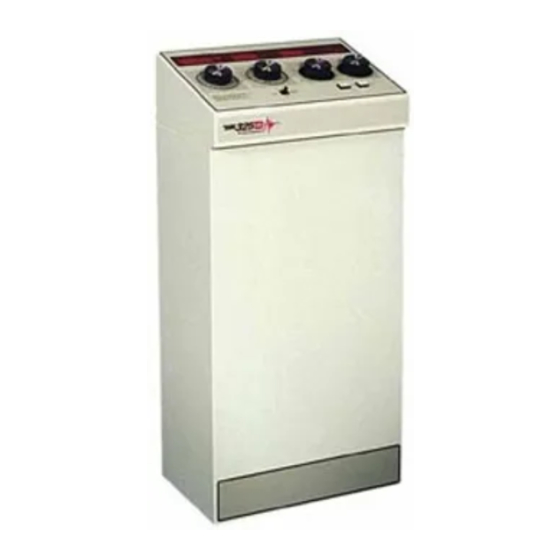

TXR 325M Installation Manual

Standard frequency series generators
Hide thumbs Also See for 325M:
Table of Contents

Advertisement

Quick Links

MEDICAL SYSTEMS
Technical Publication
M-2008-7-13
.
Installation Manual
STANDARD FREQUENCY SERIES GENERATORS
Contents: Models
TXR 325D
TXR 325M
TXR 425
TXR 525SFQ

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 325M and is the answer not in the manual?

Questions and answers

Related Manuals for TXR 325M

Summary of Contents for TXR 325M

  • Page 1 MEDICAL SYSTEMS Technical Publication M-2008-7-13 Installation Manual STANDARD FREQUENCY SERIES GENERATORS Contents: Models TXR 325D TXR 325M TXR 425 TXR 525SFQ...
  • Page 3 ¡ IMPORTANTE ! ... Protección ante los rayos-X LOS EQUIPOS DE RAYOS-X SON PELIGROSOS PARA EL PACIENTE Y EL OPERADOR A MENOS QUE LAS MEDIDAS DE PROTECCION SEAN ESTRICTAMENTE OBSERVADAS Si el equipo de rayos-X no se usa adecuadamente, puede causar lesiones. Por este motivo, las instrucciones aquí...
  • Page 4 DECLARACION AMBIENTAL SOBRE LA VIDA UTIL DEL EQUIPO O SISTEMA Este equipo o sistema contiene componentes y materiales peligrosos para el medioambiente (tales como tarjetas de circuito impreso, componentes electrónicos, aceite dieléctrico usado, plomo, baterías, etc), los cuales se consideran y son residuos peligrosos al finalizar la vida útil del equipo o sistema, según establecen las normas internacionales, nacionales y locales.
  • Page 5 April 5, 2006 General Revision July 13, 2008 Added TXR 425 Model Designation This document is the English original version, edited and supplied by the manufacturer. All Copy including Advisory Symbols: Type Style Aerial. The state of revision of this Document is indicated in the code number shown at the bottom of this page.
  • Page 6 Standard Frequency Series Generators Installation SAFETY SYMBOLS The following safety symbols will be used in the equipment. Their meaning are described below. Attention, consult accompanying documents. Ionizing radiation. Type B equipment. Dangerous voltage. Ground. This symbol indicates that the waste of electrical and electronic equipment must not be disposed as unsorted municipal waste and must be collected separately.

  • Page 7: Table Of Contents

    Standard Frequency Series Generators Installation TABLE OF CONTENTS Section Page COMPONENT LOCATION ..................viii 1 INTRODUCTION ....................1 1.1 Tools and Test Equipment ................1 1.2 Pre-Installation Check................1 UNPACKING AND INSTALLATION ..............2 2.1 Standard Frequency – Line Powered .............2-3 3 CABLE CONNECTIONS ...................4 3.1 Cable Routing Inside Console ..............4 3.2 Power Line Connections ................4 3.2.1 Standard Frequency –...
  • Page 8 Standard Frequency Series Generators Installation 4.3.7 X-ray Beam Quality and Alignment Procedures ......15 5 CALIBRATING THE X-RAY CONTROL ............16 5.1 Adjusting the Timer ..................16 5.2 Adjusting the Miliampere Stations ............16 5.2.1 MA / MAS Calibration Procedure ..........16 5.2.2 MA Stabilizer Output Adjustment ..........16 5.3 Testing and Calibrating KVP ..............16 5.3.1 KVP Calibration Procedure .............16-17 5.4 Space Charge Compensation..............17...
  • Page 9 Standard Frequency Series Generators Installation 7.1.7 Adjusting Light Field to Smaller Size ...........22 7.1.8 Adjusting Light Field to Larger Size ..........22 7.1.9 Confirming Settings and Adjustments ........22 7.1.10 Re-Installing Heat Shield and Cover .........22 7.2 Cross Hair Window Adjustment ..............23 7.2.1 Removing Spacers ...............23 7.2.2 Loosen Plastic Window ..............23 7.2.3 Align Window to Test Pattern ............23 7.2.4 Re-install Collimator Covers ............23...
  • Page 10 10.2 ANODE HEAT STORAGE RATINGS ............50 10.2.1 Seasoning X-ray Tube ..............50 10.3 TUBE CHARTS ..................51-53 10.4 TUBE LIMIT SOFTWARE – TXR-325D ...........54 10.5 TUBE LIMIT SELECTION TABLE............55 10.6 TUBE LIMIT CHART – RAD 8 ..............55 10.7 TUBE LIMIT CHART – RAD 74 ...............56 10.8 LOAD LINE CHART 57 ................57...
  • Page 11 14.5 HIGH VOLTAGE DIODE BOARD ............70 14.6 TIMER – T-7776CX .................71 14.7 TIMER – T-7776A ..................72 14.8 TXR 325-1 AND TXR 625-1 HV TRANSFORMER ........73 14.9 THERMAL AND MA CALIBRATION BOARD INTERCONNECTS ... 74 14.10 KVP METER ADJUSTMENTS ..............75 15 DATA ........................76 15.1 INSTALLATION DATA ................76...

  • Page 12: Component Location

    viii Standard Frequency Series Generators Installation COMPONENT LOCATION KVP Meter Slope Adjustment KVP Meter Blanking Adjustment KVP Meter MA Meter MAS/Error Display Ready/Expose Lamps MA Selector KVP Major Switch Time Selector KVP Minor Switch Prep Switch Earth Ground Bucky Switch Exposure Switch Power On/Off Switch KVP Meter Compensation Adjustments...

  • Page 13: Introduction

    Standard Frequency Series Generators Installation SECTION 1 INTRODUCTION The installation process depends on generator and system configuration. Installation must be performed in the following order. Perform only the sections required to install the unit. Section 6-8 has been provided with minimal changes from Progeny. Progeny and Eureka are registered trademarks owned by Progeny. 1.1 TOOLS AND TEST EQUIPMENT The following hand tools and products are required for the installation.

  • Page 14: Unpacking And Installation

    Standard Frequency Series Generators Installation SECTION 2 UNPACKING AND INSTALLATION The generator and operators console is placed in individual padded wrap and corrugated boxes. Both corrugated boxes are placed into wooden crates and shipped. Upon receipt of the X-ray unit and associated equipment, inspect all shipping containers for signs of damage. If damage is found, notify the carrier or his agent immediately.
  • Page 15 Standard Frequency Series Generators Installation 7. Remove the shipping platform (plywood) from the bottom of the X-ray Console and verify that all internal wiring is secure. 8. Check the part numbers and serial numbers of each component with its identification labels, and inspect all pieces for visible damage. If any damaged parts are found, repair or order replacements to prevent unnecessary delay in installation. 9. Usually the Control and Transformer are freestanding. Seismic areas and other conditions require fastening the Generator Cabinet to the floor. Mounting holes are provided on the bottom of the Console.

  • Page 16: Standard Frequency - Line Powered

    Standard Frequency Series Generators Installation SECTION 3 CABLE CONNECTIONS This section provides the information necessary to connect the generator cables with the system and options. FOR MORE INFORMATION ABOUT ELECTRICAL REQUIREMENTS AND CABLE CONNECTIONS, REFER TO “PRE-INSTALLATION” DOCUMENT AND BECOME FAMILIAR WITH THIS SECTION 3.

  • Page 17: Hv Transformer Connection

    Standard Frequency Series Generators Installation 1. Verify that the power supply line is “OFF” in the Room Electrical Cabinet. 2. The power supply line should be according to the generator model defined in the “Pre-Installation” document. Also, feeder wire sizes are indicated in the same document relative to the power supply line and the wire length. Verify that power line voltage and phase of the Generator coincides with the one in Room Electrical Cabinet.

  • Page 18: X-Ray Tube Connections

    Standard Frequency Series Generators Installation HV X-RAY TUBE CONNECTIONS 3.4.1 HIGH VOLTAGE CABLES The Terminal Pins of the High Voltage cables are extremely delicate and easily damaged. Take particular care to handle them carefully. Make sure that they are straight and that the splits in the pins are open (parallel to sides).

  • Page 19: Anode Starter

    Standard Frequency Series Generators Installation FANS Wires from fans should be routed with the Stator Cable and connected to the indicated terminal of the control cabinet. Depending on the x-ray tube, the fans are powered at 115 VAC or 220 VAC. Make the following connections to select the fan voltage.

  • Page 20: Interconnection Cables

    Cabinet as indicated in Table 3-1 and Illustration 3-2 below. Table 3-1 INTERCONNECT WIRING CHART CONTROL LINE BOX POWER REQUIRED CIRCUIT BREAKER SIZE TXR 325D & M, TXR 425 80 amp single phase 240 VAC nominal TXR 525 SFQ 240 VAC 100 amp single phase nominal Earth Ground...
  • Page 21 Standard Frequency Series Generators Installation Illustration 3-2 Interconnection Wiring ADD EARTH GROUNDING BETWEEN ALL DEVICES: MINIMUM WIRE SIZE 10 AWG. WIRE COLOR: GREEN WITH YELLOW STRIPE. (Pinch Point) Use Care: When Opening And Closing The Hinged Console. Keep Hands And Fingers Clear From The Sides And Rear. M-2008-7-13...

  • Page 22: Collimator Error Signal

    Standard Frequency Series Generators Installation 3.6.1 COLLIMATOR ERROR SIGNAL (OPTIONAL) This option can be wired into the x-ray console. For systems using an Automatic Collimator, the x-ray exposure can be inhibited due to a collimator error. This signal can be used only for one Automatic Collimator in the System.

  • Page 23: Final Installations And Checks

    Standard Frequency Series Generators Installation SECTION 4 FINAL INSTALLATION AND CHECKS 4.1 HV TRANSFORMER Place High Voltage Transformer into its designated place as indicated in the floor plan. The HV Transformer contains “Shell Diala” or equivalent insulating oil which expands or contracts per elevation or temperature change. After final leveling, check that there is not oil leakage or overfill. If there is, check that the oil level is approximately 20 mm (3/4”) of the top surface of the HV Transformer. If there is overfill, use a syringe to remove the excess oil. If oil is needed use the above type oil or equivalent type oil to bring the oil level up to the approximate level indicated above.

  • Page 24: Checks For Installing X-Ray Systems

    Standard Frequency Series Generators Installation 4.3 CHECKS FOR INSTALLING X-RAY SYSTEMS Previous instructions included all relevant information for interconnecting the X-ray Control with devices such as: The HV Transformer, Tube Stand, X-ray Tube, Collimator, X-ray Table, Wall Stands and Buckys. Installation and Testing Procedures in this section establishes and ensures orderly installations and Insures Radiation Safety for the assembler, operator and patient.

  • Page 25: Fastening X-Ray Tube To The Tubemount

    Standard Frequency Series Generators Installation 4.3.2 FASTENING THE X-RAY TUBE TO THE TUBEMOUNT Using appropriate collimator spacers, mounting plate and bolts, fasten the x-ray tube to the tubemount. (First time installers see complete information provided in the collimator section.) MAKE SURE THAT STATOR WIRES ARE PROPERLY CONNECTED. IF LEADS ARE NOT PROPERLY CONNECTED STATOR WILL INCORRECTLY ROTATE CLOCKWISE AND THE ROTOR CONTROL ROTATION SENSING CIRCUITS WILL NOT ALLOW A READY SIGNAL.

  • Page 26: Skin Guard Installation

    Standard Frequency Series Generators Installation 4.3.4 SKIN GUARD INSTALLATION (OPTIONAL) NOTE: Refer to Figure 2.2 Skin Guard Kits are optional and must be purchased separately from the collimator. 1. Remove the Front Cover Bezel, then the Left and Right Side Covers by removing the six (6) 6-32 screws which keep them in place. 2. Mount the two (2) Skin Guard Rails to the Left and Right Side Covers using the four (4) screws provided in the Skin Guard Kit. 3. Reattach the Left and Right Side Covers, then the Front Cover Bezel. After assembly, test the field lamp timer for proper operation.

  • Page 27: Setting The Line Straps

    Standard Frequency Series Generators Installation 4.3.5 SETTING THE LINE STRAPS Matching the autotransformer to the incoming line is accomplished with two line straps, one on the Major KVP Selector Switch and one on the Minor KVP Selector Switch. All nine major voltages, 100 through 260, from the autotransformer are considered positive numbers.

  • Page 28: Calibrating The X-Ray Control

    5.2 ADJUSTING THE MILLIAMPERE STATIONS Model TXR 325 D, TXR 325M, TXR 425 or 525 SFQ X-Ray Control with High Voltage Generator is shipped from the factory tested and calibrated. However, since Line Voltages, which affects KVP, and High Tension Cable lengths, which affects MA/MAS varies, the assembler must recalibrate all x-ray controls that are installed.

  • Page 29: Space Charge Compensation

    Standard Frequency Series Generators Installation 4. Select 150 mA at 80 kVp. Take an exposure. Measure kVp at the tube. Adjust the 150 band on the KVP Meter Compensation Resistor until the Console KVP Display matches the output at the tube. 5.

  • Page 30: Radiation Safety

    Standard Frequency Series Generators Installation SECTION 6 RADIATION SAFETY 6.0 REQUIREMENTS. Before attempting activities that require observation, testing, validating and documenting the results of such testing, become thoroughly informed to the danger of being exposed to x-radiation. You are to comply with all Safety Statements issued throughout this Manual.

  • Page 31: Collimator Operational Check Out Procedure

    Standard Frequency Series Generators Installation COLLIMATOR OPERATIONAL CHECK OUT PROCEDURE After the Collimator, Power Chassis and cabling have been installed, apply 24 VAC power and observe the face plate of the collimator. 6.1.1 Push the LAMP button and check that the light field lamp remains on for approximately 25 seconds. 6.1.2 While the field lamp is on, be sure the light field can be collimated to required size with the control knobs. LIGHT FIELD / X-RAY FIELD CONGRUENCE TEST The following operational check is performed with the collimator located in a single fixed position above a test pattern located on the table top.

  • Page 32: Centering Cassette To Light Field

    Standard Frequency Series Generators Installation 6.2.4 Locate a cassette on the table-top and accurately center the cassette to the light-field. 6.2.5 Manually reduce the size of the X-ray field to the next smaller film size. 6.2.6 Identify the light-field edges and carefully mark the edges by placing the metal markers as illustrated in Figure 6.1. 6.2.7 Expose the film to a density of 1.0 and develop. 6.2.8 Carefully identify the X-ray field edges and measure the difference between the X-ray field edges and light-field edges. 6.2.9 The sum of the long axis difference (X1 + X2) shall not exceed 2% of the SID, and the sum of the cross axis difference shall not exceed 2% of the SID. 6.2.10 If errors exceed those shown in Figure 6.1 below, refer to Section 7.0, ADJUSTMENT AND ALIGNMENT PROCEDURES. LIGHT FIELD / X-RAY FIELD CONGRUENCE TEST FIGURE 6.1 M-2008-7-13...

  • Page 33: Ray Light Field / X-Ray Beam Adjustments

    Standard Frequency Series Generators Installation SECTION 7 X-RAY LIGHT FIELD / X-RAY BEAM ADJUSTMENTS CROSS-HAIR WINDOW ADJUSTMENT FIGURE 2.1 M-2008-7-13...

  • Page 34: Adjustment And Alignment Procedures

    Standard Frequency Series Generators Installation ADJUSTMENT AND ALIGNMENT PROCEDURES FIELD PROJECTION LAMP AND MIRROR ADJUSTMENT This procedure must be performed when the field projection lamp is altered from it’s original position or replaced. This test must also be performed if the original mirror angle has been altered and if any edge of the developed X-ray image is outside of the 30.5 cm x 30.5 cm @ 100 cm tolerance marks as defined in Step 6.2.

  • Page 35: Cross Hair Window Adjustment

    Standard Frequency Series Generators Installation CROSS HAIR WINDOW ADJUSTMENT This procedure is to be performed if the cross hair shadows are not centered to the light field (Reference Figure 2.1). 7.2.1 Remove the spacer and the entire collimator enclosure. 7.2.2 Loosen the screws securing the plastic window. 7.2.3 Move the plastic window to align and center the cross hair pattern to the light field (center lines on the test pattern). 7.2.4 Tighten the screws and reassemble the collimator covers. BUCKY CENTERING LIGHT- LINE ADJUSTMENT If the collimator is equipped with a Bucky Light-Line Prism: 7.3.1 This procedure is to be performed if the centering light-line is not centered to the correctly...
  • Page 36 Standard Frequency Series Generators Installation If the collimator is equipped with a Bucky Light-Line Laser: THE LAMP AND HEAT DEFLECTORS MAY BE HOT ENOUGH TO CAUSE SEVERE BURNS. DO NOT TOUCH ANY OBJECT IN THE LAMP AREA WITH BARE SKIN THE INTENSITY OF LIGHT OUTPUT IS SUFFICIENT TO TEMPORARILY IMPAIR YOUR VISION IF ALLOWED TO ENTER THE EYES DIRECTLY.
  • Page 37 Standard Frequency Series Generators Installation Laser Bucky line Projections Figure 2.2 Reference View of Laser Parts M-2008-7-13...

  • Page 38: Long And Cross Shutter Adjustment

    Standard Frequency Series Generators Installation LONG AND CROSS SHUTTER FIELD SIZE INDICATOR ADJUSTMENT The field size indicator dials are factory calibrated and should not require adjustment. If it becomes necessary to readjust, follow the procedure below: 7.4.1 Disconnect the collimator power. Remove the knobs by loosening the set screws holding them in place. Using a long allen wrench, the set screws on the hubs of the two dial indicators can be loosened, making adjustment possible.
  • Page 39 Standard Frequency Series Generators Installation Cover Removed Mirror Retractor Adjustment Longitudinal Alignment Lamp/Lightfield Adjustment CROSS ALIGNMENT LONGITUDINAL ALIGNMENT 1. Adjust two #6-32 screws for Light- 1. Slightly loosen the two #6-32 field alignment. screws 2. (Option) Add Loctite to set in 2. Position lamp bracket laterally for position.

  • Page 40: Beam Quality - Compliance Verification

    Standard Frequency Series Generators Installation SECTION 8 COMPLIANCE VERIFICATION 8.1 VERIFICATION TESTS TO BE PERFORMED 8.1.1 BEAM QUALITY (HALF-VALUE LAYER [HVL]) REQUIREMENT- The minimum beam quality requirements listed in Tables 204 and 5-1 shall be met. (See 21 CFR 1020.30 (m). (See IEC 60601-1-3 Clause 29.201.5) METHOD I - VISUAL DETERMINATION OF HALF-VALUE LAYER (HVL) General The above HVL requirement will be considered to have been met if it can be demonstrated...
  • Page 41 Standard Frequency Series Generators Installation Table 5-1 MINIMUM BEAM QUALITY REQUIREMENTS (21 CFR 1020.30 (m). Kvp Range Measured kVp HVL (mmAl*) Below 50 50 to 70 Above 70 *Type 1100 aluminum alloy as given in Aluminum Association Publication No. ASD-1, Aluminum Standards and Data. Table 5-2 ALUMINUM EQUIVALENT OF PRIMARY BEAM TOTAL FILTRATION Operating Voltage...

  • Page 42: Method Ii - Standard Absorber Method

    Standard Frequency Series Generators Installation METHOD II - STANDARD ABSORBER METHOD GENERAL This test is to be used when the surveyor cannot remove or see the total filtration equivalence. The HVL determinations obtained from the following procedures are to be compared with those illustrated in Table 5-1. The HVL in millimeters of aluminum of the system being tested must be greater than or equal to the values shown in Table 5-1.
  • Page 43 Standard Frequency Series Generators Installation PROCEDURE Attach the spacer, positioned out of the primary beam, to the test stand. Center the stand on the table. Center the source over the stand and bring the beam-limiting device down into firm contact with the spacer. Select the MANUAL mode of operation (there must not be a cassette in the cassette tray). Insert the beam-defining assembly in slot 1 of the stand with the leaded side up (See Figure 5-1). Adjust the beam-limiting device so that the X-ray field slightly exceeds the aperture of the beam-defining assembly. Mount the ion chamber at position B with the chamber facing upward.
  • Page 44 Standard Frequency Series Generators Installation DOTTED LINE REPRESENTS PERIMETER OF LIGHT FIELD AND CORRESPONDS TO OUTER EDGE OF METAL STRIPS EDGE OF THE X-RAY FIELD IMAGE OF METAL STRIPS ONLY IN THIS EXAMPLE EDGE OF DIRECT PRINT PAPER FIGURE 5.3 LIGHT FIELD vs. X-RAY FIELD ERROR MEASUREMENTS M-2008-7-13...
  • Page 45 Standard Frequency Series Generators Installation TABLE 5-4 HALF VALUE LAYERS AS A FUNCTION OF FILTRATION AND TUBE POTENTIAL FOR DIAGNOSTIC UNITS* Peak Potential (kVp) Total Filtration Mm Al Typical Half-Value Layers (mm Al) 0.36† 0.47† 0.58 0.67 0.76 0.84 0.92 1.00 1.08 1.16...

  • Page 46: Xr 8-2.14 Visual Definitions - Radiograph Of X-Ray Light Field

    Standard Frequency Series Generators Installation XR 8-2.14 VISUAL DEFINITION (RADIOGRAPHIC) OF X-RAY LIGHT FIELD REQUIREMENT - Means shall be provided for visually defining the perimeter of the X-ray field. The total misalignment of the edges of the visually defined field with the respective edges of the X-ray field along either the length or width of the visually defined field shall not exceed 2 percent of the distance from the source to the center of the visually defined field when the surface upon which it appears is perpendicular to the Reference Axis of the X-ray beam (see 21 CFR 1020.31 (d) (2)). METHOD 1 - BRH-FDA COMPLIANCE TEST METHOD EQUIPMENT REQUIRED 1. BRH/FDA compliance test stand (including slide assembly) Four metal marker strips 3. Plastic cassette, loaded with direct print paper or film PROCEDURE Attach the spacer, positioned out of the primary beam to the test stand.
  • Page 47 Standard Frequency Series Generators Installation VERIFICATION OF COMPLIANCE For determination of misalignment, compare the edges of the X-ray field to the edges of the light-field as defined by the outer edges of the metal strips. On each side of the rectangular fields, measure the separation between the X-ray field and the outside edge on the image of the respective metal strip. Sum these measured separations for opposite sides of the X-ray field to yield a total misalignment in the length and width dimensions. Record the length misalignment and width misalignment, both without regard to sign (see Paragraph D and Figure 5.3). CALCULATIONS Calculate the source to image distance (SID) per the following formula (to slot 6) as the indicated source-to-table top distance minus 4.7 centimeters (1.85 in) and record. Calculate 2 percent of this SID and record.

  • Page 48: Method Ii - Metal Marker Method

    Standard Frequency Series Generators Installation METHOD II - METAL MARKER METHOD GENERAL The actual versus indicated source-to-image receptor distance (SID) test must be performed prior to attempting this test. FOCAL SPOT BRASS STRIPS FOCAL SPOT ASSEMBLY IN SLOT 2.5” TEST STAND 13.95” SLIDE ASSEMBLY IN SLOT 6 TABLETOP FIGURE 5-4 CALCULATION EXAMPLE DOTTED LINE COINCIDES WITH THE OUTER EDGE...
  • Page 49 Standard Frequency Series Generators Installation EQUIPMENT 1. Plastic cassette with direct printer paper or film. Radio-opaque markers* * Each marker is approximately .080 cm galvanized sheet metal having the dimensions of 4 by 4 cm. PROCEDURE Adjust the source assembly and the beam-limiting device so that they are approximately centered over the table and perpendicular to the table top.

  • Page 50: Method Iii - Alternate Test Stand Method

    Standard Frequency Series Generators Installation METHOD III - ALTERNATE TEST STAND METHOD GENERAL 1. The image of the radiation field on the film must be of uniform density with sharply defined edges. The graduated template is utilized to minimize the amount of error introduced into the measurement of the X-ray field size. The actual versus indicated SID must be determined prior to performing this test. EQUIPMENT Manufacturer’s recommended test stand.
  • Page 51 Standard Frequency Series Generators Installation Measure the distance between the edges of the two fields for each side of the rectangular fields (see Figure 5-3). Arithmetically sum the misalignment of opposite sides, regardless of sign, of the rectangles, to yield misalignment in each of the two directions. Length misalignment = L 2% SID ≤...

  • Page 52: Intensity Of Light Field Illumination

    Standard Frequency Series Generators Installation XR 8-2.15 INTENSITY OF LIGHT FIELD ILLUMINATION METHOD I – DIRECT TEST GENERAL 1. The image of the radiation field on the film must be of uniform density with sharply defined edges. The graduated template is utilized to minimize the amount of error introduced into the measurement of the X-ray field size. 3. The actual versus indicated source-to-image distance (SID) must be determined prior to performing this test. EQUIPMENT Manufacturer’s recommended test stand.

  • Page 53: Method Ii - Indirect Test

    Standard Frequency Series Generators Installation METHOD II - INDIRECT TEST GENERAL This indirect test is feasible after the correlation between light output and voltage is made; the manufacturer then specifies a voltage to be measured or adjusted, or both. Make certain that all surfaces in the light path are clean and unobstructed. EQUIPMENT Digital voltmeter PROCEDURE Remove trim covers to gain access to the lamp socket.

  • Page 54: Xr 8-2.17 X-Ray Field/Receptor Center Alignment - Direct Test

    Standard Frequency Series Generators Installation XR 8-2.17 X-RAY FIELD/RECEPTOR CENTER ALIGNMENT REQUIREMENT - Means shall be provided to align the center of the X-ray field with respect to the image receptor to within 2 percent of the SID (See 21 CFR 1020.31 (e) (1). GENERAL 1. All exposures taken during this test must have a uniform film density of approximately 1.0. Actual versus indicated SID must be determined prior to performing this test. EQUIPMENT Radiographic cassette loaded with film (20 by 25 cm). PROCEDURE 1. Load cassette with film and place into the bucky tray. Assure the X-ray beam is perpendicular to the image receptor and centered over the bucky tray.

  • Page 55: Xr 8-2.18 Indication Of X-Ray Field Size - Direct Test

    Standard Frequency Series Generators Installation XR 8-2.18 INDICATION OF X-RAY FIELD SIZE REQUIREMENT - Means shall be provided on the beam-limiting device to indicate field size in the image receptor plane to within 2 percent of the SID (see 21 CFR 1020.31 (e) (1). GENERAL The actual versus indicated SID test must be performed prior to beginning this test. EQUIPMENT A 24 by 30 centimeter or a 20 by 25 cm cassette with film. PROCEDURE Set the SID to the value determined in the actual versus indicated SID test. 2. Center the film cassette in the cassette tray and insert into position.

  • Page 56: Xr 8-2.20 X-Ray Field Limitation And Alignment

    Standard Frequency Series Generators Installation XR 8-2.20 X-RAY FIELD LIMITATION AND ALIGNMENT REQUIREMENT The X-ray field size in the plane of the image receptor, whether automatically or manually adjusted, shall be such that neither the length nor the width of the X-ray field differs from that of the image receptor by greater than 3 percent of the SID and that the sum of the length and width differences without regard to sign be no greater than 4 percent of the SID, when the equipment indicates that the Beam Axis is perpendicular to the plane of the image receptor (see 21 CFR 1020.31 (e) (2) (ii) ).

  • Page 57: Method Ii - Alternate Test Stand Method

    Standard Frequency Series Generators Installation A is the indicated source-to-tabletop distance less 19.5 cm. Multiply each of the measured dimensions by the correction factor. X-ray field length at undertable image receptor = SID x (X-ray field length at slot 5) X-ray field width at undertable image receptor = SID x (X-ray field width at slot 5) Determine the difference without regard to sign between the corrected length and width dimensions and the corresponding cassette film size dimensions (20 by 25, 13 by 18, etc.). Each of these differences must be less than 3 percent of the SID, and the sum of these differences must be less than 4 percent of the SID.

  • Page 58: Verification Of Compliance - Record Sheet

    Standard Frequency Series Generators Installation RECORD OF COMPLIANCE - RECORD This sheet is to be used by the assembler to assure that all points of compliance are covered. It will also serve as a maintenance log. HOSPITAL _____________________________________ ROOM # ______________________ DATE OF INSTALLATION _________________________ ASSEMBLER __________________ _______________________________________________ __________________...

  • Page 59: Operating Intructions For Installers

    The Millampere Selector accomplishes several tasks. It connects to the tube limit sensing on the timer board. It selects, K1, 2, 3, 4 and 5 Mother Board Relay Coils on the TXR 325 D & M and TXR-425 plus Relays K6 and 7 on the 525 SFQ.

  • Page 60: Ma Display

    Standard Frequency Series Generators Installation 9.1.3 MILLIAMMETER DISPLAY The mA meter is a digital meter which reads preset milliamperes. It indicates the preset readings before and during the exposure. For calibrating or testing the unit, refer back to “ADJUSTING THE MILLIAMPERE SETTINGS”.

  • Page 61: Prep Pushbutton

    Standard Frequency Series Generators Installation 9.2.1 PREP PUSHBUTTON Two Step Operation: Upon depressing the Prep Pushbutton, a command is sent to the rotor control board initiating a 220vac starting voltage to the x-ray tube stator. When sensing functions are confirmed, provided there are no interlock failure or system faults, (During a non-adjustable .5 second delay) the rotor automatically switches, removing the 220vac start voltage and connects 50vac run voltage to the stator to maintain rotating anode speed. To allow filament stabilization, an adjustable time delay is factory set at 2.2 seconds.

  • Page 62: Tube Ratings And Charts

    Standard Frequency Series Generators Installation SECTION 10 TUBE RATINGS AND CHARTS 10.1 X-RAY TUBE AND FOCAL SPOT RATINGS Most of the electrical energy delivered to the X-Ray tube is converted into waste heat; only a small fraction of the energy is converted into x-rays. There are three considerations involving this waste heat: 1. If too much energy is supplied to the X-Ray Tube, the focal area of the target may melt away and destroy the X-Ray Tube.

  • Page 63: Tube Charts

    Standard Frequency Series Generators Installation 10.3 TUBE CHARTS Familiarize yourself with x-ray tube insert and rating charts provided on the following pages. Rating charts are provided with the x-ray tube that is furnished with your system. Those should be used with your equipment. Typical Insert Construction Target: Rhenium-Tungsten-faced Molubdenum M-2008-7-13...
  • Page 64 Standard Frequency Series Generators Installation TOSHIBA X-RAY TUBE RATING CHARTS Model E7239X - E7239FX - E7239GX Listing UL/CE 0197 IEC CLASSIFICATION-CLASS 1 TYPE B Single Phase - Full Wave Target: 2.8” (74mm) Diameter, 16, 140,000 H.U. Stator Frequency: 60 Hz. - 3200 RPM Min. HOUSING HEATING AND COOLING CURVES ANODE HEATING AND COOLING CURVES M-2008-7-13...
  • Page 65 Standard Frequency Series Generators Installation TOSHIBA X-RAY TUBE EMISSION AND FILAMENTCHARACTERISTICS Model E7239X - E7239FX - E7239GX Listing UL/CE 0197 SINGLE-PHASE 21 kW 43 Kw THIS PART OF PAGE INTENTIONALLY LEFT BLANK M-2008-7-13...

  • Page 66: Tube Limit Software - Txr-325D

    Standard Frequency Series Generators Installation 10.4 TUBE LIMIT SOFTWARE – FOR TXR 325D TIMER MODEL NUMBER T-7776C-29 (THESE TUBE LIMITS ARE PERMANENT AND CAN ONLY BE CHANGED BY BURNING NEW SOFTWARE) MODELS TXR 325 D MAX Allowed Exposure Time In Seconds...

  • Page 67: Tube Limit Selection Table

    Standard Frequency Series Generators Installation 10.5 TUBE LIMIT SELECTION TABLE - FOR TXR 325M, TXR 425 AND TXR 525SFQ CONTROLS TIMER MODEL NUMBER 7776A TIMER PROGRAM CHIP T-7776AL5-60 (THESE TUBE LIMITS CAN BE CHANGED BY SETTING THE DIP SWITCHES) TIMER DIP SWITCH SETTINGS – SET SWITCHES AS SHOWN IN THE TABLE BELOW...

  • Page 68: Tube Limit Chart - Rad 74

    Standard Frequency Series Generators Installation 10.7 TUBE LIMIT CHART - PROGRAM T-7776AL5-60 Rad 74 TXR 525 MODELS TXR 325 M AND TXR 425 MAX Allowed Exposure Time In Seconds 1.25 0.066 0.75 0.15 0.016 0.066 None 0.033 None 0.25 0.016...

  • Page 69: Load Line Chart 57

    Standard Frequency Series Generators Installation 10.8 Load Line Chart M-2008-7-13...

  • Page 70: Measurement Basis

    Standard Frequency Series Generators Installation SECTION 11 MEASUREMENT BASIS 11.1 MEASUREMENT BASIS The measurement basis to insure accurate technique factors are as follows: Timer radiation sensitive counter at the X-ray Tube port counts pulses. Accuracy is one part in 10,000. Electronic counter DHEW design. Counts primary pulsed accurately to +/- zero pulses.

  • Page 71: Maintenance

    This test requires a 300 VAC meter having an accuracy of 1% or better, and of known calibration. Turn on the machine and vary the kVp with the AC meter connected parallel to it. The kVp meter in the TXR 325 D & M, TXR 425 and TXR 525 SFQ X-Ray Control is actually a 300 VAC voltmeter calibrated in kVp. See Load Line Chart for Voltage Settings and kVp meter readouts.

  • Page 72: Servicing The X-Ray Tube

    Standard Frequency Series Generators Installation OIL, INSULATING Type: Diala AX or equal. Cold oil contracts, warm oil expands. Make sure transformer is filled no lower than 1 inch from the top and no closer than inch. Do Not Contaminate Oil by immersing hands into oil. Oil is most of the high voltage insulation. Do not let moisture saturate oil by leaving the cover off the tank or by storing in a cold room then heating repeatedly. This will cause moisture to collect inside the tank.

  • Page 73: Mas/Error Code Meter

    12.6.5 ERROR CODE CHART Models TXR 325 D, TXR 325 M, TXR 425 and TXR 525 SFQ X-Ray Controls come equipped with Self Diagnostics. Should a problem arise, observe the mAs meter display for one of the following error codes.

  • Page 74: Maintenance Schedule For Radiation Safety

    Standard Frequency Series Generators Installation SECTION 13 MAINTENANCE SCHEDULE FOR RADIATION SAFETY OF X-RAY APPARATUS In order to assure continued compliance to the IEC and Federal Performance Standards, maintenance inspections and test should be carried out by qualified personnel on original installation and at intervals of 6 months or less. Specific instructions for performing these maintenance activities are provided by the individual manufacturers. This schedule is a guide that relates to conformance to the IEC and DHHS/FDA Standards and is not intended to assure general equipment performance, which must be carried out independently.

  • Page 75: Attenuation Of The X-Ray Beam

    Standard Frequency Series Generators Installation X-Ray Exposure Switch. Confirm that any switch provided for activating an X-Ray exposure requires continuous pressure to maintain the exposure or that release of the switch terminates the exposure. Warnings and Indicators Legible. Inspect and confirm that all warning labels and embossed, painted, silk screened, or other wearable technique factor indicators have not been defaced or worn so as to be illegible.

  • Page 76: Beam Limiting Devices

    Standard Frequency Series Generators Installation 13.5 BEAM LIMITING DEVICES Radiation Leakage. Inspect beam limiting device and its attachment to the X-Ray tube housing for physical damage, loosening or wear which might affect leakage radiation. Verify that the combination of tube housing and beam limiting device is listed as compatible. Beam Quality.
  • Page 77 Standard Frequency Series Generators Installation Single Image Receptor Size. Verify presence integrity and functioning of means provided to limit X-Ray field size to not greater than the image receptor, and to align the field and receptor centers to within 2% of S.I.D. Other X-Ray Systems. Verify presence, integrity and functioning of means specified and provided for the certified component to limit the X-Ray field such that each dimension does not exceed image receptor size by more than 2% of S.I.D. and to align the centers of the X-Ray field and receptor to within 2% of S.I.D. Verify presence and visibility of markings identifying image receptor size and S.I.D. Field Limitation and Alignment. (A). Verify that the total misalignment of X-Ray field with the respective edges of the selected portion of the image receptor does not exceed 3% of S.I.D. for length or width, nor 4% of magnitudes for the two directions. (B). Verify that X-Ray field size can be adjusted smaller than the selected portion of the film, and that at maximum S.I.D. a field size of less than 5 x 5 cm. can be provided. (C). Verify that the centers of the X-Ray and selected film portion coincide within 2% of S.I.D. (D). Perform manufacturers routine maintenance. Source Skin Distance Verify the presence and integrity of the means specified and provided for the certified component to limit source skin distance to no less than 45 cm.

  • Page 78: Schematics / Drawings

    Standard Frequency Series Generators Installation SECTION 14 SCHEMATIC DRAWINGS 14.0 STANDARD FREQUENCY SERIES CONTROLS M-2008-7-13...

  • Page 79: Mother Board

    Standard Frequency Series Generators Installation 14.1 T-7799C MOTHER BOARD M-2008-7-13...

  • Page 80: Ma Meter

    Standard Frequency Series Generators Installation 14.2 T-7767A MA METER 14.3 T-7768B KVP METER M-2008-7-13...

  • Page 81: Rotor Control

    Standard Frequency Series Generators Installation 14.4 T-7634 ROTOR CONTROL M-2008-7-13...

  • Page 82: High Voltage Diode Board

    Standard Frequency Series Generators Installation 14.5 T-7866 HIGH VOLTAGE DIODE BOARD M-2008-7-13...

  • Page 83: Timer - T-7776Cx

    Standard Frequency Series Generators Installation 14.6 T-7776CX TIMER M-2008-7-13...

  • Page 84: Timer - T-7776A

    Standard Frequency Series Generators Installation 14.7 T-7776A TIMER M-2008-7-13...

  • Page 85: Txr 325-1 And Txr 625-1 Hv Transformer

    Standard Frequency Series Generators Installation 14.8 TXR 325-1 AND 625-1 HV TRANSFORMER M-2008-7-13...

  • Page 86: Thermal And Ma Calibration Board Interconnects

    Standard Frequency Series Generators Installation 14.9 THERMAL AND MA CALIBRATION BOARD INTERCONNECTS M-2008-7-13...

  • Page 87: Kvp Meter Adjustments

    Standard Frequency Series Generators Installation 14.10 KVP METER ADJUSTMENTS NOTICE: Meter Slope Adjustment is accomplished by turning RT1 Potentiometer right or left. Procedure. Set the Selector to 50 mA. Set kVp until 80 is displayed on the readout. Take a 1 second x-ray exposure.

  • Page 88: Data

    Standard Frequency Series Generators Installation SECTION 15 DATA SECTION 15.1 INSTALLATION DATA Enter the data with a pencil so that it can be modified later due to future changes Enter the following information. HOSPITAL OR CLINIC DATE INSTALLED AND CALIBRATED BY 15.2 MAINTENANCE HISTORY After service calls and Periodic Maintenance has been performed, enter the information on the form below.

  • Page 89: Calibration Data Sheet

    Standard Frequency Series Generators Installation 15.3 CALIBRATION DATA SHEET PROCEDURE: To simplify setup tasks and calibration, the following checks and tests have been formatted in a progressive order. When returning the Warranty Card to the factory, include a photocopy of the completed Calibration Data Sheet. SETTING THE LINE STRAP Measure Line Supply and fill in block. Move +Major Line Strap to next higher Voltage Tap. Move Minor Line Strap to Voltage Tap that confirms Line to Auto Transformer Match...

  • Page 90: Warranty

    This warranty does not apply to high voltage cables and X-Ray tubes, or to damage caused by misuse, neglect, or during shipment, and is void if service is performed by persons other than authorized TXR Dealers or representatives, or if equipment is interconnected with components not manufactured by TXR and/or not approved by TXR for compatibility.
  • Page 92 5481 Skyland Boulevard East • Cottondale, Alabama 35453 USA Telephone toll free in the USA: 1(800) TXR-X-Ray Telephone (205) 556-3803 • Fax (205) 556-3824 • www.txr.com PUBLICATIONS AVAILABLE FOR STANDARD FREQUENCY SERIES UNITS A full set of manuals are provided with each x-ray control.

This manual is also suitable for:

325d425525sfq
