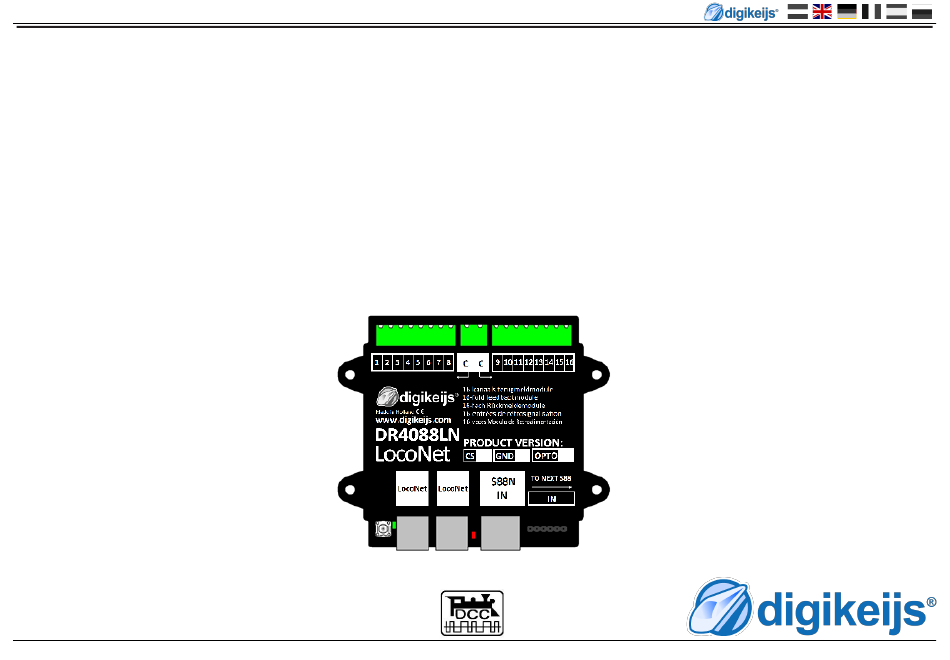

DR4088LN-CS / GND / OPTO
Instruction manual
© Copyright 2005 – 2018 digikeijs, the Netherlands. All
rights reserved. No information, images or any part of
this document may be copied without the prior written
permission of Digikeijs.
www.digikeijs.com
® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz
2021-04-21
DR 4088LN-xx
(2021-04-21)
P 1
Advertisement
Table of Contents
Related Manuals for Digikeijs DR 4088LN Series
Summary of Contents for Digikeijs DR 4088LN Series
- Page 1 DR4088LN-CS / GND / OPTO 2021-04-21 DR 4088LN-xx Instruction manual (2021-04-21) © Copyright 2005 – 2018 digikeijs, the Netherlands. All rights reserved. No information, images or any part of this document may be copied without the prior written permission of Digikeijs. www.digikeijs.com...
-
Page 2: Table Of Contents
3-wire track Feedback modules DR4088LN-OPTO; Hall sensors, 2-wire track Feedback modules DR4088LN-GND 3-wire track www.digikeijs.com ® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz... -
Page 3: Warranty And Warranty Conditions
We reserve the right to change the design of the product, the software and / or the firmware without prior notice. Copyright All Digikeijs operating instructions and other written instructions supplied and/or downloadable are protected by copyright. Reproduction is not permitted without the written permission of Digikeijs. -
Page 4: Product Overview
2 x 8 3 conductors when using the DR50xx DR4088GND 2 x 8 3 conductors www.digikeijs.com ® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz... -
Page 5: Hardware Overview
(flashing during load or activity at S88N connection) S88N In Connector 10 S88 In Connector www.digikeijs.com ® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz... -
Page 6: Programming
1 and row 9 are white with blue and not red! www.digikeijs.com ® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz... -
Page 7: Programming With Any Control Panel Or App
The DR4088LN-xx automatically terminates the programming mode and is now programmed with the start address and the number of feedbacks.. www.digikeijs.com ® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz... -
Page 8: Programming With The Dr5000
15x DR4088 Start address 1 Occupied feedback device Address range 1 - 256 www.digikeijs.com ® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz... -
Page 9: Programming With Any Control Panel Or App
15x DR4088 Start address 1 Occupied feedback device Address range 1 - 256 www.digikeijs.com ® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz... -
Page 10: Connection Examples
If a 3-wire driver still wants to drive with the DR5000 and report back against track ground, the DR4088OPTO can be used. www.digikeijs.com ® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz... -
Page 11: Feedback Modules Dr4088Ln-Cs; 2-Wire Track
2048 feedback modules. Please note that a DDR4088LN-xx can manage a maximum of 15 DR4088. www.digikeijs.com ® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz ®... -
Page 12: Feedback Modules Dr4088Ln-Cs And Dr5033 Booster; 2-Wire Track
® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz www.digikeijs.com ® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz... -
Page 13: Feedback Modules Dr4088Ln-Opto; Hall Sensors, 3-Wire Track
(positive switching PNP) 5V-20V DC/AC DR4088LN-OPTO More DR4088LN-xx feedback unit www.digikeijs.com ® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz P 13... - Page 14 (positive switching PNP) 5V-20V DC/AC DR4088LN-OPTO More DR4088LN-xx feedback unit www.digikeijs.com ® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz P 14...
-
Page 15: Feedback Modules Dr4088Ln-Gnd
If a 3-wire driver still wants to drive with the DR5000 and report back against track ground, the DR4088OPTO can be used. www.digikeijs.com ® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz...
