Quick Guide for Cube 4E
Version 1.1 (3/18/2022)

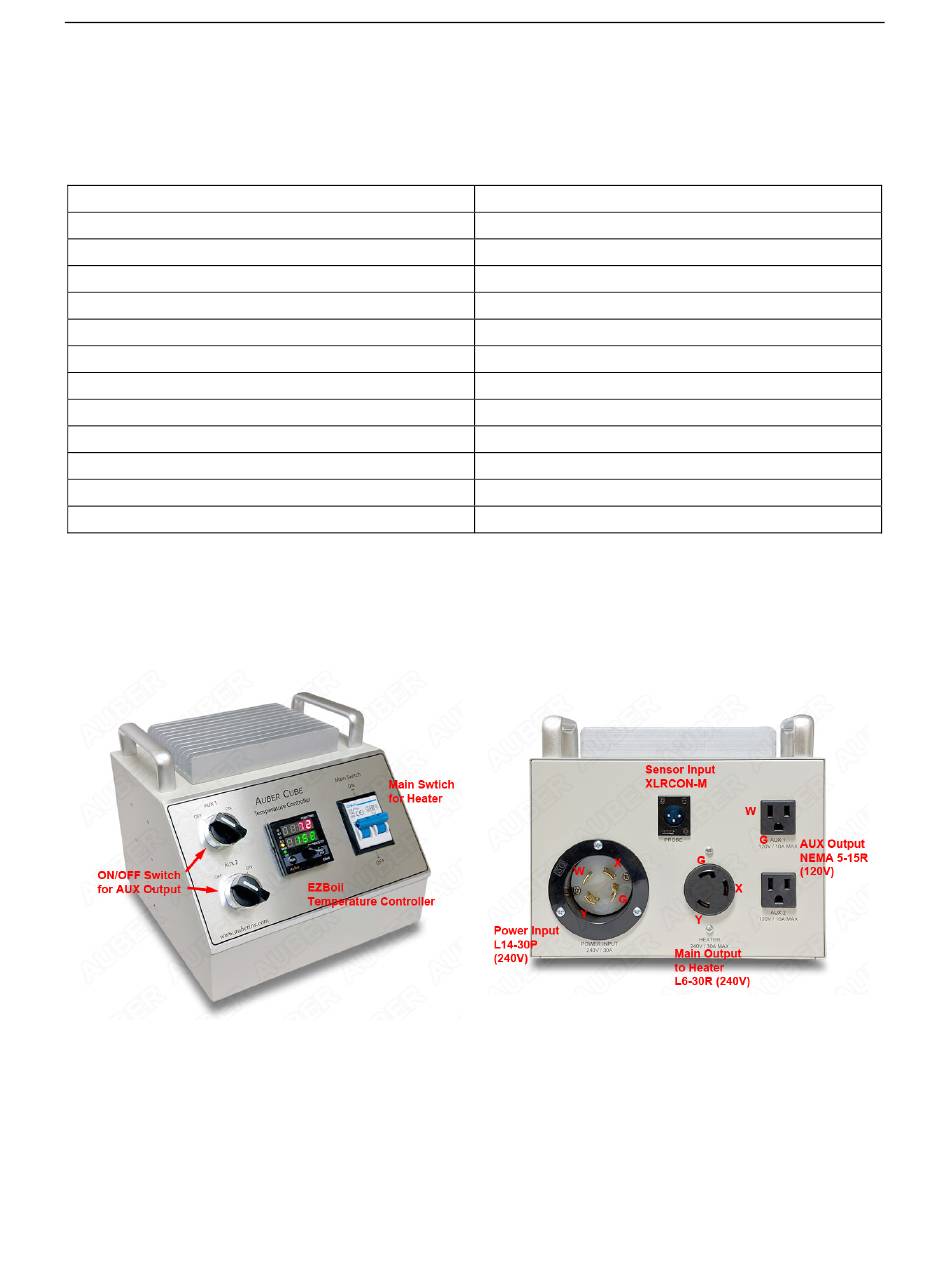

Figure 1. The front and the back panel of Cube 4E.
Page 1 of 2
Copyright 2007‐2022, Auber Instruments. All Rights Reserved.

240VAC, 30A Max
L14‐30P, Male Receptacle (L1, L2, N, G)
240VAC, 30A Max
L6‐30R, Female Receptacle (L1, L2, G)
32A, 2‐pole, Circuit Breaker
SW4 (10A Max)
EZBoil® (DSPR120, or DSPR320A)
PT100 RTD sensor
XLRCON‐M, black
40A AC solid‐state relay (SRDA40)
9.1 x 7.9 x 8.9 inches (230 x 200 x 225 mm)
7.9 lbs. (3.6 Kg)
0°C ‐ 50°C, < 85% RH
