CopperOptics PairGain PG-Flex FCS-718 Manual

19" central office terminal shelf
Hide thumbs Also See for PairGain PG-Flex FCS-718:
Table of Contents

Advertisement

Quick Links

Download this manual
PG-F
19" C
O
LEX
ENTRAL
FFICE
T
S
ERMINAL
HELF
Model
List Number
Part Number
CLEI Code
FCS-718
4
150-1318-04
VAMCEC0ARA
P
G
T
, I
.
AIR
AIN
ECHNOLOGIES
NC
E
P
S
T
P
NGINEERING
LANT
ERIES
ECHNICAL
RACTICE
S
363-718-104-01
ECTION
Revision History of this practice.
Revision 01—May 30, 1997
A) Initial Release.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PairGain PG-Flex FCS-718 and is the answer not in the manual?

Questions and answers

Related Manuals for CopperOptics PairGain PG-Flex FCS-718

Summary of Contents for CopperOptics PairGain PG-Flex FCS-718

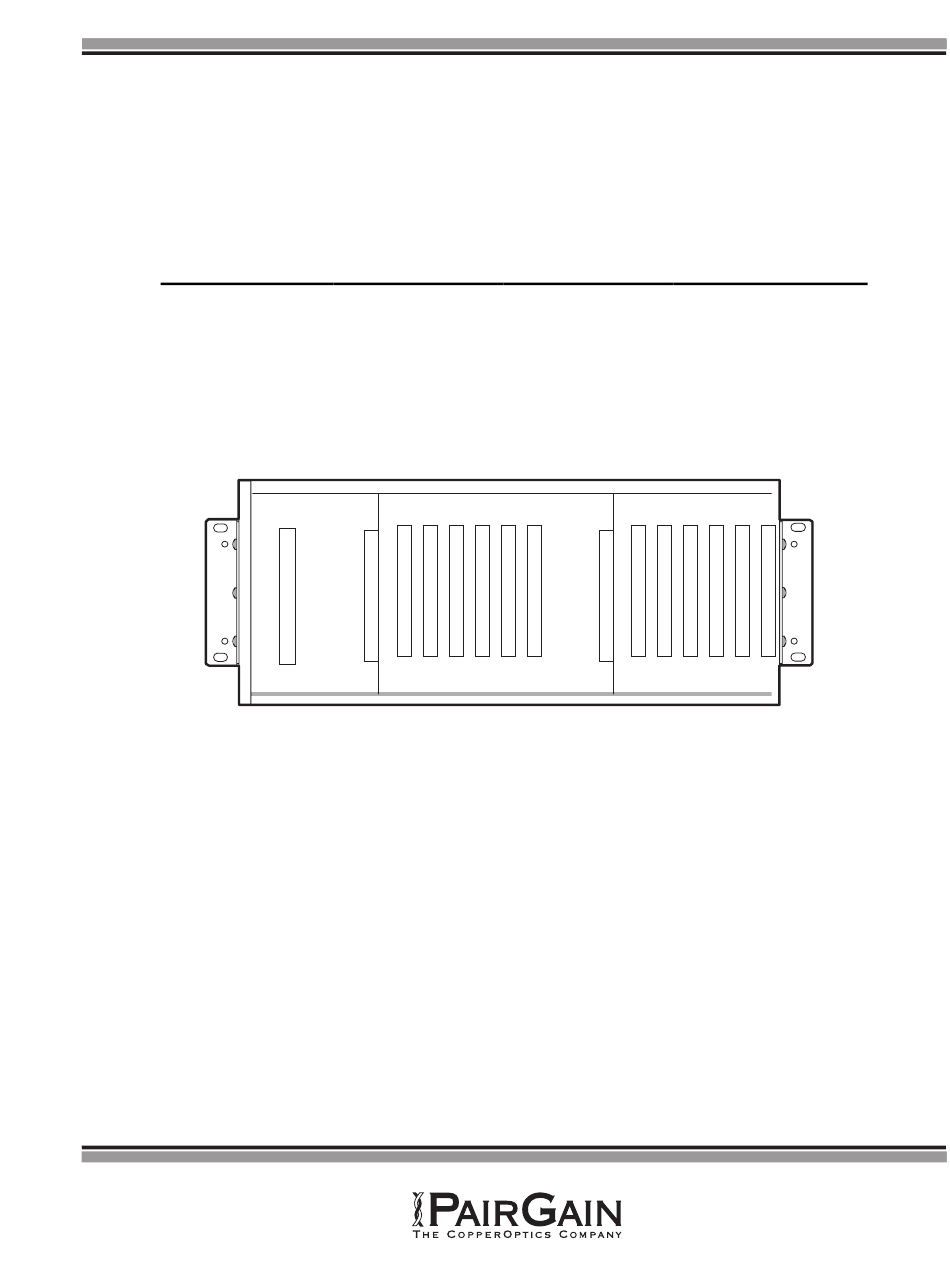

  • Page 1 PG-F 19" C ENTRAL FFICE ERMINAL HELF Model List Number Part Number CLEI Code FCS-718 150-1318-04 VAMCEC0ARA ECHNOLOGIES NGINEERING LANT ERIES ECHNICAL RACTICE 363-718-104-01 ECTION Revision History of this practice. Revision 01—May 30, 1997 A) Initial Release.

  • Page 2: Table Of Contents

    Section 363-718-104 May 30, 1997 Revision 01 TABLE OF CONTENTS A. PRODUCT OVERVIEW ........................1 1. Description and Features....................1 2. Specifications ........................2 B. FUNCTIONAL DESCRIPTION.....................2 3. Operational Capabilities ....................2 4. Backplane Connections...................... 4 C. INSTALLATION AND TEST......................18 5. Unpacking ........................18 6. Pre-Provisioning—HDSL Lines..................19 7.

  • Page 3: Product Overview

    Revision 01 May 30, 1997 Section 363-718-104 A. PRODUCT OVERVIEW 1. Description and Features The PairGain® PG-Flex™ FCS-718 List 4 19-inch Central Office Terminal (COT) Shelf (Figure 1) supports: one Alarm Unit or PGTC Interface Unit that is common to both systems two PG-Flex subscriber carrier systems where each system comprises one Line Unit and from one to six Channel Units (for a shelf maximum of two Line Units and 12 Channel Units) Additionally, the shelf provides termination points for alarms, power, metallic bypass pairs, auxiliary...

  • Page 4: Specifications

    Section 363-718-104 Mya 30, 1997 Revision 01 2. Specifications Electrical Characteristics Power ................–48Vdc CO battery Environmental Operating Temperature ..........–40° F to +150° F (–40° C to +65° C) Operating Humidity ............. 5% to 95% (non-condensing) Operating Elevation............. –200 feet to 13,000 feet (–60 m to 4,000 m) Physical Mounting ..............
  • Page 5 Revision 01 May 30, 1997 Section 363-718-104 Table 1. Channel Unit Circuit Utilization Channel Unit Service Configurations Channel Unit 4-Channel POTS 8-Channel POTS 4-Channel ISDN 4-Channel DDS T/R 1 Ckt 1 Ckt 1 Ckt 1 Ckt 1 Tx T/R 2 Ckt 2 Ckt 2 Ckt 2...

  • Page 6: Backplane Connections

    Section 363-718-104 Mya 30, 1997 Revision 01 4. Backplane Connections Section 4.2 provides connector pinouts located on the backplane for Alarm or PGTC Interface Unit, Line Units, and Channel Units. Section 4.3 provides connectors and termination points located on the backplane for: battery and CO battery return frame ground Local Area Network (LAN)
  • Page 7 Revision 01 May 30, 1997 Section 363-718-104 Table 4. Alarm Unit or PGTC Interface Unit Connector J1-C Pin J1-C Signal J1-B Pin J1-B Signal J1-A Pin J1-A Signal LGND (CDS) LGND (CDS) INHIBIT PGTC_TIP1 SLEEVE1 TESTIN-T_1 PGTC_RING1 SLEEVE2 TESTIN-R_1 PGTC_TIP2 SLEEVE3 TESTIN-T_2 PGTC_RING2...
  • Page 8 Section 363-718-104 Mya 30, 1997 Revision 01 Table 5. Line Unit Connectors System Line Unit Connector Signal* Signal PROTGND PROTGND HDSLTIP1EX_n HDSLTIP2EX_n HDSLRING1EX_n HDSLRING2EX_n BATTERY+ BATTERY+ -48_n -48_n BATTERY- BATTERY- 8KHZ_CC N/C (BURN-IN) TSYNC_n TSIG_n TCLK_n TSER_n RSYNC_n RSIG_n RCLK_n RSER_n SDA_n CSYNC_n...
  • Page 9 Revision 01 May 30, 1997 Section 363-718-104 Table 6. Channel Unit Connectors for System 1 System Channel Unit Connector System Channel Unit Connector Signal Signal Signal Signal PROTGND PROTGND PROTGND PROTGND TIPEX01_1 RINGEX01_1 TIPEX05_1 RINGEX05_1 TIPEX02_1 RINGEX02_1 TIPEX06_1 RINGEX06_1 TIPEX03_1 RINGEX03_1 TIPEX07_1 RINGEX07_1...
  • Page 10 Section 363-718-104 Mya 30, 1997 Revision 01 Table 6. Channel Unit Connectors for System 1 (continued) System Channel Unit Connector System Channel Unit Connector Signal Signal Signal Signal PROTGND PROTGND PROTGND PROTGND TIPEX09_1 RINGEX09_1 TIPEX13_1 RINGEX13_1 TIPEX10_1 RINGEX10_1 TIPEX14_1 RINGEX14_1 TIPEX11_1 RINGEX11_1 TIPEX15_1...
  • Page 11 Revision 01 May 30, 1997 Section 363-718-104 Table 6. Channel Unit Connectors for System 1 (continued) System Channel Unit Connector System Channel Unit Connector Signal Signal Signal Signal PROTGND PROTGND PROTGND PROTGND TIPEX17_1 RINGEX17_1 TIPEX21_1 RINGEX21_1 TIPEX18_1 RINGEX18_1 TIPEX22_1 RINGEX22_1 TIPEX19_1 RINGEX19_1 TIPEX23_1...
  • Page 12 Section 363-718-104 Mya 30, 1997 Revision 01 Table 7. Channel Unit Connectors for System 2 System Channel Unit Connector System Channel Unit Connector Signal Signal Signal Signal PROTGND PROTGND PROTGND PROTGND TIPEX25_2 RINGEX25_2 TIPEX29_2 RINGEX29_2 TIPEX26_2 RINGEX26_2 TIPEX30_2 RINGEX30_2 TIPEX27_2 RINGEX27_2 TIPEX31_2 RINGEX31_2...
  • Page 13 Revision 01 May 30, 1997 Section 363-718-104 Table 7. Channel Unit Connectors for System 2 (continued) System Channel Unit Connector System Channel Unit Connector Signal Signal Signal Signal PROTGND PROTGND PROTGND PROTGND TIPEX33_2 RINGEX33_2 TIPEX37_2 RINGEX37_2 TIPEX34_2 RINGEX34_2 TIPEX38_2 RINGEX38_2 TIPEX35_2 RINGEX35_2 TIPEX39_2...
  • Page 14 Section 363-718-104 Mya 30, 1997 Revision 01 Table 7. Channel Unit Connectors for System 2 (continued) System Channel Unit Connector System Channel Unit Connector Signal Signal Signal Signal PROTGND PROTGND PROTGND PROTGND TIPEX41_2 RINGEX41_2 TIPEX45_2 RINGEX45_2 TIPEX42_2 RINGEX42_2 TIPEX46_2 RINGEX46_2 TIPEX43_2 RINGEX43_2 TIPEX47_2...
  • Page 15 Revision 01 May 30, 1997 Section 363-718-104 Table 8 lists the FCS-718 backplane connectors (Figure 2) and where each is described in this practice. Table 8. FCS-718 List 4 Backplane Connectors Connector/Fuse Go to Table(s) On page Battery, CO Battery Return, and Frame Ground Data HDSL, Auxiliary Power Pairs, Bypass Pair, Channel Unit Test, Composite Clock, Frame Ground, External Alarm Cutoff...
  • Page 16 Section 363-718-104 Mya 30, 1997 Revision 01 CO BATTERY RETURN is separate from FRAME GROUND in PG-Flex. CKT GND and CO BATTERY RETURN are connected inside the PG-FLEX Line Unit but are not connected on the backplane. Table 9. Battery, CO Battery Return, and Frame Ground Connector Type Function...
  • Page 17 Revision 01 May 30, 1997 Section 363-718-104 Table 12. HDSL, Test, And Miscellaneous Terminations System* Connector Type Function System n HDSL_n_T1 .045 in. Tip and Ring terminations for HDSL Pair #1 of System n to Remote HDSL_n_R1 Wire-Wrap Terminal n. +130 Vdc is simplexed on this line for powering the Remote Terminal.
  • Page 18 Section 363-718-104 Mya 30, 1997 Revision 01 You must use the cable adapter (PN 120-1111-01) to ensure the subscriber terminations follow the information shown in Table 14. Table 14. System 1 Subscriber Terminations Circuit Conn Conn Ring Conn Conn Circuit P1 Tip P1 Ring P3 Tip...
  • Page 19 Revision 01 May 30, 1997 Section 363-718-104 You must use the cable adapter (PN 120-1111-01) to ensure the subscriber terminations follow the information shown in Table 15. Table 15. System 2 Subscriber Terminations Circuit Conn Conn Ring Conn Conn Circuit P2 Tip P2 Ring P4 Tip...

  • Page 20: Installation And Test

    Section 363-718-104 Mya 30, 1997 Revision 01 Table 16. PGTC Telco Connector P12 Signal Signal PGTC_RING1 PGTC_TIP1 PGTC_RING2 PGTC_TIP2 PGTC_RING3 PGTC_TIP3 PGTC_RING4 PGTC_TIP4 SLEEVE2 SLEEVE1 SLEEVE4 SLEEVE3 PROCEED2 PROCEED1 PROCEED4 PROCEED3 LOCK2 LOCK1 LOCK4 LOCK3 TMAJ TSTALM SEZBY SEIZE C. INSTALLATION AND TEST 5.

  • Page 21: Pre-Provisioning-Hdsl Lines

    Revision 01 May 30, 1997 Section 363-718-104 6. Pre-Provisioning—HDSL Lines The HDSL transmission scheme uses two pairs between the COT and the Remote Terminal (RT). The wire pairs should have identical electrical make-ups. Keep exposure to crosstalk and the differences in total wire length, wire gauge, bridge taps to a minimum. Pair isolation (Tip-Ring, Tip-Ground, and Ring-Ground) must be ≥...

  • Page 22: Mounting

    Section 363-718-104 Mya 30, 1997 Revision 01 7. Mounting The COT shelf mounts in a standard 19- or 23-inch CO equipment bay. Use rack adapters when installing onto a 23-inch frame or reverse the mounting bracket (short flange against the shelf) to fit into the 23 inch frame.
  • Page 23 Revision 01 May 30, 1997 Section 363-718-104 Figure 4. Connecting the Frame Ground Use 12 AWG or larger wire (or multiple wires of a smaller gauge) to ensure good power connections to PG-Flex. Connect the CO battery (Figure 5): Connect wires used for the CO battery and the CO battery return to TB1 (-48 Vdc) and TB2 (BATT RTN) screw terminals.
  • Page 24 Section 363-718-104 Mya 30, 1997 Revision 01 HDSL Lines. Connect the HDSL lines (Figure 6): For System 1 installation: Connect the HDSL Pair #1 on System 1 onto wire-wrap pins HDSL_1_T1 (Tip) and HDSL_1_R1 (Ring) on the COT shelf. Connect the HDSL Pair #2 on System 1 onto wire-wrap pins HDSL_1_T2 (Tip) and HDSL_1_R2 (Ring) on the COT shelf.
  • Page 25 Revision 01 May 30, 1997 Section 363-718-104 Bypass Pairs. If subscriber drop testing is required, connect the metallic bypass pairs (Figure 7): Metallic bypass pairs can not be shared between PG-Flex systems or to other digital loop carrier (DLC) systems. For System 1 installation, connect the metallic bypass pair from the main distribution frame (MDF) to wire wrap posts BYPASS_T and BYPASS_R on the COT shelf.
  • Page 26 Section 363-718-104 Mya 30, 1997 Revision 01 Composite Clock. When required, connect the composite clock (Figure 8). You can cascade the composite clock to other PG-Flex shelves. When cascading the composite clock to other PG-Flex shelves, terminate only on the last shelf in the cascade. Connect the primary composite clock leads from the master clock source in the CO to CC1_TIP and CC1_RING termination pins on the backplane.

  • Page 27: Turn-Up And Testing

    Revision 01 May 30, 1997 Section 363-718-104 Subscriber Lines. Connect the subscriber lines: You must use the cable adapter (PN 120-1111-01) to ensure the subscriber terminations follow the information shown in Tables 14 and 15. For PG-Flex system 1, use Table 14 to connect the CO switch cables to the cable adapters for P1 and P3 terminations.

  • Page 28: Troubleshooting

    Section 363-718-104 Mya 30, 1997 Revision 01 10. Troubleshooting 10.1 Refer to the COT or RT Line Unit Technical Practices for complete COT and RT troubleshooting procedures. 11. Technical Support 11.1 PairGain Technical Assistance is available 24-hours-a-day, 7-days-a-week by contacting PairGain Customer Service at: Telephone: (800) 638-0031 or (714) 832-9922...

  • Page 29: Certification

    Revision 01 May 30, 1997 Section 363-718-104 13. Certification 13.1 FCC Compliance. The FCS-718 List 4 COT Shelf has been tested and found to comply with the limits for Class A digital devices pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
