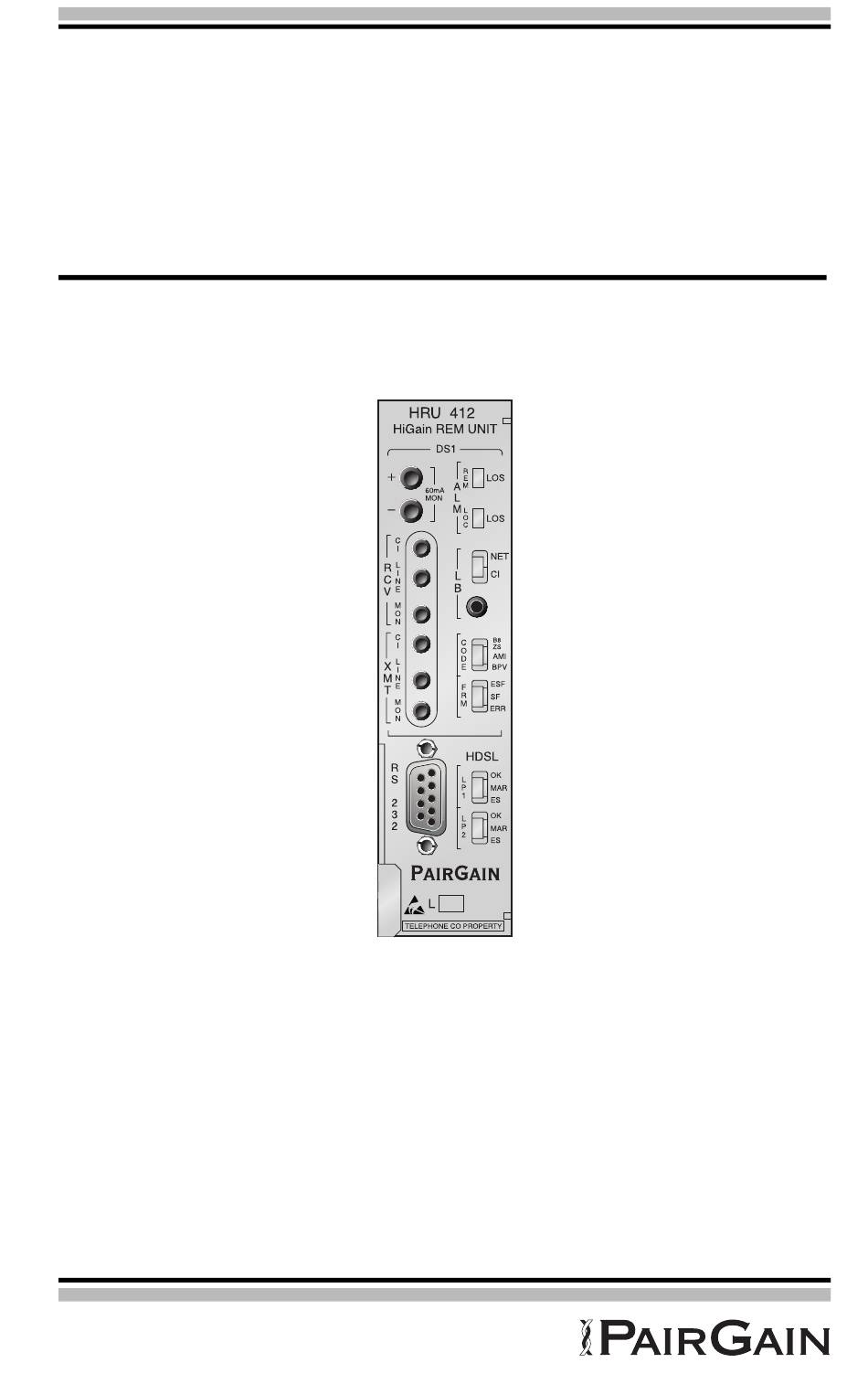

CopperOptics PairGain HiGain HRU-412 Manual

Remote unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
H
G
R
U
I
AIN
EMOTE
NIT
Model
List Number
Part Number
CLEI Code
HRU-412
8A
150-1103-81
T1L2CCUAAA
P
G
T
, I
.
AIR
AIN
ECHNOLOGIES
NC
E
S
T
P
NGINEERING
ERVICES
ECHNICAL
RACTICE
S
150-412-181-01
ECTION
Revision History of This Practice
Revision 01 - March 31, 1998
A) Initial Release

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PairGain HiGain HRU-412 and is the answer not in the manual?

Questions and answers

Related Manuals for CopperOptics PairGain HiGain HRU-412

Summary of Contents for CopperOptics PairGain HiGain HRU-412

  • Page 1 EMOTE Model List Number Part Number CLEI Code HRU-412 150-1103-81 T1L2CCUAAA ECHNOLOGIES NGINEERING ERVICES ECHNICAL RACTICE 150-412-181-01 ECTION Revision History of This Practice Revision 01 - March 31, 1998 A) Initial Release...
  • Page 2 Revision 01 March 31, 1998 150-412-181 -01 ©Copyright 1998 PairGain Technologies, Inc. PairGain, and HiGain are registered trademarks of PairGain Technologies, Inc. Information contained in this document is company private to PairGain Technologies, Inc., and shall not be modified, used, copied, reproduced or disclosed in whole or in part without the written consent of PairGain.
  • Page 3 150-412-181-01 March 31, 1998 Revision 01 SING ECHNICAL RACTICE Two types of messages, identified by icons, may appear in the text. Notes contain information about special circumstances. Cautions indicate the possibility of equipment damage or the possibility of personal injury. HRU-412 List 8A PairGain Engineering - Plant Series...

  • Page 4: Table Of Contents

    Revision 01 March 31, 1998 150-412-181-01 ABLE OF ONTENTS Overview ....................1 Applications................3 Specifications..................4 Functional Description .................5 Operational Capabilities ............5 Front Panel Features ..............7 Rear Panel Features ..............10 Local and Line Powering ............12 Installation ...................14 Unpack and Inspect the Shipment ..........14 Install the HRU-412 List 8A ..........14 Installation Test ..............16 Configure, Provision, and Monitor Performance ......17...
  • Page 5 150-412-181-01 March 31, 1998 Revision 01 Technical Support ................32 Warranty ................32 FCC Compliance..............33 UL Listing ................34 CSA Certification..............34 HRU-412 List 8A PairGain Engineering - Plant Series...
  • Page 6 Revision 01 March 31, 1998 150-412-181-01 IST OF IGURES Figure 1. HRU-412 List 8A Block Diagram ..........6 Figure 2. HRU-412 List 8A Front Panel ..........7 Figure 3. HRU-412 List 8A Back Panel ..........10 Figure 4. HRU-412 List 8A Pin-Outs ..........15 Figure 5.

  • Page 7: Overview

    150-412-181-01 March 31, 1998 Revision 01 VERVIEW ® ® The PairGain HiGain Remote Unit Model HRU-412 List 8A is the remote end of a repeaterless T1 transmission system. An HRU-412 List 8A connects to a HiGain Line Unit (HLU-231, HLU-232, HLU-319, or HLU-388), creating a HiGain system which provides 1.544 Mbps transmission on two unconditioned copper pairs over the full Carrier Serving Area (CSA) range.
  • Page 8 Revision 01 March 31, 1998 150-412-181-01 • Lightning and power cross protection on HDSL and DS1 interfaces • 784kbps full-duplex 2B1Q HDSL transmission on two pairs • DS0 blocking support The HRU-412 List 8A supports PairGain’s 1 x 1 Protection Switching System.

  • Page 9: Applications

    150-412-181-01 March 31, 1998 Revision 01 Applications A HiGain system, consisting of a HiGain line unit and a HiGain remote unit, provides a quick and cost-effective way of delivering T1 High Capacity Digital Service (HCDS) to customers over copper pairs. The HiGain system can be deployed on two unconditioned, non-loaded copper pairs without repeaters, and without the need for bridged tap removal or binder group separation.

  • Page 10: Specifications

    Revision 01 March 31, 1998 150-412-181-01 PECIFICATIONS HDSL Line Code 784 kbps 2B1Q full duplex Output +13 dB + 0.5 dB at 135 ohms Line Impedance 135 ohms Startup Time 15 seconds (typical), 60 seconds (maximum) Maximum Provisioning Loss 35 dB at 196 kHz, 135 ohms Line Clock Rate Internal Stratum 4 clock Power Consumption...

  • Page 11: Functional Description

    150-412-181-01 March 31, 1998 Revision 01 Output Wander (MTIE and TVAR) Compliant with Section 7.2.1 of the T1X1.3/90-026R7 SONET committee report Line Format AMI, B8ZS, or ZBTSI Frame Format ESF, SF, or unframed Dimensions Height: 5.6 in. (14.22 cm) Width: 1.4 in.

  • Page 12: Figure 1. Hru-412 List 8A Block Diagram

    Revision 01 March 31, 1998 150-412-181-01 The HRU-412 List 8A can be used with the HLU-232 line unit to form an automatic 1 x 1 protection switch system. For this application, the HRU-412 List 8A must be installed in the two slot HRE-422 remote enclosure. This enclosure provides access to the HRU-412 List 8A protection switch output, on pins 12 and 40, which control the protection switching function.

  • Page 13: Front Panel Features

    150-412-181-01 March 31, 1998 Revision 01 Front Panel Features Figure 2 shows the front view of the HRU-412 List 8A. Table 2 describes the HRU-412 List 8A front panel components. Figure 2. HRU-412 List 8A Front Panel HRU-412 List 8A PairGain Engineering - Plant Series...

  • Page 14: Table 2. Hru-412 List 8A Front Panel Components

    Revision 01 March 31, 1998 150-412-181-01 Table 2. HRU-412 List 8A Front Panel Components Name Function Test points Allow the 60 mA CPE current option to be measured. The current flowing is related to the voltage measured across the + and - test points by the following relationship: CPE CURRENT = 1 MA/1 MV.
  • Page 15 150-412-181-01 March 31, 1998 Revision 01 Table 2. HRU-412 List 8A Front Panel Components (Cont.) HDSL LEDs LP1 OK LED flashes green while HDSL Loop 1 is synchronizing with the HLU. The LED lights green to indicate that loop 1 is properly synchronized with the HLU.

  • Page 16: Rear Panel Features

    Revision 01 March 31, 1998 150-412-181-01 Rear Panel Features The HRU-412 List 8A back panel features are shown in Figure 3. Table 3 describes the features. Figure 3. HRU-412 List 8A Back Panel PairGain Engineering - Plant Series HRU-412 List 8A...

  • Page 17: Table 3. Rear Panel Components

    150-412-181-01 March 31, 1998 Revision 01 Table 3. Rear Panel Components Switch Setting Function I-CPE Sets the CPE current to 0 mA. Sets the CPE current to 60 mA to power an external NID. The CPE current control signals terminate on pins 32 and 34 of the card- edge converter.

  • Page 18: Local And Line Powering

    Revision 01 March 31, 1998 150-412-181-01 Table 3. Rear Panel Components (Cont.) Allows the enabling or disabling of the sealing current. To enable, connect JP2 across both terminals. To disable (default), remove the jumper from the inner terminal and leave it attached to the outer terminal only.
  • Page 19 150-412-181-01 March 31, 1998 Revision 01 If local power is lost to an HRU-412 List 8A, the last span loses sync. When the HLU or HDU attempts to reestablish sync, it detects that the HRU-412 List 8A is not locally powered and applies line power to it. The HRU-412 List 8A then powers up and operates normally if the HRU-412 List 8A is within range to support line powering.

  • Page 20: Installation

    Revision 01 March 31, 1998 150-412-181-01 NSTALLATION This section describes how to install the HRU-412 List 8A. Unpack and Inspect the Shipment Upon receipt of the equipment: Unpack the container and visually inspect the product for signs of damage. If the equipment has been damaged in transit, immediately report the extent of the damage to the transportation company and to your sales representative.

  • Page 21: Figure 4. Hru-412 List 8A Pin-Outs

    150-412-181-01 March 31, 1998 Revision 01 Figure 4. HRU-412 List 8A Pin-Outs HRU-412 List 8A PairGain Engineering - Plant Series...

  • Page 22: Installation Test

    Revision 01 March 31, 1998 150-412-181-01 To install the HRU-412 List 8A: Ensure that the shelf is correctly mounted and wired (refer to the shelf’s technical practice for additonal information). Slide the HRU-412 List 8A into the card guides for the desired slot, then push the unit back until it touches the backplane card-edge connectors.

  • Page 23: Configure, Provision, And Monitor Performance

    150-412-181-01 March 31, 1998 Revision 01 If using an external NID, set the I-CPE switch (located on the back panel of the HRU-412 List 8A; see Figure 3) to 60 mA and verify the NID is under power. Check that the voltage across the front panel test points (60 mA MON) measure between 55 mV and 65 mV.

  • Page 24: Figure 5. Hru-412 List 8A Rs-232 Wiring

    Revision 01 March 31, 1998 150-412-181-01 Figure 5. HRU-412 List 8A Craft (RS-232) Wiring Connect the other end of the terminal cable to the console port on the ASCII terminal. Configure the ASCII terminal to the following communication settings: • 1200 to 9600 baud •...

  • Page 25: Logging On And Using The Menus

    150-412-181-01 March 31, 1998 Revision 01 Logging On and Using the Menus The HRU-412 List 8A supports local and remote log on. Local log on connects the Craft port (RS-232 connector) to the HRU-412 List 8A internal database. Remote log on connects the HRU-412 List 8A to the HLU using the HDSL Embedded Operation Channel (EOC) as the data link between the two units.

  • Page 26: Figure 6. Remote Log On Screen

    Revision 01 March 31, 1998 150-412-181-01 Figure 6. Remote Log On Screen  Press . The Main Menu displays. Figure 7. Main Menu, Local Log On PairGain Engineering - Plant Series HRU-412 List 8A...

  • Page 27: View Span Status

    150-412-181-01 March 31, 1998 Revision 01 Access options available on the Main Menu by typing the desired letter and  then pressing View Span Status From the Main Menu, type . The Span Status screen displays. When no doublers are in use, the following Span Status screen displays: Figure 8.

  • Page 28: Figure 9. Span Status Screen, Doublers In Use

    Revision 01 March 31, 1998 150-412-181-01 When doublers are in use, the following Span Status screen displays: Figure 9. Span Status Screen, Doublers in Use Do any of the following: • Type to view the next span. • Type to update the screen. •...

  • Page 29: Set Clock

    150-412-181-01 March 31, 1998 Revision 01 Set Clock This option is available during Local log on only. From the Main Menu, type to display the Set Clock menu. Figure 10. Set Clock Screen Enter the time (in 24 hour format) at the Time prompt.  Press Enter the date (mm/dd/yy) at the Date prompt.

  • Page 30: System Settings

    Revision 01 March 31, 1998 150-412-181-01 System Settings From the Main Menu, type to display the System Settings menu. Figure 11. System Settings Menu View the HRU-412 List 8A system settings. Change system settings at the HLU connected to the HRU-412 List 8A. PairGain Engineering - Plant Series HRU-412 List 8A...

  • Page 31: View Performance Data

    150-412-181-01 March 31, 1998 Revision 01 View Performance Data From the Main Menu, type to display the Performance Data screen. Figure 12. Performance Data Screen If spans are in use, do any of the following: • type to view them •...

  • Page 32: View Performance History

    Revision 01 March 31, 1998 150-412-181-01 View Performance History From the Main Menu, type to display the Performance History screen. Figure 13. Performance History Screen If spans are in use, type to view them. Type to exit the Performance History screen. PairGain Engineering - Plant Series HRU-412 List 8A...

  • Page 33: View Alarm History

    150-412-181-01 March 31, 1998 Revision 01 View Alarm History From the Main Menu, type to display the Alarm History screen. Figure 14. Alarm History Screen Type to update the Alarm History screen to the most current data. If spans are in use, type to view them.

  • Page 34: Table 4. Hru-412 List 8A Alarm History Screen Definitions

    Revision 01 March 31, 1998 150-412-181-01 Table 4. HRU-412 List 8A Alarm History Screen Definitions Message Full Name Description NONE No Alarms No active alarms, or alarms previously detected are no longer active or have been reset. LLOS Local Loss of Signal No signal from local T1 interface.

  • Page 35: Loopbacks

    150-412-181-01 March 31, 1998 Revision 01 OOPBACKS The HRU-412 List 8A supports 6 types of loopbacks (see Figure 15). • TLOS (transmit loss of signal) • CREM (customer remote loopback) • NREM (network remote loopback) • NLOC (network local loopback) •...
  • Page 36 Revision 01 March 31, 1998 150-412-181-01 A Smart-Jack loopback causes the T1 interface chip to transmit the AIS pattern to the NI and back to the HRU-412 List 8A T1 receiver circuit. The T1 input to the HRU-412 List 8A at the XMT port is disconnected and terminated in 100 ohms.
  • Page 37 150-412-181-01 March 31, 1998 Revision 01 All HRU-412 List 8A loopbacks toward the network (NREM and SMJK) are metallic/logic (AIS/ENA) or metallic only (AIS/DIS). The TLOS loopback is a logic loopback. The SMJK and NREM loopbacks perform the same functions; their initiation differs.

  • Page 38: Technical Support

    Revision 01 March 31, 1998 150-412-181-01 ECHNICAL UPPORT PairGain Technical Assistance is available 24 hours a day, 7 days a week by contacting PairGain Customer Service Engineering group at: Telephone: (800) 638-0031 or (714) 832-9922 Fax: (714) 832-9924 During normal business hours (8:00 AM to 5:00 PM, Pacific Time, Monday to Friday, excluding holidays), technical assistance calls are usually answered directly by a Customer Service Engineer.

  • Page 39: Fcc Compliance

    150-412-181-01 March 31, 1998 Revision 01 PairGain continues to repair faulty modules beyond the warranty program at a nominal charge. Contact your PairGain sales representative for details and pricing. FCC Compliance This unit complies with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules.

  • Page 40: Ul Listing

    Revision 01 March 31, 1998 150-412-181-01 UL Listing The HRU-412 List 8A is UL listed. Use caution when installing or modifying telephone lines. Dangerous voltages may be present. Do not install telephone wiring during a lightning storm. Always disconnect telephone lines and power connections from wall outlets before servicing or disassembling this equipment.
  • Page 42 Corporate Office 14402 Franklin Avenue Tustin, CA 92780 Tel: (714) 832-9922 Fax: (714) 832-9924 For Technical Assistance: (800) 638-0031...
