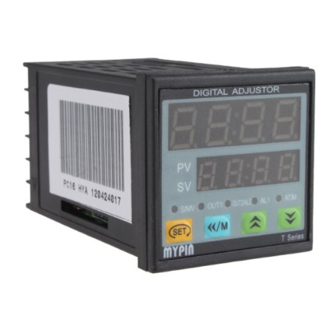

Mypin TD4 Temperature Controller Manual

Before operating this instrument, please carefully read this manual and fully understand its contents. If any probroms, please contact our sales or distributors whom you buy from. This manual is subject to change without prior notice.

Warning

Please do not turn on the power supply until all of the wiring is completed. Otherwise electrical shock, fire or malfunction may result.
Do not wire when the power is on. Do not turn on the power supply when cleaning this instrument. Do not disassemble, repair or modify the instrument. This may cause electrical shock, fire or malfunction. Use this instrument in the scope of its specifications. Otherwise fire or malfunction may result. The use life of the output relay is quite different according to is capacity and condictions. If use out of its scope, fire or malfunction may result.

Caution

This instrument should be installed in a domestic environment. Otherwise electrical shock, fire or malfunction may result. To avoid using this instrument in environment full of dust or caustic gas.
To avoid using this instrument in environment of strong shock or concussion.
To avoid using this instrument in environment of overflow water or explosive oil.
The power supply wire should not put together with large current wire to aviod electromagnetic radiation, If it must to put together, we suggest to use a individual pipe.
In case the instrument is used in environment of strong noise, (such as motor, transformer, solenoid, etc.) A current suppresser or noise filter should be used.

Applications

TA series of temperature controller is available for many TC or RTD input, adopt some advanced techonology such multi digital filter circuit, autotune PID, fuzzy PID that make it is very precise, stable, strong anti-interference and simple operation. The instrument is widely applied to automation systems of mechanism, chemical industrial, chinaware, light industrial, metallurgy and petroleum chemical industrial. It is also applied to the production line of foodstuff, packing, printing, dry machine, metal heat process equipment to control the temperature.

Panel

Panel

  1. PV / parameter symbols
  2. SV / parameters preset value
  3. Indication lamps
    • OUT1: Heating/Main control output lamp
      On: Output
      Off: No output
    • OUT2/AL2: Colling/Alarm 2 output lamp
      On: Output
      Off: No output
    • AT/M:
      On: manual operation
      Off: auto operation
      Flash: under autotuning estate
    • P/MV: SV/MV display setting
      On: MV manual output
      Off: SV setting
    • AL1: Alarm 1 lamp
      On: Alarm
      Off: No Alarm
    • AL2: Alarm 21 lamp
      On: Alarm
      Off: No Alarm
  4. Set key
    Parameter Setting/Changing
  5. Shift/Autotune key
    Press this key to shift digit of parameter value setting. Or hold this key for more than 3 seconds can enter/quit autotune estate. When enter autotune estate, AT lamp on. When quit autotune estate, AT lamp off.
  6. Up key
  7. Down key

Models

Models

  1. Input signals: Default: K,J,T,S,Pt100/mA,lN
  2. AL1:R:RELAY S:SSR/Logic T:SCR
  3. OUT2/AL2: R:RELAY S:SSR/Logic
    • T:SCR
    • N:Non
  4. OUT1: I:4-20mA
    • R:RELAY
    • S:SSR/Logic
    • T:SCR
  5. Power supply:
    • Default: 90-260V AC/DC
    • E: 24VDC or 18-30V AC/DC
  6. Sizes:
    • 4:48H × 48W
    • 6:48H × 96W
    • 7:72H × 72W
    • 8:96H × 48W
    • 9:96H × 96W
  7. TA series of temperature controller

Specifications

Power supply 90-260V AC/DC 50/60Hz
Consumption ≤ 5VA
Display range -199~1800℃
Accuracy 0.3%F.S ± 2digit
Sampling cycle ≤ 300ms
Main output RELAY: normal open
SSR/LOGIC: 24V DC ± 2V/ 20mAAC
250V/3A DC 30V/3A COS¢=1
Alarm RELAY: normal open AC
250V/3A DC 30V/3A COS¢=1
SSR/LOGIC:24V DC 12V/ 30mA
Input T/C K 0~999℃/0~1200℃
J 0~999℃ /0~1200℃
T -150~400℃ (Special order)
S 0~1600℃
E 0~1000℃
Rt Pt100 -199~600℃
Cu50 -50~150℃
mV mV 0-75mV
mA mA 4-20mA /0-10V
Withstand voltage strength 1500V Rms (Between power terminal and the housing)
Insulation resistance Min 50M Ω(500V DC)(Between power terminal and the housing)
Environment temperature 0~50℃
Save temperature -10~60℃
Environment humidity 35~85%RH
Weight ≤ 350g

Mounting and Sizes

Mounting and Sizes

Sizes
A B C D E F G H
Model
TD4 44.5+0.5 45+0.5 65 65 48 48 8 80
TD6 43.5+0.5 91+0.5 65 115 48 96 12 80
TD7 91+0.5 91+0.5 115 115 96 96 12 100
TD8 91+0.5 43.5+0.5 65 115 96 48 12 80
TD9 67.5+0.5 67.5+0.5 95 95 72 72 12 100

Parameter Setting & Autotuning

☆ Parameters setting:

  1. In display estate, press SET,P/MV lamp on means SV setting, while off means MV manual output setting, but only on manual operation & input connect do MV settable.
  2. Press the <</M key to select the digit you want to modify;
  3. Press and key to modify the numerals;
  4. Press SET key to confirm.

☆ In autotuning estate, output value modification is impossible.

☆ Antotuning operation.
In display estate, press SET and <</M key at the same time until AT/M lamp flahses. Then ithe instrument is under autotuning estate. Press again to quite.

Parameter Setting & Autotuning Step 1

In Manual operation/Non-autotune estate, press and hold / key for more than 3 seconds to enter/quit the below menu for display range settings.

Parameter Setting & Autotuning Step 2


Parameter Setting & Autotuning Step 3

Note:
Manual/Auto Convertion: In display estate, press <</M to shift. AT/M lamp on means manual operation, while off means autotuning.
For the very first time, please press SET and <</M key until AT/M lamp flash to enter autotuning estate. In the future, if the load/control temp. point changes in small scale (eg. Running the same equipment, and the preset value changes within ± 30℃), the user no need to let it autotuning again. Because the instrument has recorded the previous PID parameters. When the instrument is used for huge capacity heating equipments, the user should set autotuning value lower 5%-10% than the normal control value, in order to decrease the exceed-tuning caused by control.
Normally, the control cycle of the heating equipment should be 20-30 seconds. For huge capacity heating equipments, the value should be 30-120 seconds, in order to longer the use life of the relay. For non-contact output, such as SSR control output, the value should be 1-3.

Terminal configurations

(If any changed, please refer to the product showing.)

TD4
TD4

TD7
TD7

TD6/TD8/TD9 are subject to the drawing on the product.

ON/OFF control: ▲ Set value
Heating
Heating
Cooling
Cooling
Alarm mode: ▲ Set value △ Alarm value AL

  1. Deviation HI alarm
    Deviation HI alarm
  2. Deviatian LO alarm
    Deviatian LO alarm
  3. Absolute value HI alarm
    Absolute value HI alarm
  4. Absolute value LO alarm
    Absolute value LO alarm
  5. Section outside alarm
    Section outside alarm
  6. Section inside alarm
    Section inside alarm

Note: All the factory setting value of deviation alarm is 1.0.

Application examples

  1. Relay output control (forTA9)
    Application examples

Malfunction estimate

  1. No Display: Check all the connection and wiring if it is all correct. Specially pay attention to the power supply terminals and signal input ternimals.
  2. Incorrect Didplay: Check if the input signal is conformity with the selected symbol. For TC input, please use the relative compensation cable. For RTD input, please use low impedence cable. The 3 wires should at the same length. If all above mentioned is collect, please use parameter PVF to modify.
  3. Incorrect Control: If the instrument has been used for a long time, the user find the temperature is hard to rise up to the set value, meanwhile the outsidesystem running well, there must be something wrong with the parameters of the instrument. The user need to re-autotuning the instrument. If the instrument lost control, please check if the connection of the control is correct. If external load is shorted, broken, wrong connection or components is damaged, it will cause lost control as well. When it is necessary, please push out the PCB to check the if the output terminals is damaged and not available.
  4. Display malfunction: "UUUU": The input signal exeed the measured HI range.
