MYPIN
DR series Meg Ohm Meter
User Manual
Thanks a lot for selecting products!
Before operating this instrument, please carefully read this manual and fully
understand its contents. If have problems, please contact our sales or distribu-
tors whom you buy from. This manual is subject to change without prior notice.
Warning
Please do not turn on the power supply until all of the wiring is completed.
Otherwise electrical shock, fire or malfunction may result.
Do not wire when the power is on. Do not connect the unused terminals. Do not
turn on the power supply when cleaning this instrument. Do not disassemble,
repair or modify the instrument. This may cause electrical shock, fire or mal-
function
Use this instrument in the scope of its specifications. Otherwise fire or mal-
function may result.
The use life of the output relay is quite different according to it capacity and
conditions. If use out of its scope, fire or malfunction may result.
!
Caution
This instrument should be installed in a domestic environment. Otherwise
electrical shock, fire or malfunction may result. The operating temperature
environment should between 0 (32F) to 50 (122F).
To avoid using this instrument in environment full of dust or caustic gas.
To avoid using this instrument in environment of strong shock or concussion.
To avoid using this instrument in environment of overflow water or explosive oil.
The instrument has the recovable protection parts.It can prevent demages in
case of short circuit.
★
Application
Professional measurement for various resistance with rapid inspection,
good linearity & precise.Various output controls enable the instrument to apply
with auto inspection for qualified product,& to act as electronic rules for posi-
tion control.What¡¯s more,it can act as not only meg ohmmeter with inbuilt
excitation voltage(100-500V) for insulation material,but also conductivity ana-
lyzer by changing inner calculate mode. In addtion,RS485 communication will
realize remote control by connect with PC/PLC.

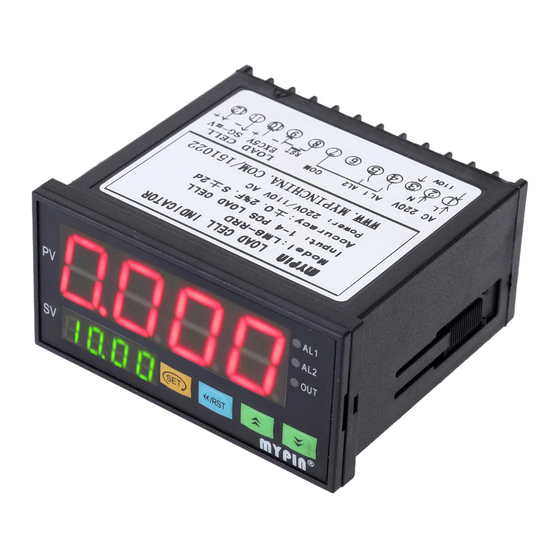

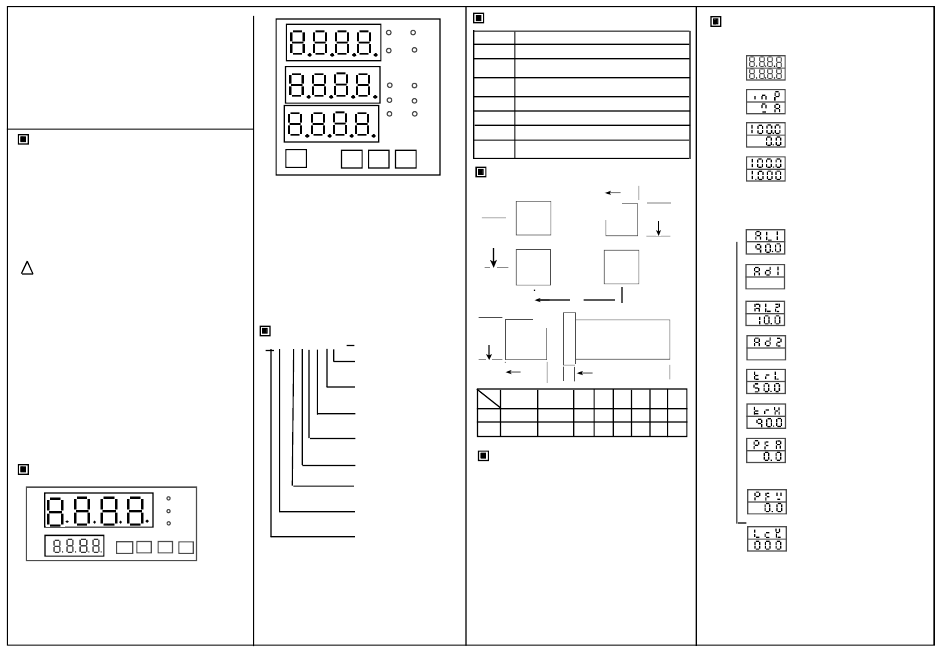

Name of parts
AL1
←
AL2
OUT
SET
<</Rst
DR8
Ohm
Volt
Amp
SET
<</Rst
DR9
:
Parameters select/confirm key
S E T
《/ R s t :
Shift/Clear /Reset key.When measuring,press >2s to
star/stop measurement.if stop,the instrument keep the
value until next measurement
:UP key
:
DOWN key
AL1 AL2 AL3: the indicate lamps for alarms
Ω/KΩ/MΩ:the indicate lamps for Ohm units
V /mA/uA:the indicate lamps for added volt/amp units
Code Illustraction
DR □ - □□□□□□□
Measure range,100K-500MΩ
Communication interface: Blank: none
2: R232 4: R485
AL3: R:relay S: SSR/LOGIC
AL2: R:relay S:SSR/LOGIC
AL1: R:relay S:SSR/LOGIC
Power Supply: Blank:90-260V AC/DC
Analogue : Blank: none
I : DC 4-20mA V: 0-10mA
①
Size: 8:48H×96W ×80L
9:96H×96W×100L
DR series Precision Sensor Meter
☆ Eg.DRZ9-INN4500M: Meg Ohm meter,4-20mA
output,RS485communicaiton,without alarm,measure
range:0-500M, size:96*96*100mm, 80-260V AC/DC
power supply.
Specifications
K Ω
Ω
Power
80-260V AC 50/60Hz or 12--30V AC/DC
M Ω
RUN
Inspected
Various resistance,conductivity,insulation resistance,etc.
E x c i t a ti o n
Voltage:24V 100V 200V 500V,etc.
voltage
AL1
V
Short curcuit
Auto current curcuit protection
protection
u A
AL2
Accuracy
± 0.5%FS ± 2digit
mA
AL3
Output
0-10V/4-20mA,configurable by software.
Alarm
RELAY: NO 250V AC 3A or 30V DC 3A COS¢=1
Communicaiton RS232/RS485 interface, MODBUS RTU protocol
Mounting
+
↑
D
+
C
↑
F
E
G
尺寸
A
B
N:none
型号
DR8
43.5+0.5
91+0.5
N:none
DR9
91+0.5
91+0.5
N:none
Parameters setting
1. Alarm setting: In the displaying estate, press and hold SET key for more
E: 18-30V AC/DC
than 3 seconds, enter alarm mode parameters setting menu. Press <
</RST key, LED flashes, press
key to confirm. Press SET key to read the following parameters one by one.
2. The instrument will return to the measuring estate without any operation
for 25 seconds.
Special functions
1. Megohmmeter: In the deisplaying estate,press 《 〈/RST>3s,RUN(OUT)
lamp ON to clear last value,display volt/ampere.and prepare for next
measurement.
When it's under measurement,RUN(OUT)lamp OFF,no volt/ampere val-
ues display,but keep the last value measured.If OPEN displays,it means
ampere<0.1uA or resistance>500MΩ
2. For regular measurement,the instrument can be setted to a certain range
to judge if the object is qualified automatically.External output is available.
Operation process
Power ON
↓
↓
↓
A
In displaying estate,press SET>3s to enter/quit
↑
+
setting estate
B
SET
+
H
C
D
E F
G
H
65
115
96
48
12
80
115
115
96
96
12 100
/
key to modify,and then press SET
Note: When power on,the instrument is in ready mode.
Please press 《/RST>2s to start measurement.
↓
All LED on
Input signal type
Up linit
Down limit
PV display
Rate setting
SET>3S
↓
Alarm 1 setting,range: -19999-99999
↓
SET
Alarm 1 mode setting,
H:High output L: Low output
L/H
↓
SET
Alarm 2 setting,range:-19999-99999
↓
SET
Alarm 2 mode setting
L/H
H: High output L: Low output
↓
SET
Analogue Low value setting,range:
LSP≤trH≤USP
↓
SET
Analogue High value setting,range:
LSP≤trH≤USP
↓
SET
Min measurable current value.When the
measured value< the setted value "OPEN"
↓
SET
displays.It's just the same case if the
resistance>500M ohm
Min measurable volt value.When the measured
SET
volt< the setted value,the excitation vlot displays 0
↓
LCK=010,is for read only.
LCK=000 means the parameter can be momodified.
Password selection,range:0-200
1
