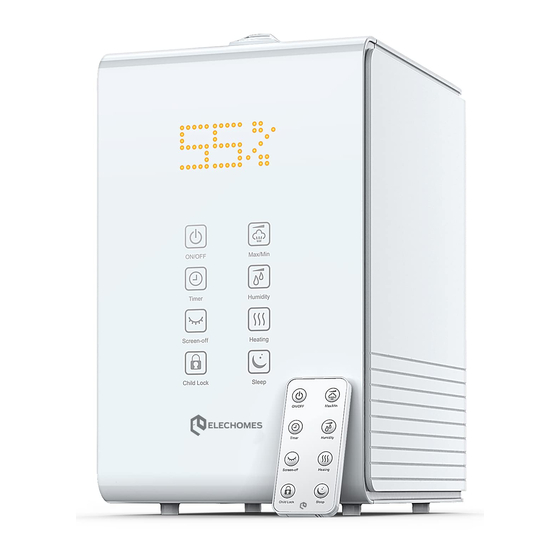

Elechomes Humidifier SH8820 Manual

Should you have any questions or concerns about your new product, feel free to contact us on Monday-Sunday at 9:00 am-5:00 pm PST via support@elechomes.com. We hope you enjoy your new product!

GET LATEST INFO & INSPIRATION
Find @Elechomes on social media for healthy lifestyle inspiration. Share your life with us.

@Elechomes
#Elechomeslifestyle • #Elechomeslifelover

Diagram

1. LED Display
2. ON/OFF Button
3. Timer Button
4. Screen-off Button
5. Child Lock Button
6. Max/Min Button
7. Humidity Button
8. Heating Button
9. Sleep Button
10. Unit
11. Water Tank
12. Aromatherapy Cover
13. Aromatherapy Plate
14. Head Cover
15. Water Tank Cover
16. Air Channel
17. Atomizing Plate
18. Water Level Sensor
19. Float Ball
20. PTC Heater
21. Water Box
22. Air Outlet
23. Anti-scale plate

Note: To guarantee its accurate humidity detection, keep the humidifier (especially the humidity sensor) dry before use.

Specifications

Electrical Schematic Diagram

Safety Precautions

Failure to follow the instructions exactly as they are specified may result in fire, electric shock, and/or serious injuries.

• Only operate the device on a smooth, stable surface.
• Keep the device away from heat sources like radiators, ovens, and vents.
• Aim the mist away from furniture, appliances, and people.
• Do not scratch the atomizing plate.
• Do not touch the water or internal elements while the device is operating.
• Do not move the device while it is operating.
• Do not cover the mist nozzles.
• Do not touch the mist when in warm mist mode.
• Do not attempt to repair the device. All repairs must be performed by a qualified service professional.
• Do not let children operate the device without adult supervision.
• Do not dismantle the air channel if the tank is filled with hot water.
• Always unplug the device when not in use and store it in a cool, dry place.
• Turn off the device immediately if strange sounds or odors occur.
• Always unplug the humidifier when not in use. Drain the water tank and sink, clean, wipe, and dry all parts, and then store them in original packing box.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Care should be taken when using the appliance due to the emission of hot water vapour.
• Unplug the appliance during filling and cleaning.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to aviod a hazard.

Essential Functions

• This device can humidify a large area quickly and evenly.
• This humidifier can emit both warm and cool mist to cater to diverse needs.
• Thanks to the intelligent humidification, the room will remain at a fixed humidity percentage automatically.
• The steam level can be adjusted among low, medium, and high.
• The sleep function ensures ultra-quiet operation.
• The LED display can be turned off at any time.
• While in child lock mode, the control panel is deactivated to prevent children from mishandling the product.
• The dual mist nozzles can be rotated 360° independently.
• The humidifier is equipped with 12 preset timing settings.
• Add a few drops of essential oil into the aromatherapy box for a soothing aromatherapy experience.
• Water shortage protection prevents dry operation and maximizes product lifespan.
• An included remote can be used to control all functions of the humidifier.
• The Elechomes Warm and Cool Mist Humidifier is compliant with hazardous substances management ordinances.

Humidifier Operation

Operating Environment

• Only operate the humidifier in indoor environments between 41-113°F and lower than 80% relative humidity.
• Do not fill the tank with water hotter than 105°F.
• Filling the tank with purified water is recommended.

Getting Familiar with the Control Panel

ON/OFF


Timer


Screen-off


Child Lock


Max/Min


Humidity


Heating


Sleep

Screen-off Button

1. Press screen-off button in any working state to manually turn off the LED display. It won't affect the previous operating effects.
2. Press any button to restore LED display.

Note: The humidifier beeps 6 times and the LED display restores when the water tank is short of water under any working state except sleep mode.

Child Lock Button

Press and hold the child lock button for 3s. You will hear a beep sound and the LED screen will display and the control panel cannot be operated. Press and hold the child lock button for 3s to deactivate the child lock mode and the LED screen will display .

Note: When using the remote control, just press the button to enter the child lock mode.

Max/Min Button

Press the Min/Max button to adjust mist strength. Press Max/Min once for low, twice for medium, and three times for high.

After once button press, the LED screen will display (default high).
After the second button press, the LED screen will display (low).
After the third button press, the LED screen will display (medium).
After the fourth button press, the LED screen will display (back to high).

Humidity Button

Press the Humidity button to set your desired humidity value (from 30% to 90%, each press increases level 5%). Once the room has reached your specified humidity level, the device will shut off automatically (The LED screen will display the current humidity continually). The humidifier will automatically spray mist for 1 minute after being turned on, even if the room has reached the set humidity level.
When the ambient humidity drops to 5%RH (Relative Humidity) below the set humidity, the humidifier will reactivate. The cycle will continue until the tank runs out of water or until the device is turned off.
After one button press, the LED screen will display (default). Mist will spray no matter the ambient humidity level.
After the second button press, the LED screen will display "30%". Each subsequent press increases the humidity level by 5%, until the maximum 90% is reached. (Press and hold the button for 2s to turn off the humidity setting.)

Heating Button

Press this button for a warm mist. Press the button again to increase mist temperature.
After one button press, the LED screen will display (cool).
After the second button press, the LED screen will display (low heat).
After the third button press, the LED screen will display (medium heat).
After the fourth button press, the LED screen will display (high heat).
It cycles when you continue to press the button.

Note: When using the Heating Button for warm mist, always make sure it is placed in a secure location out of child's reach to avoid scalding.

Sleep Button

Once the Sleep button is pressed, the humidifier will enter sleep mode and the LED screen will display 3 times and then will turn off. While in sleep mode, button tones will be silenced. All functions can be activated in sleep mode, The heating function will turn off by default (to avoid boiling noise).

Note: If you want to activate this function (in sleep mode), just press the Heating button again. The humidifier will continue to work as sleep mode after setup completes.

Important Notes

Note 1:
Water Shortage Alert:
The device beeps 6 times and the "ERR" icon (see above) will appear on the LED screen display if the water is insufficient. The humidifier will shut off automatically and will resume once the water is sufficient.

Note 2:
High Temperature Alert:
When the detected surface temperature of PTC is ≥140°C / 284℉ or the atomized plate is detected to run dry during operation, the humidifier will automatically enter high temperature alert program. The device displays "HOT" and beeps once every second for continuous 8 times. The atomizing plate and PTC stop work, while the fan stops work after continuing 3 minutes. All buttons are invalid except ON/OFF button (the device will alert again if you press the ON/OFF button). You can only restart the humidifier after all malfunctions have been settled.

How to Use the Humidifier

1. Open the head cover (Figure 1).
   Figure 1

   Fill the tank with water

2. Take the water tank out of the unit (Figure 2), fill the water tank with water and put it back to the unit; or you can pour water into the water tank, then close the cover (Figure 3);
   Figure 2

   The water level must lower the tank handle
   Figure 3

   Close the cover
   Note:
   1. The water level must lower the tank handle.
   2. Please do not pour water into the air channel. If so, the machine will not work normally. Please pour out all the water in the machine and refill the water tank before starting the machine.
   3. Make sure to use the product with the water tank. Do not remove the water tank and pour water directly into the machine.
3. Plug the power cord into an outlet and press the ON/OFF button to activate the device. For information on setting adjustment, see the "Getting Familiar with the Control Panel" section.
4. For aromatherapy, follow the steps below.
   1. Remove the aromatherapy cover (Figure 1).
   2. Pour several drops of fragrance or essential oil into the box until the cotton is wet (Figure 1).
   3. Reinsert the aromatherapy cover and turn on the humidifier.

      Note:
      1. If you no longer wish to use the aromatherapy function, simply remove the cotton, wash it in warm water, and reinsert it once it is dry.
      2. You can take the aromatherapy plate and insert your desired fragrance at any time.
      3. Do not pour fragrances, essential oils, or abrasive liquids directly into the water tank.

Maintenance

1. Cleaning the Humidifier
   The atomizing plate and heater are particularly prone to lime-scale accumulation. Clean the anti-scale cotton with clean water each time you fill the water tank, and clean the atomizing plate with dish detergent regularly (once two weeks).
   Follow the cleaning method specified below:
   1. Before cleaning, remove the head cover, water tank, air channel and other movable parts (figure 1). These parts can be washed directly under the water faucet.
      Figure 1

      Please remove the head cover, water tank, air channel and other movable parts.
   2. Use water and brush to clean the water box and other parts in the machine. Then pour the water from the rear of the machine according to the direction shown in (figure 2). Please do not pour water from the front of the machine (figure 3) to avoid water entering the machine from the air outlet.
      Figure 2

      Please pour the water from the rear of the machine.
      Figure 3

      Please do not pour water from the front of the machine.
   3. When cleaning the water tank cover and seal ring, do not distort them and the water tank, air channel, head cover should be installed back in place after finish cleaning.
   4. Due to the higher water hardness in some areas, the surface of atomizing plate and heating plate are prone to accumulate scale. Users should wash them regularly with detergent, and clean the inside of the water tank and the water box every week under the following instruction: Place 5 drops of dish soap on the surface of the atomizing plate and 5 drops of dish soap on the heater. Pour in approximately 30mL of water. Use a dish brush or sponge to clean the atomizing plate, heater, and sink until all lime-scale is removed. Drain the dirty water and rinse the device twice.
      Note: Make sure that the fan remains dry at all times.
2. After entering heating function, the water temperature in the water box is very high. Therefore, do not clean the machine immediately after shutting down the machine to avoid scalding. The machine should be shut down for 1 hour before cleaning.
3. Do not soak the water box, water tank with hot water while cleaning.
4. There is an air inlet at the bottom of the machine. When cleaning, do not immerse the bottom of the machine in water to avoid water entering into the machine from the air inlet and damaging the machine.

Replacing the Remote Control Battery

1. Press the locking tab toward the pulling slot to remove the battery compartment (figure 1).
   Figure 1

2. Properly dispose of the old battery.
3. Place a new 3V CR2025 battery into the battery compartment with positive side facing up (figure 2).
   Figure 2

4. Replace the battery compartment into the remote.

Note: The remote-controlled distance is 5 m (16 ft.).

Troubleshooting

If your device does not work for unknown reason, please unplug the power cable and restart the machine. If this still doesn't work, please contact our Elechomes customer service for support.

Note: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warranty Information

TERMS & POLICY

The Elechomes products are premium in material, craftsmanship, and service. They are effective from the date of purchase.
Elechomes will replace defective products based on eligibility. Refunds are available to the original purchasers of our products within the first 30 days of purchase. This warranty extends only to personal use instead of commercial, rental, or any other uses in which the product is not intended for. Each product has no other warranties other than the already provided warranties.
This warranty is non-transferable. Elechomes is not responsible for any damages, losses or inconveniences caused by equipment's failure, user's negligence, user's abuse, or improper operation that does not follow the included user manual.

This warranty does not apply to the following situations:

• Damage due to abuse, accident, alteration or vandalism.
• Improper or inadequate maintenance.
• Damage in return transit.
• Unsupervised use by children under 18 years old.

Elechomes and its subsidiaries are only responsible for damages caused by the intended use or as instructed in the user manual. Some states do not allow this exclusion or limitation of incidental or consequential losses so the above disclaimer may not apply to you. This warranty gives you specific legal rights and you may also have other rights which may vary from state to state.
All expressed and implied warranties, including the warranty of merchantability, are limited to the period of the limited warranty.

Additional 6-month Warranty:
You can enjoy additional 6-month warranty. Just log onto www.elechomes.com/support/warranty and enter your order number (i.e. Amazon) within the first 14 days of purchase to register your new product for the extended warranty.
If you are unable to provide the order number for your product, please type a short note in the order number field along with the date you received your product.

Defective Products & Returns:
Should your product prove defective within the specified warranty period, please contact the Customer Support via support@elechomes.com with your invoice and order number. Once our Customer Support team has approved your request, please return the product with a copy of your invoice and order number.

Customer Support

Your satisfaction is our goal! Should you encounter any issues or have any questions about your new product, feel free to contact our Customer Support Team on Monday-Sunday at 9:00am-5:00pm PST via support@elechomes.com.
* Please have your order invoice and order number ready before contacting Customer Support.

Note:
Filling the tank with hard water may cause limescale buildup overtime. Only use genuine Elechomes Filter to minimize limescale. To purchase more filters for your humidifier, scan the QR code or go to elechomes.com for more information.

Connect us with @Elechomes

US Importer: Thousandshores Inc., 37707 Cherry St, Newark, CA 94560, USA
EU Importer: Thousandshores Deutschland GmbH, Bredowstraße 17, Hamburg 22113, DE

Website: https://www.elechomes.com
Customer Service: support@elechomes.com
