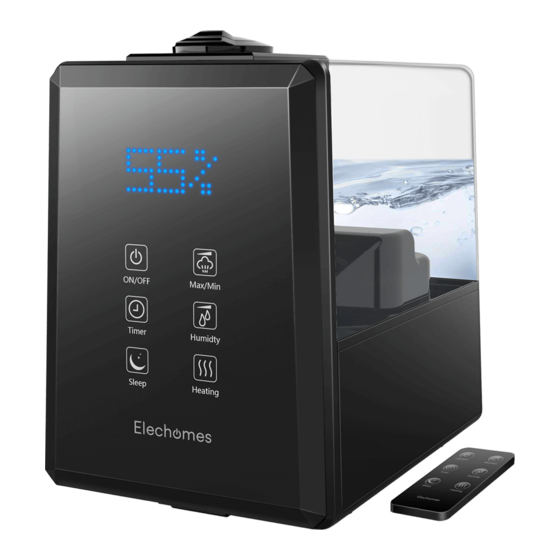

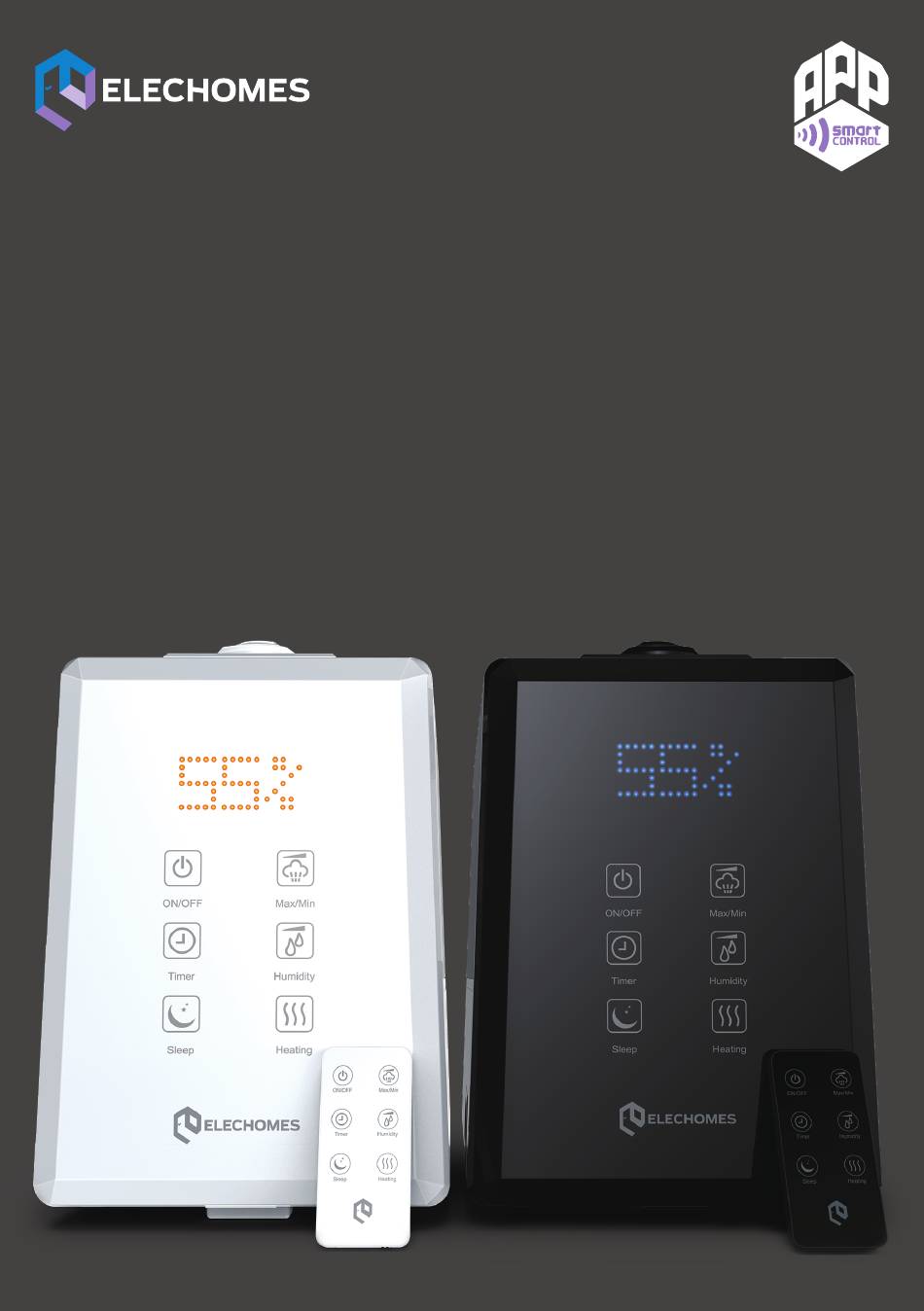

- Page 1 HUMIDIFIER UC5501W USER MANUAL...
- Page 2 Go green. Stay healthy. Count on Elechomes.
- Page 3 THANK YOU FOR PURCHASING THE HUMIDIFIER BY ELECHOMES Should you have any questions or concerns about your new product, feel free to contact us via support@ elechomes.com. We hope you enjoy your new product! GET LATEST INFO & INSPIRATION Find @Elechomes on social media for wellness + recipes + parenting inspiration.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Diagram..........................1 Specifications........................2 Electrical.Schematic.Diagram....................2 Safety.Precautions....................... 2 Essential.Function........................ 3 Humidifier.Operation......................4 Important.Notes........................6 Maintenance......................... 9 Replacing.the.Remote.Control.Battery................10 Troubleshooting......................... 10 WiFi.Instructions......................... 13 Warranty.Information......................17 Customer.Support......................18... -
Page 6: Diagram
Thank you for choosing Elechomes!Please read this manual carefully to ensure safe use and keep it on hand for future reference. Diagram 1. Mist nozzle 8. Aromatherapy box 15. Humidity button 2. Tank handle 9. ON/OFF button 16. Heating button 3. -
Page 7: Specifications
Specifications Model UC5501W Capacity 6.0L Voltage AC.120V./.60Hz Min16W(cool.mist)~. Power Max.280W(warm.mist) Frequency Band 2.400~2.4835GHz Maximum Transmission Power 17.5.dBm Space Application 430-755ft².(40-70m²) Max Cool Mist Capacity 300mL/H Max Warm Mist Capacity 550mL/H Electrical Schematic Diagram Heater Power.Board Main.Control.Board AC 120V / 60Hz... -
Page 8: Essential.function
Water shortage protection prevents dry operation and maximizes product lifespan. ● An included remote can be used to control all functions of the humidifier. ● For better humidification, use a filter (not included). ● The Elechomes Warm and Cool Mist Humidifier is compliant with hazardous substances ● management ordinances. -
Page 9: Humidifier.operation
Humidifier Operation Operating Environment Only operate the humidifier in indoor environments between 41-113° ● F and lower than 80% relative humidity. ON/OFF Max/Min Do not fill the tank with water hotter than 105° F. ● Filling the tank with purified water is recommended. ●... - Page 10 The first time the Timer button is pressed, the LED screen will display (default mode). In default mode, the device will humidify continuously until the water runs out. The second time the button is pressed, the LED screen will display The humidifier will automatically turn off after one hour.
-
Page 11: Important.notes
automatically（The LED screen will display the current humidity continually). The humidifier will automatically spray mist for 1 minute after being turned on, even if the room has reached the set humidity level. When the ambient humidity drops to 5%RH（Relative Humidity）below the set humidity, the humidifier will reactivate. - Page 12 Note 2: High Temperature Alert: When the detected surface temperature of PTC is ≥ 140 ° C / 284 ℉ or the atomized plate is detected to run dry during operation, the humidifier will automatically enter high temperature alert program. The device displays “HOT”...
- Page 13 5. Screw the cap onto the water tank tightly and reattach the tank. 6. Reattach the handle cover. 7. Plug the power cord into an outlet and press the ON/OFF button to activate the device. For information on setting adjustment, see the“Getting Familiar With the Control Panel” section.
-
Page 14: Maintenance
Maintenance Cleaning the Atomizing Plate and Heater The atomizing plate and heater are particularly prone to limescale accumulation. Clean the anti-scale cotton with clean water each time you fill the water tank, and clean the atomizing plate with dish detergent regularly (once two week). Follow the cleaning method specified below: 1.Remove and clean the air channel and mist tube. -
Page 15: Replacing.the.remote.control.battery
Follow the cleaning method specified below: 1.Twist the cap counterclockwise to open the tank. 2.Pour 10mL of vinegar into the tank and add water until the tank is 1/4 full. 3.Screw the cap on tightly and shake the tank repeatedly. 4. - Page 16 The device stops working and Unplug the device and clean the water Abnormal working "001" is displayed on the LED box and PTC heater after the water temperature of the PTC heater. screen. temperature gets down. The device stops working and Abnormal working Unplug the device and clean the water "002"...
- Page 17 If your device does not work for unknown reason, please unplug the power cable and restart the machine. If this still doesn't work, please contact our Elechomes customer service for support. FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
-
Page 18: Wifi.instructions
WiFi Instructions Scan and Download 1) Download＂Elechomes＂APP 2).Log in the APP after registration (suitable for Android or ios system) Note: •. T he first-time configuration, please keep the device and your phone consistent WiFi, which is not required later. •.. - Page 19 Step 5 Step 6 P r e s s a n d h o l d t h e It wil l automatical ly d e v i c e＇ s M a x / M i n search for devices on button for 3s to make this page.
- Page 20 Click [Go to Connect]. G o t o W i - F i s e t t i n g i n t e r f a c e o f y o u r phone,Connect to the hotspot named "Elechomes-SL-xxx".
- Page 21 Step 9 Step 10 Back to Elechomes app, If this page appears, i t w i l l a u to m at i ca l l y your humidifer has been search for devices on successfully added. You this page. You can check...
-
Page 22: Warranty.information
Unsupervised use by children under 18 years old. ●.. Elechomes and its subsidiaries are only responsible for damages caused by the intended use or as instructed in the user manual. Some states do not allow this exclusion or limitation of incidental or consequential losses so the above disclaimer may not apply to you. -
Page 23: Customer.support
* Please have your order invoice and order number ready before contacting Customer Support. Note: Filling the tank with hard water may cause limescale buildup overtime. Only use genuine Elechomes Filter to minimize limescale. To purchase more filters for your humidifier, scan the QR code or go to elechomes.com for more information. - Page 24 US Importer: Thousandshores.Inc.,.37707.Cherry.St,.Newark,.CA.94560,.USA Customer Service: support@elechomes.com...
