HUMIDIFIER
SH8820W
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SH8820W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elechomes SH8820W

Summary of Contents for Elechomes SH8820W

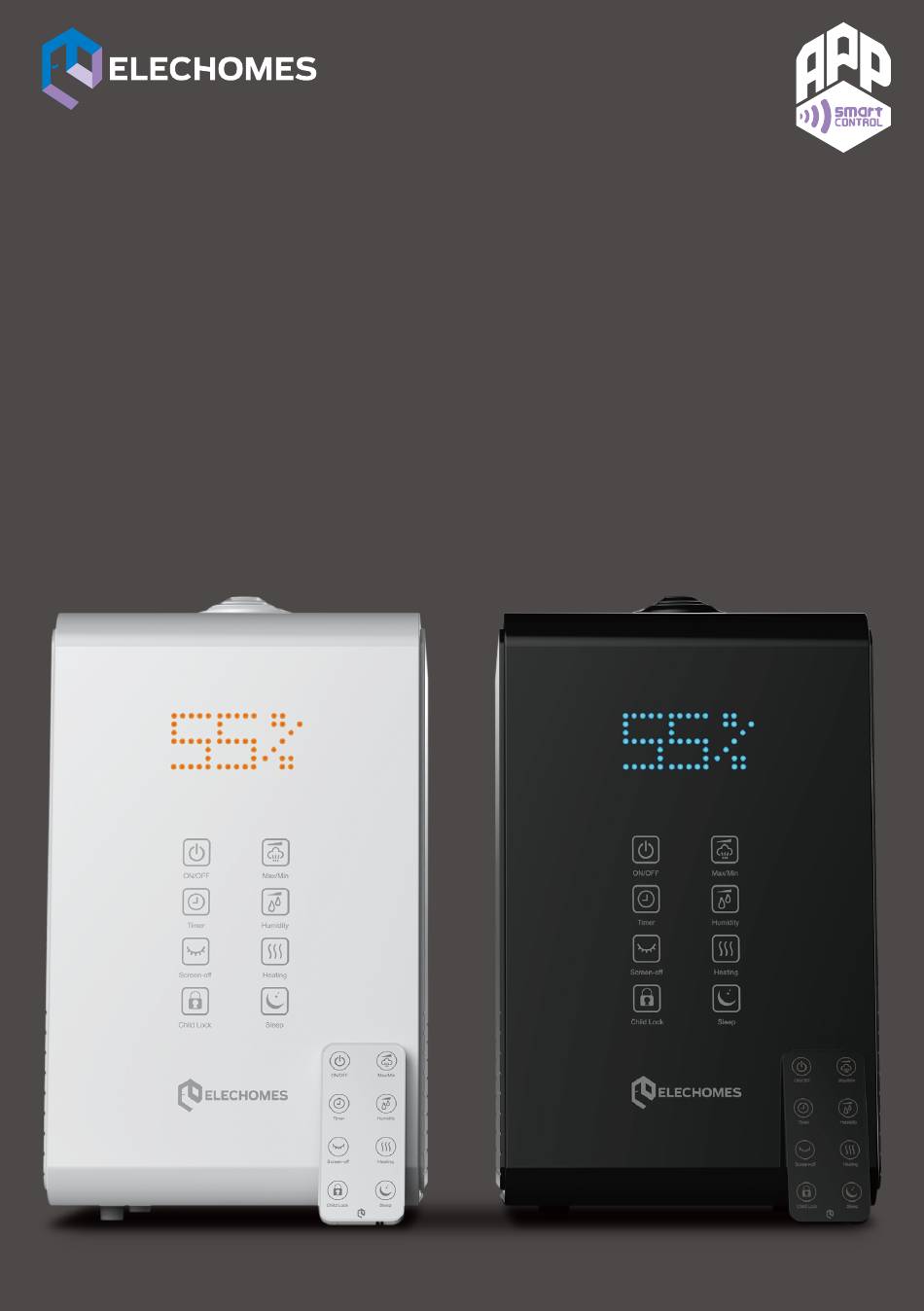

  • Page 1 HUMIDIFIER SH8820W USER MANUAL...
  • Page 2 Go green. Stay healthy. Count on Elechomes.
  • Page 3 THANK YOU FOR PURCHASING THE HUMIDIFIER BY ELECHOMES Should you have any questions or concerns about your new product, feel free to contact us via support@ elechomes.com. We hope you enjoy your new product! GET LATEST INFO & INSPIRATION Find @Elechomes on social media for wellness + recipes + parenting inspiration.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Diagram................................... 1 Specifications................................. 2 Electrical.Schematic.Diagram..........................2 Safety.Precautions..............................2 Essential.Function..............................3 Humidifier.Operation............................4 Important.Notes..............................7 Maintenance................................8 Replacing.the.Remote.Control.Battery......................10 Troubleshooting..............................10 WiFi.Instructions..............................13 Warranty.Information............................17 Customer.Support..............................18...

  • Page 6: Diagram

    Thank you for choosing Elechomes!Please read this manual carefully to ensure safe use and keep it on hand for future reference. Diagram 1..LED.Display 9..Sleep.Button 17..Atomizing.Plate 2..ON/OFF.Button 10..Unit 18..Water.Level.Sensor 3..Timer.Button 11..Water.Tank 19..Float.Ball 4..Screen-off.Button 12..Aromatherapy.Cover 20..PTC.Heater 5..Child.Lock.Button 13..Aromatherapy.Plate 21..Water.Box 6..Max/Min.Button 14..Head.Cover 22..Air.Outlet 7..Humidity.Button...

  • Page 7: Specifications

    Specifications Model SH8820W Capacity 5.5L Voltage AC 120V / 60Hz Min16W(cool mist)~ Power Max 280W(warm mist) Frequency Band 2.400~2.4835GHz Maximum Transmission Power 17.5 dBm Space Application 430-755ft² (40-70m²) Max Cool Mist Capacity 300mL/H Max Warm Mist Capacity 600mL/H Electrical Schematic Diagram...

  • Page 8: Essential.function

    Do.not.move.the.device.while.it.is.operating.. ●. Do.not.cover.the.mist.nozzles.. ●. Do.not.touch.the.mist.when.in.warm.mist.mode.. ●. Do. not. attempt. to. repair. the. device.. All. repairs. must. be. performed. by. a. qualified. service. ●.. professional.. Do.not.let.children.operate.the.device.without.adult.supervision.. ●. Do.not.dismantle.the.air.channel.if.the.tank.is.filled.with.hot.water.. ●. Always.unplug.the.device.when.not.in.use.and.store.it.in.a.cool,.dry.place.. ●. Turn.off.the.device.immediately.if.strange.sounds.or.odors.occur. ●. Always.unplug.the.humidifier.when.not.in.use..Drain.the.water.tank.and.sink,clean,.wipe,.and.dry.all. ●.. parts,.and.then.store.them.in.original.packing.box. This.appliance.can.be.used.by.children.aged.from.8.years.and.above.and.persons.with.reduced. ●.. physical,.sensory.or.mental.capabilities.or.lack.of.experience.and.knowledge.if.they.have.been.given. supervision.or.instruction.concerning.use.of.the.appliance.in.a.safe.way.and.understand.the.hazards. involved.Children.shall.not.play.with.the.appliance.Cleaning.and.user.maintenance.shall.not.be. made.by.children.without.supervision.

  • Page 9: Humidifier.operation

    ●.. product. The.dual.mist.nozzles.can.be.rotated.360°.independently.. ●.. The.humidifier.is.equipped.with.12.preset.timing.settings.. ●.. Add.a.few.drops.of.essential.oil.into.the.aromatherapy.box.for.a.soothing.aromatherapy.experience.. ●.. Water.shortage.protection.prevents.dry.operation.and.maximizes.product.lifespan. ●. An.included.remote.can.be.used.to.control.all.functions.of.the.humidifier.. ●. The. Elechomes. Warm. and. Cool. Mist. Humidifier. is. compliant. with. hazardous. substances. ●.. management.ordinances. Humidifier Operation Operating Environment Only.operate.the.humidifier.in.indoor.environments.between.41-113°.F. ●.. and.lower.than.80%.relative.humidity.. Do.not.fill.the.tank.with.water.hotter.than.105° F.. ●. Filling.the.tank.with.purified.water.is.recommended. ●. Getting Familiar with the Control Panel ON/OFF Button Once.the.power.
  • Page 10 Timer Button Press.the.timer.button.to.set.your.desired.humidifying.time.ranging.from.1.to.12.hours..Each.button. press.adjusts.the.time.by.1.hour..(Press.and.hold.the.button.for.2s.to.turn.off.the.timing.setting.) The.first.time.the.Timer.button.is.pressed,.the.LED.screen.will.display......(default.mode)..In. default.mode,.the.device.will.humidify.continuously.until.the.water.runs.out.. The.second.time.the.button.is.pressed,.the.LED.screen.will.display......The.humidifier.will.automatically.turn.off.after.one.hour..Each.subsequent.press.of.the.button.will. increase.the.time.by.1.hour. LED. screen. displays. remaining. time. in. Hour. after. you. complete. settings.. The. humidifier. will. automatically.stop.work.and.enter.standby.state.after.time.completes...The.LED.screen.will.display. and.flash.the.current.ambient.humidity. You.need.to.press.ON/OFF.button.again.to.restore.humidifying.(it.doesn’t.work.if.the.device.is.in. water.shortage.protection.state)..Once.the.time.setting.has.been.selected,.the.LED.screen.will.display. the.remaining.time. Screen-off Button 1... P ress.screen-off.button.in.any.working.state.to.manually.turn.off.the.LED..display..It.won't.affect.the. previous.operating.effects. 2..Press.any.button.to.restore.LED.display.. Note: The humidifier beeps 6 times and the LED display restores when the water tank is short of water under any working state except sleep mode.
  • Page 11 Max/Min Button Press.the.Min/Max.button.to.adjust.mist.strength..Press.Max/Min.once.for.low,.twice.for.medium,.and. three.times.for.high. After.once.button.press,.the.LED.screen.will.display......(default.high).. After.the.second.button.press,.the.LED.screen.will.display.......(low).. After.the.third.button.press,.the.LED.screen.will.display......(medium). After.the.fourth.button.press,the.LED.screen.will.display......(back.to.high). Humidity Button Press.the.Humidity.button.to.set.your.desired.humidity.value(from.30%.to.90%,.each.press.increases. level. 5%. ).. Once. the. room. has. reached. your. specified. humidity. level,. the. device. will. shut. off. automatically（The.LED.screen.will.display.the.current.humidity.continually)..The.humidifier.will. automatically.spray.mist.for.1.minute.after.being.turned.on,.even.if.the.room.has.reached.the.set. humidity.level. When. the. ambient. humidity. drops. to. 5%RH（Relative. Humidity）below. the. set. humidity,. the. humidifier.will.reactivate..The.cycle.will.continue.until.the.tank.runs.out.of.water.or.until.the.device.is.

  • Page 12: Important.notes

    Sleep Button Once.the.Sleep.button.is.pressed,.the.humidifier.will.enter.sleep.mode.and.the.LED.screen.will.display........3.times.and.then.will.turn.off..While.in.sleep.mode,.button.tones.will.be.silenced..All. functions.can.be.activated.in.sleep.mode,The.heating.function.will.turn.off.by.default.(to.avoid.boiling. noise).. Note: If. you. want. to. activate. this. function. (in. sleep. mode),. just. press. the. Heating. button. again.. The. humidifier.will.continue.to.work.as.sleep.mode.after.setup.completes.

  • Page 13: Maintenance

    Figure.1 Figure.2 Figure.3 The.water.level.must.lower. Fill.the.tank.with.water Close.the.cover the.tank.handle 3... P lug. the. power. cord. into. an. outlet. and. press. the. ON/OFF. button. to. activate. the. device.. For. information.on.setting.adjustment,.see.the."Getting.Familiar.with.the.Control.Panel".section.. 4..For.aromatherapy,.follow.the.steps.below. a).Remove.the.aromatherapy.cover.(Figure.1). b).. P our.several.drops.of.fragrance.or.essential.oil. Aromatherapy.Cover into.the.box.until.the.cotton.is.wet.(Figure.1). c).. R einsert.the.aromatherapy.cover.and.turn.on. the.humidifier. Note: a.. I f.you.no.longer.wish.to.use.the.aromatherapy.function,.simply.remove.the.cotton,.wash.it.in.warm. water,.and.reinsert.it.once.it.is.dry..
  • Page 14 b... U se.water.and.brush.to.clean.the.water.box.and.other.parts.in.the.machine..Then.pour.the.water. from.the.rear.of.the.machine.according.to.the.direction.shown.in.(figure.2)..Please.do.not.pour. water.from.the.front.of.the.machine.(figure.3).to.avoid.water.entering.the.machine.from.the.air. outlet c... W hen.cleaning.the.water.tank.cover.and.seal.ring,.do.not.distort.them.and.the.water.tank,.air. channel,.head.cover.should.be.installed.back.in.place.after.finish.cleaning. Figure.1 Figure.2 Figure.3 1.Head cover 3.Air channel 2.Water tank 4.Screw nut Please.remove.the.head.cover,.water.tank,. Please.pour.the.water.from. Please.do.not.pour.water.from. air.channel.and.other.movable.parts. the.rear.of.the.machine. the.front.of.the.machine. d... D ue.to.the.higher.water.hardness.in.some.areas,.the.surface.of.atomizing.plate.and.heating.plate. are.prone.to.accumulate.scale..Users.should.wash.them.regularly.with.detergent,.and.clean.the. inside.of.the.water.tank.and.the.water.box.every.week.under.the.following.instruction:.Place.5. drops.of.dish.soap.on.the.surface.of.the.atomizing.plate.and.5.drops.of.dish.soap.on.the.heater.. Pour.in.approximately.30mL.of.water..Use.a.dish.brush.or.sponge.to.clean.the.atomizing.plate,. heater,.and.sink.until.all.lime-scale.is.removed..Drain.the.dirty.water.and.rinse.the.device.twice. Note: Make.sure.that.the.fan.remains.dry.at.all.times. 2. After entering heating function, the water temperature in the water box is very high. Therefore, do not clean the machine immediately after shutting down the machine to avoid scalding.

  • Page 15: Replacing.the.remote.control.battery

    Replacing the Remote Control Battery Figure.1 Figure.2 1..Press.the.locking.tab.toward.the.pulling.slot.to.remove.the.battery.compartment.(figure.1). 2..Properly.dispose.of.the.old.battery. 3... P lace.a.new.3V.CR2025.battery.into.the.battery.compartment.with.positive.side.facing.up.(figure.2). 4..Replace.the.battery.compartment.into.the.remote. Note: The remote-controlled distance is 5 m (16 ft.). Battery Safety Warning 1.WARNING: Chemical Burn Hazard. Keep batteries away from children. 2. This product contains a lithium button/coin cell battery. If a new or used lithium button/coin cell battery is swallowed or enters the body, it can cause severe internal burns and can lead to death in as little as 2 hours.Always completely secure the battery compartment.
  • Page 16 The.device.stops.working.and. Unplug.the.device.and.clean.the.water. Abnormal. working. temperature. "002".is.displayed.on.the.LED. box. and. atomizing. plate. after. the. of.the.atomizing.plate. screen. water.temperature.gets.down. The.device.has.not.been.plugged.in. Plug.the.cord.into.an.outlet. Pressthe.ON/OFF.button.to.start.the. The.device.has.not.been.turned.on. device. There. is. foreign. matter. on. the. Clear.away.the.foreign.matter. atomizing.plate. There. is. foreign. matter. on. mist. There. is. no. wind. and. mist. Clear.away.the.foreign.matter.
  • Page 17 If your device does not work for unknown reason, please unplug the power cable and restart the machine. If this still doesn’t work, please contact our Elechomes customer service for support. FCC Statement Changes.or.modifications.not.expressly.approved.by.the.party.responsible.for.compliance.could.void.the.user's. authority.to.operate.the.equipment. This.equipment.has.been.tested.and.found.to.comply.with.the.limits.for.a.Class.B.digital.device,.pursuant.to.Part.

  • Page 18: Wifi.instructions

    WiFi Instructions Scan and Download 1).Download＂Elechomes＂APP 2) Log.in.the.APP.after.registration.(suitable.for.Android.or.ios.system) Note: • The.first-time.configuration,.please.keep.the.device.and.your.phone.consistent.WiFi,.which.is.not. required.later.. • Make.sure.your.phone.is.connected.to.a.secure.2.4GHz.WiFi.network..The.Humidifier.can.only.be.set. up.on.a.secure.2.4GHz.network. • Your.phone.may.not.be.able.to.access.the.internet.while.connecting..This.is.normal.and.temporary. Bluetooth Mode Connection Step 1 Step 2 Click. the. icon..on. Click.Humidifier.on.the. the.top. right.corner.on.
  • Page 19 Step 5 Step 6 P r e s s . a n d . h o l d . t h e. It. will. au to matically. d e v i c e＇ s . M a x . / . M i n. search.
  • Page 20 G o . t o . W i - F i . s e t t i n g. i n t e r f a c e . o f . y o u r. phone,Connect. to. the. hotspot.named "Elechomes-SL-xxx".
  • Page 21 Step 9 Step 10 Back.to.Elechomes.app,. If. this. page. appears,. i t . w i l l . a u to m at i ca l l y. your.humidifer.has.been. search. for. devices. on. successfully.added..You. this.page..You.can.check. can. modify. the. device. t h e . W i F i . n a m e . a n d.

  • Page 22: Warranty.information

    30. days. of. purchase.. This. warranty. extends. only. to. personal.use.instead.of.commercial,.rental,.or.any.other.uses.in.which.the.product.is.not.intended.for.. Each.product.has.no.other.warranties.other.than.the.already.provided.warranties. This. warranty. is. non-transferable.. Elechomes. is. not. responsible. for. any. damages,. losses. or. inconveniences.caused.by.equipment’s.failure,.user’s.negligence,.user’s.abuse,.or.improper. operation.that.does.not.follow.the.included.user.manual. This warranty does not apply to the following situations: Damage.due.to.abuse,.accident,.alteration.or.vandalism.

  • Page 23: Customer.support

    Customer Support Your.satisfaction.is.our.goal!.Should.you.encounter.any.issues.or.have.any.questions.about.your.new. product,.feel.free.to.contact.our.Customer.Support.Team.via.support@elechomes.com. *.Please.have.your.order.invoice.and.order.number.ready.before.contacting.Customer.Support.. Note: Filling.the.tank.with.hard.water.may.cause.limescale.buildup.overtime..Only.use. genuine.Elechomes.Filter.to.minimize.limescale..To.purchase.more.filters.for.your. humidifier,.scan.the.QR.code.or.go.to.elechomes.com.for.more.information.
  • Page 24 US Importer: Thousandshores Inc., 37707 Cherry St, Newark, CA 94560, USA Customer Service: support@elechomes.com...
