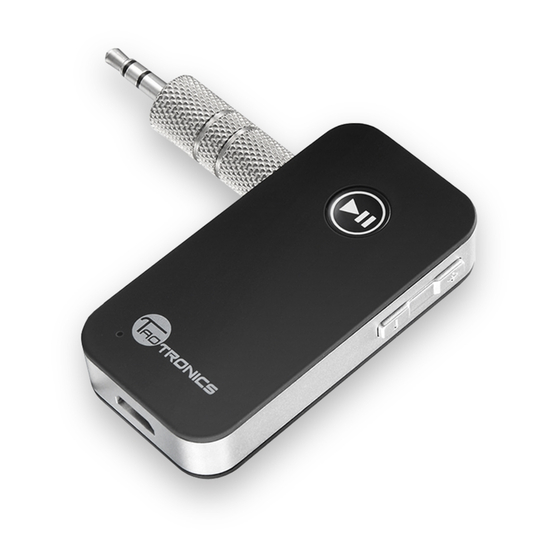

TaoTronics Portable Wireless Receiver TT-BR05 Manual

User Manual

Specifications

Product Diagram

1. Power Button / LED Indicator
2. Volume + / Next
3. Volume - / Previous
4. Microphone
5. Micro USB Charging Port
6. 3.5mm Audio Output Port

How to Use

1. Charging
   The receiver can be fully charged in around 2 hours. We recommend charging the unit for least 4 hours before using it for the first time.
   To charge the receiver:
   1. Insert the micro-USB end of the charging cable into the charging port of the receiver
   2. Plug the USB end of the charging cable to an USB charging adapter or any active USB port
   3. The power LED will turn green when charging. It will automatically turn OFF when the receiver is fully charged.
      Note: You can use the TT-BR05 while it is charging. The internal circuit is design to protect it from over-charging.
2. Multi-Function Button

   Function	Operation	LED indicator
   Power On	Press and hold the power button for 2 seconds until the LED ashes blue	The LED will ash blue, then will ash red and blue
   Power Off	Press and hold the power button for about 2 seconds until the LED ashes red	The LED will ash red at rst, then turn off
   Play	Press the power button once	The LED will ash blue every 4 seconds
   Pause	Press the power button once	The LED will ash blue twice every 4 seconds
   Pairing Mode	Press and hold the power button for 2 seconds	The LED ashes red and blue alternately
   Answer Phone Call	Press the power button one time	Indicator ashes blue once every 4 seconds to indicate working status
   Hang Up	Press the power button one time when you are in a call
   Refuse Phone call	Press and hold the power button for 1-2 seconds
   Redial	Press the power button twice to redial the latest phone number
   Volume +/-	Press and hold the volume +/- button
   Play Previous or Next Song	Press the previous/next button

3. Bluetooth Pairing
   In order for your TT-BR05 to pair with other Bluetooth devices, you must bring the TT-BR05 into pairing mode. This is indicated by the indicator flashing red and blue alternately.
   1. Press and hold the power button for 2 seconds until the LED flashes red and blue alternately
   2. Activate Bluetooth on your phone and set it to search for new devices
      • iPhone® Settings > Bluetooth > On
      • Android™ > Bluetooth: On > Scan For Devices
        Note: Menus may vary by device.
   3. Select "TaoTronics TT-BR05" on your phone.
      Note: If necessary, enter a passcode consisting of four zeros or eights (0000 or 8888) to connect.
      • The TT-BR05 can remember the last successfully paired device. To reconnect to the last paired device, simply turn on your device and the receiver. The Bluetooth connection will automatically reestablish.
4. Pairing Two Devices At The Same Time
   The TT-BR05 supports pairing two devices simultaneously. Although you can have two devices paired, only one of them can play music through the receiver at a time. To pair two devices:
   1. Follow the "Bluetooth Pairing" instructions to pair the TT-BR05 with your first device
   2. Turn OFF your first device. The TT-BR05 will automatically switch into pairing mode
   3. Connect your second device with the TT-BR05
   4. Turn ON the Bluetooth of your first device and select "TaoTronics^® TT-BR05" on your phone, now both devices will pair with the TT-BR05 receiver.
      To switch between the two devices, simply pause the music on the first device and play music on the second device or vice versa.
      Note: The TT-BR05 can remember the last two successfully paired devices. To reconnect to either of the last paired devices, simply turn ON the Bluetooth of the device and the TT-BR05. The Bluetooth connection will automatically reestablish.
5. Useful Tips
   • Music will automatically pause when making or taking phone calls; it will resume when the phone call is finished.
   • The TT-BR05 will power off automatically if there is no Bluetooth connection for 8 minutes.
   • You can safely use the receiver while it is charging.

Care and Maintenance

• Keep the receiver away from heat and humidity
• Do not put the product under direct sunlight or hot areas. High temperatures will shorten the lifespan of the receiver
• Do not try to take the product apart. It may cause serious damage
• Do not drop or knock your receiver on hard surfaces as it damages the interior circuit.
• Do not use chemicals or detergents to clean the product
• Do not scrape the surface with sharp objects.

Troubleshooting

My receiver will not switch on.

Please recharge it and make sure the TT-BR05 has enough battery power. Connect the unit to a charger and see if the power button turns green.

I am having trouble pairing and connecting to my Bluetooth pairing device.

Please check the following:

• Please make sure your Bluetooth device supports A2DP profile
• Make sure the TT-BR05 and your device are next to each other or within 3 feet
• The TT-BR05 must be in pairing mode; this is indicated by the LED ashing red and blue alternately.

After connecting and pairing with my Bluetooth device, I cannot hear any music from my sound system.

Please check the following:

• Your sound system is connected to the TT-BR05 via 3.5mm connection
• Make sure the music volume is at an audible level on both your Bluetooth audio device and your sound system
• For some systems, you may need to select "AUX" or "Line-in" as an audio input method
• Please make sure your audio device is playing music via Bluetooth. Some devices (such as computer) require manually selecting the music output method.

Can I use the TT-BR05 receiver while it is charging?

Yes, the TT-BR05 is designed to be used while charging. The internal circuit is protected from over-charging.

I haven't used the TT-BR05 for a while, now the battery is dead.

What can I do?

If the unit has not been used for more than 21 days, please charge the unit for at least 4 hours as the battery will need a full charge. Please be aware that the LED indicator light may take several hours to show that recharging is complete.

Technical Assistance

For technical assistance, please email to support@taotronics.com with your purchase order number and a detailed description of your issue. We normally respond to enquiries within 24 hours.
For more information, please visit www.taotronics.com.

Warranty

This product is covered with TaoTronics^® parts and labor warranty for 12 months from date of its original purchase from TaoTronics^® authorized retailer and distributor. If the device fails due to a manufacturing defect, please contact TaoTronics^® Support (support@taotronics.com) immediately to launch a warranty claim. We will instruct you on how to return the defective unit back to us for repair and replacement.

The following are excluded from TaoTronics^® warranty cover:

• Device purchased as 2nd hand, used, or from unauthorized sellers
• Damage resulted from misuse and abusive action
• Damage resulted from chemical, fire, radioactive substance, poison, or liquid
• Damage resulted from natural disaster
• Damage caused to any 3rd party, person, object, and beyond

No return will be accepted without seller authorization.

Statement

We can only provide after sale services for products that are sold by TaoTronics^® or TaoTronics^® authorized retailer and distributor. If you have purchased your unit from a different place, please contact the seller for return and warranty issues.

Website: www.taotronics.com

NORTH AMERICA
E-mail:
support@taotronics.com (US)
support.ca@taotronics.com(CA)
Tel: 1-888-456-8468 (Monday-Friday: 9:00 – 17:00 PST)
Address: 2228 Junction Ave, San Jose, CA 95131

EUROPE
E-mail:
support.uk@taotronics.com (UK)
support.de@taotronics.com (DE)
support.fr@taotronics.com (FR)
support.es@taotronics.com (ES)
support.it@taotronics.com (IT)
EU Importer: ZBT International Trading GmbH, Lederstr 21a, 22525 Hamburg, Deutschland

ASIA PACIFIC
E-mail:
support.jp@taotronics.com (JP)
