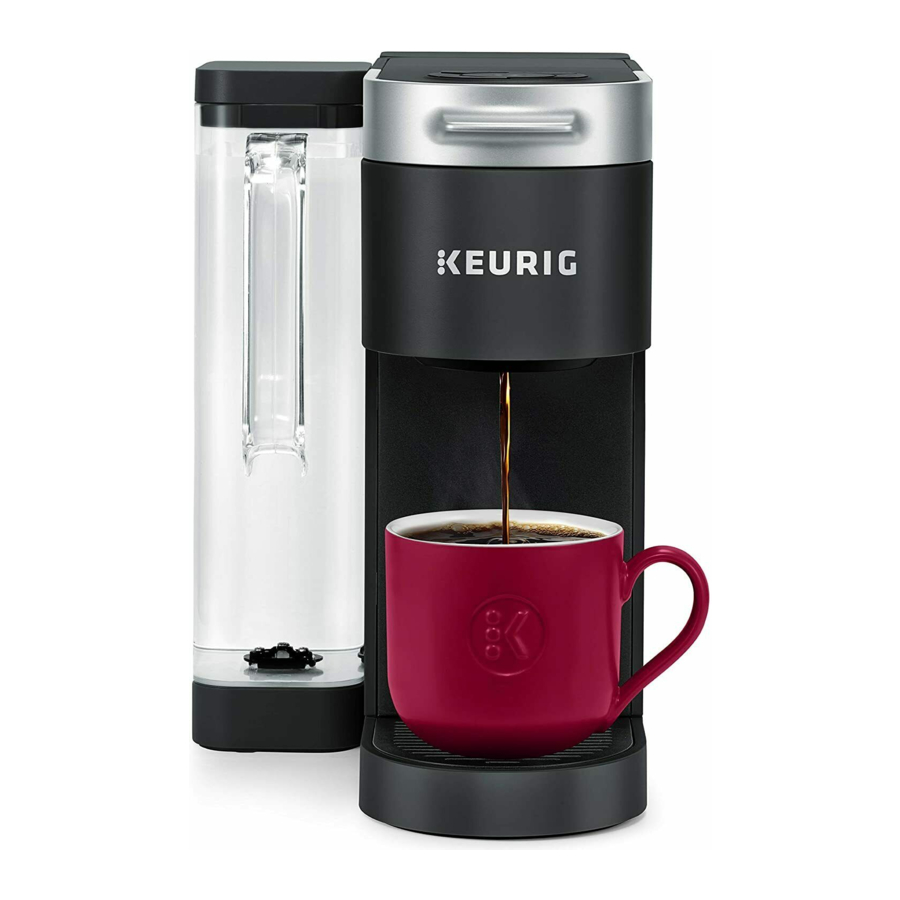

Keurig K-Supreme Manual

Overview

1. Handle
2. K-Cup^® Pod Holder (B and C are the K-Cup^® Pod Holder Assembly)
3. Funnel
4. K-Cup^® Pod Assembly Housing
5. Drip Tray Plate
6. Drip Tray
7. Drip Tray Base
8. Water Reservoir Lid
9. Water Reservoir

For replacement parts, please visit www.keurig.ca

Before You Brew

Plug & Place

Remove packing tape from coffee maker. Plug into a grounded outlet.

Place a large mug (296 ml/10 oz) on the drip tray.

NOTE: If changing water tank position to the back, please complete before first brew (refer to instructions included).

Rinse & Fill

Remove the water reservoir lid, then lift the reservoir straight up to remove it. If you have a Keurig^® Water Filter, install it now. Refer to your Water Filter Starter Kit for instructions.

Rinse reservoir with fresh water and fill to the MAX FILL line.

Replace water reservoir, making sure the lock tabs engage with the coffee maker. Replace lid.

NOTE: Do not use distilled water.

Lift & Lower

Lift and lower the handle. Do not insert a K-Cup^® pod. The coffee maker will power on automatically.

Cleansing Brew

The 4 cup sizes will blink. Press the 8oz button, then press the blinking BREW button to start a cleansing brew. Pour the hot water into the sink.

The one-time setup process is now complete and you are ready to brew!

Brew Your First Cup

Place Mug & Pod

Place a mug on the drip tray. If using a travel mug, remove the drip tray and place the mug on the drip tray base. Lift the handle and place a K-Cup^® pod in the K-Cup^® pod holder. Lower the handle completely to close the lid.

Do not remove the foil lid on the K-Cup^® pod.

Brew & Enjoy!

The 4 brew size buttons will blink. Select your brew size, then press the blinking BREW button. For a stronger coffee, press the STRONG button before brewing. The BREW button will remain illuminated while brewing. Brewing is complete when the buttons are no longer illuminated. Lift the handle and dispose of the K-Cup^® pod.

While brewing, there is extremely hot water in the K-Cup^® pod holder. To avoid injury, do not lift the handle during the brewing process.

For bolder coffee press the STRONG button, followed by the BREW button.

For iced beverages fill a large plastic tumbler with ice. Insert any K-Cup® pod, then press the OVER ICE button, followed by the BREW button.

NOTE: Choose a tumbler large enough to accommodate both the ice and dispensed liquid to prevent overflow.

Multi-position Water Reservoir
Position along the left or back of the coffee maker to optimize counter space.

This coffee maker is only compatible with the newly designed Keurig^® My K-Cup^® Universal Reusable Coffee Filter.

Do not attempt to use any other reusable filter or previous versions of Keurig^® My K-Cup^® Universal Reusable Coffee Filter; may cause damage to coffee maker.

Coffee Maker Features

Smart Start heats then brews in one simple process. No need to wait for the coffee maker to heat before selecting brew size. Simply power on your coffee maker by lifting the handle, add a K-Cup^® pod, select your brew size, then press the BREW button. The coffee maker will heat, then automatically begin brewing.

Auto Off automatically turns your coffee maker off 5 minutes after the last brew for energy savings.

High Altitude To ensure your coffee maker works properly at higher altitudes (1,500 metres/5,000 feet) please enable the High Altitude Brewing Mode on your coffee maker.

1. Power the coffee maker off while it is plugged in.
2. Press and hold the BREW and 8 oz buttons for 3 seconds. The 12 oz button will illuminate to confirm that the High Altitude Brewing Mode has been enabled.

Strong Brew for a bolder, more intense cup.

Over Ice brew your favourite beverages over ice.

Water Tank Repositioning

1. Flip Coffee Maker Over

Remove the drip tray and the water tank and set them aside. On a flat surface, carefully turn the coffee maker over so the base is facing up. You will see two parts: the water tank base (Part and the locking tab (Part A).

2. Remove Part A

Slide Part A out of the coffee maker. It should release freely with little resistance.

3. Lift, Pivot Part B

Next reposition part B.

• Gently pull outward to disengage from the coffee maker.
• Rotate upward, as shown above. Part B will remain attached to the coffee maker.
• Part B should now pivot freely to the second position.

Remember to move the power cord, so it does not get caught.

4. Insert B, Replace A

Replace Part B in its new position. Rotate downward so that B is parallel to the base, then slide B back into position. Remember to replace the power cord.

Slide Part A back into the second position to lock B in place. Flip the coffee maker back upright.

You are now ready to use your Keurig coffee maker!

Caring For Your Coffee Maker

Regular cleaning keeps your coffee maker running smoothly. Always be sure to turn off and unplug your coffee maker before cleaning.

Coffee Maker Exterior

Keep your Keurig^® coffee maker looking its best by cleaning the exterior from time to time. Just clean with a damp, soapy, lint-free, non-abrasive cloth. Never immerse the coffee maker in water or other liquids.

Drip Tray

The drip tray can hold up to 237 ml/8 oz of overflow and should be emptied and cleaned occasionally. To remove, slide it toward you, keeping it level to avoid spilling. Rinse and clean with a damp, soapy, lint-free, non-abrasive cloth.

Water Reservoir

The water reservoir should be cleaned periodically by wiping the inside of the reservoir and underside of the lid with a damp, non-abrasive, lint free cloth. Do not dry the inside of the water reservoir with a cloth as lint may remain. Allow the reservoir to dry completely.

Regular Maintenance

For great-tasting coffee, keep your coffee maker running at peak performance by following the recommended maintenance schedule:

Frequency	Product	Benefit
Every 2 months	Keurig® Water Filters	Keeps your water fresh and clean to enhance the taste of your coffee
Every 3 months or when the Descale notification turns on*	Keurig® Descaling Solution	Eliminates mineral buildup to enhance the taste of your coffee and preserve the long-term health of your coffee maker

*To turn off Descale notification, follow the full descaling procedure as outlined in this guide.

K-Cup^® Pod Holder

To remove the K-Cup^® pod holder from the coffee maker, lift the handle and grasp the top of the K-Cup^® pod holder with one hand while pushing up on the bottom of the K-Cup^® pod holder from underneath with the other until it releases. After cleaning, align the K-Cup^® pod holder with the opening using the two front ribs as a guide and snap into place from the top.

There are sharp needles that puncture the K-Cup^® pod above the K-Cup^® pod holder and in the bottom of the K-Cup^® pod holder. To avoid risk of injury, do not put your fingers in the K-Cup^® pod holder.

NOTE: Always remove and dispose of the used K-Cup^® pod after brewing.

Funnel

Washing the funnel ensures a fresh beverage experience. The funnel should be washed regularly and can be removed from the K-Cup^® pod holder by pulling on it until it pops off. To replace it, orient the snaps to the indent and just snap it back onto the K-Cup^® pod holder.

Exit Needle

Remove the pod holder assembly and detach the funnel. Locate the exit needle on the inside bottom of the K-Cup^® pod holder. Insert a straightened paper clip into the exit needle to loosen any coffee grounds.

Entrance Needles

Lift the coffee maker handle and locate the entrance needles on the underside of the lid. To clean the holes in the needles, hold the coffee maker handle in the upward position and with your other hand, carefully insert a straightened paper clip into all the holes. Gently move it around to loosen any coffee grounds. Lower the handle completely and run a cleansing brew two times. Do not insert a K-Cup^® pod.

TIP: Refer to keurig.ca/support_1 for video instructions on cleaning the entrance/exit needles.

Descaling Your Coffee Maker

You should descale your coffee maker every 3 months, or when the descale notification turns on. Properly follow the descaling procedure.

Depending on the mineral content of your water, calcium deposits or scale may build up in your coffee maker. Scale is non-toxic but if left unattended can hinder coffee maker performance. Regularly descaling your coffee maker every 3 months helps maintain the heating element, and other internal parts that come in contact with water. Calcium deposits may build up faster, making it necessary to descale more often.

Descaling Procedure

Before you begin, you will need a large ceramic mug, fresh water, Keurig^® Descaling Solution, and access to a sink. Do not use a paper cup. Ensure that there is no beverage pod in the K-Cup^® pod holder. Please allow approximately 15-20 minutes for the descaling procedure.

Prepare the Coffee Maker

Pour the entire bottle of Keurig^® Descaling Solution into an empty water reservoir. Then, fill the empty bottle with water and pour into the water reservoir. Do not insert a K-Cup^® pod. Place a large mug on the drip tray.

Descale the Coffee Maker

To activate Descale Mode, begin with the coffee maker plugged in and powered off, then press and hold the 8oz and 12oz buttons together for 3 seconds. When flashing, press the BREW button to start the descaling process. Once the brew is complete, pour the hot liquid into the sink. Repeat this step until the ADD WATER light illuminates.

Fresh Water Rinse

Empty and rinse the water reservoir and refill to the MAX fill line with fresh water. When flashing, press the BREW buttonto start the rinsing process. Once the brew is complete, pour the hot liquid into the sink. Repeat this step until the DESCALE notification turns off. The coffee maker has now exited Descale Mode and will be ready for use!

NOTE: The cleaning action of Keurig^® Descaling Solution may result in a "foam" dispensed from the coffee maker. This is natural, as the solution is reacting with the scale inside. For a coffee maker that is heavily scaled, the coffee maker may not fill properly after the descaler is added. If this occurs, you may see only a small or no output dispensed, followed by the sound of air blowing out. If this occurs:

• Turn off and unplug the coffee maker.
• If there is Keurig^® Descaling Solution in the water reservoir, discard the contents, rinse the water reservoir thoroughly and refill with water.
• Plug the coffee maker back in, power on, and repeat the Fresh Water Rinse cycle. The coffee maker should begin to function normally as the solution is rinsed out and the scale is removed. If problem persists, allow coffee maker to sit unplugged for at least 30 minutes before continuing with the rinse.

Troubleshooting

Grounds in Your Coffee

Grounds may have gathered in the exit or entrance needles and can be cleaned using a straightened paper clip or similar tool.

• Clean the exit needle of the K-Cup^® pod holder. Refer to the Exit Needle care instructions.
• Clean the coffee maker entrance needles. Refer to the Entrance Needles care instructions.

Coffee Maker Will Not Brew

• A minimum of 177 ml/6 oz of water is required to brew. Add an additional 59 ml/2 oz of water to the reservoir to ensure the minimum fill level has been met, then press the brew button. Repeat until the coffee maker begins to dispense.

Brewing a Partial Cup

• Power the coffee maker off. Press and hold the brew button and 12oz button for 5 seconds until water starts dispensing. Then release and let the water purge. Discard the contents into the sink. Press the power button to restart.
• The exit needle may be clogged. Refer to the Exit Needle care instructions.
• Clean the K-Cup^® Pod Holder, see K-Cup^® Pod Holder care instructions.
• The coffee maker may need to be descaled. If you have repeated the descale procedure on your coffee maker two times and it is still only brewing a partial cup, contact Customer Service.

Coffee Maker Does Not Have Power or Shuts Off

• Make sure that the power button has been turned on.
• Plug coffee maker into its own grounded outlet. If the electric circuit is overloaded with other appliances, your coffee maker may not function properly. The coffee maker should be operated on its own circuit, separate from other appliances.
• For energy savings, the coffee maker automatically turns off 5 minutes after the last brew. Press the power button to restart.
• If the coffee maker still doesn't have power, contact Customer Service.

Helpful Hints

Water quality varies greatly. If you notice an undesirable taste in your beverage (such as chlorine or mineral tastes), we recommend using bottled or filtered water. Do not use distilled water.

Service

Beyond these recommended cleaning and maintenance procedures, this coffee maker is not user serviceable. For service, please refer to the Warranty section of this guide.

Storage

Empty the water reservoir before storing or transporting and take care to ensure that you store your coffee maker in a safe and frost-free environment. When you prepare to use it after storage, we recommend rinsing the water reservoir with fresh water and descaling the coffee maker as detailed in the Descaling your Coffee Maker section.

If you plan to move your coffee maker to a different location, turn the coffee maker off, unplug it, and empty the water reservoir. If your coffee maker has been in an environment below freezing, please be sure to let it warm to room temperature for at least 2 hours before using.

Click or Call!

Have Questions?

We're here to help. Visit keurig.ca/support_1 for step-by-step videos on cleaning, descaling, and more.

Still Need Help?

Give us a call at
1-800-361-5628

Warranty

LIMITED ONE YEAR WARRANTY

Keurig Green Mountain, Inc. (Keurig) warrants that your coffee maker will be free of defects in materials or workmanship under normal home use for one year from the date of purchase. It is recommended that you register your coffee maker on keurig.ca/welcome so that your purchase information will be stored in our system. Keurig will, at its option, repair or replace a defective coffee maker without charge upon its receipt of proof of the date of purchase. If a replacement coffee maker is necessary to service this warranty, the replacement coffee maker may be new or reconditioned. If a replacement coffee maker is sent, a new limited one year warranty will be applied to the replacement coffee maker.

This warranty only applies to coffee makers operated in the United States and Canada. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state and, in the case of Canada, from province to province.

Only the use of Keurig^® K-Cup^® brand pods and accessories will guarantee the proper functioning and lifetime of your Keurig^® coffee maker. Any damage to or malfunction of your coffee maker resulting from the use of non-Keurig^® pods and accessories may not be covered by this warranty or may result in a service fee if the damage or malfunction is determined to be caused by such use.

WHAT IS NOT COVERED BY THE LIMITED WARRANTY?

THIS WARRANTY DOES NOT COVER CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND DOES NOT COVER INCIDENTAL COSTS AND EXPENSES RESULTING FROM ANY BREACH OF THIS WARRANTY, EVEN IF FORESEEABLE. Some states or provinces do not allow the exclusion or limitations of incidental or consequential damages, so the above limitation or exclusion may not apply to you depending on the state or province of purchase. Nor does this warranty cover damages caused by use of non-Keurig^® pods or accessories, services performed by anyone other than Keurig or its authorized service providers, use of parts other than genuine Keurig^® parts, or external causes such as abuse, misuse, inappropriate power supply, or acts of God.

OTHER LIMITATIONS

THIS WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER EXPRESS WARRANTY, WHETHER WRITTEN OR ORAL. IN ADDITION, KEURIG HEREBY SPECIFICALLY DISCLAIMS ALL OTHER WARRANTIES WITH RESPECT TO YOUR KEURIG^® COFFEE MAKER, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE. Some states or provinces do not allow disclaimers of such implied warranties or limitations on how long an implied warranty lasts, so the above limitation may not apply to you depending on the state or the province of purchase.

HOW DO YOU OBTAIN WARRANTY SERVICE?

Keurig^® coffee makers are high-quality appliances and, with proper care, are intended to provide years of satisfying performance. However, should the need arise for warranty servicing, simply call Keurig Customer Service at our toll free phone number 1-800-3615628. Please do not return your coffee maker for servicing without first speaking to Keurig Customer Service to obtain a Return Materials Authorization (RMA) number. Keurig^® coffee makers returned without a RMA number will be returned to the sender without servicing.
