User manual IM3
Pt100 2-/3-/4-wire -200.0°C...850°C / -328.0°F...1562.0°F
Technical features:
• red display of -19999...99999 digits (optional: green, orange or blue display)
• minimal installation depth: 90 mm without plug-in screw terminal
• min/max-memory
• display flashing at threshold value exceedance / threshold value undercut
• permanent min/max-value recording
• brightness control
• programming interlock via access code
• protection class IP65 at the front side
• plug-in screw terminal
• optional: 2 PhotoMos outputs
• optional: analog output
• accessories: PC-based configuration-kit PM-TOOL with CD & USB-adapter for devices without
keypad and for a simple adjustment of standard devices

Advertisement

Table of Contents
loading

Related Manuals for ICS IM3

Summary of Contents for ICS IM3

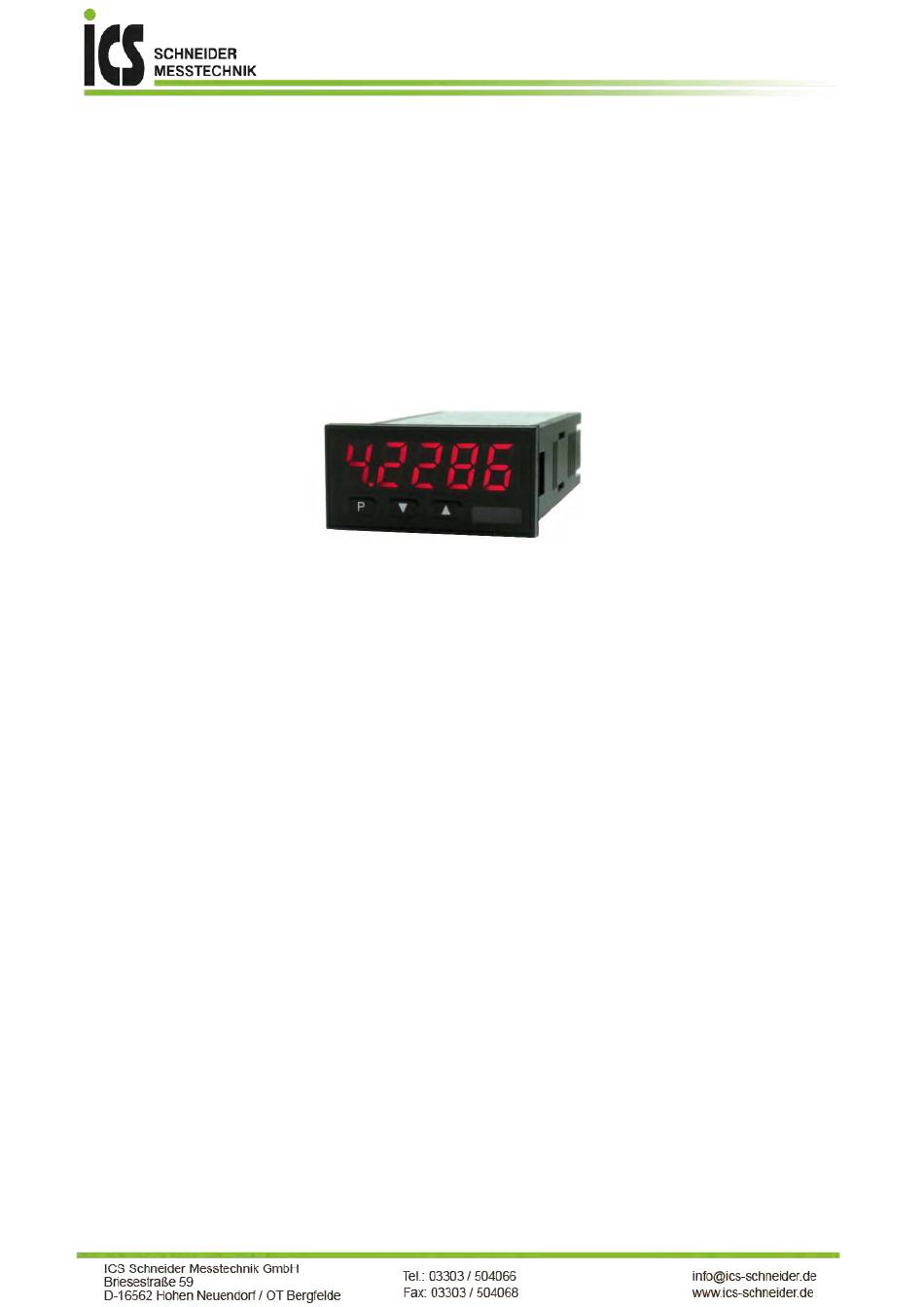

  • Page 1 User manual IM3 Pt100 2-/3-/4-wire -200.0°C…850°C / -328.0°F…1562.0°F Technical features: • red display of -19999…99999 digits (optional: green, orange or blue display) • minimal installation depth: 90 mm without plug-in screw terminal • min/max-memory • display flashing at threshold value exceedance / threshold value undercut •...
  • Page 2 Identification STANDARD-TYPES ORDER NUMBER 2-/4-wire ORDER NUMBER 3-wire IM3-7TR5A.010C.S70xD IM3-7TR5A.030C.S70xD Pt100 2-/3-/4-wire IM3-7TR5A.010C.770xD IM3-7TR5A.030C.770xD Housing size: 48x24 mm Options – breakdown of order code: IM 3- 7 T R 5 B. 0 1 0 C. 7 7 2 x D...

  • Page 3: Table Of Contents

    Contents Brief description Assembly Electrical connection Functions and operation description 4.1. Programming software PM-TOOL Setting up the device 5.1. Switching on 5.2. Standard parameterisation (flat operation level) Value assigment for triggering of the signal input 5.3. Programming interlock Activation/Deactivation of the programming interlock or change into the professional level respectively back into the flat operation level 5.4.

  • Page 4: Brief Description

    1. Brief description 1. Brief description The panel meter instrument IM3-7C is a 5-digit device for Pt100 temperature sensors and a visual threshold value monitoring via the display. The configuration happens via three keys at the front or by the optional PC software PM-TOOL.

  • Page 5: Assembly

    2. Assembly 2. Assembly Please read the Safety advices on page 32 before installation and keep this user manual for future reference. Gap for physical dimension After removing the fixing elements, insert the device. Check the seal to make sure it fits securely. Click the fixing elements back into place and tighten the clamping screws by hand.

  • Page 6: Electrical Connection

    3. Electrical connection 3. Electrical connection Type IM3-7TR5A.010C.S70xD 2-/4-wire Type IM3-7TR5A.010C.770xD 2-/4-wire Type IM3-7TR5A.030C.S70xD 3-wire Type IM3-7TR5A.030C.770xD 3-wire supply of 100-240 VAC supply of 24 VDC Pt100 Pt100 3-wire 3-wire 24 VDC 100-240VAC Pt100 Pt100 4-wire 4-wire Voltage Voltage supply...

  • Page 7: Functions And Operation Description

    4. Function and operation description 4. Function and operation description Operation The operation is divided into three different levels. Menu level (delivery status) The menu level is for the standard settings of the device. Only menu items which are sufficient to set the device into operation are displayed.
  • Page 8 4. Function and operation description Function chart: 4.1 Parameterisation software PM-TOOL: Included in the delivery of the PM-TOOL are the software on CD and an USB-cable with device adapter. The connection happens via a 4-pole micromatch-plug on the back side of the device, to the PC-side the connection happens via an USB plug.

  • Page 9: Setting Up The Device

    5. Setting up the device 5. Setting up the device 5.1. Switching on Once the installation is complete, start the device by applying the voltage supply. Before, check once again that all electrical connections are correct. Starting sequence For 1 second during the switching-on process, the segment test ( ) is displayed followed by an indication of the software type and, after that, also for 1 second the software version.
  • Page 10 5. Setting up the device Menu level Parameterisation level Selection of analog output, Default: Available are 3 output signals: 0-10 VDC, 0-20 mA and 4-20 mA, with this function, the demanded signal is selected. Setting up the final value of the analog output, Default: The final value is adjusted from the smallest digit to the highest digit with [▲] [▼] and digit by digit confirmed with [P].
  • Page 11 5. Setting up the device Menu level Parameterisation level Threshold values / limits, Default: ´ This value defines the threshold, that activates/deactivates an alarm. Hysteresis for threshold values, Default: The delayed reaction of the alarm is the difference to the threshold value, which is defined by the hysteresis.

  • Page 12: Programming Interlock

    5. Setting up the device Menu level Parameterisation level 5.3. Programming interlock „ “ Activation / deactivation of the programming lock or completion of the standard para- meterization with change into menu group level (complete function range), Default: With the navigation keys [▲] [▼], choose between the deactivated key lock (works setting) and the activated key lock , or the change into the menu group level...

  • Page 13: Extended Parameterisation (Professional Operation Level)

    5. Setting up the device 5.4. Extended parameterisation (Professional operation level) 5.4.1. Signal input parameters Menu group level Menu level Menu level Parameterisation level Type of temperature metering, Default: The temperature can be displayed in °C or in °F. Confirm the selection with [P] and the display switches back to menu level.

  • Page 14: General Device Parameter

    5. Setting up the device Menu level Parameterisation level Display overflow, Default: With this function the display overflow ( ) can be defined on a definite value. Back to menu group level, With [P] the selection is confirmed and the device changes into menu group level 5.4.2.
  • Page 15 5. Setting up the device Menu level Parameterisation level Brightness control, Default: The brightness of the display can be adjusted in 16 levels from 00 = very dark to 15 = very bright via this parameter or alternatively via the navigation keys from the outside. During the start of the device the level that is deposited under this parameter will always be used, even though the brightness has been changed via the navigation keys in the meantime.

  • Page 16: Safety Parameter

    5. Setting up the device 5.4.3. Safety parameters Menu group level Menu level Menu level Parameterisation level User code Default: Via this code, reduced sets of parameters can be released. A change of the can be done via the correct input of the (master code).

  • Page 17: Analog Output Parameter

    5. Setting up the device Menu level Parameterisation level Back to menu group level, With [P] the selection is confirmed and the device changes into menu group level 5.4.4. Analog output parameters Menu group level Menu level Menu level Parameterisation level Selection reference analog output, Default: The analog output signal can refer to different functions, in detail this are the current...
  • Page 18 5. Setting up the device Menu level Parameterisation level Setting the initial value of the analog output, Default: The initial value is adjusted from the smallest to the highest digit with [▲] [▼] and confirmed digit per digit with [P]. A minus sign can only be parameterized on the leftmost digit. After the last digit the device changes back into menu level.

  • Page 19: Relay Functions

    5. Setting up the device 5.4.5. Relay functions Menu group level Menu level Menu level Parameterisation level Alarm relay 1, Default: …. …. Each setpoint (optional) can be linked up via 4 alarms (by default). This can either be inserted at activated alarms or deactivated alarms is selected, logical links are...
  • Page 20 5. Setting up the device Menu level Parameterisation level Alarm relay 2, Default: …. …. Each setpoint (optional) can be linked up via 4 alarms (by default). This can either be inserted at activated alarms or deactivated alarms is selected, logical links are available in the menu level .

  • Page 21: Alarm Parameter

    5. Setting up the device 5.4.6. Alarm parameters Menu group level Menu level Menu level Parameterization level Dependency alarm 1, Default: The dependency of alarm 1 can be related to special functions, in detail these are the current measurand, the min-value or the max-value. causes the dependency either by pressing the [O]-key on the front of the housing or by an external signal via the digital input.
  • Page 22 5. Setting up the device Menu level Parameterization level Switching-on delay, Default: Preset a delayed switching-on of 0-100 seconds for limit value 1. Switching-off delay, Default: Preset a delayed switching-off of 0-100 seconds for limit value 1. Back to menu group level, With [P] the selection is confirmed and the device changes into menu group level The same applies to...

  • Page 23: Reset To Factory Settings

    6. Reset to factory settings Programming interlock, Menu group level Description see page 10, menu level 6. Reset to factory settings To return the unit to a defined basic state, a reset can be carried out to the default values. The following procedure should be used: •...

  • Page 24: Alarms / Relays

    7. Alarms / Relays 7. Alarms / Relays This device has 4 virtual alarms that can monitor one limit value in regard of an undercut or exceedance. Each alarm can be allocated to an optional relay output S1-S2; furthermore alarms can be controlled by events like e.g.

  • Page 25: Technical Data

    8. Technical data 8. Technical data Housing Dimensions 48x24x90 mm (BxHxD) 48x24x109 mm (BxHxD) incl. plug-in terminal Panel cut-out 45.0 +0.6 x 22.2 +0.3 Wall thickness up to 3 mm Fixing screw elements Material PC Polycarbonate, black, UL94V-0 Sealing material EPDM, 65 Shore, black Protection class standard IP65 (front side), IP00 (back side)
  • Page 26 8. Technical data Ambient conditions Working temperature 0…50°C Storing temperature -20…80°C Weathering resistance 0-80% relative humidity on years average without dew EN 61326 CE-sign Conformity according to directive 2014/30/EU Safety standard According to low voltage directive 2014/35/EU EN 61010; EN 60664-1...

  • Page 27: Safety Advices

    Please inform the supplier immediately of any damage. Installation The IM3-7C-device must be installed by a suitably qualified specialist (e.g. with a qualification in industrial electronics). Notes on installation • There must be no magnetic or electric fields in the vicinity of the device, e.g. due to trans- formers, mobile phones or electrostatic discharge.

  • Page 28: Error Elimination

    10. Error elimination 10. Error elimination Error description Measures The unit permanently indicates • The input has a very high measurement, check overflow. the measuring circuit. • The input is open. The unit permanently shows • The input has a very low measurement, check underflow.
