PCI-16REL Interface Adapter Board
Manual PN: 931-0006-00-A
June 2000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCI-16REL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ICS PCI-16REL

Summary of Contents for ICS PCI-16REL

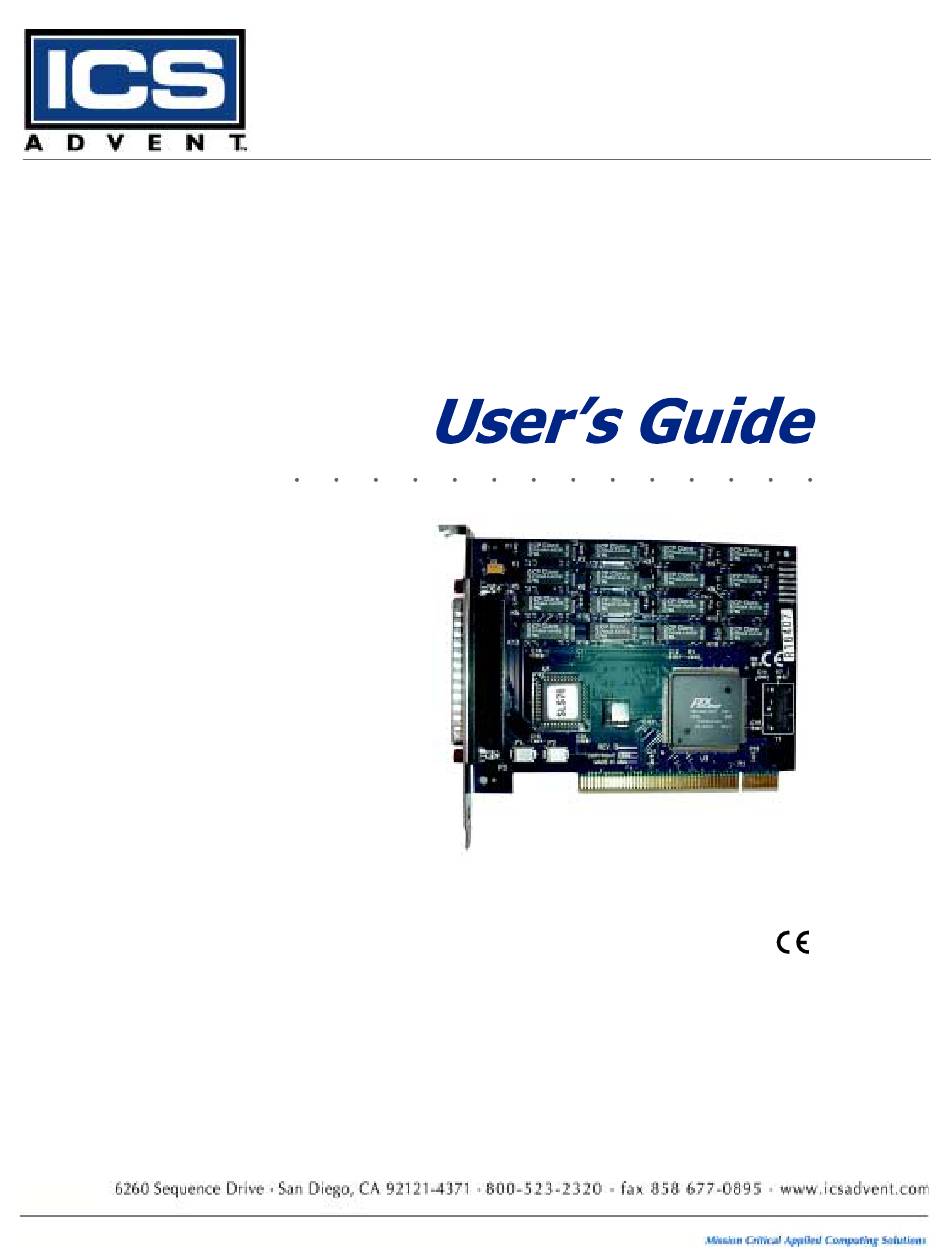

  • Page 1 PCI-16REL Interface Adapter Board Manual PN: 931-0006-00-A June 2000...
  • Page 2 © 2000 ICS Advent, a California Corporation. All rights reserved. The information in this document is provided for reference only. ICS Advent does not assume any liability arising out of the application or use of the information or products described herein. This document may contain or reference information and products protected by copyrights or patents and does not convey any license under the patent rights of ICS Advent, nor the rights of others.
  • Page 3 Foreword About This Manual This product manual describes the PCI-16REL interface adapter board and how to install and program it. Note: Additional technical information and BIOS updates are available from the ICS Advent Web site, www.icsadvent.com, along with advanced troubleshooting information in FAQs and release notes.
  • Page 4 This page intentionally left blank. PCI-DIO16 User’s Guide...
  • Page 5 Disclaimer: We have tried to identify all situations that may pose a warning or caution condition in this manual. However, ICS Advent does not claim to have covered all situations that might require the use of a Caution or Warning.
  • Page 6 This page intentionally left blank. PCI-DIO16 User’s Guide...
  • Page 7 Safety Instructions Before handling the PCI-16REL, read the following instructions and safety guidelines to prevent damage to the product and to ensure your own personal safety. Refer to the “Advisories” section for advisory conventions used in this manual, including the distinction between Warnings, Cautions, and Notes.
  • Page 8 Static electricity can harm system boards. Perform service at an ESD workstation and follow proper ESD procedure to reduce the risk of damage to components. ICS Advent strongly encourages you to follow proper ESD procedure, which can include wrist straps and smocks, when servicing equipment.
  • Page 9 Although ICS Advent offers accessories, the customer must ensure that these products are installed with proper shielding to maintain CE compliance. ICS Advent does not offer engineering services for designing cabling systems. In addition, ICS Advent will not retest or recertify systems or components that have been reconfigured by customers.
  • Page 10 This page intentionally left blank. PCI-DIO16 User’s Guide...
  • Page 11 ICS Advent or its authorized agent; or if the failure is caused by accident, acts of God, or other causes beyond the control of ICS Advent or the manufacturer. Neglect, misuse, and abuse shall include any installation, operation, or maintenance of the product other than in accordance with the user’s manual.
  • Page 12 To reduce risk of damage, returns of product must be in an ICS Advent shipping container. If the original container has been lost or damaged, new shipping containers may be obtained from ICS Advent Customer Service at a nominal cost.
  • Page 13 Limitation of Liability In no event shall ICS Advent be liable for any defect in hardware, software, loss, or inadequacy of data of any kind, or for any direct, indirect, incidental, or consequential damages in connection with or arising out of the performance or use of any product furnished hereunder.
  • Page 14 This page intentionally left blank. PCI-DIO16 User’s Guide...

  • Page 15: Table Of Contents

    Contents Chapter 1 Introduction Overview ..........1-1 What’s Included .
  • Page 16 This page intentionally left blank. PCI-16REL User’s Guide...

  • Page 17: Overview

    The PCI-16REL is PCI 2.1 bus compliant. What’s Included The PCI-16REL is shipped with the following items. If any of these items are missing or damaged, contact ICS Advent. PCI-16REL interface adapter board Software drivers User’s Guide...

  • Page 18: Installation

    3) Locate an available PCI slot and remove the associated slot filler bracket from the rear panel of the chassis. 4) Gently insert the PCI-16REL board into the slot. Make sure that it is seated properly. 5) Secure the board’s slot bracket to the rear panel with a screw.

  • Page 19: Technical Description

    Chapter 3 Technical Description The PCI-16REL board provides two parallel reed relay output ports. The ports are organized as ports A, B, C, and D. To maintain compatibility with the existing ISA interface adapter (PN 16REL), ports C and D (base address+2 and address+3) are the reed relay output port addresses.

  • Page 20: Relay Specifications

    Maximum Operating Speed = 600Hz Software The PCI-16REL board ships with ICS Advent’s SeaI/O suite of Windows 95/ 98/2000/NT drivers on floppy disks 1 and 2. SeaI/O provides the user with a consistent and straightforward API, which allows the developer to concentrate on the details of the application instead of low level driver development.

  • Page 21: Programming Examples

    Programming Examples Below are two examples using 80X86 Assembly code for energizing and checking the state of the reed relays on the PCI-16REL. Both examples assume a base address of 300h: Set Relay #3 on, write a ‘1’ in bit position D2, to port address Base+3, or 303h.

  • Page 22: Register Description

    (A and B) results in the binary complement of the output. This is particularly useful when writing software that queries the last value written to prevent inadvertently changing the state of the relays. Also, bits in the Read Only ports (Base+0,1,4-7) are decoded but not used by the PCI-16REL. PCI-16REL User’s Guide...

  • Page 23: Pin Assignments (P3 Db-37 Male)

    Pin Assignments (P3 DB-37 Male) Port C Relay P3 Pin# Port D Relay P3 Pin# 2,20 10,28 3,21 11,29 4,22 12,30 5,23 13,31 6,24 14,32 7,25 15,33 8,26 16,34 9,27 17,35 Power and Ground Pin Assignments (P3 DB-37 Male) Ground 18,36,37 + 5 Volts + 12 Volts...
  • Page 24 Chapter 4 Specifications Power Requirements +5VDC Size Length: 5.00 in (127 mm) Height: 3.900 in (99 mm) with goldfingers, 3.575 in (91 mm) excluding goldfingers Weight 3.2 ounces (90.71 g) Temperature Range Operating: 0 °C to 50 °C (32 °F to 122 °F) Storage: -20 °C to 70 °C (-4 °F to 158 °F) Humidity 10 to 90% RHNC...
  • Page 25 This page intentionally left blank.

  • Page 26: Appendix A Troubleshooting

    3) Ensure that there is no conflict with currently installed adapters. No two adapters can occupy the same I/O address and may not be allowed to share IRQs. 4) Make sure that the PCI-16REL adapter is securely installed in a motherboard slot. Troubleshooting...

  • Page 27: Appendix B Board Layout Drawing

    Appendix B Board Layout Drawing 3.9" 5.0" Board Layout Drawing...
  • Page 28 EN 60950:1992 Safety of Information Technology Equipment The technical documentation required to demonstrate this product meets the requirements of the EMC Directive and the Low Voltage Directive has been compiled by ICS Advent and is available for inspection by the relevant enforcement authorities.
