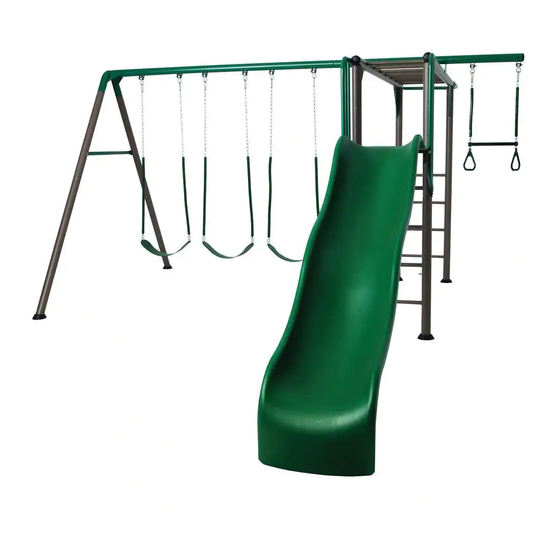

Lifetime 90143 Owner's Manual
  1. Manuals
  2. Brands
  3. Lifetime Manuals
  4. Play Sets & Playground Equipment
  5. 90143
  6. Owner's manual

Lifetime 90143 Owner's Manual

Hide thumbs Also See for 90143:
Table of Contents

Advertisement

Quick Links

Download this manual
MODEL N° 90143
OWNER'S MANUAL
Keep this Product ID Number and use when contacting Customer Service:
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 90143 and is the answer not in the manual?

Questions and answers

Related Manuals for Lifetime 90143

Summary of Contents for Lifetime 90143

  • Page 1 MODEL N° 90143 OWNER’S MANUAL Keep this Product ID Number and use when contacting Customer Service:...

  • Page 2: Safety Instructions

    REGISTER YOUR LIFETIME PRODUCT TODAY! There are benefi ts to registering your Lifetime product. With our new online product registration form, it’s fast and easy! Register with us at www.lifetime.com and enjoy these great benefi ts: LIFETIME’S PROMISE TO YOU: Maintaining your privacy is our long-standing policy at Lifetime.

  • Page 3: Before Beginning Assembly

    BEFORE BEGINNING ASSEMBLY *Two adults required to complete assembly* Only adults should set up the product. Do not allow children in the setup area until assembly is complete. TOOLS AND PARTS REQUIRED FOR THIS ASSEMBLY 1/4” Allen Wrench Phillips Screwdriver 11/16”...
  • Page 4 ASSEMBLY GUIDES Refer to the following areas throughout the instructions to assist in the assembly process: This area is located at the top, left-hand TOOLS AND HARDWARE REQUIRED FOR THIS PAGE corner of the page and indicates which tools and hardware are needed to complete the assembly steps on a page.
  • Page 5 **IMPORTANT SAFETY INFORMATION** PLEASE READ BEFORE BEGINNING ASSEMBLY: INSTALLATION & GROUND PREPARATION INSTRUCTIONS Place the equipment on a level, well-drained ground, not less than 6 ft (1.8 m) from any structure or obstruc- tion such as a fence, garage, or house. Provide enough room so that children can use the equipment safely.
  • Page 6 OPERATING INSTRUCTIONS Observing the following instructions and warnings reduces the likelihood of serious or fatal injury: The maximum number of occupants that may safely use the entire play set including all components is six with a maximum weight of 640 pounds (290 kg).

  • Page 7: Maintenance Instructions

    MAINTENANCE INSTRUCTIONS If routine checks and maintenance procedures are not done, the equipment could overturn and/or become a hazard. At the beginning of each play season: Tighten all hardware. Lubricate all metallic moving parts. Check all protective coverings on bolts, pipes, edges and corners. Replace if they are loose, cracked or missing. Check all moving parts including swing seats, ropes, cables and chains for wear, rust or other deterioration.
  • Page 8 CONSUMER INFORMATION SHEET FOR PLAYGROUND SURFACING MATERIALS* The U.S. Consumer Product Safety Commission (CPSC) installed and maintained at depths of 6, 9, and 12 inches. estimates that about 100,000 playground equipment re- However, it should be recognized that all injuries due to falls lated injuries resulting from falls to the ground surface are cannot be prevented no matter what surfacing material is treated annually in U.S.

  • Page 9: Use At Your Own Risk

    Safety Zone 27 feet 6 feet 6 feet 6 feet Playset dimensions: 13’ 11” x 15’ Recommended play area: 29’ 8” x 27’ USE AT YOUR OWN RISK! USING A DRILL IS NOT RECOMMENDED FOR DRIVING BOLTS. A cordless drill can be used for driving screws; however, care should be taken not to over-tighten or strip screws.

  • Page 10: Parts List

    PARTS LIST Item Description Item Description PLAYGROUND PARTS ADVENTURE SET PARTS KIT 2 ADVENTURE SET PARTS KIT 1 ADVENTURE SET PARTS KIT 3 HARDWARE LIST Item Description A-Frame Assembly Hardware Pendulum Monkey Bars Assembly Hardware Pendulum Slide Assembly Hardware Fire Pole Assembly Hardware...

  • Page 11: Parts Identifier

    PARTS IDENTIFIER ADVENTURE SET PARTS Part shown at 5% of actual size ADVENTURE SET PARTS KIT 1 [CVM] Parts shown at 5% of actual size Parts shown at 10% of actual size 24”...
  • Page 12 PARTS IDENTIFIER ADVENTURE SET PARTS KIT 2 [CVN] Parts shown at 5% of actual size ADVENTURE SET PARTS KIT 3 [CVO] Parts shown at 5% of Actual Size Parts shown at 50% of Actual Size...

  • Page 13: Hardware Identifier

    HARDWARE IDENTIFIER A-FRAME ASSEMBLY HARDWARE [CAM] Hardware shown at Actual Size Pendulum MONKEY BARS ASSEMBLY HARDWARE [CVH] Hardware shown at Actual Size Pendulum...
  • Page 14 HARDWARE IDENTIFIER SLIDE ASSEMBLY HARDWARE [CAH] Hardware shown at Actual Size FIRE POLE AND SWING ASSEMBLY HARDWARE [CVI] Hardware shown at Actual Size...
  • Page 15 A-FRAME ASSEMBLY HARDWARE REQUIRED A-FRAME ASSEMBLY HARDWARE BAG [CAM] Hardware shown at actual size Pendulum PARTS REQUIRED Parts shown at 5% of Actual Size TOOLS REQUIRED 11/16” Wrench 3/16” Allen Wrench 1/4” Allen Wrench...
  • Page 16 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE 1/4” 11/16” Pendulums (ARP) Swing Bar (CB0) 7/16” Large Nylon Washers (ART) Do this for each set of brackets on the Swing Bar. Note: Do not overtighten the hardware. Pendulums should pivot on Bolt (ARQ).
  • Page 17 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE 3/16” A-Frame Pole (CBG) Swing Bar (CBO) Dimpled Hole Note: If your A-Frame pole has a dimpled hole, make sure the dimpled hole faces away from the Swing Bar. A-Frame Pole (CBG) Swing Bar (CBO).
  • Page 18 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE 3/16” Turn Bar (CBI) A-Frame Foot Caps (BZJ) Cap Plugs (BZK)
  • Page 19 MONKEY BARS ASSEMBLY HARDWARE REQUIRED MONKEY BARS ASSEMBLY HARDWARE BAG [CVH] Hardware shown at Actual Size Pendulum PARTS REQUIRED Parts shown at Actual Size...
  • Page 20 PARTS REQUIRED Parts shown at 5% of actual size Parts shown at 10% of actual size TOOLS REQUIRED Ladder 11/16” Wrench 3/16” Allen Wrench 1/4” Allen Wrench...
  • Page 21 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE 1/4” 11/16” Pendulums (ARP) Trapeze Swing Bar (CRR) Note: Do not overtighten the hardware. Pendulums should pivot on Bolt (ARQ).
  • Page 22 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE 3/16” End Cap (CSD) Trapeze Swing Bar (CRR) .343 Cap Plugs (BZK).
  • Page 23 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE 3/16” Round Foot Caps (CBB) Fire Pole Ladder (CRX) and Slide Ladder (CRY) .343” Cap Plugs (BZK). Note: Make sure the holes in each Cap line up with the holes in the tubes of each Ladder. Monkey Bar Gussets (CRP) Fire Pole Ladder (CRX) Monkey Bar Gussets...
  • Page 24 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE 3/16” Saddle Caps (CSA) Fire Pole Ladder (CRX) Slide Ladder (CRY) Monkey Bars (CSC)
  • Page 25 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE NO TOOLS OR HARDWARE REQUIRED FOR THIS PAGE End Caps (CSD) Note: Make sure the holes in each End Cap line up with the holes in the tubes of the Monkey Bars.
  • Page 26 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE 3/16” Trapeze Swing Bar (CRR) Install the hardware nearest to the Pendulums first. Note: Do not completely tighten the hardware until instructed later in the assembly. Pendulums WARNING Note: Tighten all hardware now.
  • Page 27 SLIDE ASSEMBLY HARDWARE REQUIRED SLIDE ASSEMBLY HARDWARE BAG [CAH] Hardware shown at Actual Size PARTS REQUIRED Hardware shown at 5% of Actual Size Hardware shown at 10% of Actual Size TOOLS REQUIRED 3/16” Allen Wrench 1/2” Wrench...
  • Page 28 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE 3/16” Slide Rail (CRQ) Repeat this step for the other Slide Rail. Note: Do not completely tighten the hardware until instructed later in the assembly.
  • Page 29 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE 3/16” Deck Support (CRU) Note: Tighten all hardware now. Slide Deck (BEO)
  • Page 30 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE 3/16” Slide (BEK) Deck (BEO) Top View Bottom View...
  • Page 31 FIRE POLE AND SWING ASSEMBLY HARDWARE REQUIRED FIRE POLE ASSEMBLY HARDWARE BAG [CVI] Hardware shown at Actual Size PARTS REQUIRED Parts shown at 5% of Actual Size 24” TOOLS REQUIRED Ladder Rubber Mallet 3/16” Allen Wrench Screwdriver...
  • Page 32 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE NO HARDWARE REQUIRED FOR THIS PAGE Fire Pole Ladder (CRX) Anchor Rod (CRZ) 21” 21”...
  • Page 33 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE 3/16” Fire Pole (CRT) Fire Pole Hoop (CRS) Anchor Rod (CRZ). Connecting Tube Note: The Playground may need to be moved slightly once the Fire Pole is positioned.
  • Page 34 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE 3/16”...
  • Page 35 TOOLS AND HARDWARE REQUIRED FOR THIS PAGE NO TOOLS OR HARDWARE REQUIRED FOR THIS PAGE Belt Swings (BKT) Swing Bar (CBO) Trapeze (BKU) Trapeze Swing Bar (CRR). Note: Make sure all hardware is tightened securely before allowing children to play on the Playground.
  • Page 36 à sauter, cordes à linge, laisses d’animaux, câbles et chaînes. Ceux-ci posent un risque d’étranglement. Lifetime Products, Inc www.lifetime.com Clearfield, UT 84016 12/24/2008 # 1049430...
  • Page 37 ® ENHANCE YOUR LIFETIME PURCHASE BY ADDING ACCESSORIES OR OTHER GREAT PRODUCTS: To purchase accessories or other Lifetime Products, visit us at: www.lifetime.com Or call: 1-800-424-3865...
  • Page 38 NOTES...
  • Page 39 NOTES...

  • Page 40: Warranty Information

    ALL WARRANTY CLAIMS MUST BE ACCOMPANIED BY A SALES RECEIPT. REPORT PRODUCT DEFECTS IN WRITING TO: Save this owner’s manual for future reference and in the event that the manufacturer has to be contacted. To register the product, visit our Web site at www.lifetime.com www.lifetime.com...
