Homelegance 4866-DG Assembly Instructions

H O M E L E G A N C E
Thank you for purchasing this product. Please take time to read and follow the instructions below. Check that you have all parts and hardware
before assembly. Parts apparently missing are often found in the packing materials. If you do not have all the parts listed,have your dealer contact
us and they will be sent to you immediately.
It is recommended to install protective pads under all legs and supports to avoid damage or scratches when placing furniture on a wood
DAYBED PARTS LIST
Daybed Back Panel
LSF Side Panel
RSF Side Panel
Daybed Slats
TOP
*DO NOT TIGHTEN BOLTS UNTIL COMPLETELY ASSEMBLED.
DAYBED
JCBC Bolt M6 x 1.0 x 30mm
JCBC Bolt M6 x 1.0 x 50mm
Flat Washer M6 x 6/8" x 2/8" x 0.08"
CSK Screw M4 x 1.80 x 25mm
CSK Screw M4 x 1.80 x 38mm
Bun Foot
Allen Key M4 x 100mm
H Wood Dowel M10 x 30mm
4866DG-A : Daybed (1/2) Side Arms & Trundle Side Panels & Slats
4866DG-B : Daybed (2/2) Back, Trundle, Rails
Trundle Front Panel
Trundle Side Panel
Trundle Back Panel
JCBC Bolt M6 x 1.0 x 30mm
8 pcs
4 pcs
Flat Washer M6 x 6/8" x 2/8" x 0.04"
12 pcs
CSK Screw M4 x 1.80 x 25mm
K
26 pcs
L
CSK Screw M4 x 1.80 x 16mm
4 pcs
M
Castor
4 pcs
*HARDWARE ARE PACKED IN
BUN FOOT AND HARDWARE SET ARE STORE IN 4866DG-A*
1 pc
2 pcs

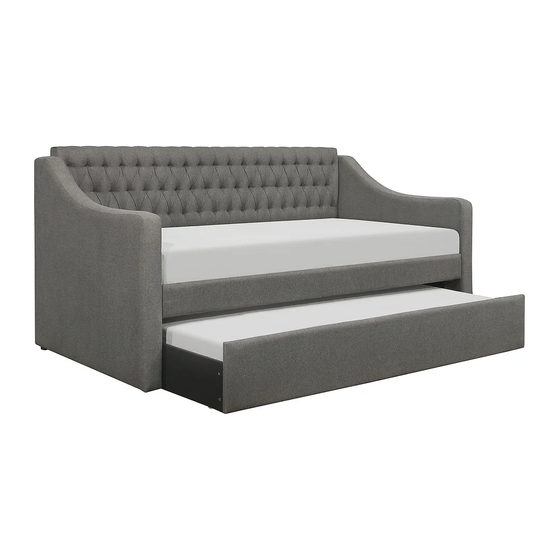

4866-DG Daybed with Trundle
TRUNDLE PARTS LIST
s
BOTTOM
TRUNDLE
4866DG-A.
20 pcs
12 pcs
20 pcs
16 pcs
4 pcs
