Summary of Contents for Dual XDM6800

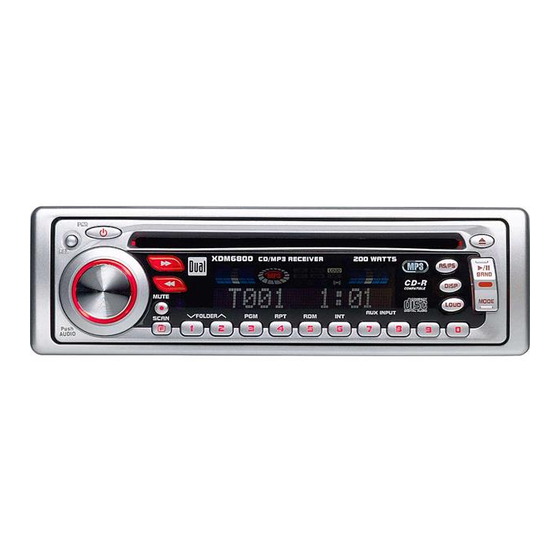

- Page 1 XDM6800 INSTALLATION/OWNERS MANUAL AM/FM/CD/MP3 Receiver with Detach Face...
-
Page 2: Installation
XDM6800 INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. (consult a qualified technician for instructions) • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. -
Page 3: Wiring Diagram
Using an incorrect fuse YELLOW Memory could damage radio. Connect to battery The XDM6800 uses one circuit or constant 12 volt source. 10 amp ATO fuse located below wiring connector. Right Front Right Rear Gray/Black (-) -
Page 4: Operation
Tuner Scan/MP3 Folder Mute The XDM6800 allows playback of your favorite MP3 files recorded on CD-R and CD-RW discs. MP3 is a compression technology for music that provides data reduction while maintaining near-CD sound quality. Powerful on-board DSP decodes audio and provides... -
Page 5: General Operation
XDM6800 OPERATION General Operation Faceplate Removal Press REL and pull away from the left side to remove. To re-install, insert right side of faceplate first then push left side to secure. *For semi-permanent faceplate installation, remove trim ring and install supplied Phillips head #1 screw through left side of mounting frame into faceplate. - Page 6 XDM6800 OPERATION General Operation Press and hold DISP then press TUNE to select radio Programmable frequency (tuner mode) or CD track/elapsed time (CD player Display Priority mode) display priority (default). Clock is accessed by pressing DISP momentarily. Press and hold DISP then press TUNE to select clock display priority.
-
Page 7: Tuner Operation
XDM6800 OPERATION Tuner Operation Seek Tuning Press TUNE or TUNE momentarily to seek the next strong station. Manual Tuning Press TUNE or TUNE for more than 5 seconds, then release. Press TUNE or TUNE momentarily to move radio frequency up or down one step at a time. Press and hold to advance quickly. -
Page 8: Cd/Mp3 Player Operation
XDM6800 OPERATION CD/MP3 Player Operation With the label facing up, insert a standard 5" CD into the CD Insert CD slot. The CD will automatically begin playback. Press the EJECT button to stop and eject the CD. The unit will Eject CD change to previous mode of operation (tuner or auxiliary input). - Page 9 XDM6800 OPERATION CD/MP3 Player Operation Play Program Tracks In program mode, press / II to begin program playback. Clear Program Tracks In program mode, press PGM for more than 3 seconds to clear program memory. Playing an MP3 Disc When an MP3 encoded disc is inserted, FILE SCAN will appear in the display.
- Page 10 XDM6800 OPERATION CD/MP3 Player Operation A high-performance 5-second ESP (Electronic Shock Additional MP3 Information Protection) buffer virtually eliminates skipping. (MP3 encoded discs only) When playing a disc recorded with regular audio files (CD-DA) and MP3 files, the unit will play the regular audio files only.
-
Page 11: Specifications
XDM6800 OPERATION Specifications CD Player Signal-to-noise: >90dB Frequency response: 20Hz-20kHz, ±3dB Channel separation @ 1kHz: >65dB D/A converter: 1 Bit FM Tuner Tuning range: 87.5MHz-107.9MHz FM mono sensitivity: 12dBf 50dB quieting sensitivity (stereo): 16dBf Stereo separation @ 1kHz: 40dB Frequency response: 30Hz-15kHz, ±3dB... -
Page 12: Limited One-Year Warranty
What to do? If the product requires warranty service, you must prepay the initial shipping Namsung America agrees, at our option, during charges. DUAL will pay the return shipping the warranty period, to repair any defect in charges if the product is returned to an address material or workmanship or to furnish an equal within the USA.
