Specifications
Transmission protocol :
AAFHSS
Frequency band :
2.4 – 2.4835GHz (ISM band)
Data rate :
Up to 1.1Mbps
Range :
25m Typical maximum* (27.3yds)
Amplifier :
2 x 50W (digital amplifiers)
Sensitivity :
80dB
Frequency response (±3dB) :
20Hz – 20kHz
Peak audio output :
50W rms
Crossover :
800Hz and 5kHz
Transmitter module :
147 x 79 x 79 mm
Dimensions (H x W x D)
(5.8 x 3.1 x 3.1 in)
Receiver module :
Additional 50mm (height on floorstand)
Dimensions (H x W x D)
(Additional 2in)
Receiver module :
Additional 122mm (height on deskstand)
Dimensions (H x W x D)
(Additional 4.8in)
Finishes :
Matt Silver or High Gloss Black
GP Acoustics (UK) Ltd. reserve the right, in line with continuous research and development, to amend or change specifications without prior notice. E. & O.E.
*
Environmental factors such as building materials and construction may adversely affect wireless signal range.
**

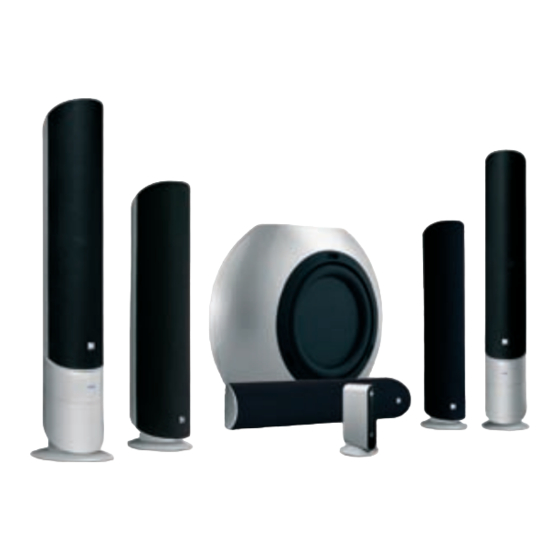

KHT5005.2 speakers and stands are not included.
GP Acoustics (UK) Ltd., Eccleston Road,Tovil, Maidstone, Kent ME15 6QP U.K. Tel: + 44 (0)1622 672261 Fax: + 44 (0)1622 750653
GP Acoustics (US) Inc., 10 Timber Lane, Marlboro, New Jersey 07746 U.S.A. Tel: +(1) 732 683 2356 Fax: +(1) 732 683 2358
GP Acoustics GmbH, Heinrichstraße 51, D-44536 Lünen, Deutschland. Tel: +49 (0) 231 9860-320 Fax: +49 (0) 231 9860-330
GP Acoustics (France) SAS, 39 Rue des Granges Galand - BP414, 37554 Saint Avertin CEDEX, France. Tel : +33(0)2 47 80 49 01 Fax : +33(0)2 47 27 89 64
GP Acoustics (HK) Limited, 6F, Gold Peak Building, 30 Kwai Wing road, Kwai Chung, N.T., Hong Kong. Tel: +85 (0) 2410 8188 Fax: +85 (0) 2401 0754
KEF and Uni-Q are registered trademarks. Uni-Q is protected under GB patent 2 236929, U.S. Pat. No. 5,548,657 and other worldwide patents.
KEF reserve the right, in line with continuing research and development, to amend or change specifications.
www.kef.com
The technology explained
KEF have developed innovative new technologies to deliver
high-quality wireless audio, while at the same time avoiding
signal interference:
A narrow signal band is used that is sufficient enough for high-
quality audio transmission yet perfect for finding a path through
the congested environment of a home filled with potentially
conflicting devices. This narrow band is a feature of HFADPCM
(High Fidelity Adaptive Differential Pulse Code Modulation), and
along with advanced error correction technology ensures an
exceptionally robust delivery of CD-quality audio between the
transmitter and receivers.
The system detects other transmitters in the 2.4GHz frequency
- such as cordless phones, wi-fi routers and microwave ovens -
and 'hops' out of the way of potentially conflicting signals. With
**
this technology, known as AAFHSS (Advanced Adaptive
Frequency Hopping Spread Spectrum), a processor constantly
monitors several channels at a time and continually switches to
the strongest available to ensure a constantly pure signal.
It's all done in milliseconds so you don't notice it's happening: so
nothing gets in the way of your enjoyment.
**
"Wireless audio made simple"
PL1646EN
Wireless
5000 series
