KEF Model 11 Brochure

Specifications
model 7
Design Surround sound speaker
Drive units 7 Speaker drivers, comprising:
Dedicated Centre Channel
1 x 75mm (3in.) Uni-Q array with
1 x 15mm (0.6in.) HF
Front Left/Right Channel
1 x 75mm (3in.) Uni-Q array with
1 x 15mm (0.6in.) HF
2 x 75mm (3in.) LF
Rear Left/Right Channel
1 x Vertical Flat Panel
Frequency range 100Hz - 30kHz
Magnetic shielding Yes
Sensitivity (2.83V/1m) 87dB
Maximum output (SPL) 104dB
Impedance 8 ohms
Weight 3.85kg (8.5lbs)
Dimensions 400 x 104 x 230 mm
(H x W x D) (15.7 x 4.1 x 9.1 in.)
Cabinet finishes Matt Silver or High Gloss Black
Connectors Supplied with connection for any 5.1
home theatre receiver/amplifier
(Cable for connection to KEF KIT100/200 available separately)
KEF Audio (UK), Eccleston Road,Tovil, Maidstone, Kent, ME15 6QP U.K. Telephone: + 44 (0)1622 672261 Fax: + 44 (0)1622 750653
KEF America, Inc. 10 Timber Lane, Marlboro, New Jersey 07746 U.S.A. Telephone: +(1) 732 683 2356 Fax: +(1) 732 683 2358
GP Acoustics GmbH, Heinrichstraße 51, D-44536 Lünen, Deutschland. Telephone: +49 (0) 231 9860-320. Fax: +49 (0) 231 9860-330
GP Acoustics (France) SAS, 39 Rue des Granges Galand - BP414, 37554 Saint Avertin CEDEX, France. Tel : +33(0)2 47 80 49 01 Fax : +33(0)2 47 27 89 64
KEF and Uni-Q are registered trademarks. Uni-Q is protected under GB patent 2 236929, U.S. Pat. No. 5,548,657 and other worldwide patents.
KEF reserve the right, in line with continuing research and development, to amend or change specifications.
www.kef.com
Optional Accessories
model 11 Floor Stand
for model 7 satellite

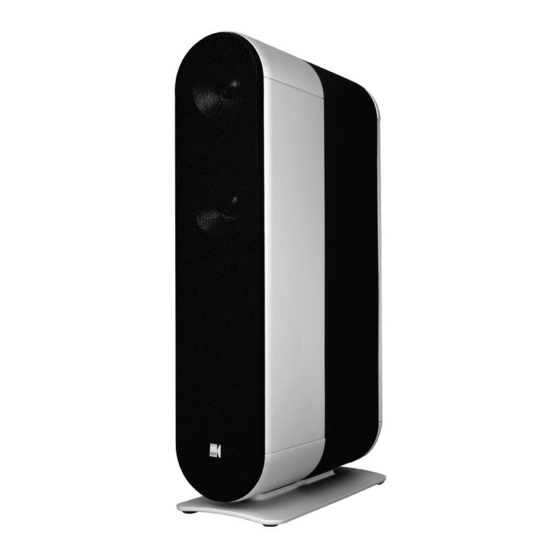

Surround sound speaker
11 Speaker drivers, comprising:
Dedicated Centre Channel
1 x 75mm (3in.) Uni-Q array with
1 x 15mm (0.6in.) HF
1 x 75mm (3in.) LF
Front Left/Right Channel
1 x 75mm (3in.) Uni-Q array with
1 x 15mm (0.6in.) HF
4 x 75mm (3in.) LF
Rear Left/Right Channel
2 x Vertical Flat Panel
90Hz - 30kHz
Yes
87dB
109dB
8 ohms
Wall Bracket
11.3kg (24.9lbs)
1020 x 210 x 230 mm The wall bracket is simple
and unobtrusive.
(40.2 x 8.3 x 9.1 in.)
Matt Silver or High Gloss Black
Supplied with connection for any 5.1
home theatre receiver/amplifier
Allows a rotation
of 80 degrees
"Surround yourself with sound,
PL1630EN
not speakers"
