SKU #1007086632
Model #VDH50P
USE AND CARE GUIDE
DEHUMIDIFIER
Questions, problems, missing parts? Before returning to the store,
call Vissani Customer Service
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-877-527-0313
HOMEDEPOT.COM
THANK YOU
We appreciate the trust and confidence you have placed in Vissani through the purchase of this dehumidifier. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Vissani!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vissani VDH50P
Summary of Contents for Vissani VDH50P
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Vissani through the purchase of this dehumidifier. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Safety Information ........2 Operation. -
Page 3: Operation
Safety Information (continued) OPERATION □ Do not repair or replace any part of the appliance. All repairs and servicing must be performed by qualified service personnel un- Read all instructions before using the appliance and save these less specifically recommended in this owner’s manual. Use only instructions. -
Page 4: Pre-Installation
Pre-Installation PACKAGE CONTENTS Part Description Control panel Handle Bucket Bucket Handle Air intake grill Air filter Hose cover Power plug Quick connect hose (for pump function model only) User manual ELECTRICAL REQUIREMENTS Specific electrical requirements are listed in the chart below. Follow the requirements for the type of plug on the power supply cord. WARNING: □... -
Page 5: Location Requirements
Pre-Installation (continued) Customer’s Responsibility □ To contact a qualified electrician. □ To assure that the electrical installation is adequate and conforms to the national electrical code. ANSI/NFPA 70-last edition, and all local codes and ordinances. Copies of the standards listed may be obtained from: National Fire Protection Association 1 Batterymarch Park Quincy, MA 02169-7471... -
Page 6: Operation
Operation □ Before turning on the dehumidifier, be sure that the bucket is empty and fits all NOTE: In the event of a power failure, your dehumidifier will operate at the previous the way into the dehumidifier. settings when the power is restored. □... - Page 7 Operation (continued) TIMER SLEEP /MINUT. /VEILLE COOL/FRAIS DESIRED HUMIDITY MODE HIGH /ÉLE V É DRY/SEC □ Press and release MODE until you see the symbol for the desired humidity setting. Operating modes are Auto Dry, FAN/VENT. Continuous or Manual Set. MODE /VENT.
- Page 8 Operation (continued) TIMER To set Timer for a 30-minute to 24-hour delay before the dehumidifier is turned off (the dehumidifier must be On): □ Press TIMER. Timer indicator light will come on, and the display will flash. The display will show remaining time before the dehumidifier wiII turn off.
- Page 9 Operation (continued) PUMP (for pump function model only) This feature pumps water horizontally or vertically. Pump water to a drain, out a window or anywhere you think suitable. IMPORTANT: You must connect the drain hose to the unit before pressing the Pump button, or the pump will not operate.
-
Page 10: Care And Cleaning
Operation (continued) Normal Sounds When your dehumidifier is operating normally, you may hear sounds such as: □ Air movement from the fan. □ Clicks from the thermostat cycling. □ A high-pitched hum or pulsating noise caused by the high-efficiency compressor cycling on and off. Care and Cleaning Draining the Dehumidifier - Bucket Draining... - Page 11 Care and Cleaning Gravity Draining If you plan to run your dehumidifier continuously, you can choose direct draining by attaching a garden hose to the unit. Models without a pump: Figure 1 □ Turn off the dehumidifier and unplug the power supply cord.
- Page 12 Care and Cleaning (continued) Pump Draining (models with a pump) This feature can help to pump water horizontally or vertically with a 16 ft. (487.68 cm) hose included. You can also pump water to a floor drain, out a window or anywhere you think suitable. NOTE: You must connect the drain hose to drain hose Figure 1 connector before pressing Pump button.
- Page 13 Care and Cleaning (continued) Cleaning the Water Filter (pump models only) □ Unplug the unit before cleaning it. After every 3 months of usage, the water filter needs to be cleaned for smooth water pump running. □ Remove the bucket. NOTE: Before removing the filter, please put a draining dish under the unit and make sure there is no water draining from the port.
- Page 14 Care and Cleaning (continued) Cleaning the Filter The air filter is removable for easy cleaning. A clean filter helps remove dust, lint, and other particles from the air and is important for best operating efficiency. Check the filter every two weeks to see whether it needs cleaning.
-
Page 15: Troubleshooting
Troubleshooting Before calling for service, please try the suggestions below. Problem Solution Dehumidifier will not operate DANGER: ELECTRICAL SHOCK HAZARD □ Plug into a grounded 3-prong outlet. □ Do not remove ground prong. □ Do not use an adapter. □ Do not use an extension cord. □... - Page 16 Questions, problems, missing parts? Before returning to the store, call Vissani Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-877-527-0313 HOMEDEPOT.COM Retain this manual for future use. 4237537-01...
Need help?
Do you have a question about the VDH50P and is the answer not in the manual?
Questions and answers

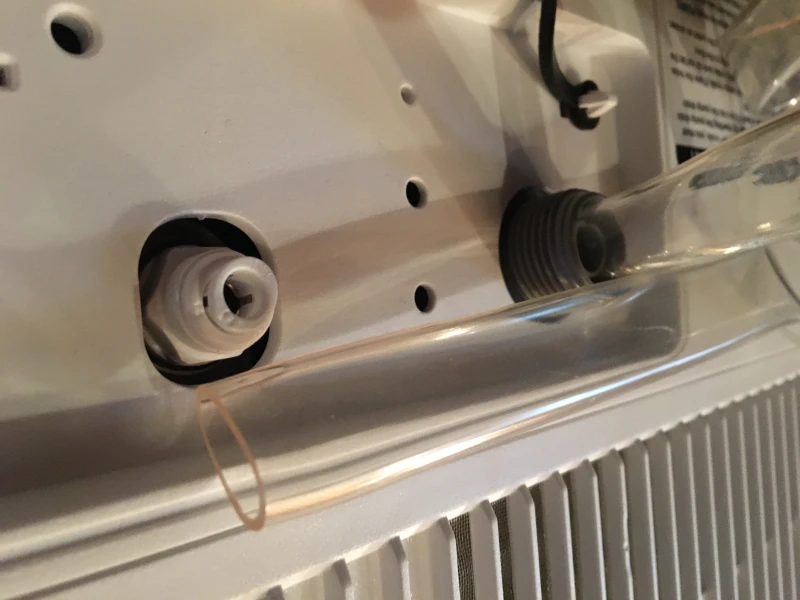

Please confirm: 1) The plastic hose does fit the drain hose fitting perfectly BUT 2) the plastic hose also fits the pump outlet but needs SOMETHING to hold it in place. OR my unit came with the wrong size clear plastic hose. 3) the manual page 19 discusses inserting the drain hose 'onto the drainage joint' 4) the drain hose should have been included BUT 5) in my case I have a hose that can be pushed onto the drainage joint but with less than 1/4 inch 'hold' and nothing is included to hold it secure. 6) The online manual discusses threading a hose from inside the tank compartment, but it would have to be a much smaller hose. The clear plastic hose that came with my unit is only 3 feet long, has an inside diameter of about 1/2 inch. IF I do need to thread a hose from inside the unit please advise of its exact size. It seems to be about 1.4 inch outside diameter. Does Home Depot have such a hose? I need about an 8 foot length. Please advise ASAP - I cannot use the unit at this time.
The Vissani VDH50P uses a garden hose connector with a 3/4 in. diameter straight (non-tapered) thread and a pitch of 11.5 threads per inch. The male connector has an outer diameter of 1-1/16 in. (26.99 mm).
The document does not state whether Home Depot carries a suitable 8-foot hose.
This answer is automatically generated
Do you plug the garden hose directly into the back of the VAD50PS1AWT dehumidifier, or do you connect the garden hose to the clear plastic hose that is supplied, using an adapter? (I have not purchased the dehumidifier yet.)
To connect a garden hose to the Vissani VAD50PS1AWT dehumidifier:
1. Securely attach the garden hose to the hose connector on the dehumidifier. Ensure there is no water leak.
2. Place the other end of the hose into a floor drain.
3. Make sure the entire hose lies flat and is lower than the hose connector on the dehumidifier.
4. The hose outlet should be at least 5.5 inches lower than the hose connector.
5. Ensure the hose is not kinked or pinched.
6. Use a hose with an inner diameter greater than 1/2 inch.
7. Only North American garden hoses are compatible.
Note: For models with a pump, you may cover the connector after removing the hose.
This answer is automatically generated
How long can the garden hose be? Another question: Is it true the hose should be 5/16" Diameter with a female threaded end that is 1"?
The Vissani VDH50P uses a garden hose with a 3/4 in. diameter straight (non-tapered) thread and a pitch of 11.5 threads per inch. The male part has an outer diameter of 1-1/16 in. (26.99 mm). The maximum length of the pump drain hose is 16 ft. (487.68 cm). There is no mention of a 5/16" diameter or a 1" female threaded end being required.
This answer is automatically generated
What is the dB level when running the 50 model
