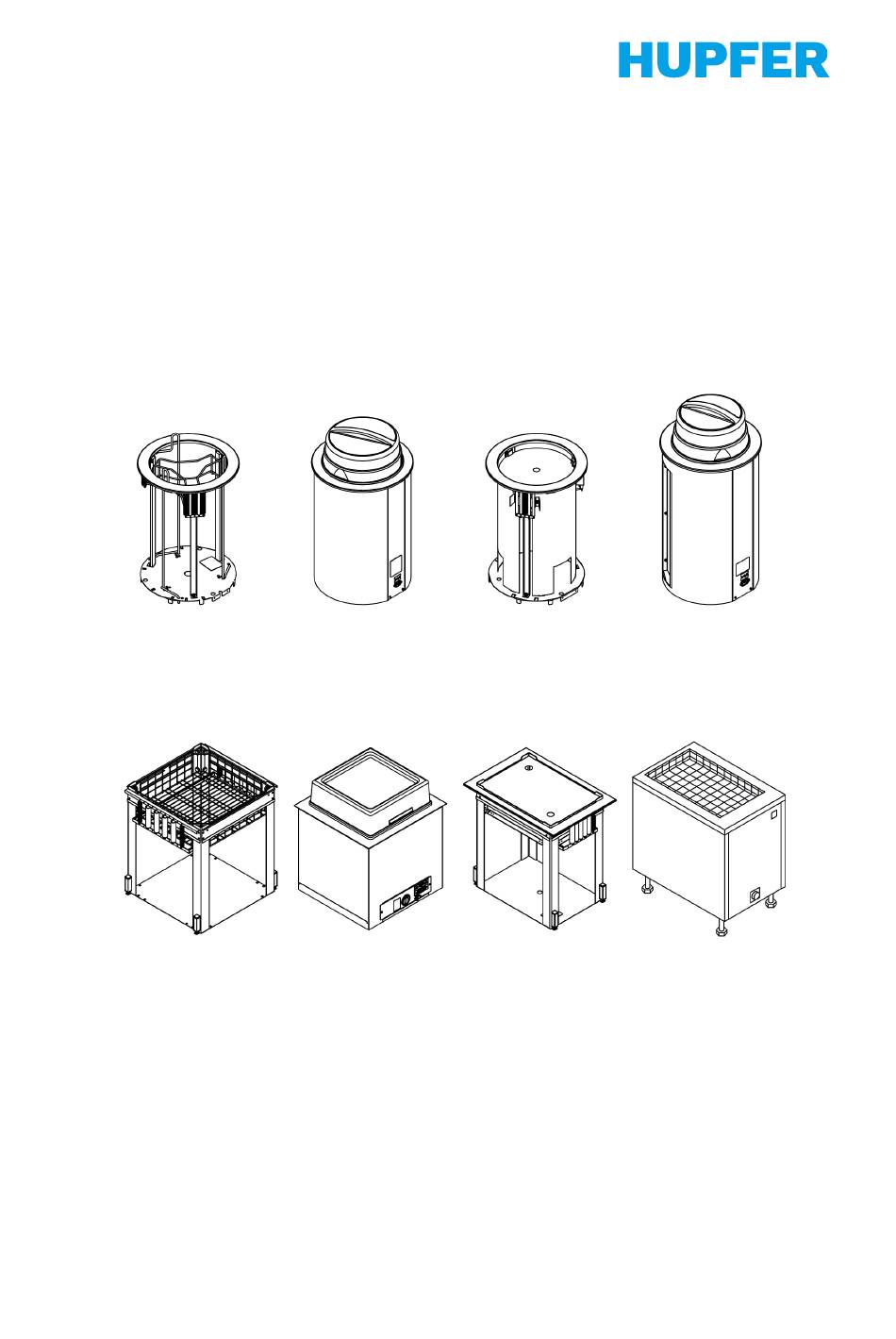

- Page 1 Operating instructions Incounter stacking equipment For plates, cups, baskets, trays or universal Read the instructions prior to performing any task!
- Page 2 Internet: www.hupfer.com Document information Last update: 19.09.2022 Index: 2, en_GB All texts, illustrations and graphic designs are protected by copyright. Reproduction, distribution and issuing are permitted for internal company purposes only. © Hupfer Metallwerke GmbH & Co. KG, Coesfeld 2022...
-
Page 3: Table Of Contents
Operating instructions Incounter stacking equipment Table of contents General information............... Product information............Target group..............Symbols................Signs................Product description............... Function................Overview................. Equipment features............Technical data..............Rating plate..............11 Safety information..............12 Intended use..............12 Improper use..............12 Safety instructions............12 3.3.1 General information..........12 3.3.2 Transport.............. - Page 4 Operating instructions Incounter stacking equipment Dispensing items............. 22 Finishing operation............22 Care and cleaning..............22 Cleaning intervals............22 Permissible cleaning types..........23 Permissible cleaning agents........... 24 Material compatibility............25 Manual cleaning.............. 25 Disinfecting..............25 Maintenance and repair............26 Maintenance intervals............. 26 Troubleshooting..............
-
Page 5: General Information
Operating instructions Incounter stacking equipment General information Product information Product name Incounter stacking equipment ■ Product type EBR-TE – for plates ■ EBT-TE/H – for plates, heated ■ EBT-TAS – for cups ■ EBT-TAS/H – for cups, heated ■ EBS-KO – for baskets ■... -
Page 6: Signs
Operating instructions Incounter stacking equipment WARNING “Warning” indicates a hazardous situation that may result in serious injury. CAUTION “Caution” indicates a potentially hazardous situation that may result in minor to moderate injury. NOTICE “Notice” indicates a situation that may result in damage to property. “Notes”... -
Page 7: Overview
Operating instructions Incounter stacking equipment Overview Incounter plate dispenser Fig. 1: example of an incounter plate dispenser, standard version and heatable Load guide Tension spring Panel Guide basket Platform guide 10 Power supply Position holes for load guide 11 Thermostat Position holes for load guide 12 Rating plate Base plate... - Page 8 Operating instructions Incounter stacking equipment Incounter crockery dispenser Fig. 2: example of a crockery dispenser, standard version and heatable Guide basket Heating element Panel Tension spring Power supply Platform guide Thermostat Load guide 10 Rating plate only for heatable equipment Incounter basket dispenser Fig.
-
Page 9: Equipment Features
Operating instructions Incounter stacking equipment Incounter tray dispenser and universal dispenser Fig. 4: Example of a tray dispenser and an incounter universal dispenser, heatable Guide basket Feet, height adjustable Panel Thermostat , power supply Platform guide Sheathing Base plate 10 Rating plate Feet, height adjustable 11 Guide basket Tension spring... - Page 10 Operating instructions Incounter stacking equipment Product name Plate dis- Plate dis- Plate dis- Plate dis- Plate dis- penser penser penser penser penser Lifting height Permitted Plates Ø190 Plates Ø190 Plates Ø190 Plates Ø270 Plates Ø180 items to 260 mm to 260 mm to 260 mm to 330 mm to 330 mm...
-
Page 11: Rating Plate
Operating instructions Incounter stacking equipment Product name Basket dis- Basket dis- Tray dis- Incounter uni- pensers pensers pensers versal dis- pensers Element Tubular heating - Tubular heating - element element Dimensions and total weight Width Depth Height Total weight 16.9 19.7 Maximum load Lifting height... -
Page 12: Safety Information
Operating instructions Incounter stacking equipment Payload, total 11 Refrigerant Electrical connection 12 Refrigeration capacity Model year 13 Protection code Product code as barcode 14 Certification mark/CE label if available Electrical serial number 15 Disposal of old appliances 10 Induction frequency Safety information Intended use The stacking equipment is used to hold and dispense approved items. -
Page 13: Transport
Operating instructions Incounter stacking equipment 3.3.2 Transport If the equipment needs to be lifted, only use lifting gear and load- bearing equipment approved for the total weight of the equipment. Only use transport vehicles that are approved for the total weight of the equipment. -
Page 14: Safety Devices
Operating instructions Incounter stacking equipment 3.3.6 Safety devices The side panel prevents access to tension springs and heating ele- ments. In its installed state, access to tension springs and electrical components from the outside must be prevented by structural means. Access from the outside is only permitted for maintenance purposes. -
Page 15: Commissioning
Operating instructions Incounter stacking equipment Information on the layout of cut-outs and supports and the necessary assembly work can be found in the separate assembly instructions. Electrical connection Depending on the equipment and the installation position, the thermostat may not be accessible during operation. - Page 16 Operating instructions Incounter stacking equipment Step 1 The intermediate stack height h of the items can be calculated using the following formula. Measure any missing values. Formula = intermediate stack height =(( h – h )/ (n – 1)) = height between n items = height of 1 item Example = 120 mm...
- Page 17 Operating instructions Incounter stacking equipment Fig. 6: Example view of the guide basket Load guide Base spring Platform guide Adjustment springs Guide basket Checking the adjustment Place 20 items on the guide basket. �� The guide basket lowers. Measure the distance between the upper edge of the crockery items and the upper edge of the load guide.
- Page 18 Operating instructions Incounter stacking equipment CAUTION Risk of injury Sharp edges and tension springs may cause injury when hooking and unhooking the tension springs. − Wear protective gloves. NOTICE Damage to the guide elements The tension springs must be hooked on symmetrically. If the tension springs are only hooked on one side, the platform for baskets or trays will be damaged.
- Page 19 Operating instructions Incounter stacking equipment The load guides can only be adjusted on plate dis- pensers and universal stacking equipment. Adjusting plate dispenser position A The load guide must be adjusted to the items to prevent damage when the items are being dispensed. Leave max. 10 items on the guide basket during adjustment.
-
Page 20: Operation
Operating instructions Incounter stacking equipment Adjusting the incounter universal dispenser You can adjust the load guide to the desired items. Remove all items from the stacking compartment. Insert the guide rod into the desired hole. Check whether the desired items fit in the position of the guide rod. -
Page 21: Loading With Items
Operating instructions Incounter stacking equipment Adjusting the thermostat Depending on the equipment and the installation position, the thermostat may not be accessible during operation. − Adjust the thermostat during installation. For heatable devices, the temperature can be set on the thermostat. Manual thermostats do not allow the temperature to be set to a precise degree. -
Page 22: Dispensing Items
Operating instructions Incounter stacking equipment Items can be heated in heatable stacking equipment. Load the unit with items. Cover the stacking compartment with the lid. Switch on the equipment with the on/off switch. �� The switch lights up green. Allow the items to heat for at least 3 hours. ��... -
Page 23: Permissible Cleaning Types
Operating instructions Incounter stacking equipment Permissible cleaning types Cleaning type Definition of the cleaning opera- Approval for tion Incounter stacking equipment Manual cleaning Dry Cleaning with dry cleaning agents Damp Cleaning with a damp cloth and degreasing liquid cleaner Cleaning with a wet sponge and degreasing liquid cleaner Water hose Pressure ≤... -
Page 24: Permissible Cleaning Agents
Operating instructions Incounter stacking equipment Permissible cleaning agents NOTICE Incorrect cleaning agents Incorrect treatment of the installed material surfaces will result in damage and corrosion. − Only use cleaning agents approved for cleaning. − Follow the instructions of the cleaning agent manufacturer. Suitable cleaning agents The manufacturer cannot assess the suitability of specific detergents or disinfectants. -
Page 25: Material Compatibility
Operating instructions Incounter stacking equipment Cleaning agent Approval Alkaline cleaning agents pH 8 ‒ 14 ■ Alkalis Abrasive cleaning agents ■ Scouring pad ■ Pot scrubber Non-abrasive cleaning agents ■ Uncoated sponges ■ Soft cloths Material compatibility When selecting the cleaning agent, make sure it is compatible with the materials used. -
Page 26: Maintenance And Repair
Operating instructions Incounter stacking equipment Maintenance and repair DANGER Electrical hazard Electricity is a serious hazard and can cause injury or even death. − Before starting any cleaning and maintenance work, disconnect the transport cart from the mains. − Disconnect the mains plug and put away the cable in its desig- nated place until the next use. -
Page 27: Troubleshooting
Operating instructions Incounter stacking equipment Troubleshooting Troubleshooting In the event of malfunctions and complaints within the guarantee period, contact our service partners. After the guarantee period has expired, have any necessary repair work carried out by our service partners or qualified electricians. Fault description Cause Remedy... -
Page 28: Recommissioning
Operating instructions Incounter stacking equipment Recommissioning The transport cart may only be used in a technically sound condition, for its intended use, and in accordance with the operating instructions. Check the transport cart for visible damage before each use. In the event of damage, inform the responsible departments immediately.
