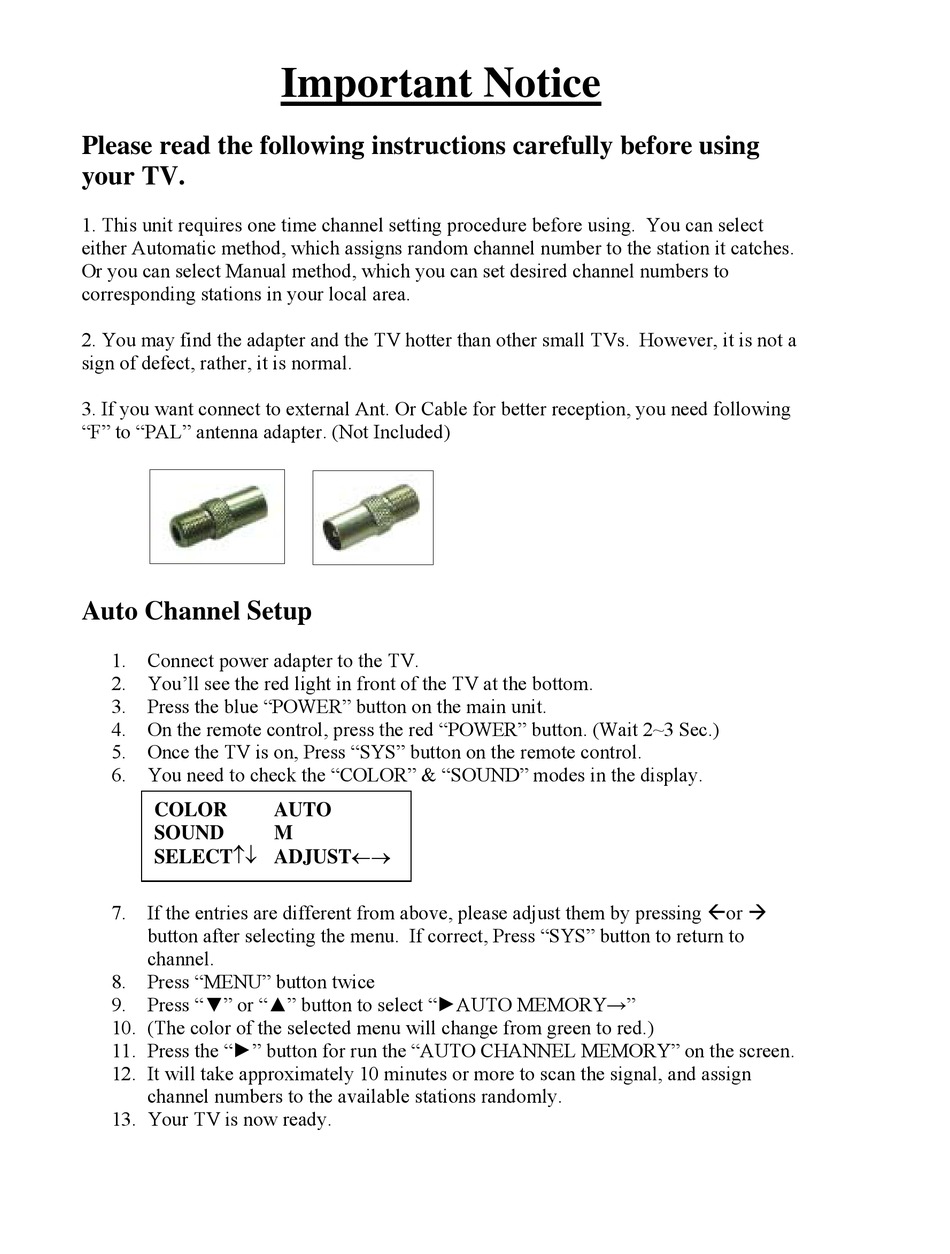

jWIN JV-TV7070 Important Notice

Please read the following instructions carefully before using
your TV.
1. This unit requires one time channel setting procedure before using. You can select
either Automatic method, which assigns random channel number to the station it catches.
Or you can select Manual method, which you can set desired channel numbers to
corresponding stations in your local area.
2. You may find the adapter and the TV hotter than other small TVs. However, it is not a
sign of defect, rather, it is normal.
3. If you want connect to external Ant. Or Cable for better reception, you need following
"F" to "PAL" antenna adapter. (Not Included)

Auto Channel Setup

1. Connect power adapter to the TV.
2. You'll see the red light in front of the TV at the bottom.
3. Press the blue "POWER" button on the main unit.
4. On the remote control, press the red "POWER" button. (Wait 2~3 Sec.)
5. Once the TV is on, Press "SYS" button on the remote control.
6. You need to check the "COLOR" & "SOUND" modes in the display.
COLOR
SOUND
SELECT↑↓ ADJUST←→
7. If the entries are different from above, please adjust them by pressing !or "
button after selecting the menu. If correct, Press "SYS" button to return to
channel.
8. Press "MENU" button twice
9. Press "▼" or "▲" button to select "►AUTO MEMORY→"
10. (The color of the selected menu will change from green to red.)
11. Press the "►" button for run the "AUTO CHANNEL MEMORY" on the screen.
12. It will take approximately 10 minutes or more to scan the signal, and assign
channel numbers to the available stations randomly.
13. Your TV is now ready.

Important Notice

AUTO
M
