peplink MAX BR1 Mini Quick Setup Manual

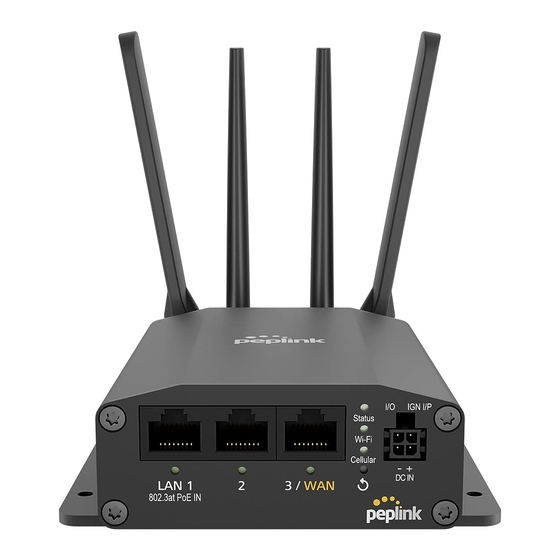

Peplink MAX BR1 Mini HW3 Cellular–WiFi Router

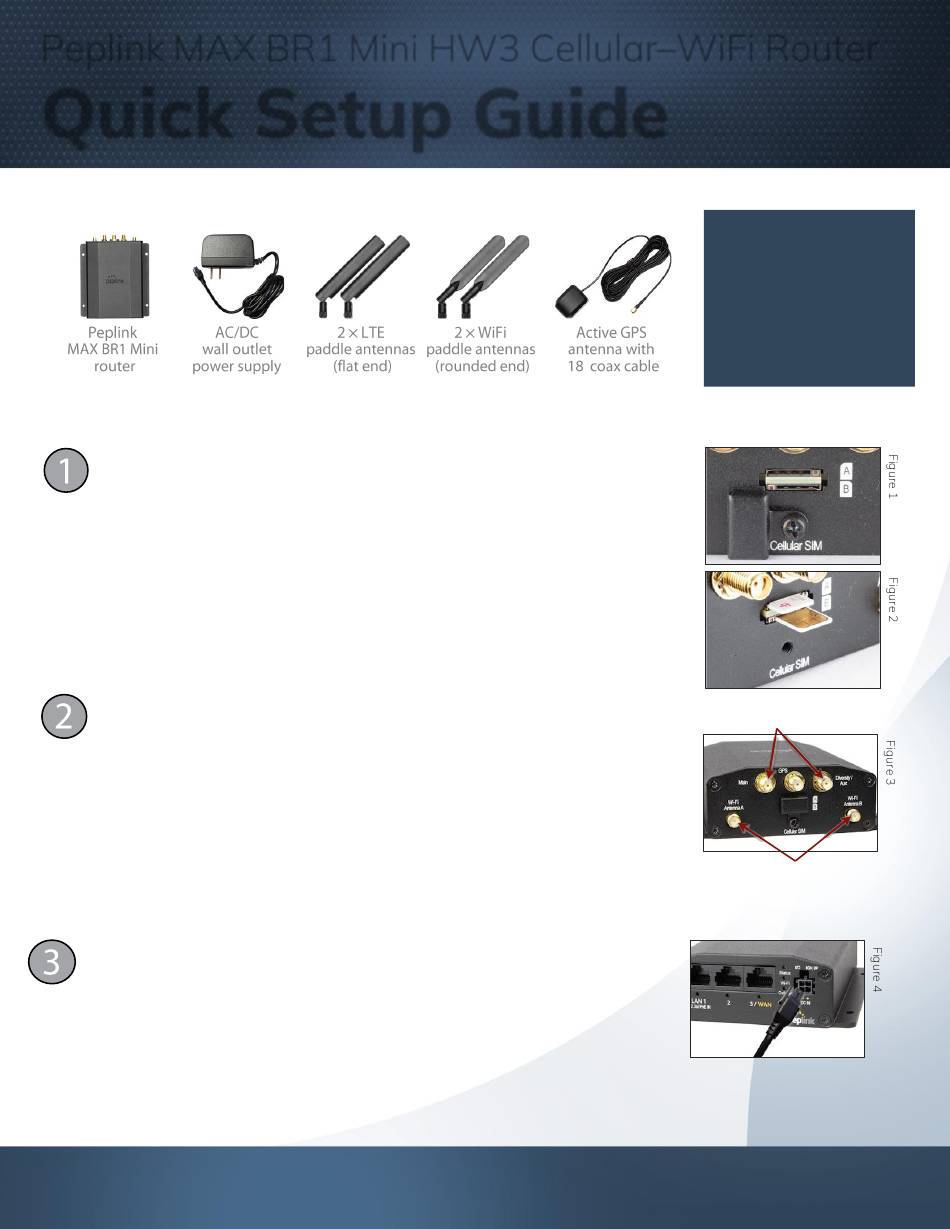

Quick Setup Guide
Box contents
Install your SIM card
• Use a small Phillips screwdriver to loosen the Cellular SIM cover at the end
of the router. Rotate the cover to expose the SIM slots. (Figure 1)
• Insert an activated nano SIM card into Slot A, beveled corner first and the
gold circuit side facing down. Push the card into the slot with your fingernail
until it clicks into place. (Figure 2)
If you use a second card in
circuit side facing up. Push until it clicks into place.
• Rotate the Cellular SIM cover back into position over the SIM slots.
Hand-tighten the cover with the Phillips screwdriver.
Attach the antennas
• Attach the two flat-end LTE paddle antennas to the router's threaded Main
(top left) and Diversity/Aux (top right) connectors and hand tighten them.
(Figure 3)
If your system includes a separate MIMO antenna, skip this step and connect
the MIMO antenna to the Main and Diversity/Aux connectors instead.
• Attach the two rounded-end WiFi paddle antennas to the router's threaded
Wi-Fi Antenna A (bottom left) and Wi-Fi Antenna B (bottom right)
connectors and hand tighten them. (Figure 3)
Power up the router
• Connect the power supply to the router's
clip must be facing up for the connector to click into place. Plug the other end
of the power supply into an AC wall outlet.
• Once the router is connected to a power source, the Status light will turn red.
Within 3 to 5 minutes, all three lights—Status, Wi-Fi, and Cellular—should
turn green, indicating that the router is functioning properly.
Have questions? Call Powerful Signal at 435-634-6800 or visit us online at PowerfulSignal.com
Slot B
, insert it beveled corner first with the gold
− +
DC IN port. (Figure 4) The release
DC IN
Tip:
Keep the manufacturer's
box and all its contents.
The packaging contains
important information for
technical support and
' reordering.
LTE antenna connectors
WiFi antenna connectors
TS007001
