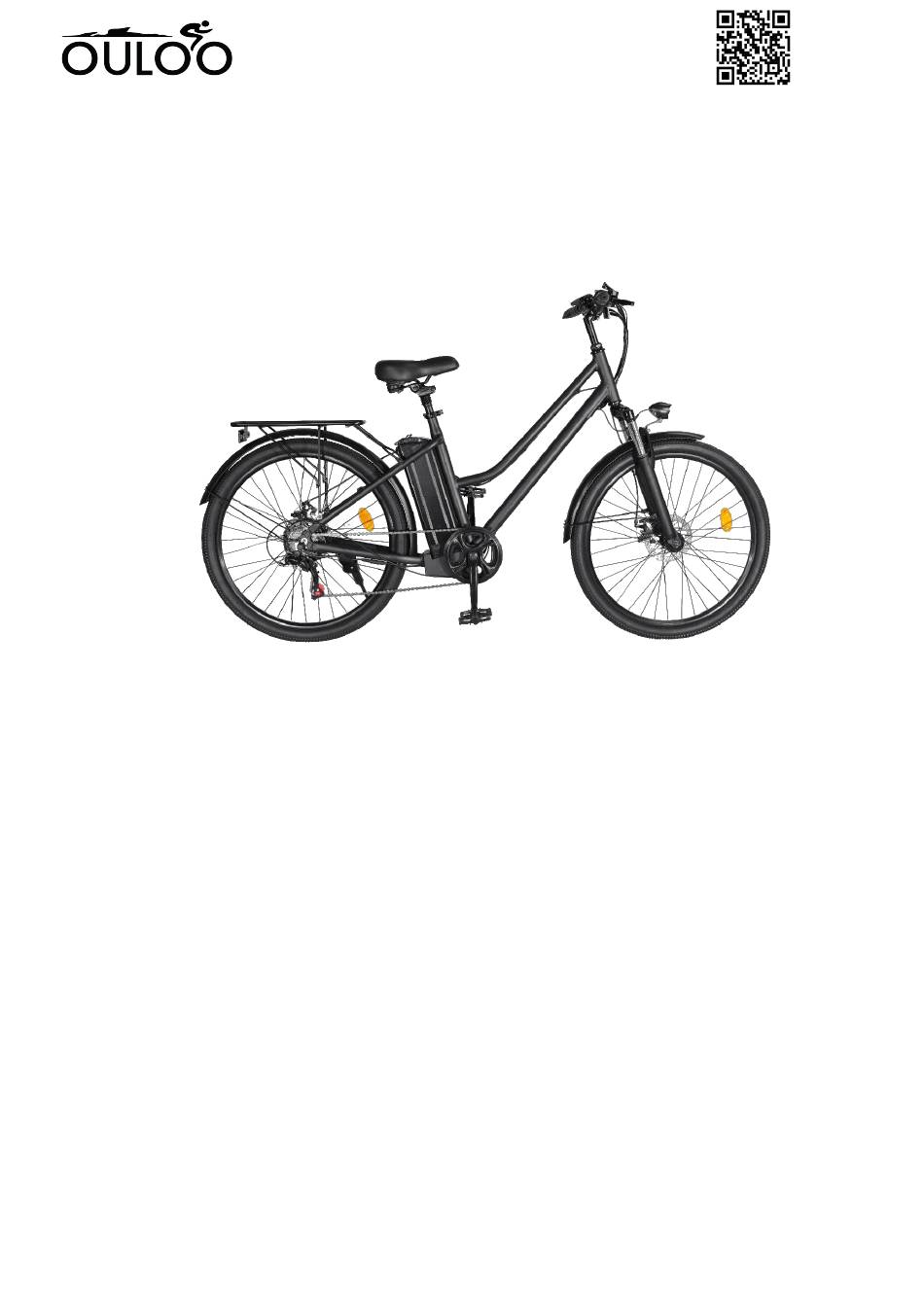

- Page 1 OULOO-E26 E-Bike info@ouloobikes.com For adults weighing up to 120 kg https://www.ouloobikes.com/ Model: E 2 6 Manual...
- Page 2 Note Battery and charging: Charge at 0℃～45℃, discharge at -20℃～60℃, keep the battery dry, do not put the battery in acidic or alkaline liquid, avoid rain, keep away from fire, heat and high temperature environment. It is strictly forbidden to connect the positive and negative poles of the battery in reverse, and it is strictly forbidden to damage, insert the battery or short-circuit the battery.
- Page 3 Statement of responsibility: After riding, please store the bike in a place without sunlight and rain, not in residential buildings; always check the motor and brake; Regularly check the various screws of the car and the places that need to be tightened, and tighten them regularly.
- Page 4 Product parts diagram： Whole vehicle diagram Display Sprocket Rear adjustment chain finger shifter Pedal Brake lever Battery Grip Chain Handlebar Rear derailleur Headlight free wheel Front fork electric machinery Tire Rear reflector Wheel reflector Rear shelf Disc brake pad Quick release of seat pipe adjustment Disc brake seat tube Wheel hub...
-
Page 5: Function Introduction
figure 1 figure 2 Function introduction: 1. Charging: Open the plastic cover on the battery ( Figure 1), connect the charger to start charging, when the battery is full and the charger indicator turns from red to yellow-green, it means it is fully charged. 2. -
Page 6: Product Parameter
Product parameter Parameter Standard Edition Body material Aluminum alloy Vehicle color Black or white Physical dimension Vehicle size L*W *H: 1850mm*600mm*1100mm Wheel form Wire spoke wheel Wheel size 26 " Package size L*W *H: 1485mm*245mm*780mm G / Net weight 25.8kgs/21.2kgs Maximum payload 120kg Maximum speed... - Page 7 Remarks: Electricity, load, tire pressure, road environment, chain and wheel axle lubrication, etc. will affect the maximum speed; the cruising range is: load 60kg, speed 15-25km/h, smooth and hardened road, from full charge to full power consumption , Uninterrupted test results; driving habits, temperature, load, tire pressure, road environment and other factors will affect the cruising range.
- Page 8 Display content introduction： 1. Headlight 2. Current status level 3. Voltage status level POWER 4. Multi-function display area Total mileage ODO, single mileage TRIP, digital voltage VOL, digital current CUR, running time T1 5. Speed display area Current speed CUR, maximum speed MAX, average speed AVG Unit MPH, KM/H The meter will calculate the true speed based on the wheel diameter and signal data (the motor Hall also needs to set the number of magnets).
-
Page 9: Status Code
6. Fault status display area Motor failure handlebar failure controller failure power-off brake lever undervoltage protection 7. Boost status display area Boost status (0-3 gears) Boost mark Meaning of display status code: Status code State meaning Normal status Battery undervoltage Motor failure Handlebar failure Controller failure... - Page 10 四、 Key introduction: The specific combination positions of keys are as follows: The key operation is divided into short press, long press and long press with combination keys, short press for fast / frequent operations. When riding, you need to modify the assist/speed gear, short press. Switch to display data in the multi-function area when riding, short press.
- Page 11 3. Clear Trip Long press to clear Trip 4. Set/deactivate 6Km/h boost, turn on/off headlights When the vehicle is stationary, long press , Will enter 6KM/h cruise mode, Short press on/off headlight 5. Switch the content of the multi-function display area Short press , you can switch the value of the multi-function display area.
