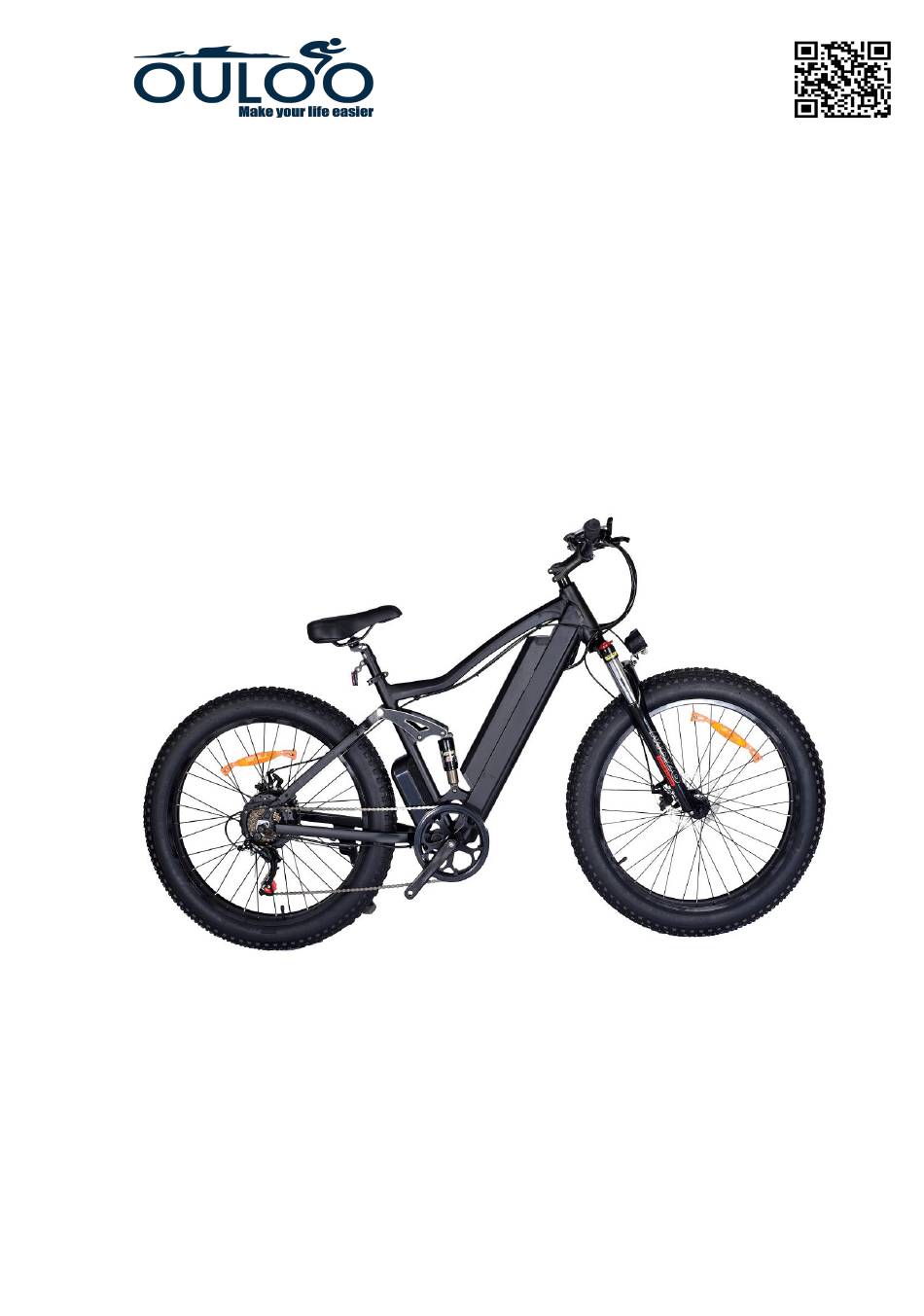

- Page 1 OULOO-X37 Mountain Electric Bicycle info@ouloobikes.com Maximum loading weight: 264.5 lbs https://www.ouloobikes.com/ Model: X37...
- Page 2 Note Battery and charging: Charge at 0 ℃ ~ 45 ℃ and discharge at - 20 ℃ ~ 60 ℃, keep the battery dry. It is strictly prohibited to put the battery in acidic and alkaline liquids, avoid rain, and stay away from fire source, heat source and high temperature environment.
- Page 3 correctly in accordance with the safety rules. Statement of responsibility: After riding, please put the car in a place without sunshine and rain, not in residential buildings; Check the motor and brake frequently; Regularly check the screws of the car and the places to be tightened, and tighten them regularly.
- Page 4 Figure 1 (whole vehicle diagram) display disc brake disc (13) drive motor handlebars disc brake (14) saddle brake handle lithium battery (15) rear reflection headlights sprocket seat tube (10) (16) tyre chain Quick release handle (11) (17) (12) controller (18) shock absorber Function introduction: 1.
- Page 5 Figure 2 (left handlebar)
- Page 6 Product Parameters Parameters Standard Edition body material aluminium alloy Vehicle color black Appearance Unfold size Length*width*height: dimension 1800mm*650mm*1150mm Hub form spoke wheel Hub size 26” Package size Length*width*height: 1600mm*280mm*850mm Gross / net weight 35kgs/30.5kgs performance maximum payload 120kg parameter top speed 25Km/h Endurance Mileage ≦35 Km(pure electric riding)
- Page 7 Remarks: power, load, tire pressure, road environment, chain and axle lubrication will affect the maximum speed; The endurance mileage is obtained from the continuous test with load of 60kg, speed of 15 ~ 25km / h, flat and hardened road surface, from full charge to complete power consumption;...
- Page 8 Display content introduction 1 headlamp 2 voltage state level 3 multi function display area 4 digital voltage Vol, rotational speed RM, cons, total mileage ODO, single mileage trip, operation time. 5 Speed display area The current speed cur, maximum speed Max and average speed AVG are in mph, KM/H 6 Fault status display area , motor fault...
- Page 9 protection 7 Boost status display area Assist state (gear 0-5), cruise mark III Key introduction: The specific combination positions of keys are as follows: Introduction to key use Key operations are divided into short press and long press, and combined key long press and short press are used for fast / frequent operations, such as When riding, you need to modify the boost / speed gear, briefly press it;...
- Page 10 Short press to switch the value of the multi-function display area; Note: Due to the upgrading of the company's products, the display content of the products you get may be different from the manual, but it will not affect your normal use. The parameter settings of the instrument have been set before leaving the factory.
