Spartan TE200 Series User Manual

# Item
1 LCD
2 MODE button
3 FAN button
4 UP & DOWN buttons
5 SET button
6 On/Off button
7 Set-point icons
8 Fan icons
9 Flake icon
10 Hot spring icon
11 Flow icon
12 Working icon
13 Clock
14 Sleep
15 Moon Sign
16 Outdoor icon
17 Cover screw
18 Backplate
19 Wiring terminal blocks
20 Mounting holes
21 small 8888
22 Schedule number
23 Day
Spartan Peripheral Devices, tel:(450)424-6067•fax: (450)424-6067•email: info@spartan-pd.com•www.spartan-pd.com
TE200 Series
USER MANUAL

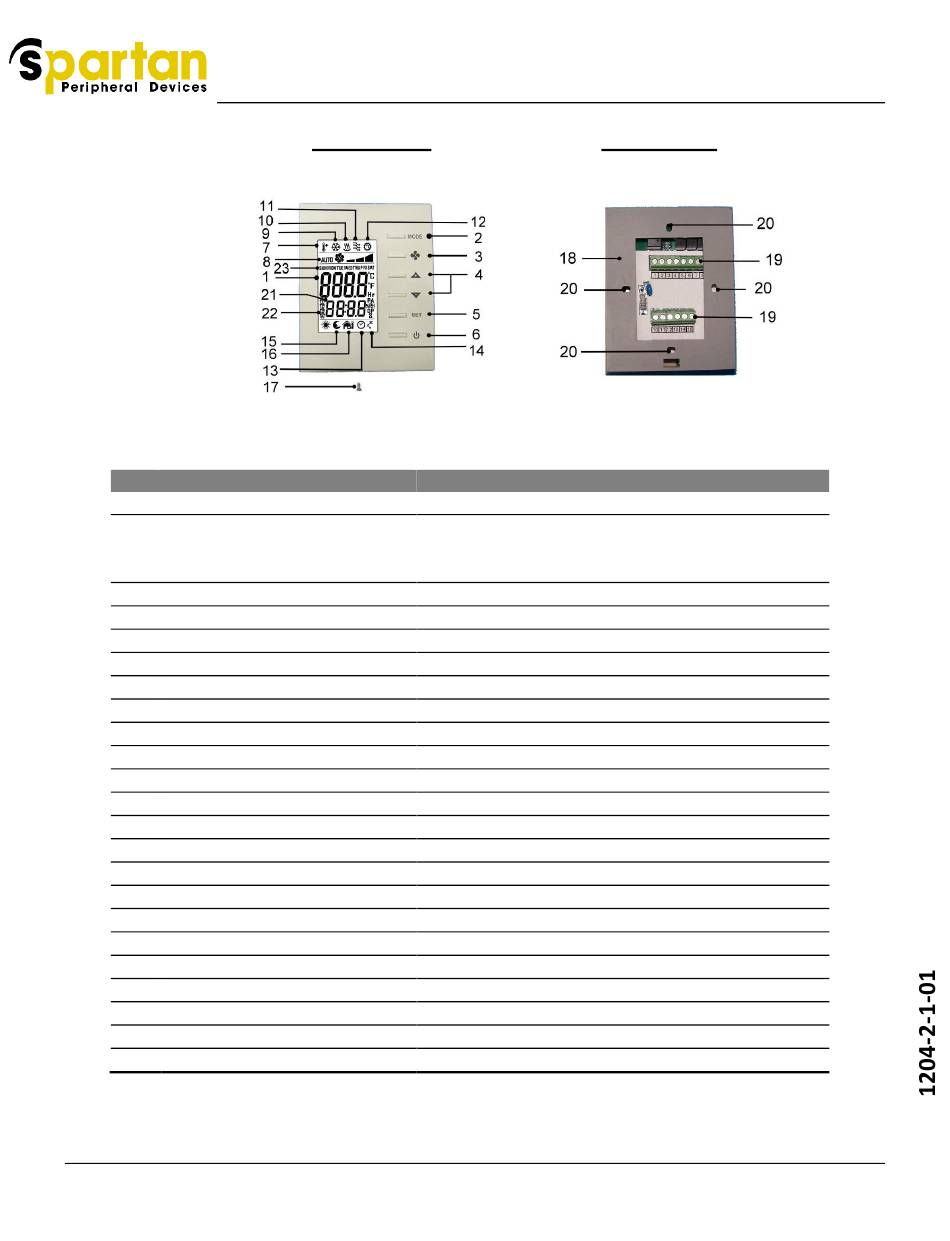

Front view
Description
Display temperature and working status.
Access to user and engineer menu and for setting
confirmation or change ℃/℉ unit if pressed for over
3 sec.
Toggle to change Fan mode: Auto or Continuous
Increase & decrease setting or previous/next item
Setting for clock and programmable Schedules
Turn on/off the thermostat
Display set-point temperature while it is flashing
Indicate Fan status
Indicate working in Cooling mode
Indicate working in the Heating mode
Indicate working in the ventilating mode
Indicate cooling/heating valve open
Not used
Sleep mode is enabled while it is shown
Indicate room unoccupied
Indicate door/ window open
Screw to tighten back cover with front cover
Plate for mounting on the electric box
Terminals for wiring
Holes for mounting on the electric box
Display time
Programmable Schedule running or setting
Current day of Sunday ~ Saturday or setting
TE200 Series – 31 Aug 2022
Back view
