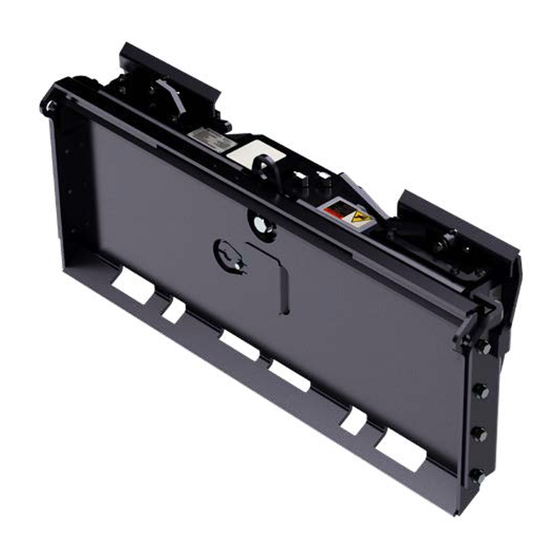

- Page 1 INSTALLATION INSTRUCTIONS TILT ATTACH ASSEMBLY #87301 HD TILT ATTACH ASSEMBLY #17446 VALVE KIT #87651 VALVE KIT #88725 VALVE KIT #112921 INSTRUCTIONS NUMBER: 76136 888-888-1085 I www.spartanequipment.com | Joppa, MD 21085, United States of America Copyright © 8-618 10-22-13-...
-
Page 3: General Comments
PREFACE GENERAL COMMENTS Congratulations on the purchase of your new SPARTAN EQUIPMENT product! This product was carefully designed and manufactured to give you many years of dependable service. Only minor maintenance (such as cleaning and lubricating) is required to keep it in top working condition. -
Page 5: Safety Statements
SAFETY STATEMENTS THIS SYMBOL BY ITSELF OR WITH A WARNING WORD THROUGHOUT THIS MAN- UAL IS USED TO CALL YOUR ATTENTION TO INSTRUCTIONS INVOLVING YOUR PERSONAL SAFETY OR THE SAFETY OF OTHERS. FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN INJURY OR DEATH. THIS SIGNAL WORD IS USED WHERE SERIOUS INJURY OR DEATH WILL DANGER RESULT IF THE INSTRUCTIONS ARE NOT FOLLOWED PROPERLY. - Page 6 GENERAL SAFETY PRECAUTIONS WARNING! PROTECT AGAINST FLYING DEBRIS Always wear proper safety glasses, goggles, or a face shield when driving pins in or out, or when any operation causes dust, flying debris, or any other hazardous material. WARNING! LOWER OR SUPPORT RAISED EQUIPMENT Do not work under raised booms without supporting them.
-
Page 7: Safely Operate Equipment
GENERAL SAFETY PRECAUTIONS WARNING! DO NOT MODIFY MACHINE OR ATTACHMENTS Modifications may weaken the integrity of the attachment and may impair the function, safety, life, and performance of the attachment. When making repairs, use only the manufacturer's genuine parts, following authorized instructions. Other parts may be substandard in fit and quality. -
Page 8: General Information
INSTALLATION AND OPERATION GENERAL INFORMATION The SPARTAN EQUIPMENT tilt attach installs onto the toolbar/quick-attach mechanism of your skid steer loader and also attaches to your attachment in the same fashion as a universal quick attach. Due to this arrangement, thorough knowledge of the skid steer controls is necessary for machine operation. - Page 9 Connect the electrical wiring on the diverter valve to the auxiliary electrical connector on the skid steer loader or to the optional Spartan Equipment control box. NOTE: The hoses going to the attachment will attach to right side ports of the valve. Attach hoses going to the loader auxiliary hydraulics to the left side ports of the diverter valve.
-
Page 10: Maintenance
MAINTENANCE & SERVICE GENERAL INFORMATION Regular maintenance is the key to long equipment life and safe operation. Maintenance requirements have been reduced to the absolute minimum. However, it is very important that these maintenance functions be performed as described below. DAILY ... -
Page 11: Maintenance And Service
MAINTENANCE AND SERVICE 7. 8. CYLINDER SEAL REPLACEMENT The following information is provided to assist you in the event you should need to repair or rebuild a hydraulic cylinder. When working on hydraulic cylinders, make sure that the work area and tools are clean and free of dirt to prevent contamination of the hydraulic system and damage to the hydraulic cylinders. - Page 13 MAINTENANCE AND SERVICE Now insert the seal into the gland from the inner end. Position the seal in its groove, and release and remove the tool. Press the seal into its seat the rest of the way by hand. Install the new piston ring, rod wiper, O-rings and backup washers, if ap- plicable, on the piston.
-
Page 14: Bolt Torque
BOLT TORQUE BOLT TORQUE SPECIFICATIONS GENERAL TORQUE SPECIFICATION TABLE Use the following torques when special torques are not given. These values apply to fasteners as received from suppliers, dry, or when lubricated with normal engine oil. They do not apply if special graphited or moly disulphide greases or other extreme pressure lubricants are used. -
Page 15: Mounting Kit Installation
MOUNTING KIT INSTALLATION HEAVY DUTY TILT ATTACH ASSEMBLY #17446 9318 1-14-08-2... - Page 17 MOUNTING KIT INSTALLATION TILT ATTACH ASSEMBLY #87301 7866 1-14-08-3...
- Page 19 CYLINDER ASSEMBLY ASSEMBLY #87332 11064 1-14-08...
-
Page 20: Cylinder Assembly
CYLINDER ASSEMBLY ASSEMBLY #87332 NOTE: Seal Kit #45617 includes all parts marked with an asterisk (*). Parts are not sold separately. 11065 1-14-08... - Page 21 MOUNTING KIT INSTALLATION VALVE KIT #87651...
- Page 22 MOUNTING KIT INSTALLATION VALVE KIT #87651 7876 1-15-08-3...
- Page 23 MOUNTING KIT INSTALLATION VALVE KIT #88725 9196 1-15-08-2...
- Page 24 MOUNTING KIT INSTALLATION VALVE KIT #88725 9197 1-15-08-2...
- Page 26 VALVE KIT ASSEMBLY #112921 (FOR MOUNTING THE PD4800 POST DRIVER TOA SPARTAN EQUIPMENT TILT ATTACH) 11265 7 -24-08...
