Summary of Contents for Erbauer ERI692IPD

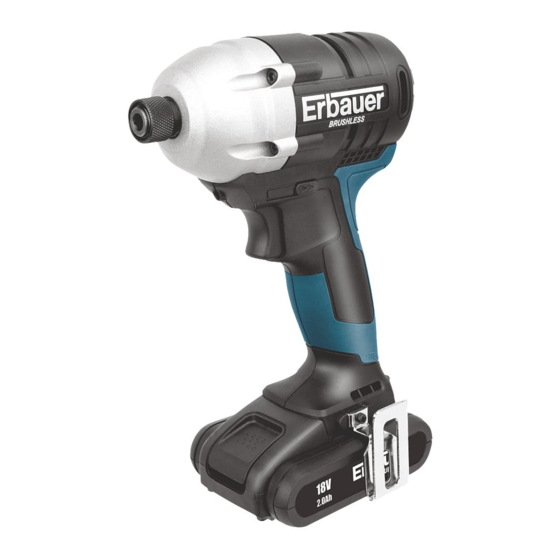

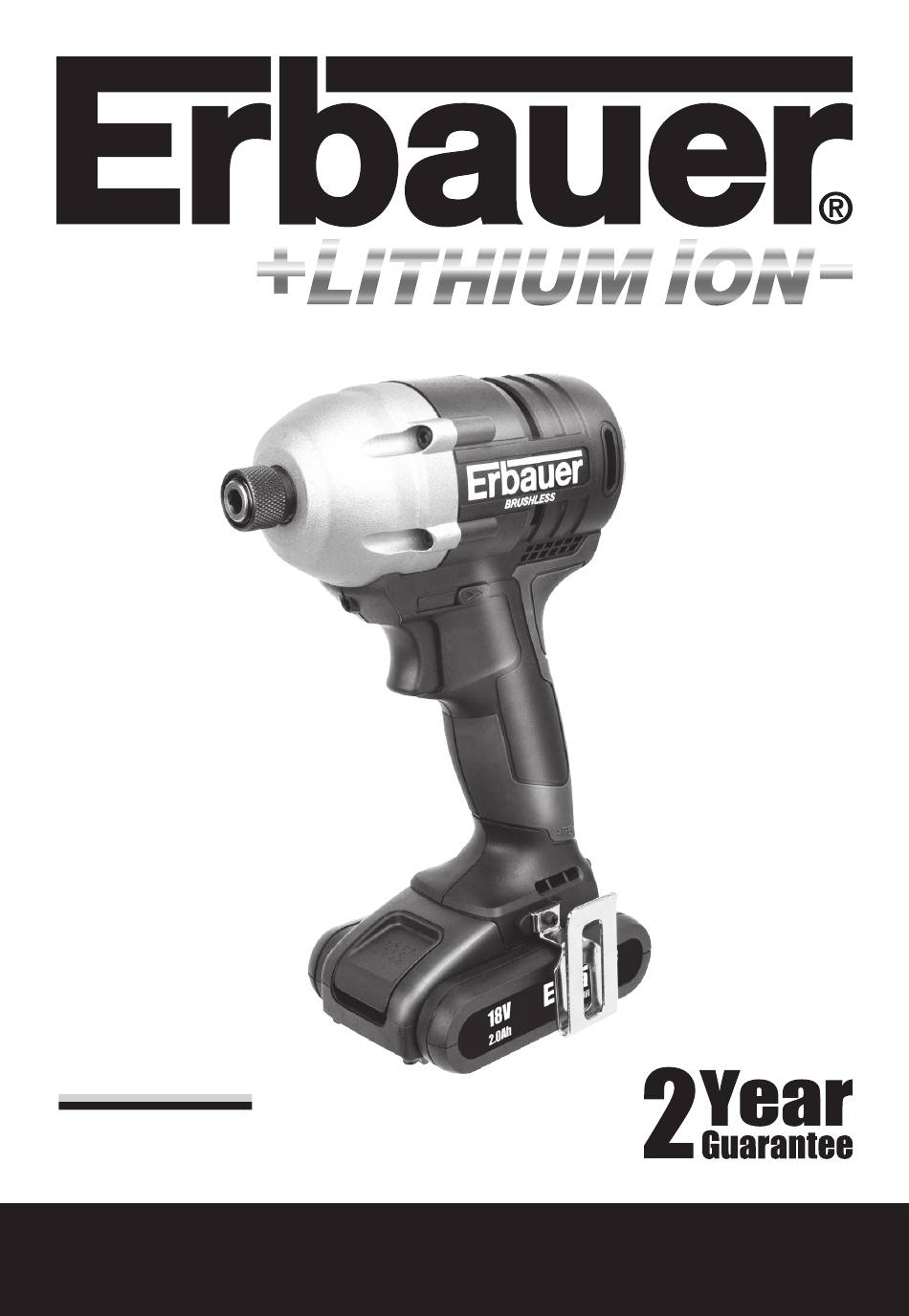

- Page 1 ERI692IPD 18V BRUSHLESS IMPACT DRIVER ERI692IPD...
- Page 2 Original Instructions (Version 2.0)
- Page 3 Congratulations on your purchase of a quality power tool from Erbauer (UK) Ltd. This product should give you reliable service but for your peace of mind this power tool does carry a 2 year guarantee, the terms of which are detailed below.
-
Page 4: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS Warning: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your electric (corded) power tool or battery-operated (cordless) power tool. - Page 5 Loose clothes, jewellery or long hair can be caught in moving parts. g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. 18V BRUSHLESS IMPACT DRIVER ERI692IPD...
- Page 6 4. Power tool use and care a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b.
- Page 7 7. Do not incinerate or burn the battery pack, it may explode. 8. Do not charge a damaged battery pack. 9. Replace any damaged supply cords on your charger. 10. Always disconnect the charger power supply before making or breaking the connections to the battery pack. 18V BRUSHLESS IMPACT DRIVER ERI692IPD...
- Page 8 11. Battery pack and charger will be warm during charging, this is normal. 12. When not in use, remove a charged battery pack from the charger. 13. Always remove the battery pack from the charger immediately after re-charging is completed. 14.
- Page 9 10. Do not expose battery to water or salt water, or allow the battery to get wet. 11. Do not disassemble or modify the battery. The battery contains safety and protection devices, which, if damaged, may cause the battery to generate heat, explode or ignite. The protection 18V BRUSHLESS IMPACT DRIVER ERI692IPD...
- Page 10 circuit module provided with battery packs is not to be used as a substitute for a shut-off switch. 12. Do not place the battery in or near fire, on stoves or other high temperature locations. Do not place the battery in direct sunlight, or use or store the battery inside cars in hot weather.
- Page 11 Your risk from these exposures varies, depending upon how often you do this type of work. To reduce your exposure to these chemicals: • Work in a well-ventilated area. • Work with approved safety equipment, such as those dust masks that are specially designed to filter microscopic particles. 18V BRUSHLESS IMPACT DRIVER ERI692IPD...
- Page 12 VIBRATION The European Physical Agents (Vibration) Directive has been brought in to help reduce hand arm vibration syndrome injuries to power tool users. The directive requires power tool manufacturers and suppliers to provide indicative vibration test results to enable users to make informed decisions as to the period of time a power tool can be used safely on a daily basis and the choice of tool.
- Page 13 Be sure the supply is the same as the voltage given on the rating plate for the charger. The charger is fitted with a two-core cable and plug. Remove the mains plug from socket before carrying out any adjustment or servicing. 18V BRUSHLESS IMPACT DRIVER ERI692IPD...
- Page 14 SYMBOLS To reduce the risk of injury, user must read instruction manual Warning Double insulation Indoor use only Wear gloves Do not expose to rain or water Do not burn Metal surface can become hot while working. Never touch it with bare hand! Always charge the battery pack between temperatures 0°C to 30°C.
- Page 15 FORWARD, REVERSE ROTATION AND LOCK CONTROL BATTERY PACK BATTERY PACK RELEASE BUTTON BELT CLIP ON/OFF SWITCH WITH VARIABLE SPEED CONTROL LED LIGHT COLLET LOCKING SLEEVE 18V BRUSHLESS IMPACT DRIVER ERI692IPD...
-
Page 16: Technical Data
TECHNICAL DATA Voltage No load speed 0-2200/min Impact rate 0-3000 bpm Max torque 140N.m Charger Protection class Chuck size 1/4”( 6.35 mm ) hex Charging time 48min Charger Input 100-240V~50/60Hz Charger Output 14.4-20V Machine weight with battery pack 1.7kg Battery capacity 2.0Ah Li-ion 36Wh NOISE AND VIBRATION DATA A weighted sound pressure... -
Page 17: Intended Use
1) Plug the charger into an appropriate outlet. 2) Slide the battery pack into the charger, the light(a) will be green and flash to indicate the charging process has started. Fig. A3 3) When charging is completed, the light(a) will 18V BRUSHLESS IMPACT DRIVER ERI692IPD... -
Page 18: Charging Indicator
stop flashing and be green. The pack is now fully charged, unplug the charger and remove the battery pack. WARNING: When battery charge runs out after continuously use or exposure to direct sunlight or heat, allow time for the tool to cool down before re-charging to achieve the full charge. -
Page 19: Operation
The LED light allows you to keep a clear view under less illuminated circumstances. To turn on Fig. D the light simply press the on/off switch. When you release the on/off switch, the light will be off. 18V BRUSHLESS IMPACT DRIVER ERI692IPD... -
Page 20: Overload Protection
Fig. D 6. DISPOSAL OF AN EXHAUSTED BATTERY PACK To preserve natural resources, please recycle or dispose of the battery pack properly. This battery pack contains Lithium batteries. Consult your local waste authority for information regarding available recycling and/or disposal options. Discharge your battery pack by operating your drill, then remove the battery pack from the drill housing and cover the battery pack connections with heavy-duty adhesive tape to... -
Page 21: Maintenance
This is normal and will not damage your power tool. ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice. 18V BRUSHLESS IMPACT DRIVER ERI692IPD... -
Page 22: Plug Replacement
PLUG REPLACEMENT (UK & IRELAND ONLY) If you need to replace the fitted plug then follow the instructions below. IMPORTANT The wires in the mains lead are coloured in accordance with the following code: BLUE =NEUTRAL Brown = Live As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows. -
Page 23: Declaration Of Conformity
EN 60335-2-29 EN 62233 EN 61000-3-2 EN 61000-3-3 Authorised Signatory and technical file holder Date: 02/11/16 Signature: Name / title: John Fretwell / Quality Assurance Manager Erbauer (UK) Ltd. Trade House, Mead Avenue, BA22 8RT 18V BRUSHLESS IMPACT DRIVER ERI692IPD...
