Summary of Contents for Erbauer ERP406IPD

  • Page 1 ERP406IPD 10.8V IMPACT DRIVER ERP406IPD...
  • Page 2 Original Instructions (Version 3.0)
  • Page 3 Congratulations on your purchase of a quality power tool from Erbauer (UK) Ltd. This product should give you reliable service but for your peace of mind this power tool does carry a 2 year guarantee, the terms of which are detailed below.
  • Page 4 GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 5 The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on 10.8V IMPACT DRIVER ERP406IPD...
  • Page 6 and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
  • Page 7 13. Always remove the battery pack from the charger immediately after re-charging is completed. 14. Your impact driver and battery pack will be warm when working, this is normal. 15. Do not dispose of batteries in fire, or with household waste. Return 10.8V IMPACT DRIVER ERP406IPD...
  • Page 8 exhausted batteries to your local collection or recycling point. 16. Wear ear protection when operating cordless impact driver. Exposure to noise can cause hearing loss. 17. Accessories and metal parts can become very hot. 18. Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring.
  • Page 9 30 – 50% of capacity. When storing for very long periods boost- charge the battery once per year to prevent over discharge. 15. Always charge the battery in a temperature range of 0°C to 30°C and discharge in a temperature range of 0°C to 75°C. 10.8V IMPACT DRIVER ERP406IPD...
  • Page 10 16. The battery pack and charger will be warm during charging, this is normal. 17. Do not continue charging the battery if it does not recharge within the specified charging time. Doing so may cause the battery to become hot, explode or ignite. The temperature range over which the battery can be charged is 0°C to 30°C.
  • Page 11 Plan your work schedule to spread any high vibration tool use across a number of days. Health surveillance All employees should be part of an employer’s health surveillance scheme to help identity any vibration related diseases at an early stage, prevent disease progression and help employees stay in work. 10.8V IMPACT DRIVER ERP406IPD...
  • Page 12 Double insulation The charger is double insulated. This means that all the external metal parts are electrically insulated from the mains power supply. This is done by placing insulation barriers between the electrical and mechanical components making it unnecessary for the tool to be earthed.
  • Page 13 Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. yyWxx Manufacturing date code; Year of manufacturing (20yy) and week of manufacturing (Wxx); 10.8V IMPACT DRIVER ERP406IPD...

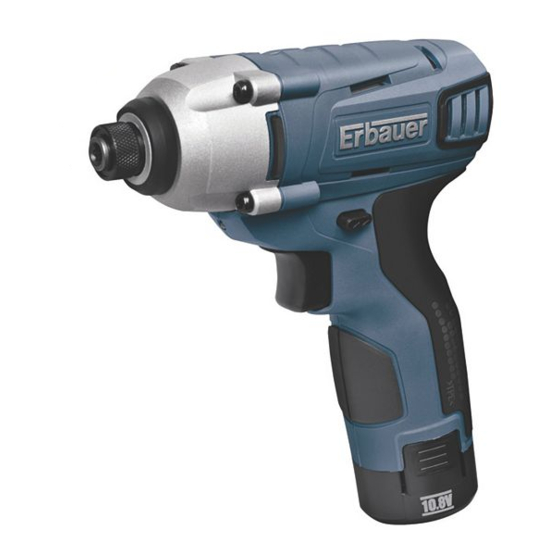

  • Page 15 FORWARD, REVERSE ROTATION AND LOCK CONTROL SOFT GRIP HANDLE BATTERY PACK LATCH BATTERY PACK ON/OFF SWITCH WITH VARIABLE SPEED CONTROL LED LIGHT COLLET LOCKING SLEEVE CHARGER 10.8V IMPACT DRIVER ERP406IPD...
  • Page 16 TECHNICAL DATA Voltage 10.8V No load speed 0-2400/min Impact rate 0-3000/min Max torque 90N.m Chuck Size 1/4˝ ( 6.35mm ) hex Charger input 230-240V~50Hz Charger output 3.0A Charging time 30min Battery capacity 1.3Ah (14.1Wh) Li-Ion Machine weight 1.0kg NOISE INFORMATION A weighted sound pressure : 82dB(A) A weighted sound power...
  • Page 17 If the new battery pack displays the same problem as the original battery pack, have the charger tested at an authorized service center. Light ON/OFF flash Status Red on Charging Red flash Defective Battery Green on Fully Charged Green flash Hot/Cold Delay 10.8V IMPACT DRIVER ERP406IPD...
  • Page 18 B) TO REMOVE OR INSTALL BATTERY PACK (See Fig. 1-2) Depress the battery pack release button to release and slide the battery pack out from your tool. After recharge, slide it back into your tool. A simple push and slight pressure will be sufficient. OPERATION 1.
  • Page 19 If the battery pack is very hot you must remove your battery pack from the charger and allow your battery pack to cool first to ambient temperature and then recharging can be started. 10.8V IMPACT DRIVER ERP406IPD...
  • Page 20 MAINTENANCE Your power tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean.
  • Page 21 13 Amp fuse approved to BS1362 Connect Blue to N Brown L(live) (neutral) Outer sleeve Cable grip firmly clamped 10.8V IMPACT DRIVER ERP406IPD...
  • Page 22 EN 61000-3-2 EN 61000-3-3 EN 60745-1 EN 60745-2-2 EN 60335-1 EN 60335-2-29 EN 62233 Authorised Signatory and technical file holder Date: 22/01/15 Signature: Name / title: Peter Harries / Quality Manager Erbauer (UK) Ltd. Trade House, Mead Avenue, BA22 8RT...
