inventum VMS-47HB54 Installation And Operation Instruction

Installation and operation instructions

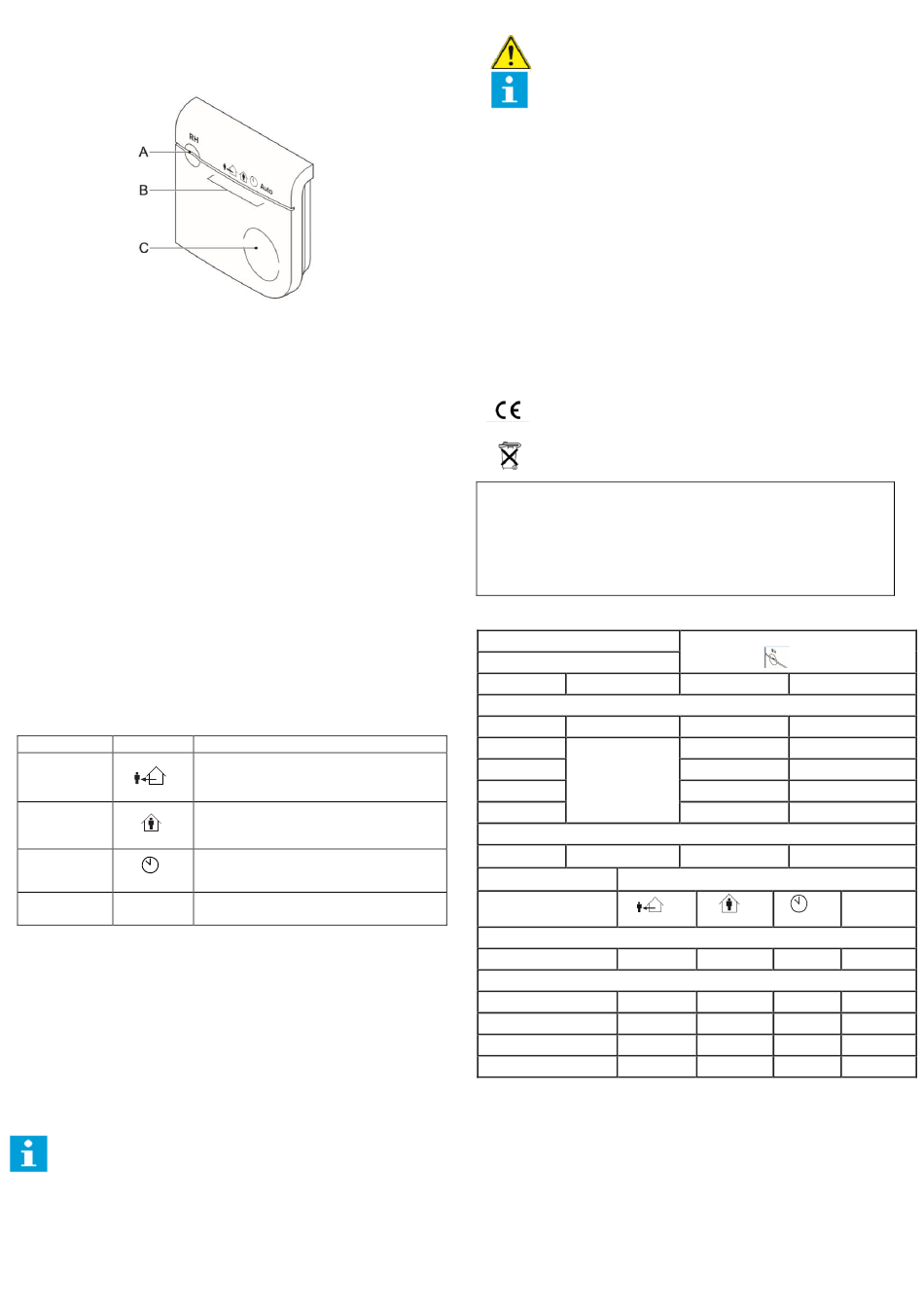

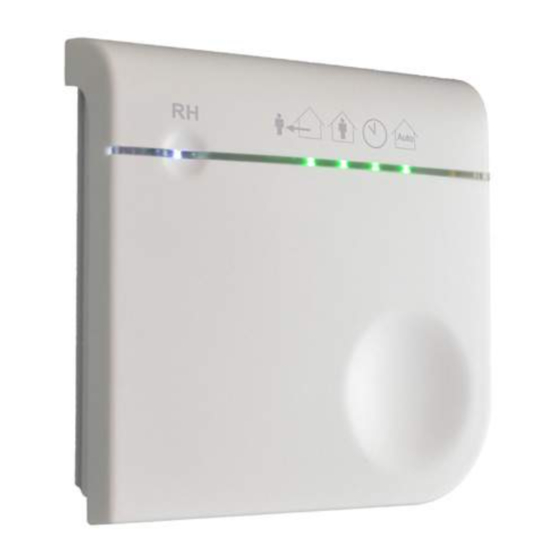

VMS-47HB54 - RF-RH sensor
A: Status led

1. How to use this manual

This manual is intended as a reference book by which qualified
installers can install the VMS-47HB54 (henceforth called "device")
and users can use the device for its intended purpose. Make sure you
have read and understood the manual before you install and/or use
the device.
1.2 Intended use
The device is designed for following
1. To set the speed level of ventilation through the fan speed, based
on user input or measured humidity level.
2. To set parameters for the ventilation control.
Every other or further use is not in conformance with the intended
use.

1.3 Working principle

The device communicates with the ventilation system using wireless
communications, in order to control the ventilation. Via the button and
leds you can read and set the mode of control that the ventilation
system currently is in. When in Auto mode, the device requests the
level of ventilation based on the relative humidity (RH).

1.3.1 Ventilation speeds and modes

The ventilation system runs in one of the following modes.
Mode
Away
Home
Timer
Auto Auto
The control device drives the fan based on the highest of values sent
by the bound wireless sensor(s).
When you start the timer mode from this device, the ventilation will be
active for 30 minutes.

1.3.2 RV meting

The device continuously measures the relative humidity (RH) in the
air. When in Auto mode, the device controls the ventilation based on
the course of the measured values: the ventilation starts when the
humidity gets above a certain level, or for some time when the
humidity suddenly increases.
The device stores the configured fan speed values in the
control device and requests them from there.
The device stores the RH setpoint itself and does not
communicate this with any other
B: Mode leds C: Touch button
purposes:
Fan Speed
Low fan speed
Medium fan speed
High fan speed, for a restricted
duration
Between Low fan speed and High fan
speed, based on measured values
device.

1.4 Admonitions

'Warning' identifies a hazard that could lead to personal
injury, including death.
'Note' is used to highlight additional information.

2. Content delivery

• RF-Sensor (VMS-47HB54)
• Battery
• Mounting screws
• Mounting plugs
• Manual

3. Safety

The device meets the following EC
•
EMC directive:
•
Low voltage directive:
•
RTTE directive:
•
RoHS directive:
•
WEEE directive:

4. Signs on the device

CE marking of conformity.
Dispose according to European Community Directive
2012/19/EU (WEEE)).
General safety instructions
The device is designed for indoor use only. Do not expose the
device to rain or moisture, to avoid short circuit. Short circuit may
cause fire or electric shock hazard. Operate the device between
0°C and 40°C. For cleaning of the device use a soft damp cloth
only. Never use any abrasive or chemical cleaner. Do not paint
the device.
5.Visual signals
Start up
White
System status
Green
Red
Mode selection
Start up
On
Mode selection
Away
Home
Timer
Auto
directives:
2014/30/EC
2014/35/EU
2014/53/EU
2011/65/EU
2012/19/EU
Status led
Continuous
Continuous Status OK
1 flash Com. Error
3 flashes Fan error
4 flashes RH sensor error
5 flashes Low battery
Off
Mode leds
On On
*
*
*
1
1
2
2
1
Auto
On
*
