VERSION # 20- 10-21
1 / 11

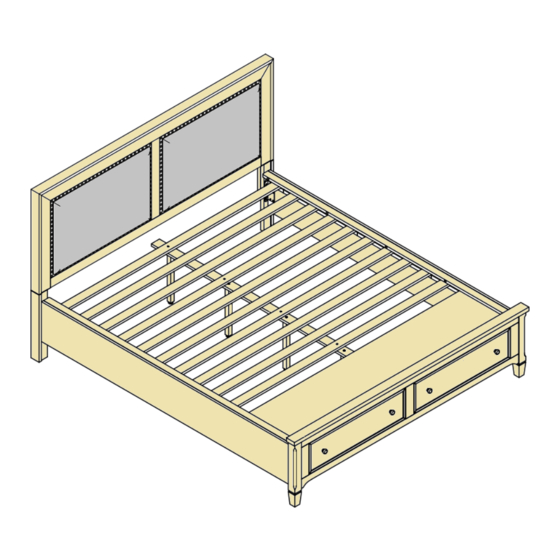

MODEL #
FOA7173CK
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
3 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America FOA7173CK
Summary of Contents for Furniture of America FOA7173CK

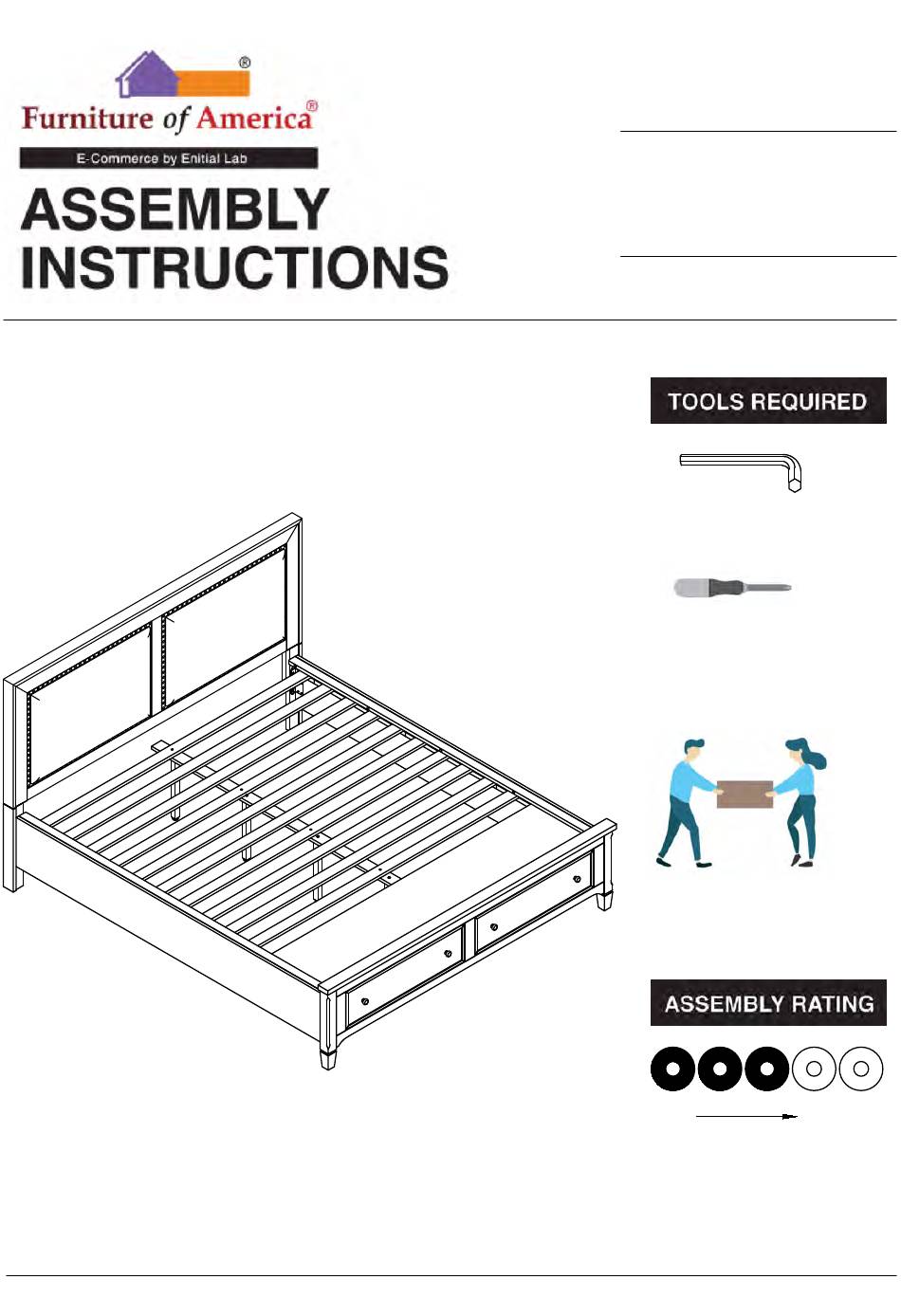

- Page 1 MODEL # FOA7173CK Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 3 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 1 1...
- Page 5 FOA7173CK #1 1pc #2 2pcs #3 1pc #4 2pcs Rail Headboard Leg (L&R) Headboard Headboard cross bar #5 1pc #6 2pcs #7 4pcs #8 1pc (Ø5/16") (Ø5/16") Drawer support leg Slat support leg Center Rail Footboard 370 x 30 x 30mm...
-
Page 6: Exploded View
#E 12pcs #F 30pcs #G 6pcs #H 10pcs Bolt 5/16" x 1" Bolt 1/4" x 1-3/8" Screw #4 x 30mm Screw #4 x 10mm #I 10pcs #J 10pcs Lock washer Flat washer Ø1/4" Ø1/4" x13mm Exploded View #1 1 #1 0 #1 1 6 / 11... - Page 7 #A x 8pcs Headboard # B x 8pcs # Cx 8pcs Headboard Leg FOA7173 (L&R) # D x 1pc K-HB FOA7173CK-R Headboard cross # B x12pcs # Cx12pcs # D x 1pc Rail #E x 12pcs FOA7173 # H x 10pcs...
- Page 8 ASSEMBLY INSTRUCTIONS Align HB legs (#2R/L) and support (#3) to the headboard (#1), then secure by using bolts Part #1 x1pc (#A) with washers (#B,C). Part #2 x2pcs Part #3 x1pc Hardware #A x8pcs Hardware #B x8pcs Hardware #C x8pcs Part #5 x1pc Attach FB support legs (#6) to the Part #6 x2pcs...
- Page 9 ASSEMBLY INSTRUCTIONS Align side rails (#4) to the headboard and footboard, then secure by using bolts (#E) with washers (#B,C). Part #4 x2pcs Hardware # B x 12 pcs Hardware #C x 12 pcs Hardware # E x 12 pcs Part #7 x4pcs Attach support legs (#7) to slat Part #8 x1pc...
- Page 10 ASSEMBLY INSTRUCTIONS Align slats (#9) to the side rails, then secure by using bolts (#F). Part #9 x1Set Hardware #F x26pcs Hardware #F x4pcs Align center support slat to the slats, then secure by using screws (#F). 10/ 11...
- Page 11 ASSEMBLY INSTRUCTIONS Align cover panel (#10) to the bed, then secure by using screws (#G). Part #10 x1pc Hardware #G x6pcs Part #11 x2pcs Hardware #H x10pcs Align side rail tops (#11) to the Hardware #I x10pcs side rails, then secure by using bolts (#H) with washers (#I,J).
