Furniture of America FOA7173Q Assembly Instructions Manual

Hide thumbs

page of 33

/ 33
Bookmarks

Quick Links

Download this manual

VERSION # 20-09- 29

1 / 11

MODEL #

FOA7173Q

Questions?

GIVE US CALL: 1-888-980-5122

MON-FRI 8:30AM - 5:30PM (PST)

Allen Wrench

(Included)

Phillips

Screwdriver

(Not Included)

3 - People

Recommended

EASY

The Assembly Rating is a

5-point system showing the

level of effort needed to

assemble a specific product.

DIFFICULT

Need help?

Do you have a question about the FOA7173Q and is the answer not in the manual?

Questions and answers

Summary of Contents for Furniture of America FOA7173Q

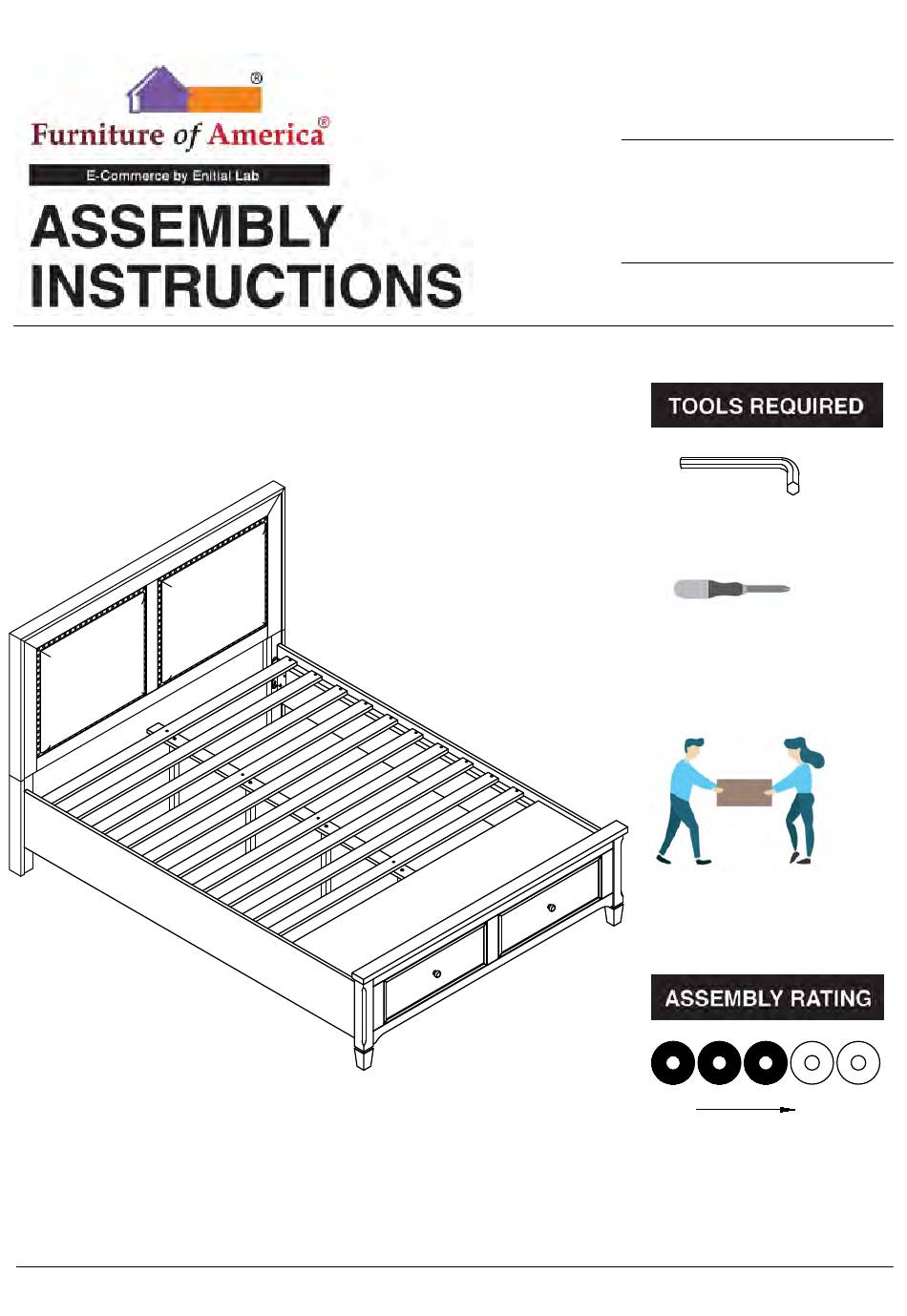

Page 1 MODEL # FOA7173Q Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 3 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
Page 4 4 / X X X X X X X 1 1...
Page 5 FOA7173Q #1 1pc #2 2pcs #3 1pc #4 2pcs Rail Headboard Headboard Leg (L&R) Headboard cross bar #5 1pc #6 2pcs #7 4pcs #8 1pc (Ø5/16") (Ø5/16") Drawer support leg Slat support leg Center Rail Footboard 370 x 30 x 30mm...
Page 6: Exploded View
#E 12pcs #F 30pcs #G 6pcs Bolt 5/16" x 1" Screw #4 x 30mm Screw #4 x 10mm Exploded View 6 / 11...
Page 7 FOA7173Q is packed in 3 cases Carton Disignation Part Hardware #A x8pcs Headboard #B x 20 pcs #C x 20 pcs #D x 1pc FOA7173 Headboard Leg #E x 12pcs Q-HB (L&R) #F x 30pcs #G x 6pcs Headboard cross...
Page 8 ASSEMBLY INSTRUCTIONS Align HB legs (#2R/L) and support (#3) to the headboard (#1), then secure by using bolts (#A) with washers (#B,C). Part #1 x1pc Part #2 x2pcs Part #3 x1pc Hardware #A x8pcs Hardware #B x8pcs Hardware #C x8pcs Part #5 x1pc Part #6 x2pcs Attach FB support legs (#6) to the...
Page 9 ASSEMBLY INSTRUCTIONS Align side rails (#4) to the headboard and footboard, then secure by using bolts (#E) with washers (#B,C). Part #4 x2pcs Hardware #C x 12 pcs Hardware # B x 12 pcs Hardware # E x 12 pcs Part #7 x4pcs Part #8 x1pc Attach support legs (#7) to slat (#8).
Page 10 ASSEMBLY INSTRUCTIONS Align slats (#9) to the side rails, then secure by using bolts (#F). Part #9 x1Set Hardware #F x26pcs Hardware #F x4pcs Align center support slat to the slats, then secure by using screws (#F). 10/ 11...
Page 11 ASSEMBLY INSTRUCTIONS Align cover panel (#10) to the bed, Part #10 x1pc then secure by using screws (#G). Hardware #G x6pcs 11/ 11...
Page 12 MODEL # FOA7173CK Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 3 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
Page 13 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
Page 14 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
Page 15 4 / X X X X X X X 1 1...
Page 16 FOA7173CK #1 1pc #2 2pcs #3 1pc #4 2pcs Rail Headboard Leg (L&R) Headboard Headboard cross bar #5 1pc #6 2pcs #7 4pcs #8 1pc (Ø5/16") (Ø5/16") Drawer support leg Slat support leg Center Rail Footboard 370 x 30 x 30mm 160 x 30 x 30mm #11 2pcs #9 1Set...
Page 17 #E 12pcs #F 30pcs #G 6pcs #H 10pcs Bolt 5/16" x 1" Bolt 1/4" x 1-3/8" Screw #4 x 30mm Screw #4 x 10mm #I 10pcs #J 10pcs Lock washer Flat washer Ø1/4" Ø1/4" x13mm Exploded View 6 / 11...
Page 18 FOA 7173 CK is packed in 3 cases Carton Disignation Part Hardware FOA7173K-HB Headboard #A x 8pcs #B x 20 pcs #C x 20 pcs Headboard Leg #D x 1pc FOA7173 (L&R) K-HB #E x 12pcs #F x 30pcs Headboard cross #G x 6pcs # D x 1pc Rail...
Page 19 ASSEMBLY INSTRUCTIONS Align HB legs (#2R/L) and support (#3) to the headboard (#1), then secure by using bolts Part #1 x1pc (#A) with washers (#B,C). Part #2 x2pcs Part #3 x1pc Hardware #A x8pcs Hardware #B x8pcs Hardware #C x8pcs Part #5 x1pc Attach FB support legs (#6) to the Part #6 x2pcs...
Page 20 ASSEMBLY INSTRUCTIONS Align side rails (#4) to the headboard and footboard, then secure by using bolts (#E) with washers (#B,C). Part #4 x2pcs Hardware # B x 12 pcs Hardware #C x 12 pcs Hardware # E x 12 pcs Part #7 x4pcs Attach support legs (#7) to slat Part #8 x1pc...
Page 21 ASSEMBLY INSTRUCTIONS Align slats (#9) to the side rails, then secure by using bolts (#F). Part #9 x1Set Hardware #F x26pcs Hardware #F x4pcs Align center support slat to the slats, then secure by using screws (#F). 10/ 11...
Page 22 ASSEMBLY INSTRUCTIONS Align cover panel (#10) to the bed, then secure by using screws (#G). Part #10 x1pc Hardware #G x6pcs Part #11 x2pcs Hardware #H x10pcs Align side rail tops (#11) to the Hardware #I x10pcs side rails, then secure by using bolts (#H) with washers (#I,J).
Page 23 MODEL # FOA7173EK Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 3 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
Page 24 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
Page 25 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
Page 26 4 / X X X X X X 11...
Page 27 FOA7173EK #1 1pc #2 2pcs #3 1pc #4 2pcs Rail Headboard Leg (L&R) Headboard Headboard cross bar #5 1pc #6 2pcs #7 4pcs #8 1pc (Ø5/16") (Ø5/16") Drawer support leg Slat support leg Center Rail Footboard 370 x 30 x 30mm 160 x 30 x 30mm #9 1Set #10 1pc...
Page 28 #E 12pcs #F 30pcs #G 6pcs Bolt 5/16" x 1" Screw #4 x 30mm Screw #4 x 10mm Exploded View 6 / 11...
Page 29 FOA7173 EK is packed in 3 cases Carton Disignation Part Hardware #A x 8pcs Headboard #B x 20 pcs #Cx 20 pcs #D x 1pc FOA7173 Headboard Leg K-HB #E x 12pcs (L&R) #F x 30pcs #G x 6pcs Headboard cross FOA7173 Rail EK-R...
Page 30 ASSEMBLY INSTRUCTIONS Align HB legs (#2R/L) and support (#3) to the headboard (#1), then secure by using Part #1 x1pc bolts (#A) with washers (#B,C). Part #2 x2pcs Part #3 x1pc Hardware #A x8pcs Hardware #B x8pcs Hardware #C x8pcs Part #5 x1pc Attach FB support legs (#6) to the bottom of the footboard (#5).
Page 31 ASSEMBLY INSTRUCTIONS Part #4 x2pcs Hardware # B x 12 pcs Hardware #C x 12 pcs Hardware # E x 12 pcs Align side rails (#4) to the headboard and footboard, then secure by using bolts (#E) with washers (#B,C). Part #7 x4pcs Part #8 x1pc Attach support legs (#7) to slat (#8).
Page 32 ASSEMBLY INSTRUCTIONS Align slats (#9) to the side rails, then secure by using bolts (#F). Part #9 x1Set Hardware #F x26pcs Hardware #F x4pcs Align center support slat to the slats, then secure by using screws (#F). 10/ 11...
Page 33 ASSEMBLY INSTRUCTIONS Align cover panel (#10) to the bed, then secure by using screws (#G). Part #10 x1pc Hardware #G x6pcs 11/ 11...
