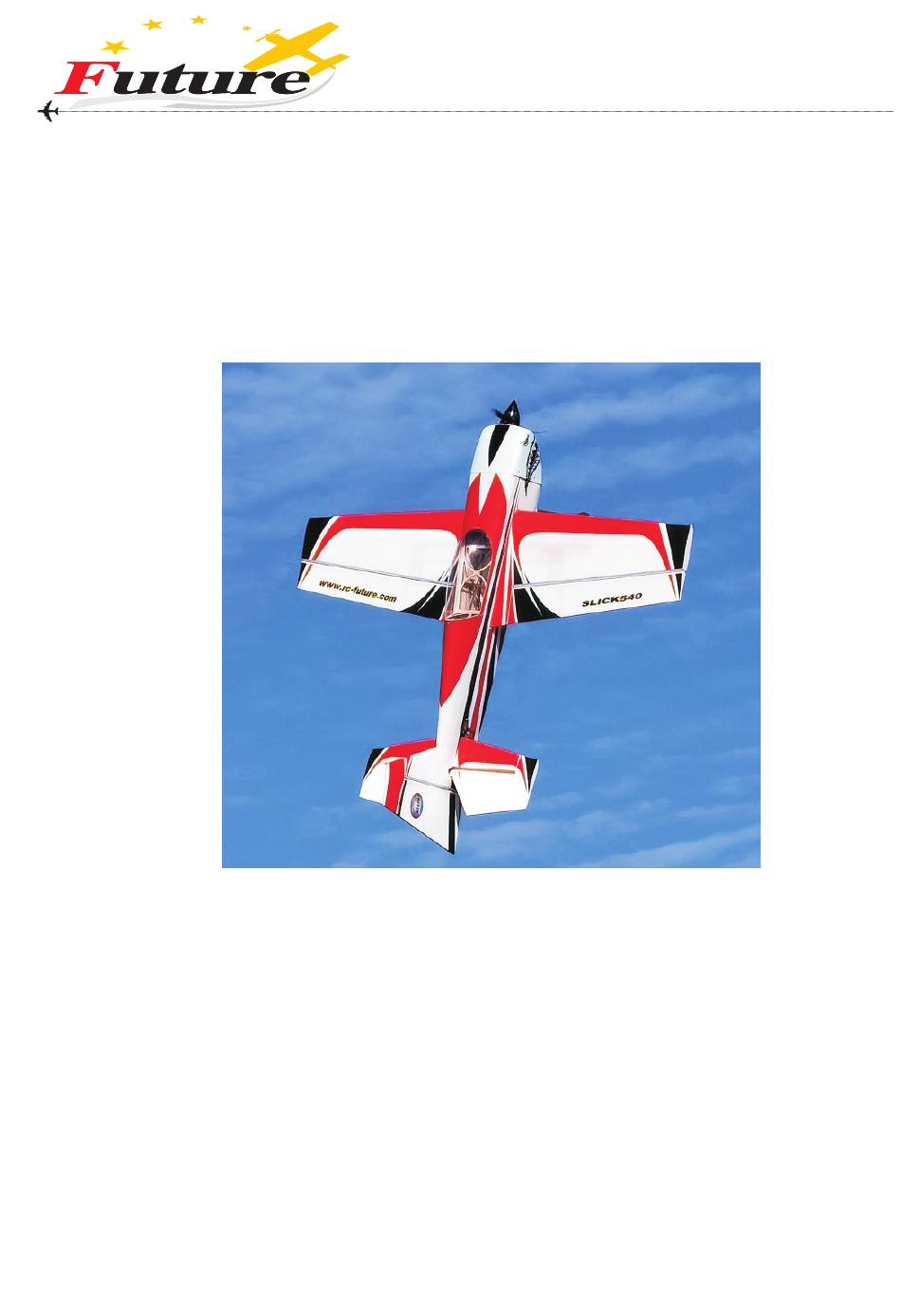

- Page 1 Electric Remote-controlled Model Aircraft SLICK540-60"70e 敬告：安装前请仔细阅读说明书。本产品非玩具，必须在有经验人士 指导下进行安装和飞行。...
- Page 2 打开包装时,请检查部件是否齐全,如有缺漏,请及时与经销商联系。 When unpacking, please check whether the parts are complete. If there is any missing, please contact the dealer in time. Specification： Wingspan：1524mm Length：1477mm Wing Area：48dm2 Weight：2900g（including battery） Center of gravity position: 135mm back from top of leading edge of wing Recommended rudder setting: Elevator : high rates: 45 °, low rates: 25 °...
- Page 3 2.Install the chip first before installation servo 1. Connect servo extension leads to the elevator and rudder servo cables. 3.Stick the chip of servo by glue 4. Ins tall the rudder and elevator servo 5.P u t th e c on n ect l i n e o f se rvo in to 6.Install the undercarriage t he f u sel a ge...
- Page 4 8.Install the elevator angle 7.Install the head push rod 9.Install the elevator and flat tail, and fix 10.C a r ef ully in ser t the t ail- plane into the hinge position with glue. Leave 1mm t he f use la ge with g lu e between the flat tail and elevator,so that it can be risen and down very flexible 12.Secure the box with glue...
- Page 5 13.Ins tall th e rud de r a ng le a nd 14.Install the direction control lever of tail- s ti ck it w ith g lu e wheel and stick it with glue 16.Install the tail-wheel bracket 15.In s t a l l t h e r u d d e r a n d s t i c k t h e h i n g e w i t h g l u e .
- Page 6 20.In s t all t he f ixed b lo ck of th e w ing 19.I n s tall the aile ro n se rvo root and stick it with glue 22.Install aileron angle and stick it 21.I n s t a l l t h e a i l e r o n p u s h r o d with glue 23.I ns tall ailero n a nd sti ck 24.
- Page 7 26.Install the wheels into the landing gear. 25.Instal the wheels 28 .Install the motor 27.Install landing gear EPP piece and stick it with glue 29.Install the ESC 30.Install the hood...
- Page 8 31.Install propeller base and propeller. 32.Install the shrouded screw 34.I n s t a l l t h e e l e v a t o r p u s h r o d 33.Install the direction push rod 35.Install the aileron push rod 36.C o n n e c t t h e s e r v o a n d e s c l i n e w i t h r e c e i v e r , p o w e r - o n a n d d e b u g t h e plane.
