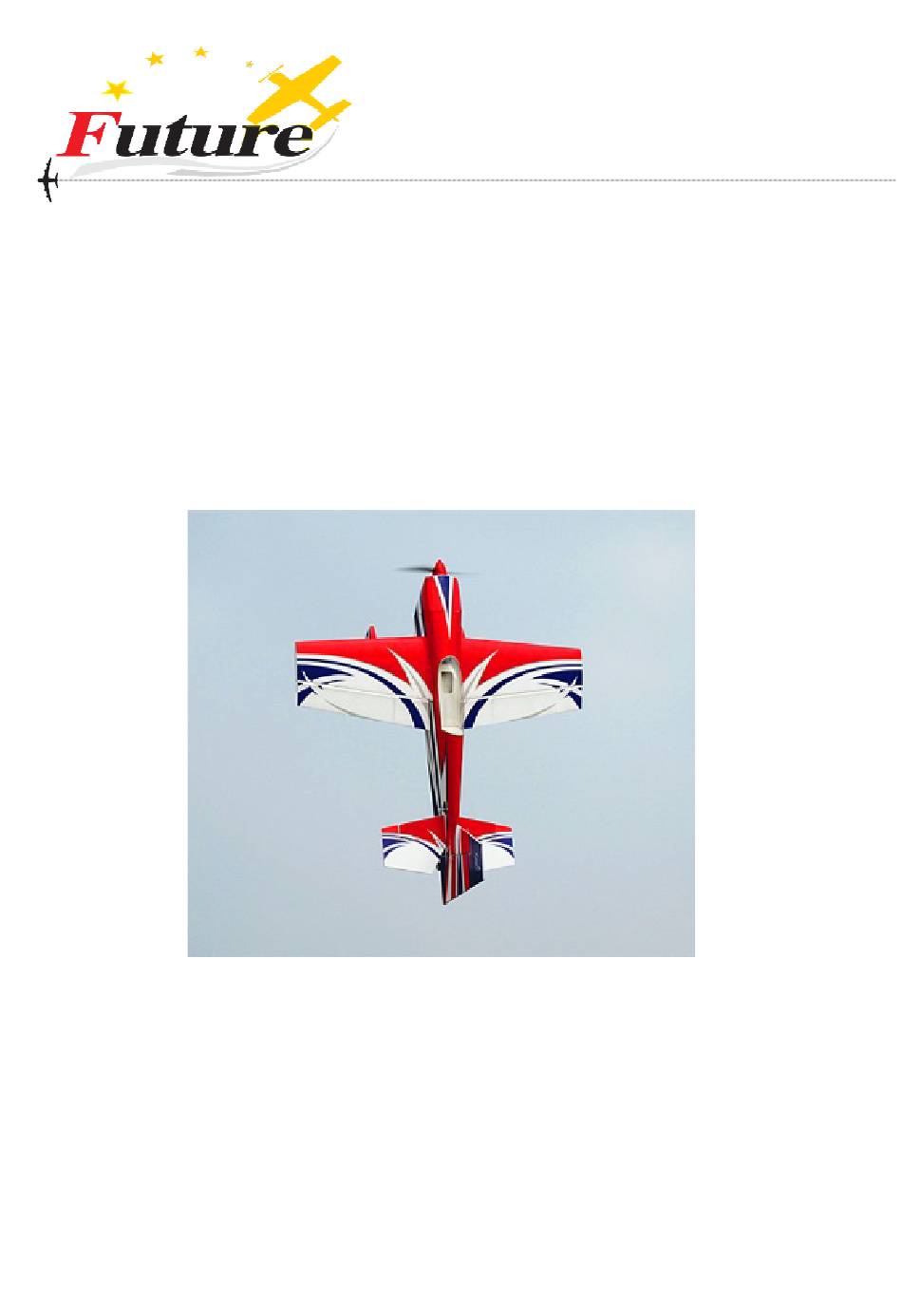

Electric Remote-controlled Model Aircraft
敬告： 安装前请仔细阅读说明书。本产品非玩具， 必须在有经验人士指
导下进行安装和飞行。
Warning: Please read the instructions carefully before installation. This product is not a toy. It
must be installed and flown under the guidance of experienced personnel
Installation Manual
Advertisement
Related Manuals for Future FUMSLK54004A
Summary of Contents for Future FUMSLK54004A
- Page 1 Electric Remote-controlled Model Aircraft Installation Manual 敬告： 安装前请仔细阅读说明书。本产品非玩具， 必须在有经验人士指 导下进行安装和飞行。 Warning: Please read the instructions carefully before installation. This product is not a toy. It must be installed and flown under the guidance of experienced personnel...
- Page 2 打开包装时,请检查部件是否齐全,如有缺漏,请及时与经销商联系。 When unpacking, please check whether the parts are complete. If there is any missing, please contact the dealer in time. Setting of throwing: Aileron : 40°/25° Elevator: 40°/25° Rudder: 40°/25° Specification： Wingspan：965mm Length：982mm Wing Area：28dm2 Weight：670g（including battery） Specification for reference： Motor：Brushless 2217（2834）KV1250；...
- Page 3 2 .Shown as picture, install the elevator 1 .Shown as picture, Connect the elevator servo and rudder servo. servo with direction servo extension cable 4 .Find out the undercarriage accessories 3 .Put the connect line of elevator servo & rudder servo into the fuselage .Put the undercarriage into the .Slowly and carefully insert the wings...
- Page 4 .The flat tails should be parallel .Use a ruler to measure the tail and the to the wings and perpendicular to wing ,keep them at the same distance. the sides of the fuselage. 11.Ensure that the Angle between the wing and 12.Then use foam glue to reinforce the contact both sides of the fuselage is symmetrical, and the between the wings and the fuselage...
- Page 5 13.The contact position between the flat 14.Then use foam glue to reinforce the flat tail contact position with the fuselage. tail and the fuselage should be properly cemented with quick drying glue. (Note: Do not use too much quick drying glue, it will corrode the foam inside) 15.Connect the elevator servo to the flat 16 .Install the rudder angle of aileron,stick it...
- Page 6 20.Install the rudder servo and glue the hinge 19.Use quick - drying glue to fix the tail position with quick drying glue.(It is best to leave wheel bracket to secure the wood pieces. 1 mm spacing between the rudder and the fuselage, so that the rudder can swing flexibly from side to side) 21.I ns tal l ai l er on s an d s e cu r e h i n g e...
- Page 7 25. Install the motor 26 .Install ESC .Install the regulator on the servo arm. 28 .Cut 8 pcs of heat shrink tubes which the length is 12 mm. 30.Connect the line of ESC with 29.Tighten the heat shrink tube with receiver,and turn on the power to debug fire and then stick with glue.
- Page 8 31.To adjust the ailerons, first adjust the 32.Adjust the rudder in the same servo arm to 90 degrees with the push rod, way as the aileron. and then lock the regulator screw. 33.Adjust the elevator in the same way .Find out the nose landing gear as the ailerons.
- Page 9 37.Install the hood and propeller, .Install hood, propeller. and the installation is all complete 39.Before the flight, please check the equipment and installation position again to ensure safety and take off if there is no abnormality.
