Operating Manual
iTAG X-Range
Document Number X124749(4) (See Extronics DDM for the latest Version)
For warranty information, refer to Terms and Conditions at
http://www.extronics.com
©2021 Extronics Limited. This document is Copyright Extronics limited.
Extronics reserve the right to change this manual and its contents without notice, the latest
version applies.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for extronics iTAG X-Range
Summary of Contents for extronics iTAG X-Range
- Page 1 Document Number X124749(4) (See Extronics DDM for the latest Version) For warranty information, refer to Terms and Conditions at http://www.extronics.com ©2021 Extronics Limited. This document is Copyright Extronics limited. Extronics reserve the right to change this manual and its contents without notice, the latest version applies.
-
Page 2: Table Of Contents
3.12 Simple configuration ....................9 3.13 Motion sensor ......................9 3.14 Integrated access control ..................9 3.15 Rugged performance ....................10 iTAG X-Range Usage Instructions ..............11 iTAG X-Range configuration ...................11 LED and audio indications ..................11 Wearing the tag ......................11 Battery ........................12 4.4.1... -
Page 3: Introduction
1 Introduction Thank you for purchasing the iTAG X-Range. The iTAG X-Range includes the iTAG X10, iTAG X20 and iTAG X30. This document gives an overview of the product, its features, how it is configured and maintained. The iTAG X-Range worker location tag with hybrid technology, allows for the accurate location of workers in hazardous and non-hazardous areas. -
Page 4: Nomenclature
1.4 Nomenclature Acronym Description Bluetooth Low Energy Cisco Compatible Extensions Extronics Location Selector Global Positioning System IBSS Independent Basic Service Set Low Frequency Over The Air PC/PBT Polycarbonate/Polybutylene Terephthalate PELV Protective Extra Low Voltage Personal Protective Equipment SD&CT Social Distancing and Contact Tracing... -
Page 5: Safety Information
Applies to ATEX / IECEx and MET (North America and Canadian) certification: • iTAG X-Range must only be charged in a safe area. • iTAG X-Range must only be charged from a supply meeting the following requirements: o A SELV (<15W) or PELV system, or... -
Page 6: Marking Information
Avant d’utiliser les unités, lisez attentivement la documentation technique. Warning! The iTAG X-Range contains a lithium ion battery. Do not force open, heat excessively or dispose of in fire. L’iTAG X-Range contient une batterie lithium-ion. Ne forcez pas l’ouverture, ne chauffez pas de façon excessive et ne jetez pas dans le feu. -
Page 7: Met (North America And Canada)
2.4.2 MET (North America and Canada) Where: • aa denotes model type • XXXXXX is the serial number • ZZZZ is a code to identify model variants Exact layout of markings may differ from that shown. -
Page 8: Itag X-Range Features
3.2 Visual, audible and tactile indication The iTAG X-Range features multiple LEDs to indicate to the worker that it is running, the emergency call button has been activated and when it has a low battery. Tactile (not included with the iTAG X10) and audible indications occur to inform the wearer that the emergency call button has been activated. -
Page 9: Ble Trilateration
The iTAG X-Range has a long lasting rechargeable lithium ion battery. Minimum expected battery service life is 2 years. 3.11 Mounting The iTAG X-Range comes complete with a stainless steel buckle clip which can clip to PPE or be used with a lanyard. 3.12 Simple configuration The iTAG X-Range’s firmware contains predefined configurations, which can be... -
Page 10: Rugged Performance
3.15 Rugged performance The iTAG X-Range’s enclosure is primarily constructed from a PC/PBT alloy, which is permanently static dissipative, ESD protected, UV stabilised and impact modified. PBT’s have excellent resistance to a broad range of chemicals at room temperature, including aliphatic hydrocarbons, gasoline, carbon tetrachloride, perchloroethylene, oils, fats, alcohols, glycols, esters, ethers and dilute acids and bases. -
Page 11: Itag X-Range Usage Instructions
To configure using the Extronics Device Manager refer to document X129265. To configure using TMBD refer to document X129454. 4.2 LED and audio indications The iTAG X-Range has multi-colour LEDs on the top and front. Indications are shown in Table 1. Indication... -
Page 12: Battery
Red Slow Flash Battery fully charged Green on 4.4.2 Charging the battery The iTAG X-Range is charged using the USB Charging Cable provided. It is attached and detached from the rear of the tag, as shown in Figure 15. Figure 15. -
Page 13: Variances In Battery Life
• Time in storage before use. • Changes in transmission interval. • Temperature. • Motion. • Indoor/Outdoor applications. • Time to receive firm GPS co-ordinates. The iTAG X-Range uses different proprietary techniques to maximise and optimise the life of the battery. -
Page 14: Over The Air (Ota) Update
4.5 Over the Air (OTA) update When new firmware becomes available the iTAG X-Range’s firmware can be OTA updated. If your site has been setup with OTA capability then the procedure below can be used. Note that you’ll need to be in range of the Access Point that is appropriate for this functionality. -

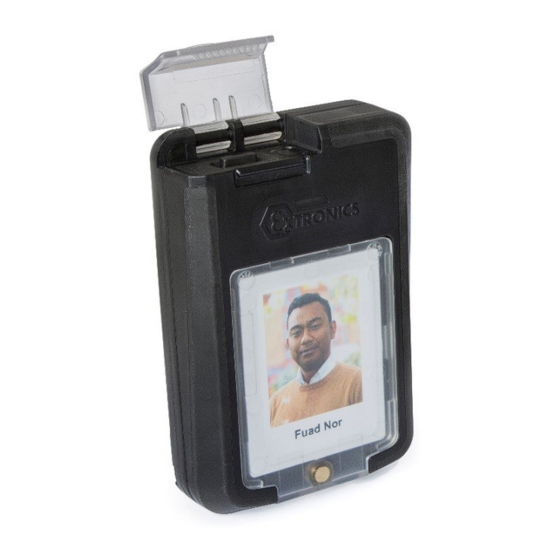

Page 15: Inserting The Access Control / Photo Id Card
Access control cards with the built in DESFire EV technology family are specifically designed to fit inside the iTAG X-Range. These photo ID cards are available from Extronics. The pop out card design enables cards to be printed on a standard ID card printer, such as Matica and Magicard printers. -
Page 16: Transport
Figure 20. Tighten the captive screw to a maximum of 0.4Nm – do not over-tighten. 4.7 Transport All iTAG X-Range must be transported and stored such that they are not subjected to excessive mechanical or temperature stresses. 4.8 Authorised persons The iTAG X-Range is provided ready assembled and must not be disassembled by the user. -
Page 17: Cleaning And Maintenance
4.9 Cleaning and maintenance The iTAG X-Range and all its components require no maintenance and are self- monitoring. Any work on the iTAG X-Range must be carried out and performed by Extronics approved personnel. The cleaning interval depends on the environment where the system is installed. -
Page 18: Eu Declaration Of Conformity
5 EU Declaration of Conformity... -
Page 21: Applicable Standards
Equipment - General Requirements • CSA C22.2 NO 60079-11: 2014 (R2018); Standard for Explosive Atmospheres – Part 11: Equipment protected by Intrinsic Safety “i” 7 Manufacturer The iTAG X-Range is manufactured by: Extronics Ltd, 1 Dalton Way, Midpoint 18, Middlewich... -
Page 22: Radio Equipment - Fcc And Ised Warning Statement
8 Radio Equipment – FCC and ISED Warning Statement FCC & ISED Warning statement: This device complies with Industry Canada’s licence-exempt RSSs and Part 15 of the FCC Rules. • Operation is subject to the following two conditions: o This device may not cause interference; and o This device must accept any interference, including interference that may cause undesired operation of the device. - Page 23 9 Appendix 1 Image Order reference VEL05US050-XX-BB X128417 Multicharger UK X128418 Multicharger US X128437 Multicharger EU...
