Matatakitoyo Torque Tools ETT-15NP Operation Manual

Easy torque tester & printer
Hide thumbs

Advertisement

Quick Links

Download this manual

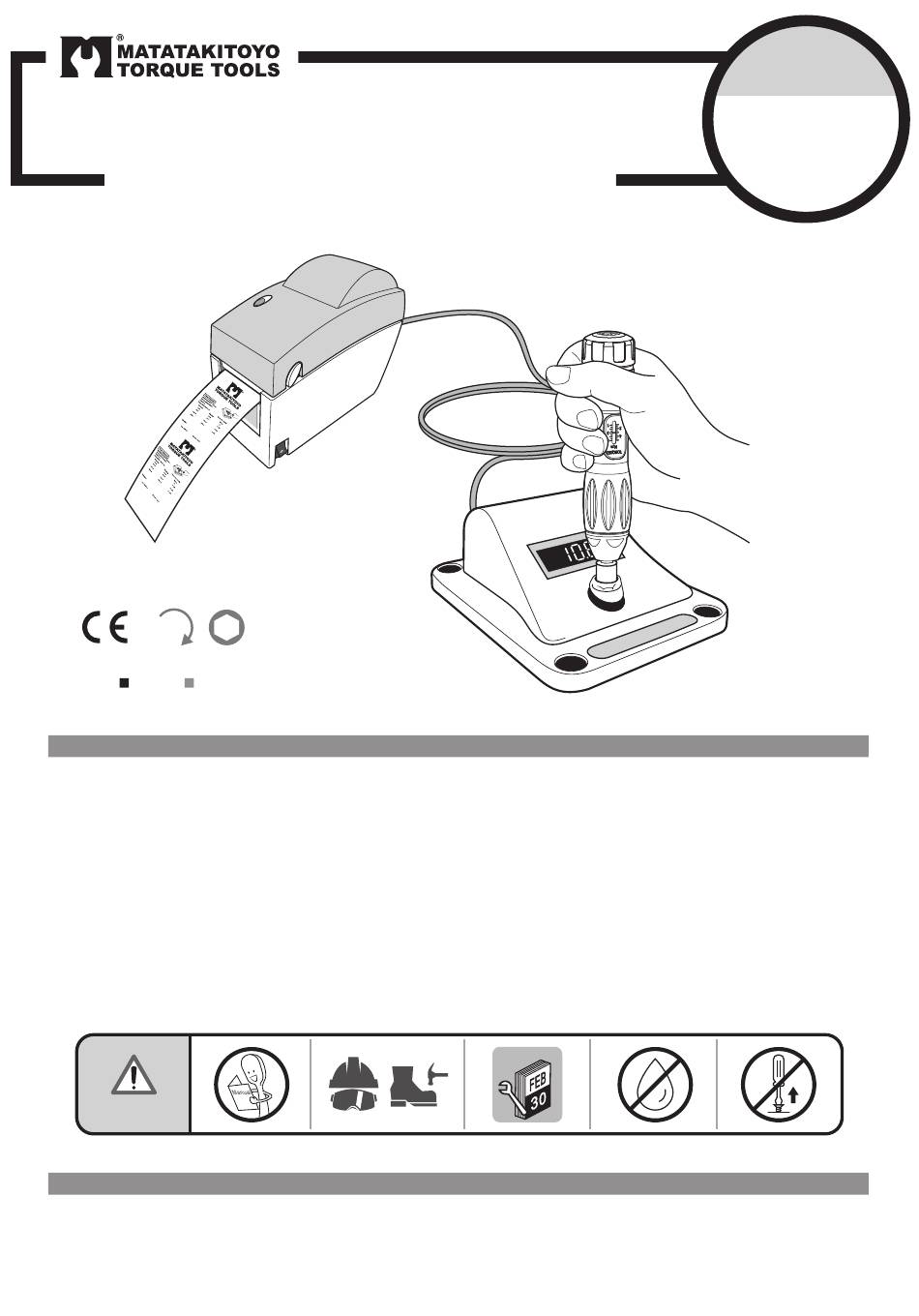

Easy Torque Tester & Printer
OPERATION MANUAL
TORQUE
Range: 1 Nm - 15 Nm
Color:
Black or
Silver
BEFORE STARTING
1. Study this instruction before use.
2. Please wear gloves and goggles when working.
3. Make sure to install the test equipment in a stable locatio.
4. Always check for loose wires and cables on and around tester before beginning operation.
5. Keep tester and charger away from water, always store in a dry place and safe environment.
6. Over torque will cause tool damage and personal injury.
7. Never use additional accessories with this tester that were not included and are not from this manufacturer,
doing so could result in damage to the tester.
8. Always operate tester in a clean and organized work place.
9. This tester should always be kept clean, dry, and free from oil and grease.
10. This tester should be recalibrated a period of 1 years.
To contact with local vendor, an authorized repair center for supporting.
11. Always unplug tester before inspecting, cleaning, or performing maintenance on the tester.
WARNING
ETT TECHNICAL SPECIFICATION
1. Direction & Accuracy : C.W. ±1%
2. Indicator : 5 Digits (update rate of 5 per second)
3. Temp. Range-Operating : +5℃ to +40℃
4. Temp. Range-Storage : -20℃ to +70℃
1 Years
5. Auto Reset Hold Time : 2 Seconds
6. Calibration : According to BS7882 method
7. Sampling Rate : 333 SPS
Models covered
ETT-15NP

Advertisement

loading
Need help?

Need help?

Do you have a question about the ETT-15NP and is the answer not in the manual?

Questions and answers

Related Manuals for Matatakitoyo Torque Tools ETT-15NP

Summary of Contents for Matatakitoyo Torque Tools ETT-15NP

  • Page 1 Models covered Easy Torque Tester & Printer ETT-15NP OPERATION MANUAL TORQUE Range: 1 Nm - 15 Nm Color: Black or Silver BEFORE STARTING 1. Study this instruction before use. 2. Please wear gloves and goggles when working. 3. Make sure to install the test equipment in a stable locatio.

  • Page 2: Printer Installation

    EPT TECHNICAL SPECIFICATION • Resolution : 203 dpi (8 dots / mm) • Memory : 4MB Flash (user available capacity is 2MB) • Printing speed : 7 IPS (177 mm / s) 16MB SDRAM • Print width : 2.12” (54 mm) •...

  • Page 3: Specification

    Delay time 2 seconds Reset 1 st peak value (Peak hold) SPECIFICATION Metric Accessories ITEM NO. Range Sockets 1 Sockets 2 ETT-15NP 1-15 Nm 2.94 1/4” x 11 mm ETT-30NP 1.5-30 Nm 2.94 1/4” x 11 mm ETT-150NP 7.5-150 Nm 3.44...
  • Page 4 ICON MEANING Power ON Power OFF Press the Button Value Adjustments Press the Button 1 Sec. Combo Key 3 Nm Display Blinking Watching NORMAL MODEL PRINTER MODEL Hold Down 1. PRINTER MODEL-TORQUE PRESET Example for 15 Nm (3 Nm 9 Nm 15 Nm) ．...
  • Page 5 2. PRINTER MODEL-START INSPECTION Start Test 3 Nm Test 5 times 9 Nm Test 5 times 15 Nm Test 5 times...
  • Page 6 3. PRINTER MODEL-PRINT OUT Printing Test Report Equipment:ETT Series Back to Next Test 3.00 3.05 1.67 9.00 9.10 1.11 15.00 15.02 0.13 Equipment:ETT Series 3.00 3.05 1.67 9.00 9.10 1.11 15.00 15.02 0.13 Edition Manufacturer DEC. 2021 MATATAKITOYO TOOL CO., LTD. No.

  • Page 7: Before Starting

    Models covered Easy Torque Tester & Printer ETT-30NP OPERATION MANUAL TORQUE Range: 1.5 Nm - 30 Nm Color: Black or Silver BEFORE STARTING 1. Study this instruction before use. 2. Please wear gloves and goggles when working. 3. Make sure to install the test equipment in a stable locatio. 4.
  • Page 8 EPT TECHNICAL SPECIFICATION • Resolution : 203 dpi (8 dots / mm) • Memory : 4MB Flash (user available capacity is 2MB) • Printing speed : 7 IPS (177 mm / s) 16MB SDRAM • Print width : 2.12” (54 mm) •...
  • Page 9 Delay time 2 seconds Reset 1 st peak value (Peak hold) SPECIFICATION Metric Accessories ITEM NO. Range Sockets 1 Sockets 2 ETT-15NP 1-15 Nm 2.94 1/4” x 11 mm ETT-30NP 1.5-30 Nm 2.94 1/4” x 11 mm ETT-150NP 7.5-150 Nm 3.44...
  • Page 10 ICON MEANING Power ON Power OFF Press the Button Value Adjustments Press the Button 1 Sec. Combo Key 6 Nm Display Blinking Watching NORMAL MODEL PRINTER MODEL Hold Down 1. PRINTER MODEL-TORQUE PRESET Example for 30 Nm (6 Nm 18 Nm 30 Nm) ．...
  • Page 11 2. PRINTER MODEL-START INSPECTION Start Test 6 Nm Test 5 times 18 Nm Test 5 times 30 Nm Test 5 times...
  • Page 12 3. PRINTER MODEL-PRINT OUT Printing Test Report Equipment:PETT Series Back to Next Test 6.00 6.07 1.17 18.00 18.26 1.44 30.00 30.35 1.17 Equipment:PETT Series 6.00 6.07 1.17 18.00 18.26 1.44 30.00 30.35 1.17 Edition Manufacturer DEC. 2021 MATATAKITOYO TOOL CO., LTD. No.

  • Page 13: Installation

    INSTALLATION 4 Holes Ø10 121 mm Mount Board Mount Board needs to be more than 6 mm (Mount Board not include) 1:1 Print this page...
  • Page 14 Models covered Easy Torque Tester & Printer ETT-150NP OPERATION MANUAL TORQUE Range: 7.5 Nm - 150 Nm Color: Black or Silver BEFORE STARTING 1. Study this instruction before use. 2. Please wear gloves and goggles when working. 3. Make sure to install the test equipment in a stable locatio. 4.
  • Page 15 EPT TECHNICAL SPECIFICATION • Resolution : 203 dpi (8 dots / mm) • Memory : 4MB Flash (user available capacity is 2MB) • Printing speed : 7 IPS (177 mm / s) 16MB SDRAM • Print width : 2.12” (54 mm) •...
  • Page 16 Delay time 2 seconds Reset 1 st peak value (Peak hold) SPECIFICATION Metric Accessories ITEM NO. Range Sockets 1 Sockets 2 ETT-15NP 1-15 Nm 2.94 1/4” x 11 mm ETT-30NP 1.5-30 Nm 2.94 1/4” x 11 mm ETT-150NP 7.5-150 Nm 3.44...
  • Page 17 ICON MEANING Power ON Power OFF Press the Button Value Adjustments Press the Button 1 Sec. Combo Key 22 Nm Display Blinking Watching NORMAL MODEL PRINTER MODEL Hold Down 1. PRINTER MODEL-TORQUE PRESET Example for 110 Nm (22 Nm 66 Nm 110 Nm) ．...
  • Page 18 2. PRINTER MODEL-START INSPECTION Start Test 開始測試 22 Nm Test 5 times 66 Nm Test 5 times 110 Nm Test 5 times...
  • Page 19 3. PRINTER MODEL-PRINT OUT Printing Test Report Back to Next Test Standard Average 22.00 22.21 0.95 66.00 66.64 0.97 110.00 111.50 1.36 Standard Average 22.00 22.21 0.95 66.00 66.64 0.97 110.00 111.50 1.36 Edition Manufacturer DEC. 2021 MATATAKITOYO TOOL CO., LTD. No.
  • Page 20 Models covered Easy Torque Tester & Printer ETT-500NP OPERATION MANUAL TORQUE Range: 25 Nm - 500 Nm Color: Black or Silver BEFORE STARTING 1. Study this instruction before use. 2. Please wear gloves and goggles when working. 3. Make sure to install the test equipment in a stable locatio. 4.
  • Page 21 EPT TECHNICAL SPECIFICATION • Resolution : 203 dpi (8 dots / mm) • Memory : 4MB Flash (user available capacity is 2MB) • Printing speed : 7 IPS (177 mm / s) 16MB SDRAM • Print width : 2.12” (54 mm) •...
  • Page 22 Delay time 2 seconds Reset 1 st peak value (Peak hold) SPECIFICATION Metric Accessories ITEM NO. Range Sockets 1 Sockets 2 ETT-15NP 1-15 Nm 2.94 1/4” x 11 mm ETT-30NP 1.5-30 Nm 2.94 1/4” x 11 mm ETT-150NP 7.5-150 Nm 3.44...
  • Page 23 ICON MEANING Power ON Power OFF Press the Button Value Adjustments Press the Button 1 Sec. Combo Key 90 Nm Display Blinking Watching NORMAL MODEL PRINTER MODEL Hold Down 1. PRINTER MODEL-TORQUE PRESET Example for 450 Nm (90 Nm 270 Nm 450 Nm) ．...
  • Page 24 2. PRINTER MODEL-START INSPECTION Start Test 90 Nm Test 5 times 270 Nm Test 5 times 450 Nm Test 5 times...
  • Page 25 3. PRINTER MODEL-PRINT OUT Printing Test Report Back to Next Test Standard Average 90.00 90.90 1.00 270.00 271.90 0.70 450.00 454.30 0.96 Standard Average 90.00 90.90 1.00 270.00 271.90 0.70 450.00 454.30 0.96 Edition Manufacturer DEC. 2021 MATATAKITOYO TOOL CO., LTD. No.
  • Page 26 Models covered Easy Torque Tester & Printer ETT-1000NP OPERATION MANUAL TORQUE Range: 50 Nm - 1000 Nm Color: Black or Silver BEFORE STARTING 1. Study this instruction before use. 2. Please wear gloves and goggles when working. 3. Make sure to install the test equipment in a stable locatio. 4.
  • Page 27 EPT TECHNICAL SPECIFICATION • Resolution : 203 dpi (8 dots / mm) • Memory : 4MB Flash (user available capacity is 2MB) • Printing speed : 7 IPS (177 mm / s) 16MB SDRAM • Print width : 2.12” (54 mm) •...
  • Page 28 Delay time 2 seconds Reset 1 st peak value (Peak hold) SPECIFICATION Metric Accessories ITEM NO. Range Sockets 1 Sockets 2 ETT-15NP 1-15 Nm 2.94 1/4” x 11 mm ETT-30NP 1.5-30 Nm 2.94 1/4” x 11 mm ETT-150NP 7.5-150 Nm 3.44...
  • Page 29 ICON MEANING Power ON Power OFF Press the Button Value Adjustments Press the Button 1 Sec. Combo Key 160 Nm Display Blinking Watching NORMAL MODEL PRINTER MODEL Hold Down 1. PRINTER MODEL-TORQUE PRESET Example for 800 Nm (160 Nm 480 Nm 800 Nm) ．...
  • Page 30 2. PRINTER MODEL-START INSPECTION Start Test 160 Nm Test 5 times 480 Nm Test 5 times 800 Nm Test 5 times...
  • Page 31 3. PRINTER MODEL-PRINT OUT Printing Test Report Back to Next Test Standard Average 160.00 162.00 1.25 480.00 484.40 0.92 800.00 807.10 0.89 Standard Average 160.00 162.00 1.25 480.00 484.40 0.92 800.00 807.10 0.89 Edition Manufacturer DEC. 2021 MATATAKITOYO TOOL CO., LTD. No.
  • Page 32 Models covered Easy Torque Tester & Printer ETT-2000NP OPERATION MANUAL TORQUE Range: 100 Nm - 2000 Nm Color: Black or Silver BEFORE STARTING 1. Study this instruction before use. 2. Please wear gloves and goggles when working. 3. Make sure to install the test equipment in a stable locatio. 4.
  • Page 33 EPT TECHNICAL SPECIFICATION • Resolution : 203 dpi (8 dots / mm) • Memory : 4MB Flash (user available capacity is 2MB) • Printing speed : 7 IPS (177 mm / s) 16MB SDRAM • Print width : 2.12” (54 mm) •...
  • Page 34 Delay time 2 seconds Reset 1 st peak value (Peak hold) SPECIFICATION Metric Accessories ITEM NO. Range Sockets 1 Sockets 2 ETT-15NP 1-15 Nm 2.94 1/4” x 11 mm ETT-30NP 1.5-30 Nm 2.94 1/4” x 11 mm ETT-150NP 7.5-150 Nm 3.44...
  • Page 35 ICON MEANING Power ON Power OFF Press the Button Value Adjustments Press the Button 1 Sec. Combo Key 400 Nm Display Blinking Watching NORMAL MODEL PRINTER MODEL Hold Down 1. PRINTER MODEL-TORQUE PRESET Example for 2000 Nm (400 Nm 1200 Nm 2000 Nm) ．...
  • Page 36 2. PRINTER MODEL-START INSPECTION Start Test 開始測試 400 Nm Test 5 times 1200 Nm Test 5 times 2000 Nm Test 5 times...
  • Page 37 3. PRINTER MODEL-PRINT OUT Printing Test Report Back to Next Test Standard Average 400.00 404.50 1.13 1200.00 1211.50 0.96 2000.00 2015.52 0.78 Standard Average 400.00 404.50 1.13 1200.00 1211.50 0.96 2000.00 2015.52 0.78 Edition Manufacturer DEC. 2021 MATATAKITOYO TOOL CO., LTD. No.
  • Page 38 INSTALLATION 4 Holes Ø10 121 mm Mount Board Mount Board needs to be more than 6 mm (Mount Board not include) 1:1 Print this page...
