MAINTENCE AND STORAGE
1. Clean this tool by wiping with a clean cloth after operation and storage in a dry environment.
2. Do not dip any type of liquid in this tool. This may damage the internal of this tool.
SPECIFICATION
ETT-15N & 30N
ETT-11F & 22F
D
Metric
ITEM NO.
Range
D
A
ETT-15N
1-15 Nm
11
205
1.5-30 Nm
ETT-30N
11
205
ETT-150N
7.5-150 Nm
14
205
ETT-500N
25-500 Nm
27
205
ETT-1000N
50-1000 Nm
27
205
ETT-2000N
100-2000 Nm
32
205
SAE
ITEM NO.
Range
D
A
ETT-11F
0.74-11 ft.lb
11
205
ETT-22F
1-22 ft.lb
11
205
ETT-110F
5-110 ft.lb
14
205
ETT-370F
18-370 ft.lb
27
205
ETT-740F
36-740 ft.lb
27
205
ETT-1500F
75-1500 ft.lb
32
205
E-mail:matatakitoyo@gmail.com
www.matatakitoyo.com
D
Accessories
W
H
Sockets 1
Sockets 2
KG
155
76
2.94
1/4" x 11mm
N/A
N/A
155
76
2.94
1/4" x 11mm
155
76
3.44
3/8" x 14mm
1/4" x 14mm
155
76
4.06
1/2" x 27mm
3/8"F x 1/2"M
155
76
4.06
3/4" x 27mm
1/2" x 27mm
155
76
4.56
3/4" x 32mm
1/2" x 32mm
Accessories
W
H
Sockets 1
Sockets 2
KG
155
76
2.94
1/4" x 11mm
N/A
155
76
2.94
1/4" x 11mm
N/A
155
76
3.44
3/8" x 14mm
1/4" x 14mm
155
76
4.06
1/2" x 27mm
3/8"F x 1/2"M
155
76
4.06
3/4" x 27mm
1/2" x 27mm
155
76
4.56
3/4" x 32mm
1/2" x 32mm
Unit : mm
Edition
Manufacturer
MATATAKITOYO TOOL CO., LTD.
No. 63, Ln. 493, Sec. 3, Zhongshan Rd., Tanzi Dist.,
Taichung City 42754, Taiwan
TEL : 886-4-2533 5893
Easy Torque Tester
OPERATION MANUAL
Other items
BEFORE STARTING
1. Study this instruction before use.
2. Please wear gloves and goggles when working.
3. Always check for loose wires and cables on and around tester before beginning operation.
4. Keep tester and charger away from water, always store in a dry place and safe environment.
5. Over torque will cause tool damage and personal injury.
6. Never use additional accessories with this tester that were not included and are not from this manufac
turer, doing so could result in damage to the tester.
7. Always operate tester in a clean and organized work place.
8. This tester should always be kept clean, dry, and free from oil and grease.
9. This tester should be recalibrated a period of 1 years.
To contact with local vendor, an authorized repair center for supporting.
10. Always unplug tester before inspecting, cleaning, or performing maintenance on the tester.
WARNING
02
Jul. 2020
Made in Taiwan
Models covered
ETT-15N
TORQUE
Range:1 Nm - 15 Nm
Color: Black or
Silver
1 Years
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Metric ETT-15N and is the answer not in the manual?

Questions and answers

Summary of Contents for Matatakitoyo Torque Tools Metric ETT-15N

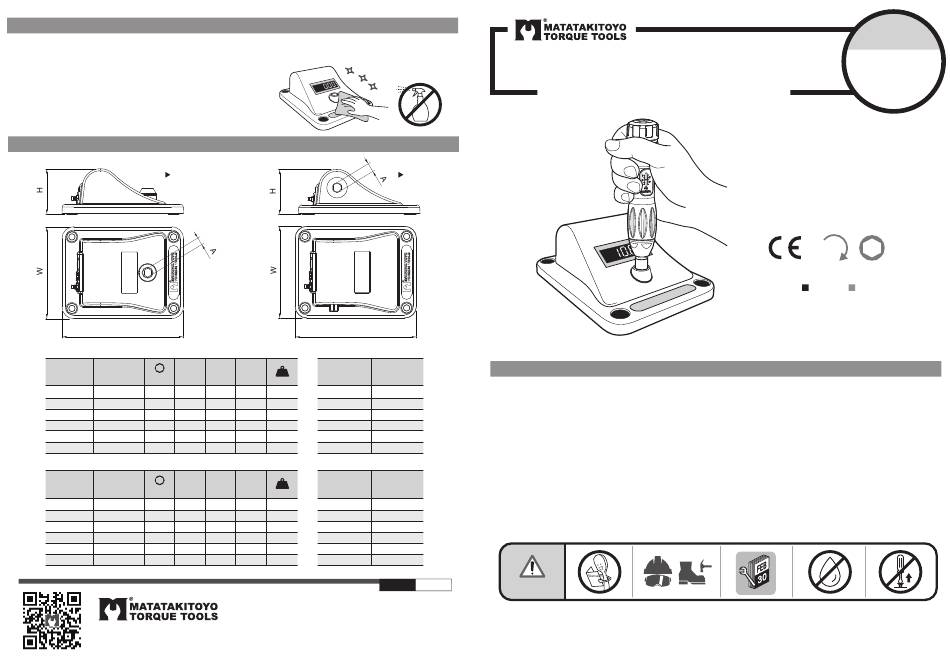

  • Page 1 MAINTENCE AND STORAGE Models covered 1. Clean this tool by wiping with a clean cloth after operation and storage in a dry environment. 2. Do not dip any type of liquid in this tool. This may damage the internal of this tool. Easy Torque Tester ETT-15N OPERATION MANUAL...
