- Page 1 FOOT CONTROLLERS ™ HAD-10 | EXPANSION FOR KAIROS CONTROLLER KAIROS firmware version 2.0.8 / 1.1.5 or higher User Manual available for download: www.manual.slidekamera.com v03/2022...
-
Page 2: Table Of Contents
Before you start your work with the KAIROS controller we strongly recommend to read the manual carefully. On the margins you will find information, which complement the Please note that using the controller in a manner inconsistent contents of the manual. with the instructions, any unauthorized repair attempts or any They are not essential for the correct operation of the device, but... -
Page 3: Foot Controllers

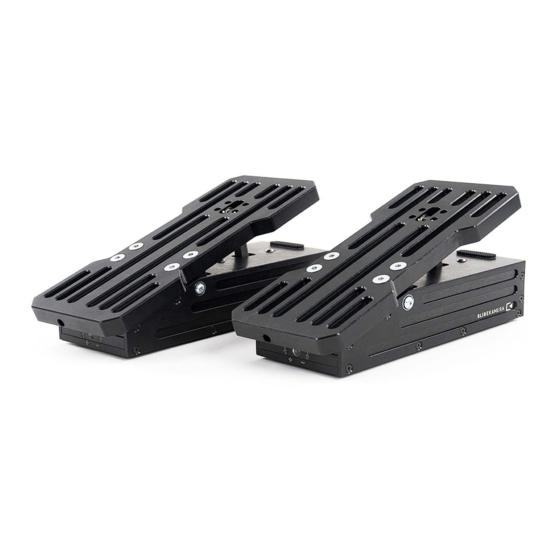

1. FOOT CONTROLLERS Slidekamera FOOT CONTROLLERS are an expansion for the KAIROS Controller to adjust the position of a chosen drive using feet. 1.1. Technical specification Material: powder coated aluminium Weight (1 pc): 1.6 kg Dimensions (1 pc): 117mm x 100mm x 243mm KAIROS 2 - multiaxis controller Compatible devices: (firmware version 2.0.8 / 1.1.5 or up) -
Page 4: Kairos Controller
3. KAIROS CONTROLLER The KAIROS Controller is the brain of the motion control system. It’s required for the FOOT CONTROLLERS to work. 3.1. Firmware update Before proceeding, make sure that the firmware of your KAIROS is updated. FOOT CONTROLLERS are supported from version 2.0.8 (ethernet-based systems with Slidelink 3.0) or 1.1.5. -
Page 5: Setup
4. Setup 4.1. Mapping the drives By default, KAIROS controller uses its joystick and knobs to steer motion axes. To use auxiliary inputs, you have to asign them to a chosen axis. It’s usually a slider’s drive, but you can choose whatever axis you want - you can use FOOT CONTROLLERS to move your head in the panorama axis or rack focus of your lenses. -
Page 6: Left / Right Irection
4.3. Left / right irection The FOOT CONTROLLERS have no predetermined left / right assignment. You can simply swap the controllers if you need to change the drive direction. You can also use the feature in the Device Settings menu. INVERT 5. -
Page 7: Maintenance And Operation
7. Maintenance and operation FOOT CONTROLLERS do not need any additional service or lubrication of the components. Maintenance procedures are reduced to keeping the equipment clean. 8. Terms of warranty All SLIDEKAMERA products are covered by the manufacturer’s warranty for a period of 12 months from the date of sale.
