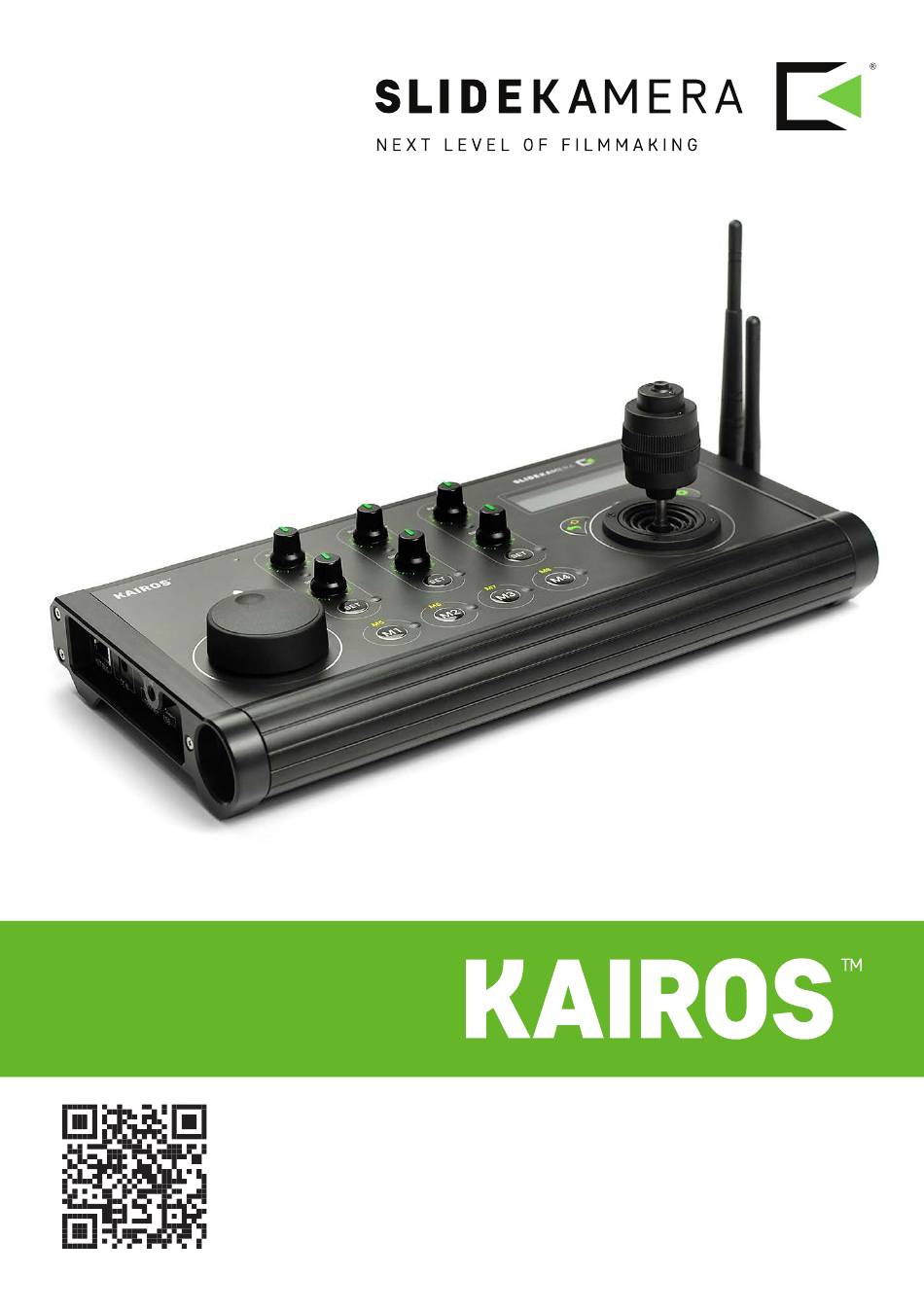

- Page 1 3D CONTROLLER User Manual pdf version of the manual available for download: www.slidekamera.com 11/2017...
-
Page 2: Table Of Contents
Before you start your work with the KAIROS controller we strongly recommend to read the manual carefully. On the margins you will find information, which complement the Please note that using the adapter in a manner inconsistent with contents of the manual. -
Page 3: Content Of The Set
1. Content of the set The set includes: • KAIROS controller • Wi-Fi antenna • RF antenna • HET-BUS steering cable (RJ45) • transport case 2. Construction 2.1. Control panel axis settings LCD screen SETTINGS button joystick button - ENTER... -
Page 4: Sockets And Connectors
Connecting cables: • connect KAIROS controller to the first device of your choice, to it’s IN socket using steering cable; • further device (if there is any) connect by connecting it’s IN socket with OUT socket of the previous device;... -
Page 5: Power Supply
PLEASE NOTE Currently the controller does not allow KAIROS controller has a built in battery, that enables the controller to work to work wirelessly. This feature will wireless without any power adaptors. -
Page 6: Turn On The Controller
Calibration is a process of setting the extreme positions, that will never be exceeded. This prevents breaking off cables or damaging the camera. To recalibrate the drives in any time, For safety reasons the KAIROS controller will not work if the drives are not use menu settings in the section calibrated. -
Page 7: Live Control Mode
6.1. Axis parameters The LCD screen displays all parameters of the devices. These values can be altered by using the control panel of the KAIROS controller. position - value corresponding to actual position of the drive; by default the motor of the slider is assigned to the 1st axis and is controlled by the knob on the left side of the controller;... -
Page 8: Record And Playback
7. Record and playback KAIROS controller is equipped with 8 memory banks that are used to store a single camera position or a trajectory - sequence of a camera movement. Memory banks 1-4 are available directly with the M1-M4 buttons. To use memory banks 5-8, hold BACK / SHIFT button and press a M1-M4 button. - Page 9 During playback PlaybackMode, HomingMode, Repeats and Ratio parameters are displayed on the LCD screen. RideTime indicates the time remaining to the end of the current repetition. After last repetition the KAIROS controller will switch automatically to the LIVE CONTROL mode.
-
Page 10: Kairos Controller Settings
8. KAIROS controller settings To enter the settings menu press the SETTINGS button. WorkMode - operating mode of the device, currently only the LIVE CONTROL mode is available; new modes, that are present in other SLIDEKAMERA controllers, such as TIMELAPSE or ANIMATION, will soon be available for users by a software update. -
Page 11: Maintenance And Operation
10. Maintenance and operation KAIROS controller does not need any additional service or lubrication of the components. Maintenance procedures are reduced to keeping the equipment clean. 11. Terms of warranty All SLIDEKAMERA products are covered by the manufacturer’s warranty for a period of 12 months from the date of sale.
