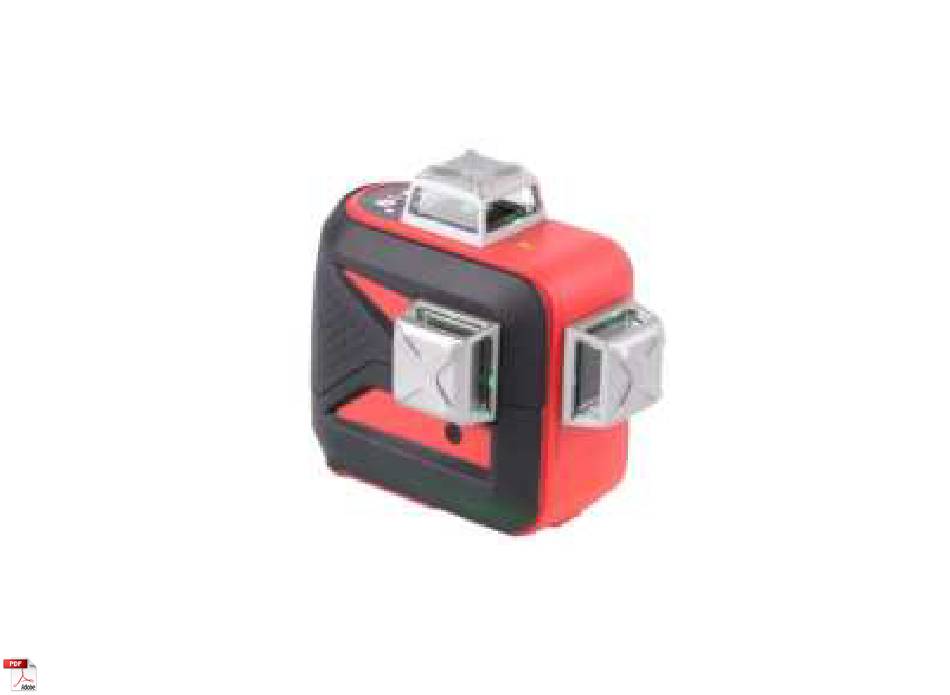

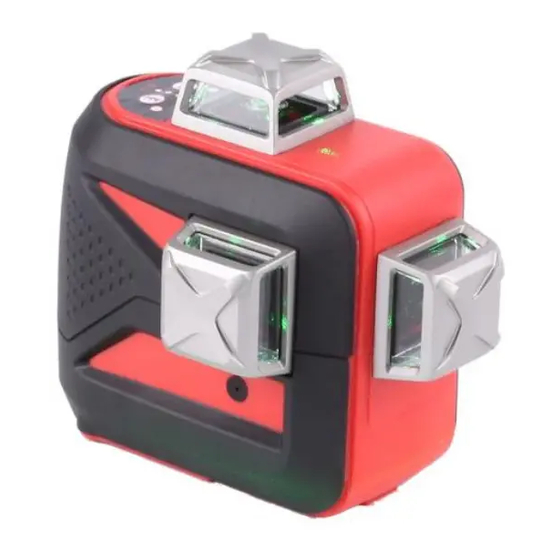

Summary of Contents for Fukuda MW-93TX
- Page 1 HOW TO OPERATE THE UNIT...
- Page 2 RIGHT SIDE: Pendulum Lock The 3D Cross Line Laser is a precision instrument and should be treated with care. When not in use, the pendulum should always be in the Lock/OFF position (figure To lock the pendulum allows the Cross Line Laser to better withstand vibration and trauma incurred during transportation or if the unit is dropped.
- Page 3 When the pendulum is unlocked/OFF (figure 2), the pendulum is free to automatically level, In order for the Cross Line Laser to automatically level, the base of the unit needs to be within 5°of level. Figure 2...
- Page 4 Keypad Area...
- Page 5 AC/DC socket Switch Bar 1/4” thread 2600mah Li-ion battery & Alkaline battery compatible 5/8” thread...
- Page 6 Keypad:...
-
Page 7: Line Selection
A. Pulse indicator B. Pulse button When pulse is on, this indicator A will turn to red, at this moment laser line can be picked up by laser receiver. Press this key B again to turn off the pulse function and the light will be off. - Page 8 & V2 will be on simultaneously Press Line Selection Button for three times, it will turn back to first sequence of the laser/H lights on. E. Lock mode indicator: When the laser is in the mode of Pendulum Lock(switch bar at right side). By pressing/holding line selection button(D) for 3 seconds to activate Lock Emitting mode.
- Page 9 AC/DC Socket: Laser can be powered from main power directly when there has no battery inside the laser or lithium-ion battery goes flat, by using the authenticated power adaptor which is come with the kit, to provide continuous electricity to laser. Ps: When connecting power adaptor with AC/DC socket, power from lithium-ion battery will be cut off automatically.
- Page 10 Power adaptor & battery system: Lithium battery can be charged when laser is off. By simply keep the battery into the battery compartment and has laser connects with power adaptor. Power adaptor will charge the laser automatically. During the charge, the power indicators(C) will be on to indicate how many power has been charged.
- Page 11 Benefit Feature: Lock & Emitting: When our 3D laser is in the mode of Pendulum Lock(switch bar at right side). By pressing/holding line selection button(D) for 3 seconds to activate Lock Emitting mode. At this model, lock indicator indicator(E) will be on. Line will come out from laser but be aware at this mode the laser itself is out of accuracy as the pendulum is locked.
-
Page 12: Alarm Functions
Alarm Functions Out Level Alarm: When the pendulum is unlocked and the Cross Line Laser is within 3°of level, the unit will be in automatic leveling range, in this situation no LED light will be on. When the base of the unit locates outside the 3°leveling range the laser beam will flash meanwhile an audibly warning will be sent out from Cross Line Laser. -
Page 13: Specification
Specification: Accuracy ±3mm/10m Leveling Range ±4° Working Range/With Detector 15m(Indoor) and 60m c/w detector Tripod Thread 1/4" & 5/8” Laser Type Red:635nm Green:515nm Operating Temperature -10℃ to 50℃ Storage Temperature -20℃ to 60℃ Dimension 150 x 87 x 128/mm3 ≥8hour(All Green diodes on) ＞ Continuous Working Time 15hour(All Red Diode on) Li-ion battery 2600mah, 7.4V &... - Page 14 FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
