Safco 5104 Assembly Instructions

New Hope, MN 55428
Visit us on the web:
PRODUCT WARRANTY CARD is available online at: www.safcoproducts.com
www.safcoproducts.com

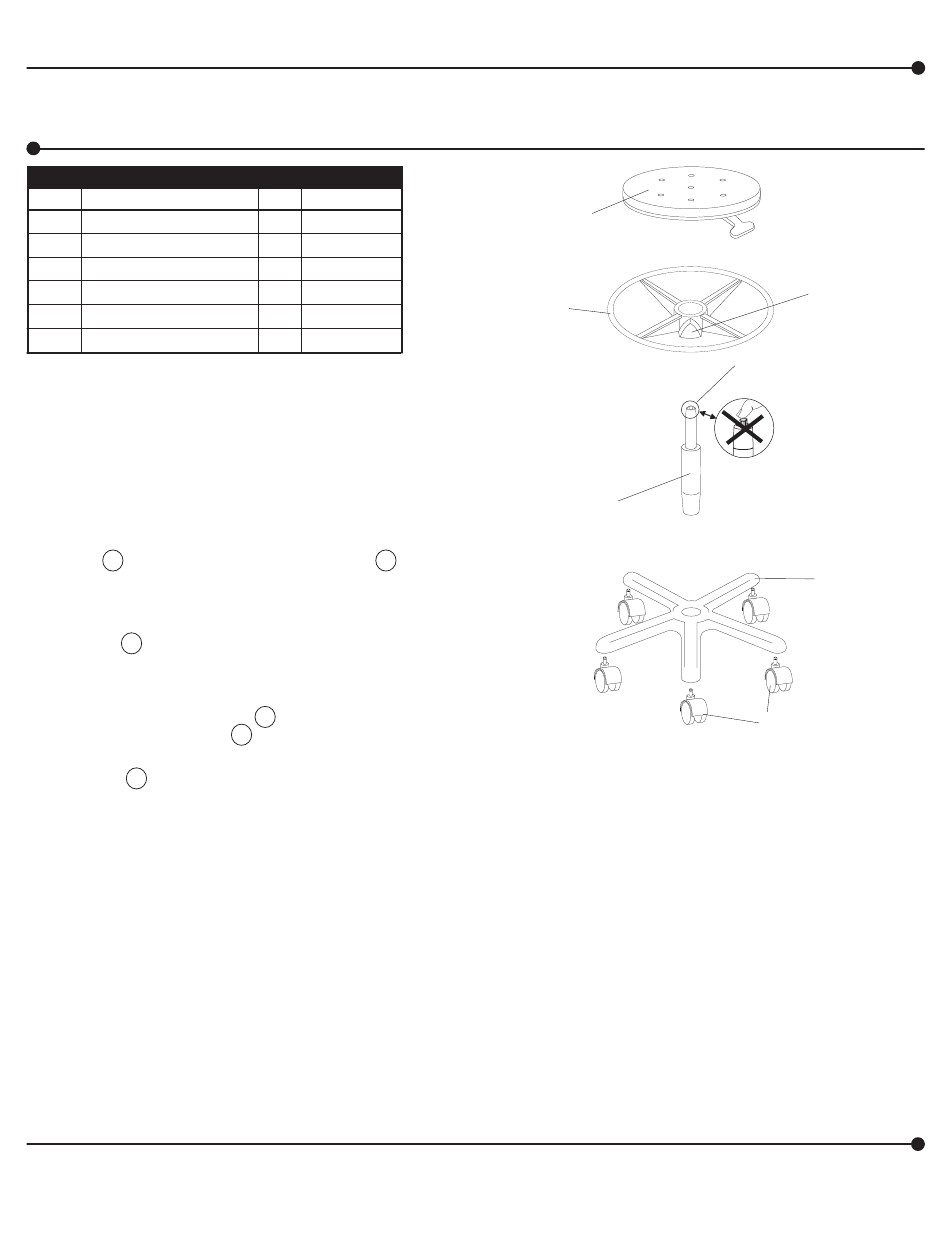

PARTS LIST PARTS LIST
PARTS LIST PARTS LIST PARTS LIST
CODE
DESCRIPTION
A Caster
B Base
C Cylinder
D Footring
E Footring Knob
F Seat, w/Lever
Check all parts against Parts List before
beginning assembly. Allow all parts to warm to room
temperature prior to assembly.
1
Install A Casters into each of the legs of the B
Base. Press firmly into place. Be sure the caster is
inserted completely into leg for proper stability.
2
Insert the C Cylinder into the base, tapered end down.
Secure the cylinder by applying a little downward pres-
sure (CAUTION: When applying downward pressure,
avoid plastic button at top of cylinder, as pressure will
release pneumatic lift) Place D Footring over exposed
cylinder and tighten with E Footring Knob.
3
Install the F Seat by aligning the hole on the under-
side with the shaft of the cylinder; push down firmly on
seat.
4
Make the final stool adjustments (seat and footring) as
follows:
The lever under the seat pneumatically adjusts the height
of the seat over a range of about 10". Always pull up on
handle; do not push down. The proper height should be
determined by a combination of variables: the height of
the work surface, the task to be performed and your body
size. Typically, the stool should be high enough so your
arms form a 90 angle at the elbow or slightly greater. This
o
allows for better circulation in the shoulders and neck area
and also reduces the amount of fatigue in the forearms and
hands. The feet should lie flat on the ground. To help insure
good posture, maintain a 90
5104-37MP: 1 of 3:
Rev. 1: 2/04

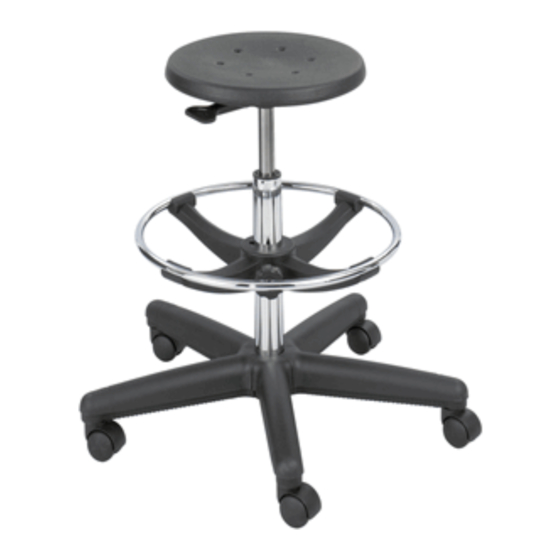

Industrial Stool
with Footring
A S A S A S S E M B L A S A S S E M B L S E M B L S E M B L S E M B L Y Y Y Y Y
QTY. PART NO.
5 3400-75
1 5104-54
1 5104-61
1 3401-62
1 3401-72
1 5100-01
angle at the bend of the knees.
o
For questions or concerns, please call the
available Monday-Friday 8:00 AM to 4:30 PM (Central Time) (English-speaking operators)
I N S T R U C T I O N S I N S T R U C T I O N S I N S T R U C T I O N S I N S T R U C T I O N S I N S T R U C T I O N S
F
D
C
MAINTENANCE
The pneumatic lift in the Cylinder is permanently lubricated at
the factory and needs no further lubrication. NEVER
LUBRICATE THE PNEUMATIC LIFT. Do not remove clip from
bottom of Cylinder. Contact Safco immediately if clip is missing
or damaged. Clean polyurethane seat and back with soap
and water. To repair small cuts in polyurethane, apply a few
drops of quick-drying glue into the cut and press the sides
together until the glue sets.
GENERAL SAFETY INSTRUCTIONS
Do not stand on seat.
Chair must be on level surface to ensure proper stability.
Only use chair when fully assembled.
Never use chair if it does not perform according to this sheet
or warranty may be void.
Safco Consumer Hot Line
5104
E
NOTE: REMOVE
PLASTIC CAP
B
A
1-800-664-0042
