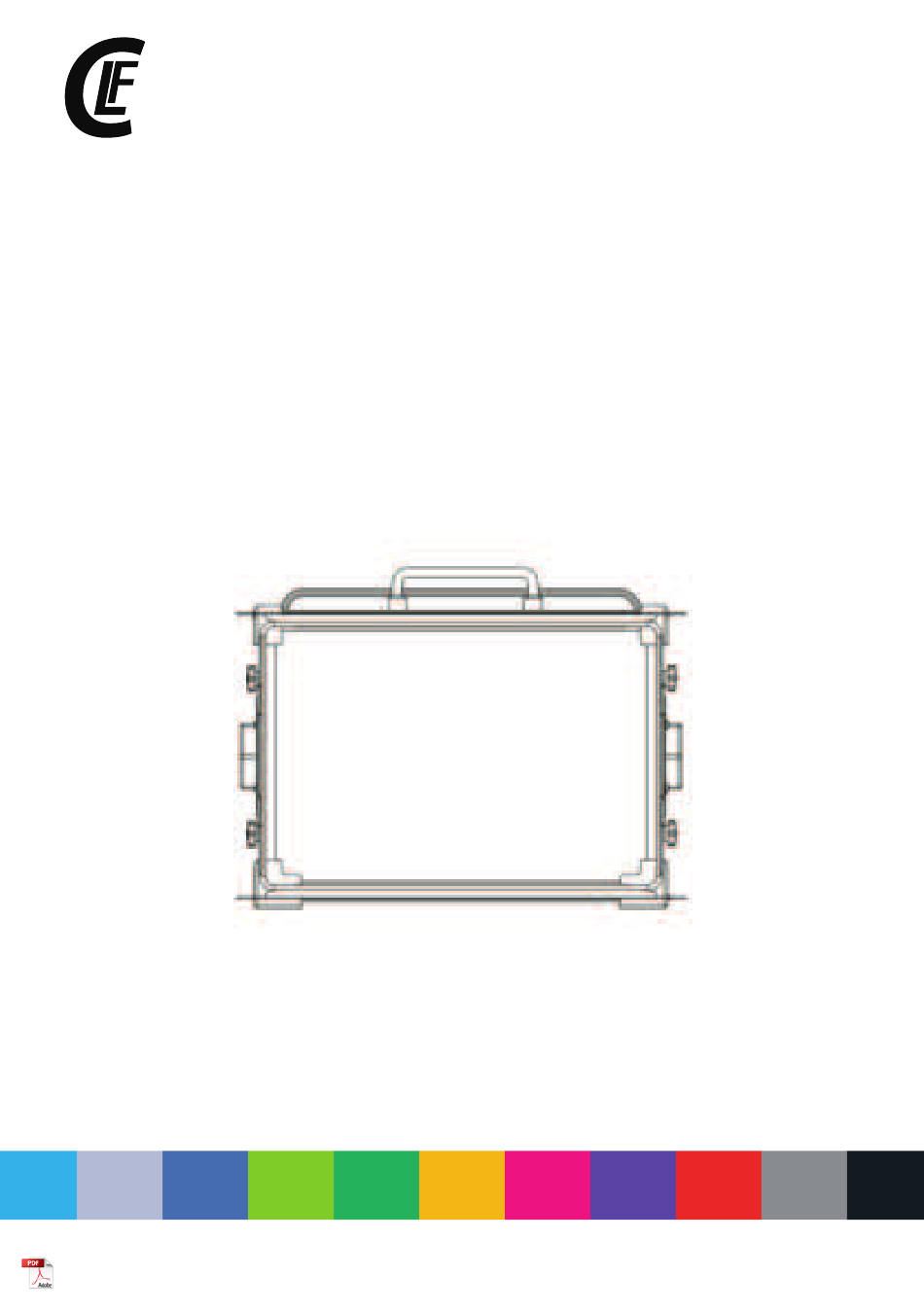

- Page 1 200 VW manual WWW.CLF-LIGHTING.COM V1.0 JANUARY 2022...
-
Page 2: Table Of Contents
Power cables Relaying power to other devices Data link Tips for reliable data transmission Physical installation Fastening the fixture to a flat surface Setup Control panel and menu navigation DMX address setting Control mode Onboard control menus DMX protocols Specifications WWW.CLF-LIGHTING.COM... -
Page 3: Dimensions
Dimensions All dimensions are in millimeters WWW.CLF-LIGHTING.COM... -
Page 4: Safety Instruction
Refer any service operation not described in this manual to a qualified technician. • Socket outlets used to supply fixture fixtures with power or external power switches must be located near the fixtures and easily accessible so that the fixtures can easily be disconnected from power. WWW.CLF-LIGHTING.COM... - Page 5 Check that all external covers and rigging hardware are securely fastened. • Block access below the work area and work from a stable platform whenever installing, servicing or moving the fixture. • Do not operate the fixture with missing or damaged covers, shields or any optical component. WWW.CLF-LIGHTING.COM...
-
Page 6: Fixture Overview
Fixture overview DMX in/out Powercon thrue in/out Manual cct brightness WWW.CLF-LIGHTING.COM... -
Page 7: Introduction
Warning! Check that the voltage range specified on the fixtures serial number label matches the local AC mains power voltage before applying power to the fixture. The fixtures accepts AC mains power at 100-240 V nominal, 50/60 Hz. Do not apply AC mains power to the fixture at any other voltage than specified. WWW.CLF-LIGHTING.COM... -
Page 8: Power Cables
1. Connect the DMX data output from the controller to the 5-pin XLR connector of the nearest fixture. 2. Connect the DMX output of the fixture closest to the controller to the DMX input of the next fixture and continue connecting fixtures output to input. WWW.CLF-LIGHTING.COM... -
Page 9: Physical Installation
(see “Fixture overview”). Do not use any other part of the fixture as a safety cable attachment point. WWW.CLF-LIGHTING.COM... -
Page 10: Setup
The main screen will show a ‘dot’ and the backlight will be switched off when a DMX signal is detected. • The fixture is fully RDM ready. So when you are using a RDM ready console you can address the unit and read out its complete status. For RDM functions please refer to the ANSI/ESTA E1.20-2006 standard WWW.CLF-LIGHTING.COM... -
Page 11: Control Mode
Control mode DMX control mode is selected in the CONTROL MODE menu. The fixture can be controlled with 3 DMX control modes: Dimmer Dimmer fine Strobe Macro CCT WWW.CLF-LIGHTING.COM... - Page 12 WWW.CLF-LIGHTING.COM...
-
Page 13: Onboard Control Menus
When there’s a flickering ‘!’ sign appeared, means no signal input for the fixture. • No operation within 30 seconds, LCD display will enter into Screen of mode automatic. • When the current temperature is higher than the protection temperature, 30% of power • consumption will be deducted slowly. WWW.CLF-LIGHTING.COM... -
Page 14: Dmx Protocols
Modes Value Notes 000-255 Dimmer 000-255 Dimmer fine 000-255 Color temperature Preset color temperature 000-010 No function 011-035 3200K 036-060 4000K 061-085 5000K 086-110 5600K 111-135 6000K 136-160 User1 161-185 User2 186-210 User3 211-235 User4 236-255 User5 000-255 Strobe WWW.CLF-LIGHTING.COM... -
Page 15: Specifications
Specifications SOFTLED 200 VW Item NO Power Consumption 200W Voltage 100-240V AC Frequency 50/60HZ Light Source SMD LED Matrix compound optical system Lens Color Temperature 3200K~6000K adjustable >97 120° Beam Angle 16bit smooth dimming 0-100% Dimming Range 2CH / 3CH / 5CH... - Page 16 SoftlED 200 VW CLFLIGHTING WWW.CLF-LIGHTING.COM...
