Summary of Contents for CLF Conan

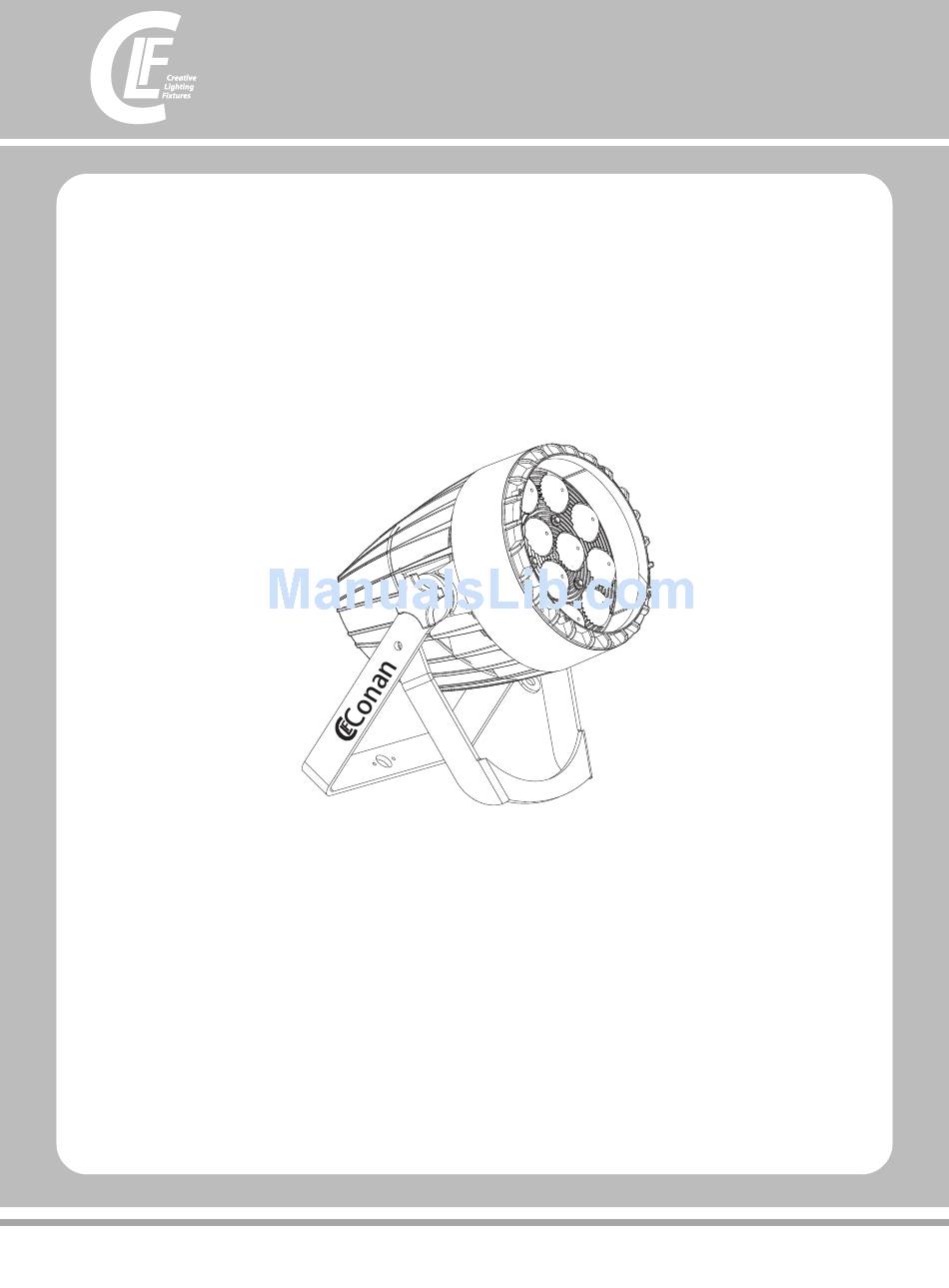

- Page 1 CLF Conan V 2.11 JULY 2015...
-
Page 2: Dimensions
Dimensions All dimensions are in millimeters... -
Page 3: Safety Information
Safety Information WARNING! Read the safety precautions in this section before installing, powering, operating or servicing this product The following symbols are used to identify important safety information on the product and in this manual: DANGER! DANGER! WARNING! WARNING! WARNING! WARNING! WARNING! Safety hazard. - Page 4 Do not expose the fixture to rain or moisture. Refer any service operation not described in this manual to a qualified technician. Socket outlets used to supply fixture fixtures with power or external power switches must be located near the fixtures and easily accessible so that the fixtures can easily be disconnected from power.
-
Page 5: Table Of Contents
Contents Dimensions ............... . 2 Safety Information. -
Page 6: Fixture Overview
Fixture overview G Clamp with Quicklock # 875760 (Optional) Safety cable attachment point DMX output Antenna wireless solutions(optional) AC mains power throughput Display Control buttons DMX input AC mains power input Note: head fan grill in production models is rotated 90° compared to this illustration. -
Page 7: Introduction
Introduction This compact LED-based Parcan features: Beam RGBW color control with color temperature control ‘Color wheel’ color snap Beam Onboard control panel and backlit LCD graphic display Motorized zoom Smooth electronic dimming Electronic shutter with strobe and pulse effects Calibrated and raw modes Osram Ostar high-power emitters DMX control Using for the first time... -
Page 8: Ac Power
AC power Warning Read “Safety Information” starting on page 3 before connecting the fixrures to AC mains power. Warning! For protection from electric shock, the fixture must be grounded (earthed). The powerdistribution circuit must be equipped with a fuse or circuit breaker and ground-fault (earth-fault)protection. Warning! Socket outlets or external power switches used to supply the fixture with power must be located near the fixture and easily accessible so that the fixtures can easily be disconnected from power. -
Page 9: Relaying Power To Other Devices
Relaying power to other devices Warning! Do not connect more than ten fixture fixtures in total to AC mains power in one interconnected chain Power can be relayed to another device via the light-grey PowerCon throughput socket that accepts a light-grey PowerCon cable connector. -
Page 10: Physical Installation
Physical installation Warning! The fixture must be either fastened to a flat surface such as a stage or wall, or clamped to a truss or similar structure in any orientation using a rigging clamp. Do not apply power to the fixture if it is standing freely or the fixture can be moved. -
Page 11: Setup
Setup Warning! Read “Safety Information” on page 3 before installing, powering, operating or servicing the fixture. Control panel and menu navigation The onboard control panel and backlit graphic display are used to set the fixture 's DMX address, configure individual fixture settings (personality), read out data and execute service utilities. See “Onboard control menus”... -
Page 12: Control Mode
CONTROL MODE Standard Manual modes DMX control mode is selected in the CONTROL MODE menu. The fixture has tow DMX control modes: Standard (Standard mode – uses 10 DMX channels) Manual mode (Extended mode – uses 4 DMX channels+manual zoom) Dimming DIMMER CURVE provides four dimming options (see picture below): Square law... -
Page 13: Operation And Effects
Operation and effects Warning! Read “Safety Information” starting on page 3 before installing, powering, operating or servicing the fixture. This section describes only DMX control features that require particular explanation. See “DMX protocols”on page 14 for a full list of the DMX channels and values required to control the different effects. Effects Shutter effect The electronic ‘shutter’... -
Page 14: Dmx Protocol
DMX protocols Standard mode Standard DMX Value Percent Function Electronic shutter effect 0 - 19 0 - 7 Shutter closed 20 - 24 8 -9 Shutter open fast → slow 25 - 64 10 - 25 Strobe 1 65 - 69 26 - 27 Shutter open opening pulse fast →... - Page 15 Standard DMX Value Percent Function Beem Color wheel effect No function. RGBW color mixing enabled 0 - 9 0 - 1 Color wheel effect 10 - 174 2 - 67 Open 175 - 179 68 - 69 Color wheel rotation effect Clockwise, fast →...
-
Page 16: Manual Mode
Manual mode Function Manual DMX Value Percent RED(0-255) 0 - 255 0-100 0 - 255 0-100 GREEN(0-255) 0 - 255 0-100 BLUE(0-255) 0 - 255 0-100 WHITE(0-255) 0-100 Wide → narrow Manual ZOOM 0 - 255... -
Page 17: Onboard Control Menus
Onboard control menus Notes (Default settings in bold print) Menu Item Options DMX ADDRESS 1-XXX Set DMX start address CONTROL MODE Standard mode 10 DMX channels: Conrtol of beam Manual mode 4 DMX channels: RGBW+manual zoom DIMMER 0~255 0~100% 0~100% 0~255 0~100% GREEN... -
Page 18: Calibration
CALIBRATION Three mode of color calibration 1, NO CALIBRATION Color calibration mode off. the RGBW value is the orginal one . MANUAL Manual calibration mode , RGBW to white is custom calibration. Manual calibration can calibrate by control panel and DMX channel . calibrate by control panel Press"MODE,ENTER ,UP ,DOWN "four button to enter the calibration mode Notes (Default settings in bold print) -
Page 19: Specifications
Specifications Physical Length ............260 mm Width . - Page 20 Electrical AC power ........100-240 V nominal, 50/60 Hz Maximum total power consumption .
