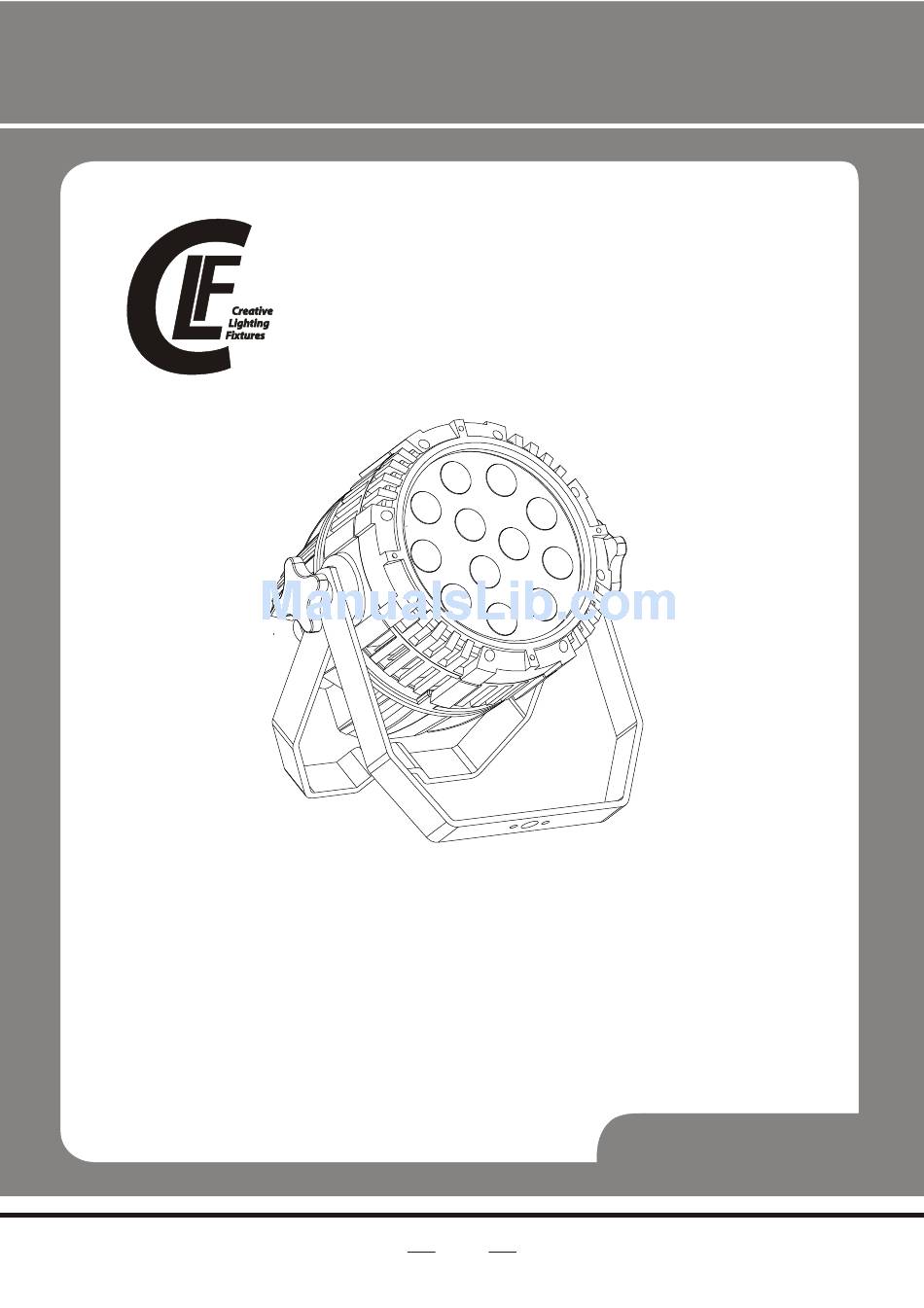

- Page 1 CLF Manuals CLF Manuals CLF Colour Par 12 CLF Colour Par 12 CLF Colour Par 12 Version 1.0 November 2012 Version 1.0 November 2012...
-
Page 2: Before You Begin
1.BEFORE YOU BEGIN What is included Ø 1 x Fixture Ø 1 x Power cable with plug Ø 1 x User Manua Unpacking Instructions Immediately upon receiving a fixture, carefully unpack the carton; check the contents to ensure that all parts are present, and have been received in good condition. -
Page 3: Safety Instructions
Safety Instructions WARNING! Please read these instructions carefully, which includes important information about the installation, usage and maintenance of this product.. The following symbols are used to identify important safety information on the product and in this manual: DANGER! DANGER! WARNING! WARNING! WARNING! -
Page 4: Specifications
2.INTRODUCTION Specifications l Voltage Rating: AC100V 240V 50-60Hz l Power Rating:50W l LED Quantity: 12 pcs 3 in 1 LEDs(RGB) l LED: 400mA l Beam Angle: 20°/30° /40° l Ingress Protection: Ip20 l Product Size: 295x 195 x255mm l Package Size: 350x260x320 mm l N/W:4.6Kg l G/W:5.6Kg Features... -
Page 5: Product Overview
Product Overview Power in Power out DMX IN DMX OUT Control board Dimensions Hanging bracket/ floor stand Bracket adjustment knob... -
Page 6: Installation Requirement
3.SETUP Installation Requirement l This product can be used in a variety of situations, can hang and put on the ground. l If hanging the fixture for over head use, then please follow the below steps. l Please choose the suitable location to put or hang the light when installing it. You must use the exclusive clamp hanger and screw when hanging it, and make sure the weight of the light is within limits of the hanger. -
Page 7: Connection Of Dmx Signal Wire
Connection of DMX Signal Wire Please use the fixture controller wire specially when use the DMX512 Controller. Connect the (male) 3 pin connector side of the DMX cable to the output (female) 3 pin connector of the first fixture. Connect the end of the cable coming from the first fixture which will have a (male) 3 pin connector to the input connector of the next fixture consisting of a (female) 3 pin connector. -
Page 8: Control Panel Functions
4.OPERATING INSTRUCTIONS Control Panel Functions MENU BUTTON FUNCTION MENU Exits from the current menu or function Navigates downwards through the menu list and decreases the numeric DOWN value when in a function Navigates upwards through the menu list and increases the numeric value when in a function Enables the currently displayed menu or sets the currently selected ENTER... -
Page 9: Menu Map
Menu Map MAIN SUB- FUNCTION SELECTION INSTRUCTION FUNCTION D000 000~255 R000 User can combine RED, GREEN and (0 ~ 100%) BLUE to generate a custom color G000 STAT B000 Select strobe frequency S000 00~20 At00 10 auto programs available 01~10 AUTO Pr00 01~10... -
Page 10: Dmx512 Controller Mode
Operating instructions 1 Factory reset SET Ü REST Ü {UP UP DOWN DOWN}Ü {ENTER} Note: The password is permanently set as {UP UP DOWN DOWN} Then press ENTER button 1 Custom program EDIT Ü PR01 Ü PSC01 1 Press MENU button until EDIT is displayed, press ENTER access program mode. - Page 11 06 channels 06 channels Channel Value Description 1 Dimming 000~255 0-100% 2 RED 000~255 0-100%(Or STEP TIME when CUS.01-10 is activated) 3 Green 000~255 0-10 0%(Or FADE TIME when CUS.01-10 is activated) 4 Blue 000~255 0-100% No Function BLUE 100%,RED90 ,GREEN97 , 6-19 BLUE100% RED &GREEN DOWN 20-24...
- Page 12 Channel Value Description 165-169 Colour Scroll Snap Speed 17 (Slowest) 170-174 Colour Scroll FADE Speed 1 (Fastest) 175-179 Colour Scroll FADE Speed 2 180-184 Colour Scroll FADE Speed 3 185-189 Colour Scroll FADE Speed 4 190-194 Colour Scroll FADE Speed 5 195-199 Colour Scroll FADE Speed 6 200-204...
-
Page 13: Master/Slave Control Mode
04 channels Channel Value Description 000~255 000~255 Green 000~255 Blue 000~255 Dimming 03 channels Channel Value Description 000~255 000~255 Green 000~255 Blue Master/Slave Control Mode 1 Setting master machine ess control panel function by pressing MENU until AUTO is displayed. Press ENTER, select ATXX OR PRXX... - Page 14 5. APPENDIX Service Maintenance Guide Symptom(s) Possible Solution(s) Clean the fixture regularly to avoid any such failure. This fixture is convection cooled, which means that if the surface is kept clean and free of debris, then proper cooling will be allowed to occur 1 or more LED's are An LED may have failed, resulting in an open circuit.
- Page 15 Symptom(s) Possible Solution(s) COLOR-CON Make sure connector is firmly connected to device Controller does not This fixture must be in the correct mode in order to properly function, or does not respond to the COLOR-CON controller. The correct mode is function properly “DMX”...
-
Page 16: Blow-Out Diagram
Blow-out Diagram. Description Part Number Glass cover 6P00118 LED Lens assembly 6P00105 LED Metal-core PCB assembly 2P00106 Power supply seat 5100103 XLR seat 5100102 LED Driver Board 2P00107 House 6P00118 Bracket Assembly 5120117 Bracket adjustment metal knob 5020105 Display PCB assembly 2P00103 Electronic Transformer 5080125...
