USER MANUAL

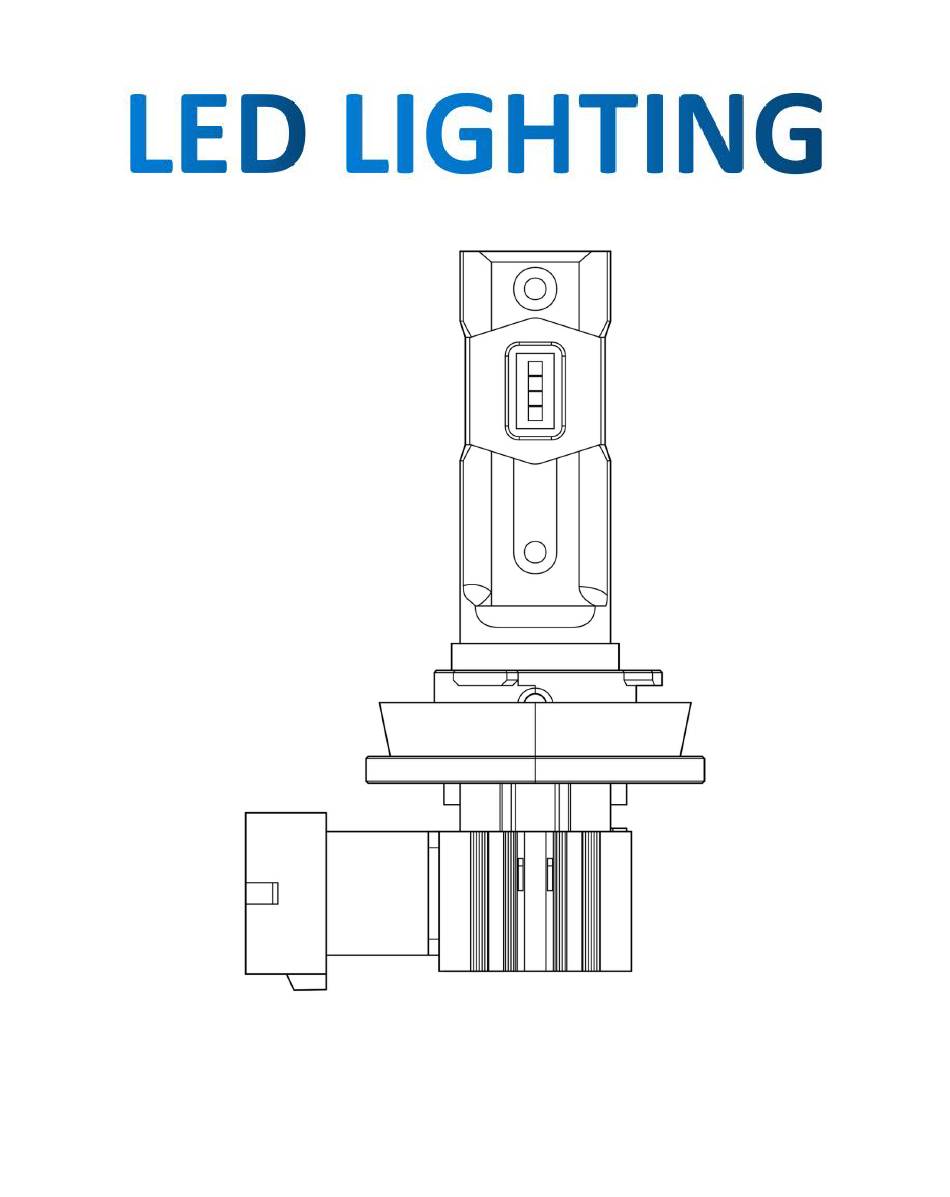

* The picture is for reference only, specific to your model

Advertisement

loading
Need help?

Need help?

Do you have a question about the H11/9005/9006 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LED Lighting H11/9005/9006

Summary of Contents for LED Lighting H11/9005/9006

  • Page 1 USER MANUAL * The picture is for reference only, specific to your model...
  • Page 2 Product Diagram .........1 Installation ..........2 Models: H11/9005/9006 ......3 Product Specifications ........7 Warning ............8 Trouble Shooting ........11 Precautions for Use ........13...
  • Page 3 6063 LED Chip Aluminum Body Locking Ring Heat Sink Power Connector...
  • Page 4 Before installation, turn off the vehicle engine, stop the car in a steady place, open the hood and find the bulb installation position of the headlamp assembly.
  • Page 5 Unscrew the dust cover, pull out the power plug, unscrew and remove the bulb counterclockwise. Remove the original car halogen bulb.
  • Page 6 Line up the tabs with the locking grooves and insert the bulb...
  • Page 7 Tighten it clockwise. Connecting the bulb plug to the electrical socket.
  • Page 8 1. Please note, that LED chips should always be in a side-to-side orientation, meaning, you should have one set of Led facing at 3 o'clock and the other set facing at 9 o'clock. 2. This will allow a nice and even 360 ° light distribution throughout the housing creating an even beam of light as well as evenly filling up the housing.

  • Page 9: Product Specifications

    PRODUCT SPECIFICATIONS Wattage 60 Watts Operating Voltage DC 12 Volts Lumen 16000 LM Led Chip Material/Heat Sink 6063 Aluminum Operating Temperature -40~176*F (-40-80C) Speed of the Fan 12000 Rpm Waterproof Rating IP67 Color Temperature 6000 Kelvin Lifespan 50000 Hours...
  • Page 10 Please wear work gloves during the installation. Make sure not to touch the base part of the area that illuminates light. Also, prevent any type of oil or dirt from adhering to the product. If the light is turned on in this condition, it may cause a lighting malfunction.
  • Page 11 Be sure not to apply excessive force to the Led bulb during installation. If damage occurs, it may cause a lighting malfunction and other potential failures. After installation, please check whether the high and low beams and other electrical equipment on the dashboard work normally and no warnings occur.
  • Page 12 Do not switch on the LED bulb until the connection is finished. If the LED bulb flashes or warnings show up on the vehicle dashboard, please connect the resistors (CANbus) to ensure correct operation. If any problems still cannot be resolved under the guidance of this manual, please feel free to contact our customer service team.
  • Page 13 One of the bulbs is not working Make sure the connection is good. If one of the bulb still doesn't work, swap the left and right side bulbs and test again. If the problem cannot be resolved, it may be caused by the vehicle's light assembly.
  • Page 14 A warning lamp appears on the vehicle's system dashboard! This is a harmless side-effect of the low-wattage Led bulbs not being recognized by the vehicle's system and can be resolved with the installation of an additional set of resistors (CANbus) If the lights do not work properly 1.Check if the power connectors are properly connected, and make sure that the vehicle...
  • Page 15 Do not look directly at the operating lamp for any period of time, this may cause serious eye injury. Please do not disassemble or modify the product. Such actions may damage the product or may cause fire and/or bodily injury. If there is abnormal vibration or sound when the vehicle is in motion, immediately stop the vehicle in a safe location and inspect the...
  • Page 16 Keep the product out of reach of infants. Otherwise, infants may swallow or break the product, leading to injury. When the lamp is lit, the lens becomes extremely hot. Do not wash the vehicle while the lights are on or immediately after turning them off.
  • Page 17 Warranty for headlights offers a 30-day free replace/refund and a one-year warranty. A reliable headlights warranty, so you can enjoy the convenience of life without worrying about the product. Ask the LED lighting models and questions you want to know: service@rimthin.com...
