SATO KEIRYOKI PC-5200TRH Instruction Manual

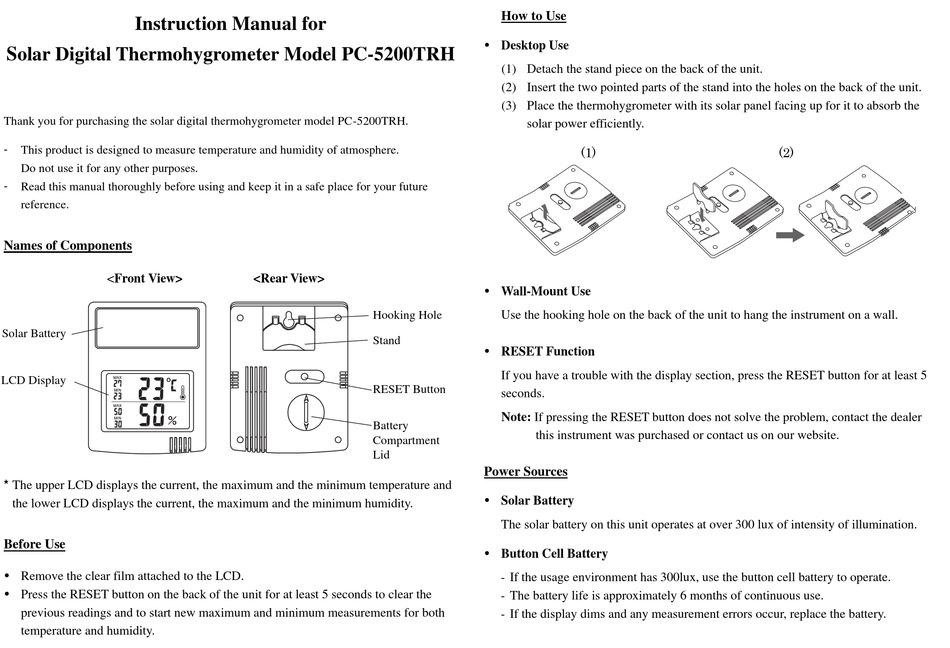

Instruction Manual for

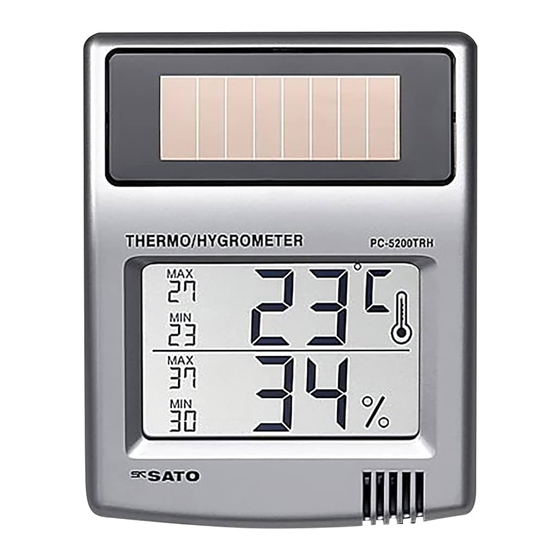

Solar Digital Thermohygrometer Model PC-5200TRH
Thank you for purchasing the solar digital thermohygrometer model PC-5200TRH.
- This product is designed to measure temperature and humidity of atmosphere.
Do not use it for any other purposes.
-
Read this manual thoroughly before using and keep it in a safe place for your future
reference.

Names of Components

<Front View>
Solar Battery
LCD Display
* The upper LCD displays the current, the maximum and the minimum temperature and
the lower LCD displays the current, the maximum and the minimum humidity.

Before Use

 Remove the clear film attached to the LCD.
 Press the RESET button on the back of the unit for at least 5 seconds to clear the
previous readings and to start new maximum and minimum measurements for both
temperature and humidity.
<Rear View>
Hooking Hole
Stand
RESET Button
Battery
Compartment
Lid

How to Use

 Desktop Use
(1) Detach the stand piece on the back of the unit.
(2) Insert the two pointed parts of the stand into the holes on the back of the unit.
(3) Place the thermohygrometer with its solar panel facing up for it to absorb the
solar power efficiently.
(1)
 Wall-Mount Use
Use the hooking hole on the back of the unit to hang the instrument on a wall.
 RESET Function
If you have a trouble with the display section, press the RESET button for at least 5
seconds.
Note: If pressing the RESET button does not solve the problem, contact the dealer
this instrument was purchased or contact us on our website.

Power Sources

 Solar Battery
The solar battery on this unit operates at over 300 lux of intensity of illumination.
 Button Cell Battery
- If the usage environment has 300lux, use the button cell battery to operate.
- The battery life is approximately 6 months of continuous use.
- If the display dims and any measurement errors occur, replace the battery.
(2)
