SATO KEIRYOKI PC-5000TRH II Instruction Manual

Instruction Manual for

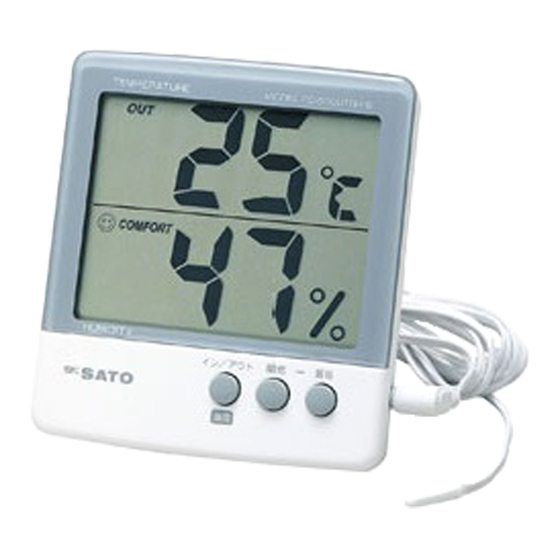

Digital Thermohygrometer Model PC-5000TRH
Thank you for purchasing the digital thermohygrometer PC-5000TRH .
- This product is designed to measure temperature and humidity of atmosphere. Do not use
it for other purposes.
- Read this manual thoroughly before use. Keep this manual in a safe place for future
references.
Features
- A large display for easy visibility
- Internal sensors measure indoor temperature and indoor humidity. Outdoor temperature
can be measured by connecting external sensor
- Displays of Maximum/Minimum temperature and R. humidity are switchable by a button
- Comfort level is displayed with WET, DRY or COMFORT
Warning
The PC-5000TRHII is not explosion-proof. Never use it in an atmosphere containing
flammable gases
Beware of Explosion!
There is a risk of explosion. Take extreme care

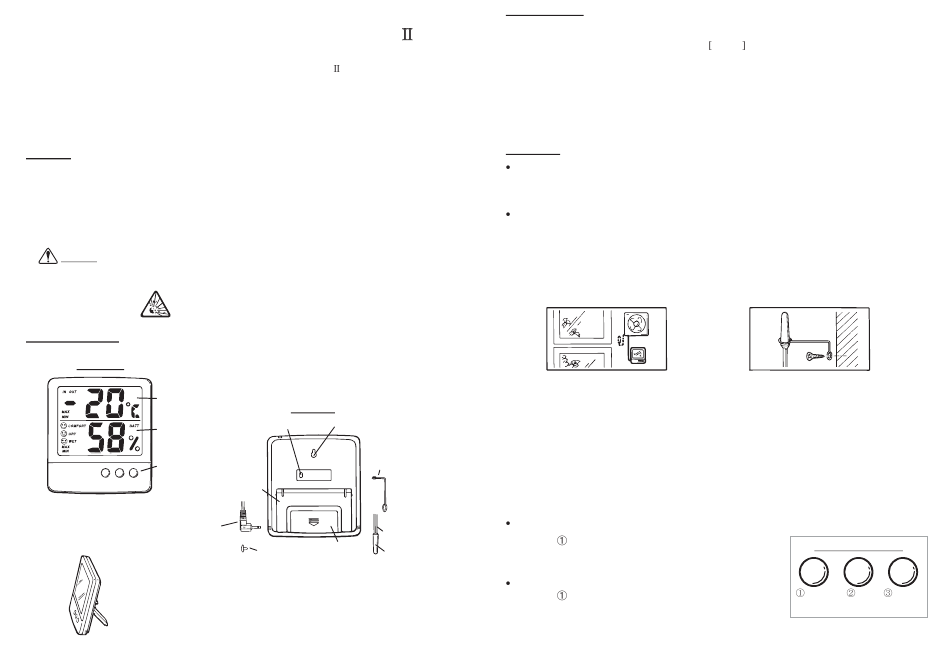

Names of Sections
Front view
Temperature
R. Humidity
Operation buttons
External sensor jack
Use of the Stand
Flip out the plastic stand at the backside of
the unit for table standing.
Rear view
Hole for mount
Memory Reset
Cord attachment
Stand
Cord (3 m)
Battery lid
Protection Cap
External sensor
(white)
(for outdoor
temperature)
1
Loading Battery
(1) Remove the battery lid on the back of the unit by sliding it downward.
(2) Load one AAA battery with correct polarity (+) (-) as instructed in the battery
compartment.
(3) Reinstall the battery lid.
* The low battery mark lights when the battery power becomes insufficient.
Replace the exhausted battery to new one with the above procedure. If the display is not
normal after the replacement, remove the battery once and let the unit rest for 5 min. or so.
How to Use
Installation
For installation, use the plastic stand at rear of the unit for standing or mount the unit on a
wall using the hole for mount.
Use of external sensor
(1) Remove the protection cap on the rear of the unit and insert the external sensor jack into the
hole until it clicks.
(2) Press the memory reset button
(3) Install the external sensor at the place you want to measure
* When the external sensor is placed in outdoor
1) Place the external sensor outside
through a hole of air fan or like.
NB. * In order to avoid water entering into the sensor, install he sensor with the point of the
sensing part pointing up.
* Locate the external sensor probe away from direct sunlight and heavy precipitation
* Remove the protection cap of the sensor jack and plug the external probe into the Sensor Port.
* Make sure it is properly connected. When the external probe is removed, release the memory
by pressing "MEMORY RESET" button at the back of the unit.
Displaying the Indoor Temperature and Humidity ( in use of built-in sensors)
Press the IN/OUT button to switch to IN (IN is lit).
The upper LCD displays indoor temperature and indoor
humidity displays the lower LCD.
Displaying the Outdoor Temperature
Press the IN/OUT button to switch to OUT (OUT is lit).
The upper LCD displays outdoor temperature.
NB: The lower LCD displays indoor humidity for all time.
2) Hang the external sensor with the
attachment loop onto a wall and fasten the
attachment with a screw though a hole
Operation Buttons
IN/OUT MIN
* Temperature
2
MAX
