Operating & Maintenance
Type
3-5
Briggs & Stratton does not approve or authorize the use of
6
these engines on 3-wheel All Terrain Vehicles (ATVs), motor
7
bikes, aircraft products or vehicles intended for use in
competitive events. Use of these engines in such applications
8
could result in property damage, serious injury (including
paralysis), or even death.
In the USA and Canada our 24 hour hotline is
14
17
Instructions
Code
Month Day Year
WARNING
1-800-233-3723
Briggs & Stratton Corporation
Milwaukee, Wisconsin 53201
www.briggsandstratton.com
FORM NO. 274782-9/00
Advertisement
Table of Contents
Related Manuals for Briggs & Stratton 11B600
Summary of Contents for Briggs & Stratton 11B600

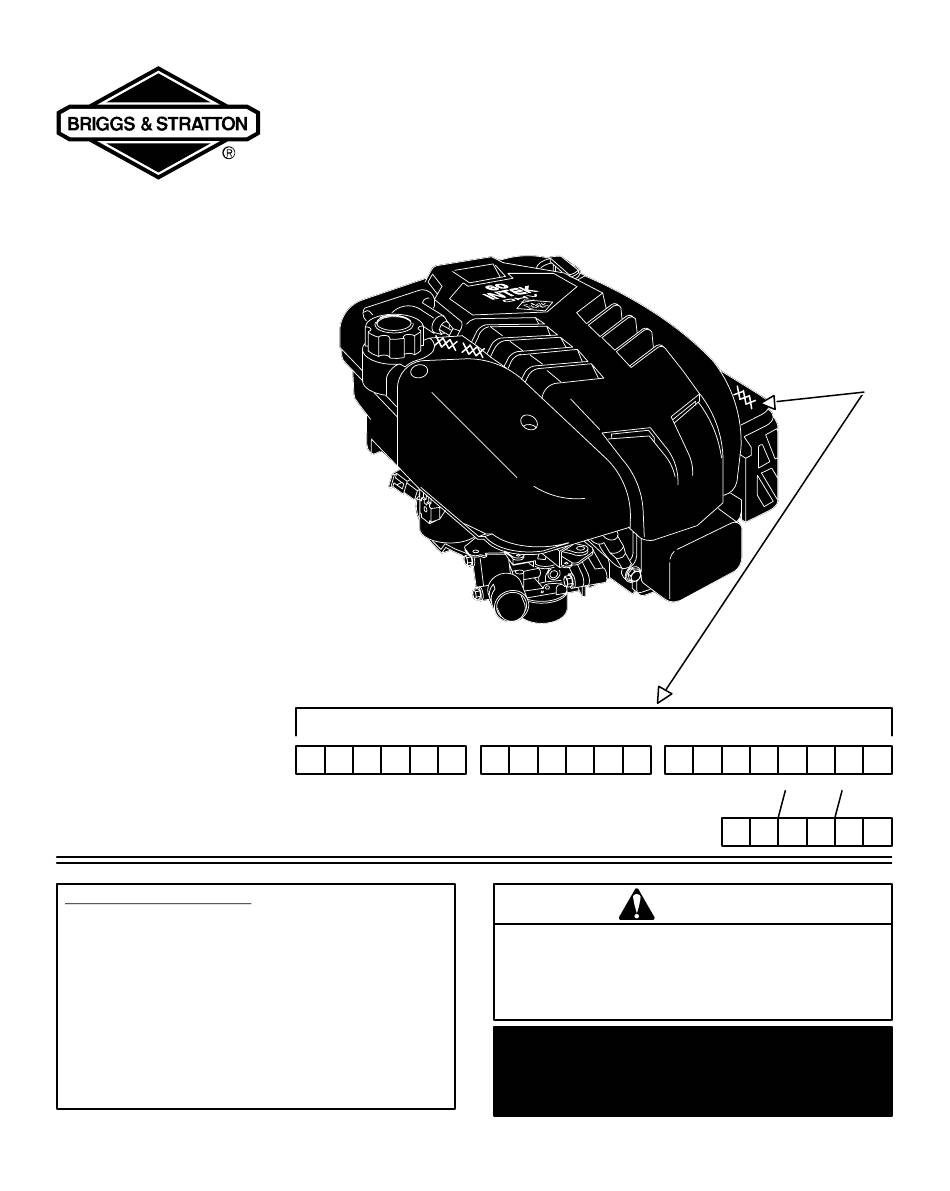

- Page 1 Operating & Maintenance Instructions Model Series Covered in This Manual 11A600 11B600 110600 111600 120600 121600 122600 123600 124600 125600 126600 Model Type Code Note: General Model Series numbers noted above include many specific numbers Month Day Year like the ones on your engine. To get replacement parts or technical assistance in the future, write your engine Model, Type, Code and date of purchase here.
