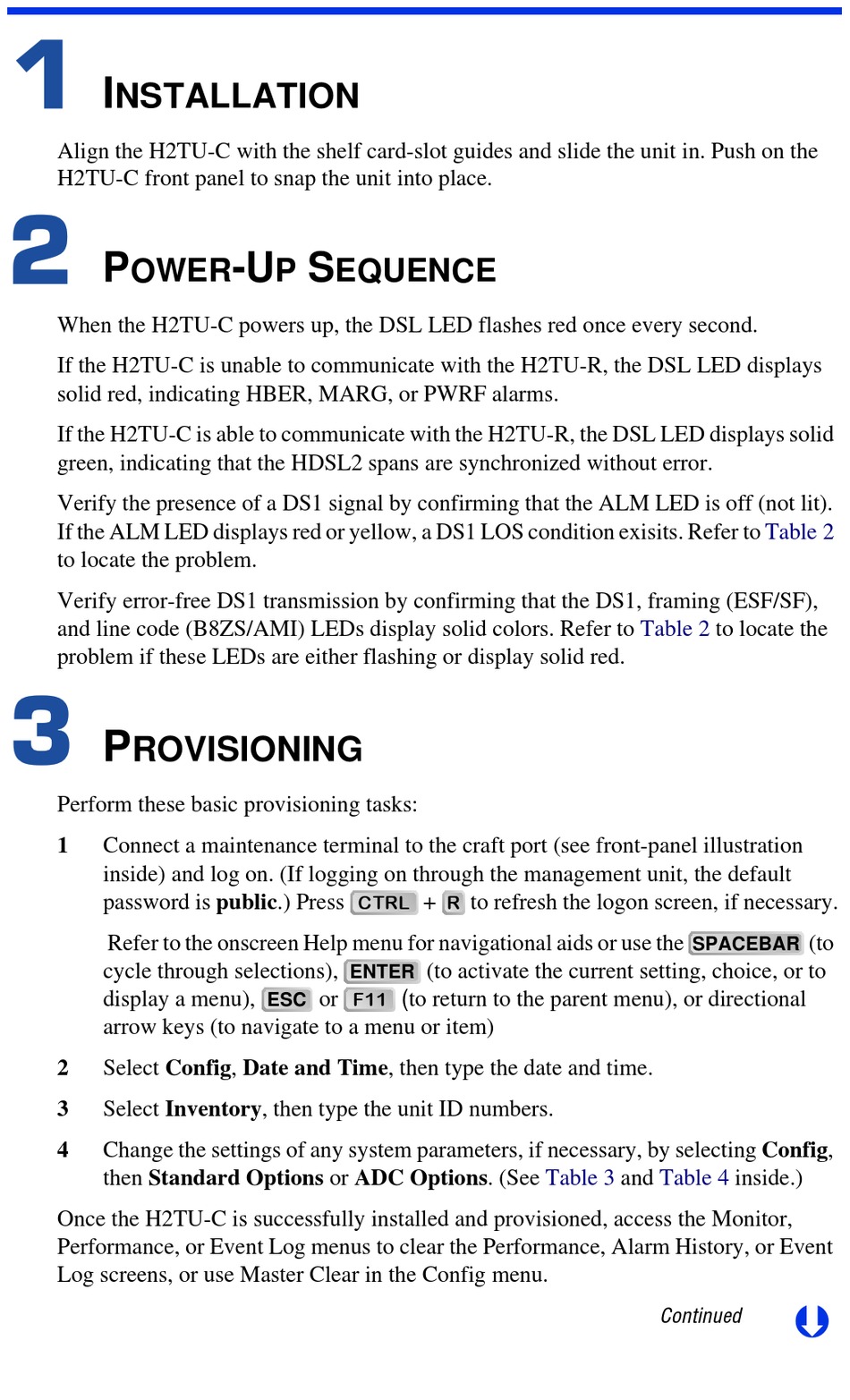

Installation; Power-Up Sequence; Provisioning - ADC HiGain H2TU-C-319 List 4G Quick Installation

I
NSTALLATION
Align the H2TU-C with the shelf card-slot guides and slide the unit in. Push on the
H2TU-C front panel to snap the unit into place.
P
OWER
When the H2TU-C powers up, the DSL LED flashes red once every second.
If the H2TU-C is unable to communicate with the H2TU-R, the DSL LED displays
solid red, indicating HBER, MARG, or PWRF alarms.
If the H2TU-C is able to communicate with the H2TU-R, the DSL LED displays solid
green, indicating that the HDSL2 spans are synchronized without error.
Verify the presence of a DS1 signal by confirming that the ALM LED is off (not lit).
If the ALM LED displays red or yellow, a DS1 LOS condition exisits. Refer to
to locate the problem.
Verify error-free DS1 transmission by confirming that the DS1, framing (ESF/SF),
and line code (B8ZS/AMI) LEDs display solid colors. Refer to
problem if these LEDs are either flashing or display solid red.
P
ROVISIONING
Perform these basic provisioning tasks:
1 Connect a maintenance terminal to the craft port (see front-panel illustration
inside) and log on. (If logging on through the management unit, the default
password is public.) Press
Refer to the onscreen Help menu for navigational aids or use the
cycle through selections),
display a menu),
arrow keys (to navigate to a menu or item)
2 Select Config, Date and Time, then type the date and time.
3 Select Inventory, then type the unit ID numbers.
4 Change the settings of any system parameters, if necessary, by selecting Config,
then Standard Options or ADC Options. (See
Once the H2TU-C is successfully installed and provisioned, access the Monitor,
Performance, or Event Log menus to clear the Performance, Alarm History, or Event
Log screens, or use Master Clear in the Config menu.
-U S
P EQUENCE
CTRL
ENTER
F11
or
ESC
R
+ to refresh the logon screen, if necessary.
(to activate the current setting, choice, or to
(to return to the parent menu), or directional
Table 3
Table 2
Table 2 to locate the
SPACEBAR
and Table 4 inside.)
Continued
(to
Þ
